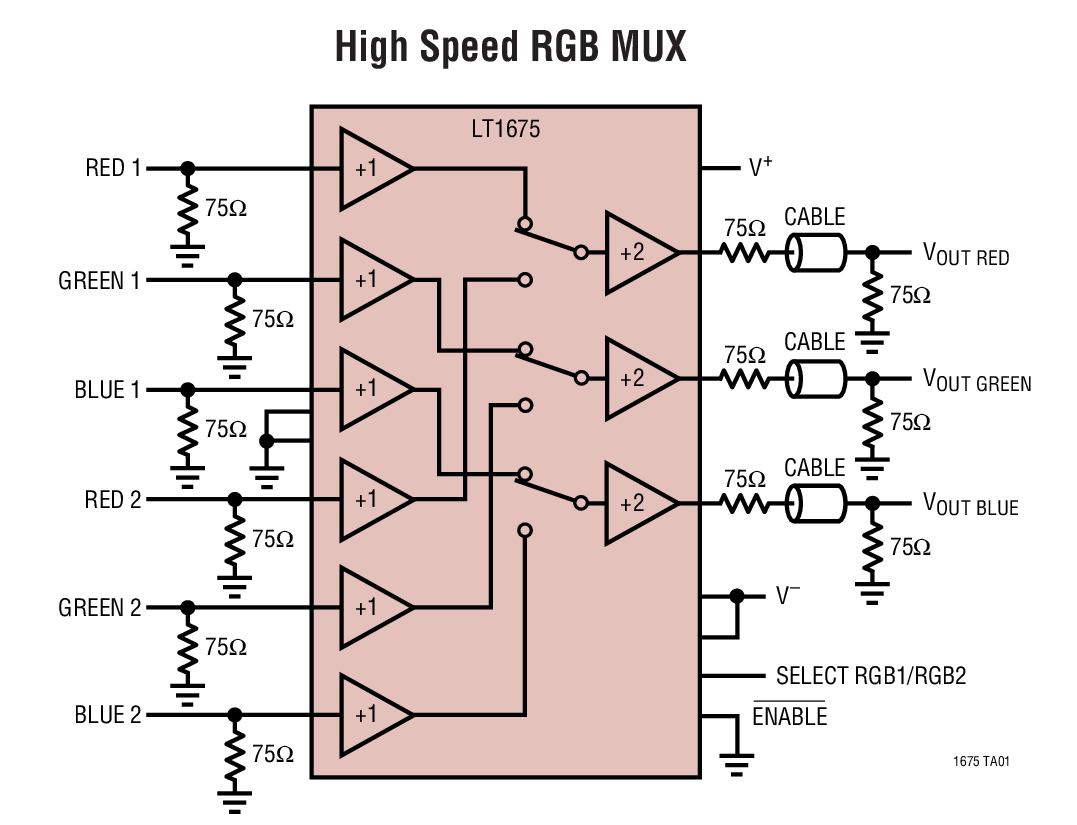

The LT1675 is a high speed RGB multiplexer designed for pixel switching and fast workstation graphics. Included on chip are three SPDT switches and three current feedback amplifiers. The current feedback amplifiers drive double-terminated 50Ω or 75Ω cables and are configured for a fixed gain of 2, eliminating six external gain setting resistors. The SPDT switches are designed to be break-before-make to minimize unwanted signals coupling to the input.The LT1675-1 is a single version with two inputs, a single output and is ideal for a single channel application such as video sync.The key to the LT1675 fast switching speed is our proprietary high speed bipolar process. This MUX can toggle between sources in excess of 100MHz, has a slew rate over 1000V/µs and has a –3dB bandwidth of 250MHz. Power supply requirements are ±4V to ±6V and power dissipation is only 300mW on ±5V, or 100mW for the LT1675-1. The expandable feature uses the disable pin to reduce the power dissipation to near 0mW in the off parts.Unlike competitive solutions that are in bulky high pin count packages, the LT1675 is in a 16-lead narrow body SSOP. This small footprint, the size of an SO-8, results in a very clean high performance solution. The LT1675-1 is available in the tiny MSOP and the SO-8.ApplicationsRGB SwitchingWorkstation GraphicsPixel SwitchingCoaxial Cable DriversHigh Speed Signal Processing

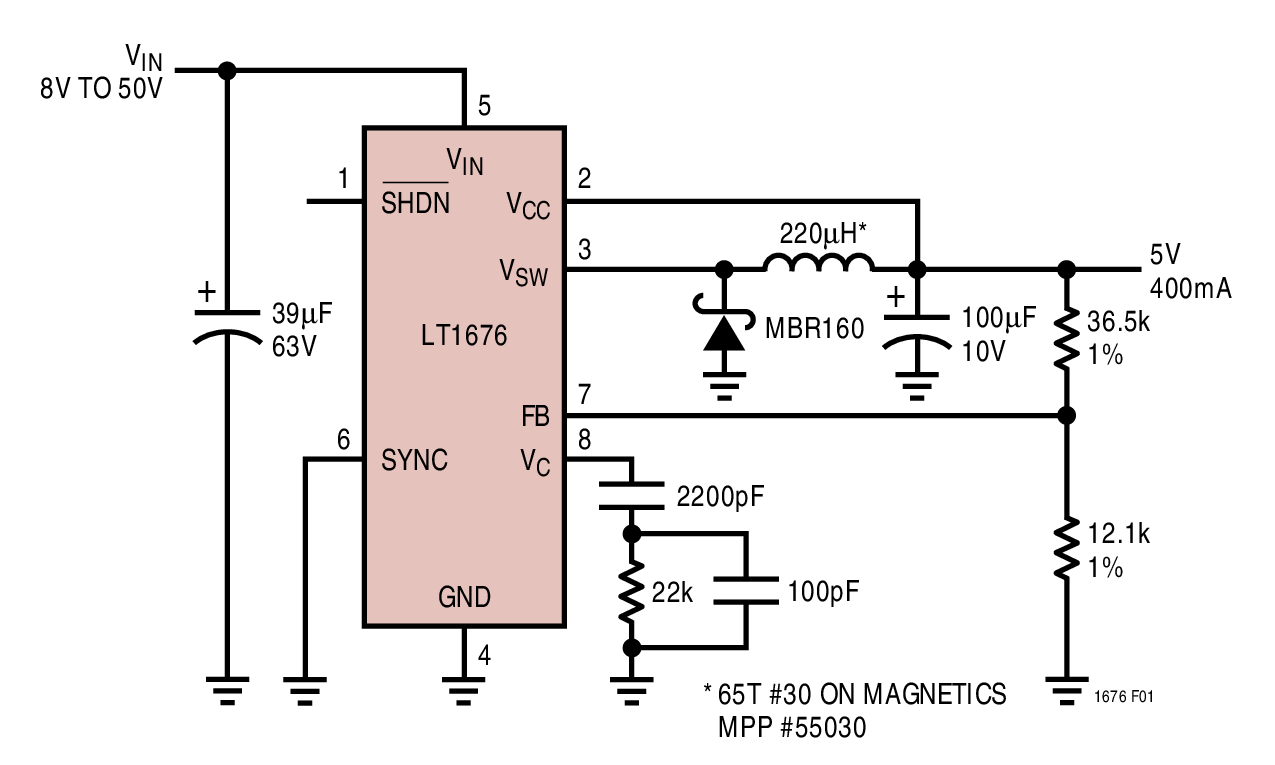

The LT1676 is a wide input range, high efficiency Buck (step-down) switching regulator. The monolithic die includes all oscillator, control and protection circuitry. The part can accept input voltages as high as 60V and contains an output switch rated at 700mA peak current. Current mode control offers excellent dynamic input supply rejection and short-circuit protection.The LT1676 contains several features to enhance efficiency. The internal control circuitry is normally powered via the VCCpin, thereby minimizing power drawn directly from the VINsupply (see Applications Information). The action of the LT1676 switch circuitry is also load dependent. At medium to high loads, the output switch circuitry maintains high rise time for good efficiency. At light loads, rise time is deliberately reduced to avoid pulse skipping behavior.The available SO-8 package and 100kHz switching frequency allow for minimal PC board area requirements.ApplicationsAutomotive DC/DC ConvertersTelecom 48V Step-Down ConvertersCellular Phone Battery Charger AccessoriesIEEE 1394 Step-Down Converters

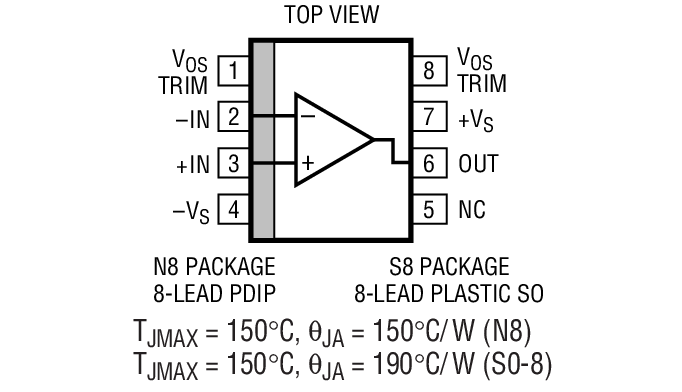

The LT1677 features the lowest noise performance available for a rail-to-rail operational amplifier: 3.2nV/√Hzwideband noise, 1/f corner frequency of 13Hz and 90nV peak-to-peak 0.1Hz to 10Hz noise. Low noise is combined with outstanding precision: 20µV offset voltage and 0.2µV/°C drift, 130dB common mode and power supply rejection and 7.2MHz gain bandwidth product. The common mode range exceeds the power supply by 100mV.The voltage gain of the LT1677 is extremely high, 19 million (typical) driving a 10k load.In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications have been spectacularly improved compared to competing rail-to-rail amplifiers.ApplicationsLow Noise Signal ProcessingMicrovolt Accuracy Threshold DetectionStrain Gauge AmplifiersTape Head PreamplifiersDirect Coupled Audio Gain StagesInfrared DetectorsBattery-Powered Microphones

The LT1678/LT1679 are dual/quad rail-to-rail op amps offering both low noise and precision: 3.9nV/√Hzwideband noise, 1/f corner frequency of 4Hz and 90nV peak-to-peak 0.1Hz to 10Hz noise are combined with outstanding precision: 100µV maximum offset voltage, greater than 100dB common mode and power supply rejection and 20MHz gain bandwidth product. The LT1678/LT1679 bring precision as well as low noise to single supply applications as low as 3V. The input range exceeds the power supply by 100mV with no phase inversion while the output can swing to within 170mV of either rail.The LT1678/LT1679 are offered in the SO-8 and SO-14 packages. A full set of matching specifications are also provided, facilitating their use in matching dependent applications such as a two op amp instrumentation amplifier design. The LT1678/LT1679 are specified for supply voltages of ±15V, single 5V as well as single 3V. For a single amplifier with similiar performance, see the LT1677 data sheet.ApplicationsStrain Gauge AmplifiersPortable MicrophonesBattery-Powered Rail-to-Rail InstrumentationLow Noise Signal ProcessingMicrovolt Accuracy Threshold DetectionInfrared Detectors

The LT1678/LT1679 are dual/quad rail-to-rail op amps offering both low noise and precision: 3.9nV/√Hzwideband noise, 1/f corner frequency of 4Hz and 90nV peak-to-peak 0.1Hz to 10Hz noise are combined with outstanding precision: 100µV maximum offset voltage, greater than 100dB common mode and power supply rejection and 20MHz gain bandwidth product. The LT1678/LT1679 bring precision as well as low noise to single supply applications as low as 3V. The input range exceeds the power supply by 100mV with no phase inversion while the output can swing to within 170mV of either rail.The LT1678/LT1679 are offered in the SO-8 and SO-14 packages. A full set of matching specifications are also provided, facilitating their use in matching dependent applications such as a two op amp instrumentation amplifier design. The LT1678/LT1679 are specified for supply voltages of ±15V, single 5V as well as single 3V. For a single amplifier with similiar performance, see the LT1677 data sheet.ApplicationsStrain Gauge AmplifiersPortable MicrophonesBattery-Powered Rail-to-Rail InstrumentationLow Noise Signal ProcessingMicrovolt Accuracy Threshold DetectionInfrared Detectors

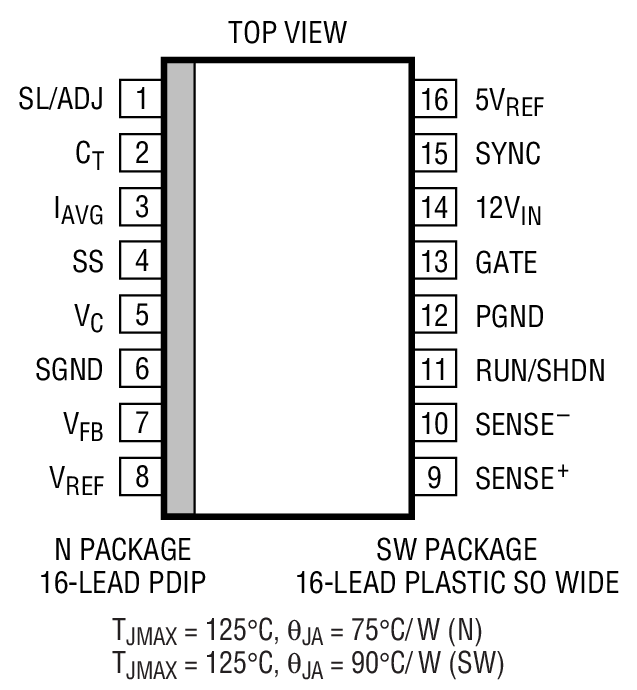

The LT1680 is a high power, current mode switching power supply controller optimized for boost topologies. The IC drives an N-channel MOSFET switch for DC/DC converter applications up to 60V input. A high current gate drive output handles up to 10,000pF gate capacitance, enabling the construction of high power DC/DC converters. Current sense common mode range up to 60V allows current sensing to be referenced to the input supply, eliminating the need for sense blanking circuits.The LT1680 incorporates programmable average current limiting allowing accurate limiting of DC current in the magnetics, independent of ripple current. User adjustable slope compensation provides stable operation at duty cycles up to 90%.The LT1680 operating frequency is programmable and can be synchronized up to 200kHz. Minimum off-time operation provides switch protection. The IC also incorporates a soft start feature that is gated by both shutdown and undervoltage lockout conditions.ApplicationsHigh Power Single Board SystemsDistributed Power ConvertersIndustrial Control SystemsLead-Acid Battery Back-Up SystemsAutomotive and Heavy Equipment

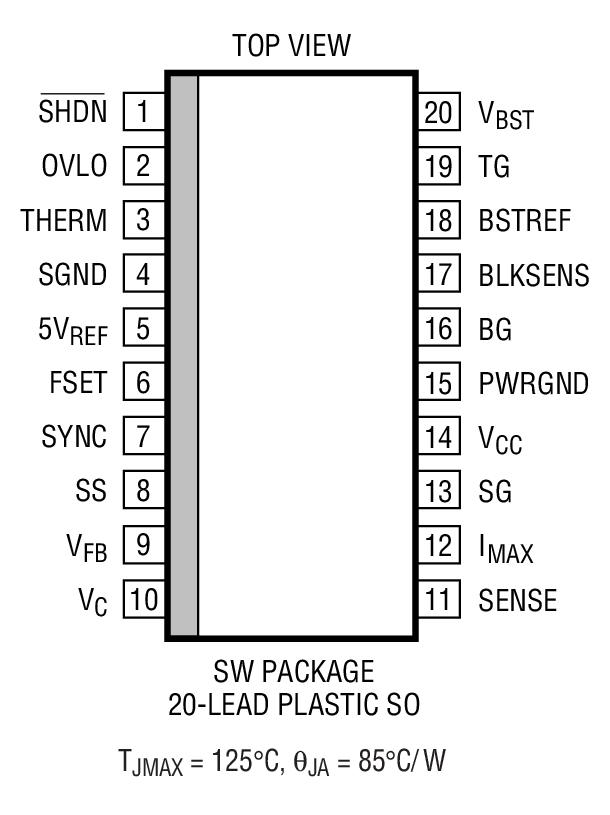

The LT1681 controller simplifies the design of high power synchronous dual transistor forward DC/DC converters. The part employs fixed frequency current mode control and supports both isolated and nonisolated topologies. The IC drives external N-channel power MOSFETs and operates with input voltages up to 72V.The LT1681’s operating frequency is programmable and can be synchronized up to 350kHz. Switch phase is also controlled during synchronized operation to accommodate multiple converter systems. Internal logic guarantees 50% maximum duty cycle operation to prevent transformer saturation.The LT1681 incorporates a soft-start feature that provides a controlled increase in supplied current during start-up and after an undervoltage lockout or overvoltage/overcurrent event.The part is available in a 20-lead wide SO package to support high voltage pin-to-pin clearance.ApplicationsIsolated Telecommunication SystemsPersonal Computers and PeripheralsLead Acid Battery Backup SystemsAutomotive and Heavy Equipment

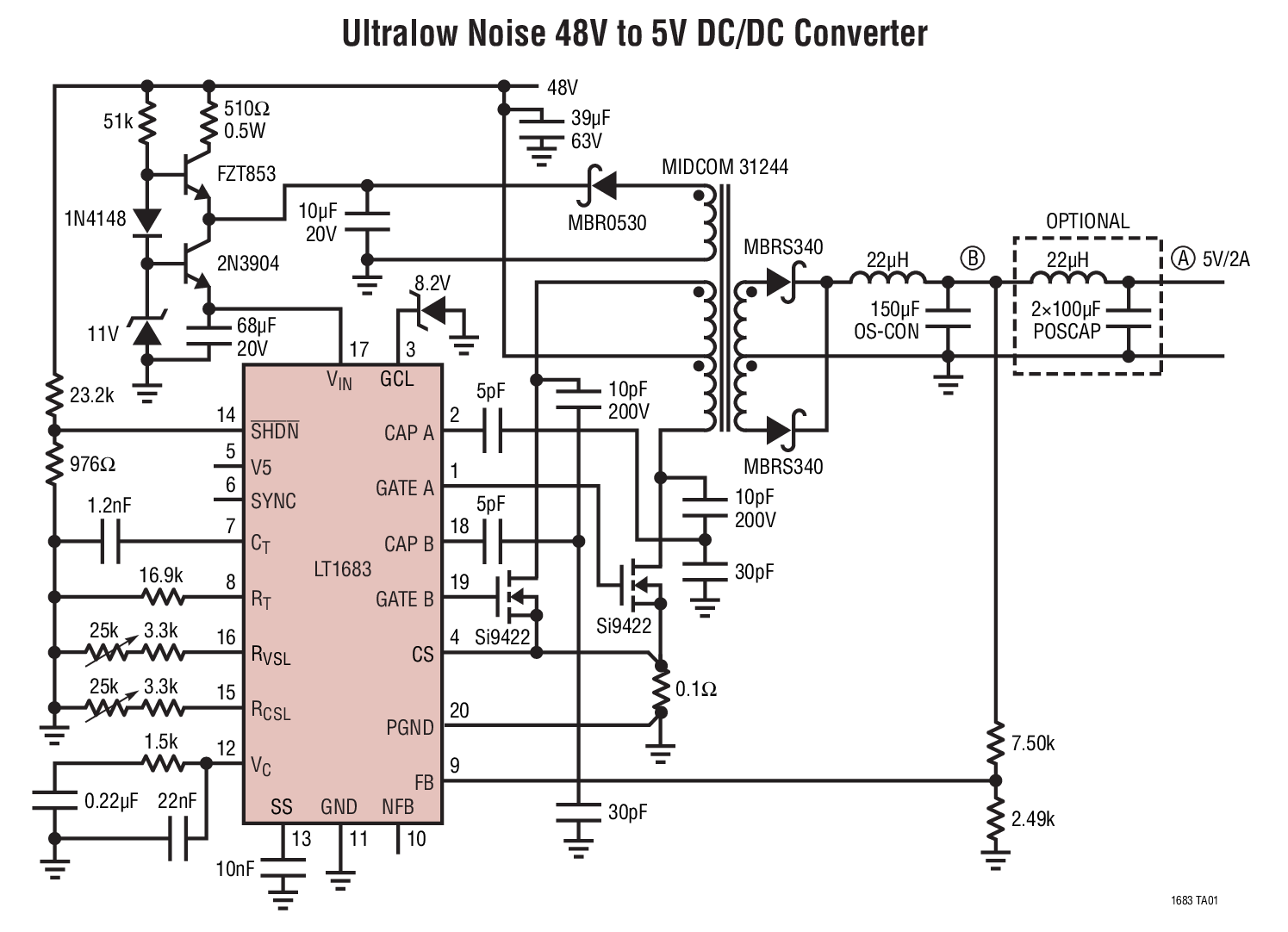

The LT1683 is a switching regulator controller designed to lower conducted and radiated electromagnetic interference (EMI). Ultralow noise and EMI are achieved by controlling the voltage and current slew rates of external N-channel MOSFET switches. Current and voltage slew rates can be independently set to optimize harmonic content of the switching waveforms vs efficiency. The LT1683 can reduce high frequency harmonic power by as much as 40dB with only minor losses in efficiency.The LT1683 utilizes a dual output (push-pull) current mode architecture optimized for low noise topologies. The IC includes gate drivers and all necessary oscillator, control and protection circuitry. Unique error amp circuitry can regulate both positive and negative voltages. The oscillator may be synchronized to an external clock for more accurate placement of switching harmonics.Protection features include gate drive lockout for low VIN, opposite gate lockout, soft-start, output current limit, short-circuit current limiting, gate drive overvoltage clamp and input supply undervoltage lockout.ApplicationsPower Supplies for Noise Sensitive Communication EquipmentEMI Compliant Offline Power SuppliesPrecision Instrumentation SystemsIsolated Supplies for Industrial AutomationMedical InstrumentsData Acquisition Systems

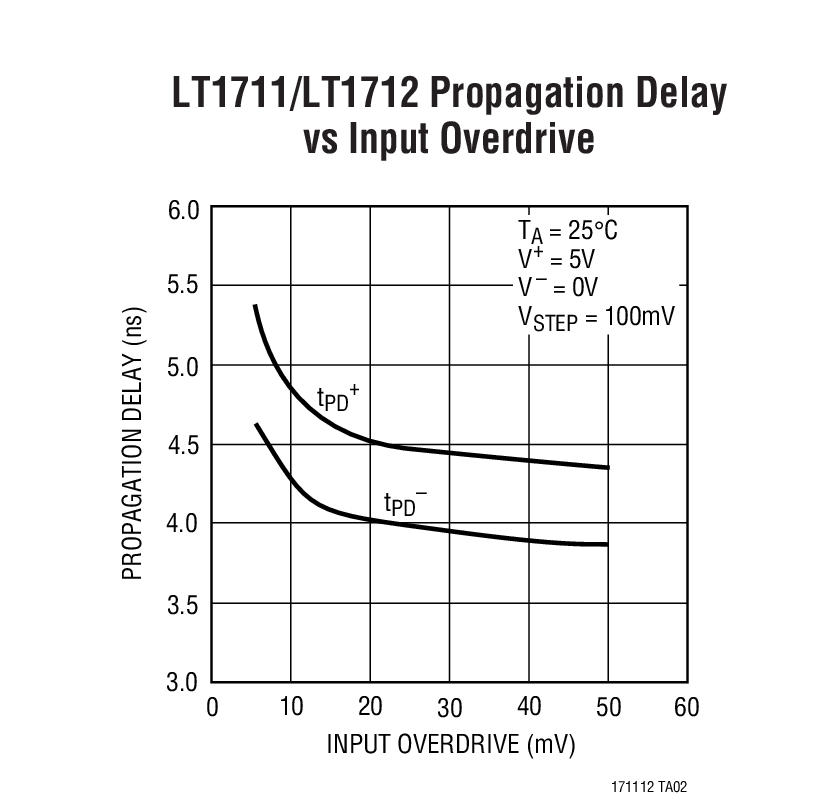

The LT1711 is 4.5ns comparator featuring rail-to-rail inputs, rail-to-rail complementary outputs and an output latch. Optimized for 3V and 5V power supplies, it operates over a single supply voltage range from 2.4V to 12V or from ±2.4V to ±6V dual supplies.The LT1711 is designed for ease of use in a variety of systems. In addition to the wide supply voltage flexibility, the rail-to-rail input common mode range extends 100mV beyond both supply rails, and the outputs are protected against phase reversal for inputs extending further beyond the rails. Also, the rail-to-rail inputs may be taken to opposite rails with no significant increase in input current. The rail-to-rail matched complementary outputs interface directly to TTL or CMOS logic and can sink 10mA to within 0.5V of GND or source 10mA to within 0.7V of V+.The LT1711 has an internal TTL/CMOS compatible latch for retaining data at the outputs. The latch holds data as long as the latch pin is held high. Latch pin hysteresis provides protection against slow moving or noisy latch signals. The LT1711 is available in the 8-pin MSOP package.ApplicationsHigh Speed Automatic Test EquipmentCurrent Sense for Switching RegulatorsCrystal Oscillator CircuitsHigh Speed Sampling CircuitsHigh Speed A/D ConvertersPulse Width ModulatorsWindow ComparatorsExtended Range V/F ConvertersFast Pulse Height/Width DiscriminatorsLine ReceiversHigh Speed Triggers
