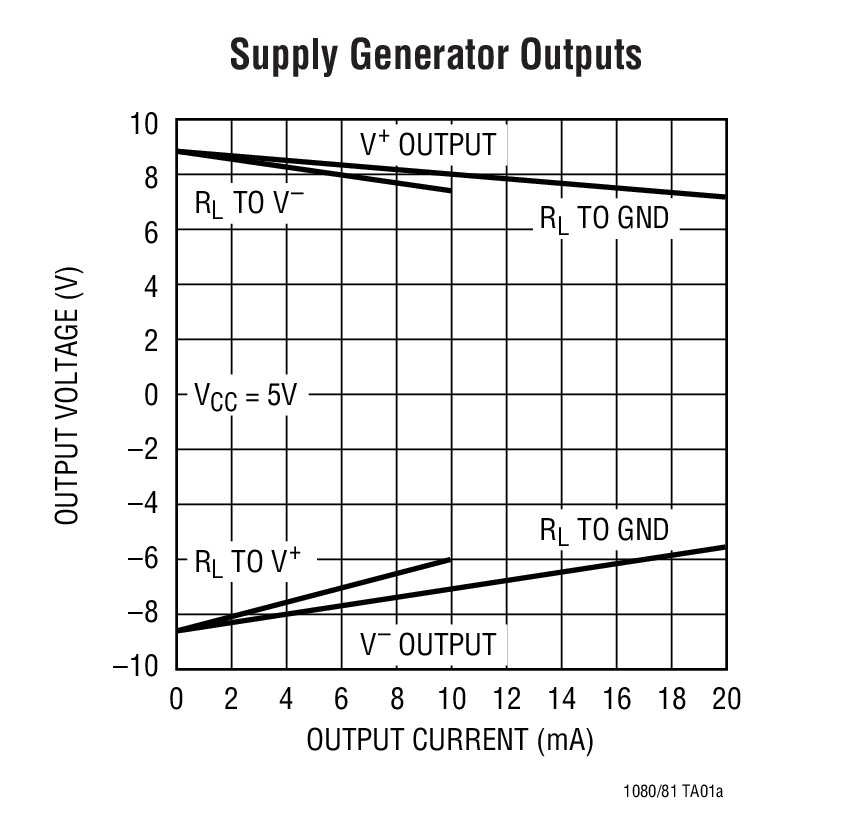

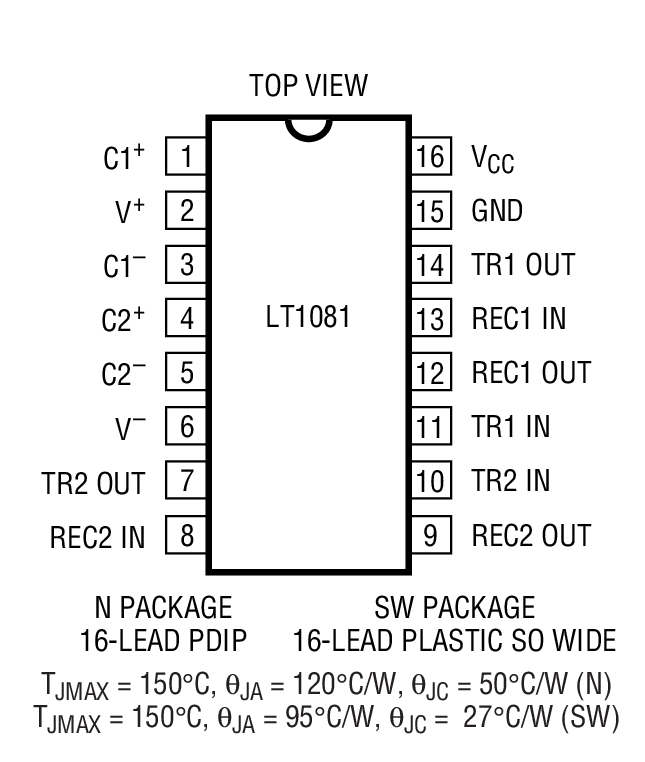

The LT1080/LT1081 are the only dual RS232 driver/receiver with charge pump to guarantee absolutely no latchup. These interface optimized devices provide a realistic balance between CMOS levels of power dissipation and real world requirements for ruggedness. The driver outputs are fully protected against overload and can be shorted to ±30V. Unlike CMOS, the advanced architecture of the LT1080/LT1081 does not load the signal line when "shut down" or when power is off. Both the receiver and RS232 outputs are put into a high impedance state. An advanced output stage allows driving higher capacitive loads at higher speeds with exceptional ruggedness against ESD.For applications requiring up to five drivers and five receivers with charge pump in one package see the LT1130A Series data sheet. A version of the LT1080/LT1081, the LT1180A and LT1181A that use only 0.1µF capacitors, is also available. All of Linear Technology’s RS232 ICs are available in standard surface mount packages.ApplicationsPortable ComputersBattery-Powered RS232 SystemsPower Supply GeneratorTerminalsModems

The LT1080/LT1081 are the only dual RS232 driver/receiver with charge pump to guarantee absolutely no latchup. These interface optimized devices provide a realistic balance between CMOS levels of power dissipation and real world requirements for ruggedness. The driver outputs are fully protected against overload and can be shorted to ±30V. Unlike CMOS, the advanced architecture of the LT1080/LT1081 does not load the signal line when "shut down" or when power is off. Both the receiver and RS232 outputs are put into a high impedance state. An advanced output stage allows driving higher capacitive loads at higher speeds with exceptional ruggedness against ESD.For applications requiring up to five drivers and five receivers with charge pump in one package see the LT1130A Series data sheet. A version of the LT1080/LT1081, the LT1180A and LT1181A that use only 0.1µF capacitors, is also available. All of Linear Technology’s RS232 ICs are available in standard surface mount packages.ApplicationsPortable ComputersBattery-Powered RS232 SystemsPower Supply GeneratorTerminalsModems

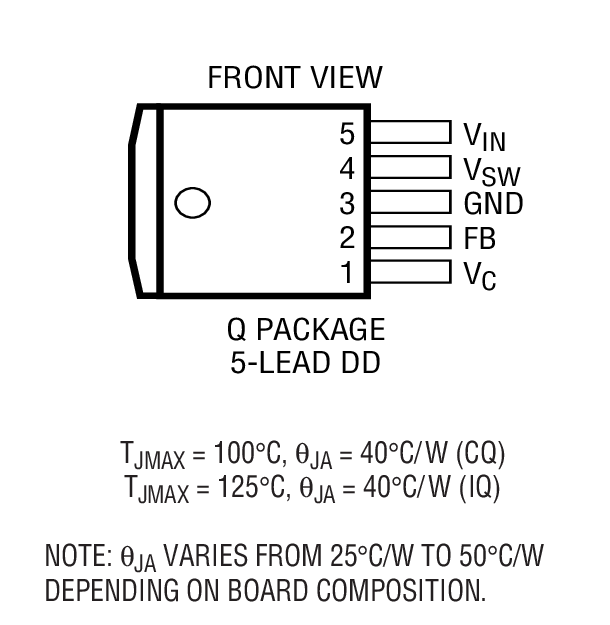

The LT1082 is a monolithic high voltage switching regulator. It can be operated in all standard switching configurations including buck, boost, flyback, forward, and inverting. A 1A high efficiency switch is included on the die along with all oscillator, control, and protection circuitry.The LT1082 operates with supply voltages from 3V to 75V, switch voltage up to 100V and draws only 4.5mA quiescent current. It can deliver load power up to 20W with no external power devices. By utilizing current-mode switching techniques, it provides excellent AC and DC load and line regulation.An externally activated shutdown mode reduces total supply current to 120µA typical for standby operation. Totally isolated and regulated outputs can be generated by using the optional "isolated flyback regulation mode" built into the LT1082, without the need for optocouplers or extra transformer windings.The LT1082 has a unique feature to provide high voltage short-circuit protection. When the FB pin is pulled down to 0.6V and the current out of the pin reaches approximately 350µA, the switching frequency will shift down from 60kHz to 12kHz.ApplicationsTelecom 5V Supply at 0.7A from -48V90V Supply at 120mA from 15VAll Applications Using LT1072

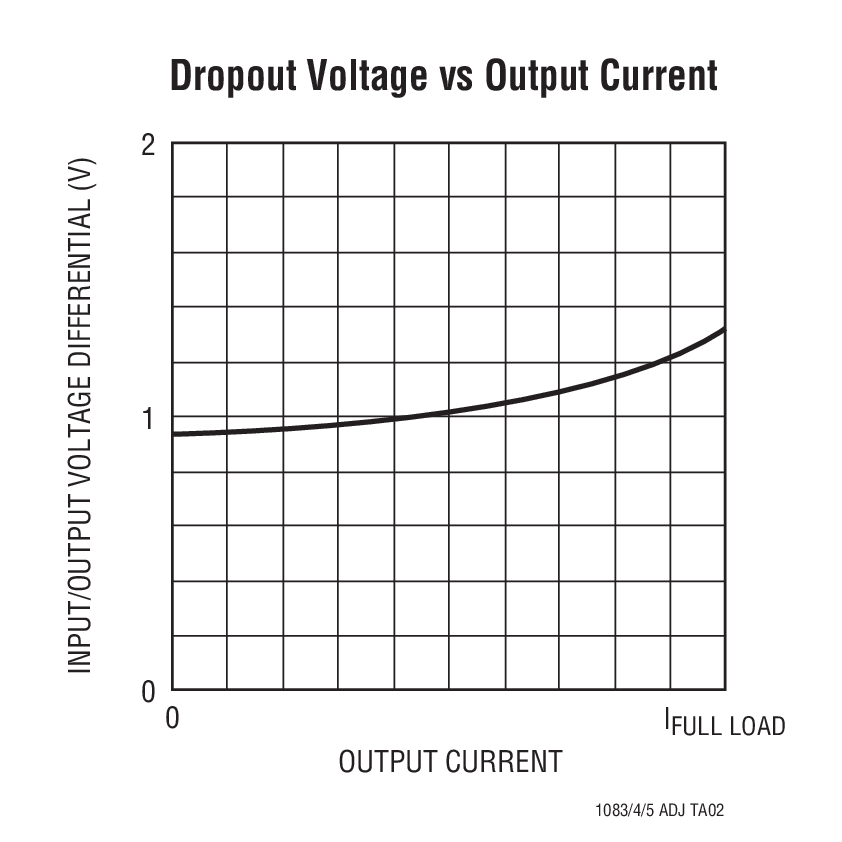

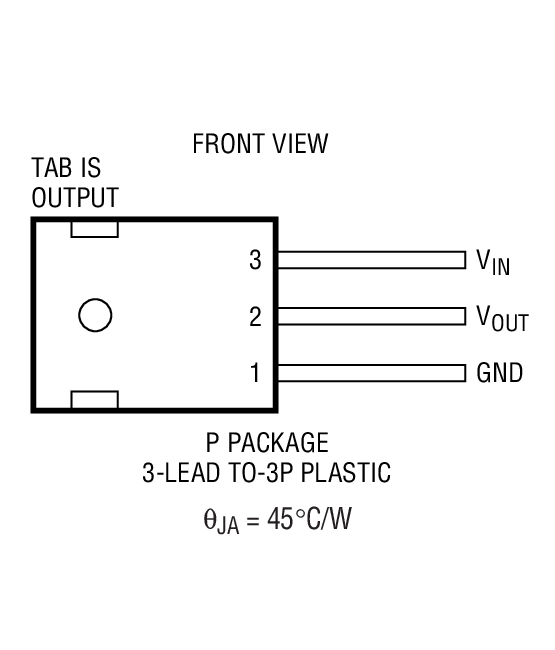

The LT1083 series of positive adjustable regulators are designed to provide 3A, 5A and 7.5A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V input to output differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the output voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.The LT1083 series devices are pin compatible with older three-terminal regulators. A 10µF output capacitor is required on these new devices; however, this is usually included in most regulator designs.Unlike PNP regulators, where up to 10% of the output current is wasted as quiescent current, the LT1083 quiescent current flows into the load, increasing efficiency.ApplicationsHigh Efficiency Linear RegulatorsPost Regulators for Switching SuppliesConstant Current RegulatorsBattery Chargers

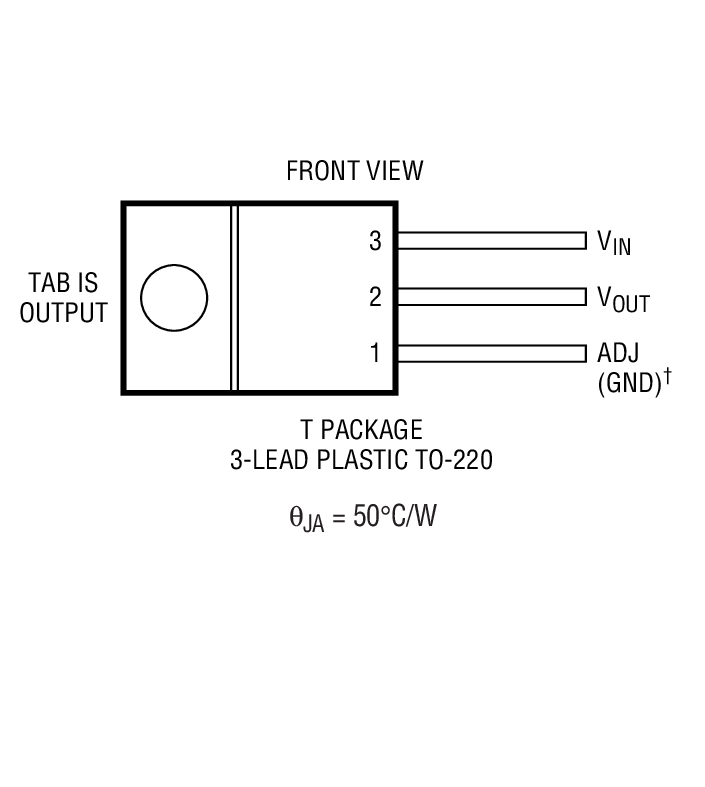

The LT1086 is designed to provide up to 1.5A output current. All internal circuitry is designed to operate down to 1V input-to-output differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at several operating points up to a maximum of 1.5V at maximum output current. Dropout decreases at lower load currents. On-chip trimming adjusts the reference/ouput voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and powersource circuitry under overload conditions.The LT1086 is pin compatible with older 3-terminal adjustableregulators. A minimum 10µF output capacitor isrequired on these devices.The LT1086 offers excellent line and load regulation specifications and ripple rejection exceeds 75dB even at the maximum load current of 1.5A. The LT1086 is floating architecture with a composite NPN output stage. All of the quiescent current and the drive current for the output stage flows to the load increasing efficiency.The LT1086 is available in a 3-pin TO-220 package and a space-saving surface mountable 3-pin DD package.ApplicationsSCSI-2 Active TerminatorHigh Efficiency Linear RegulatorsPost Regulators for Switching SuppliesConstant Current RegulatorsBattery ChargersMicroprocessor Supply

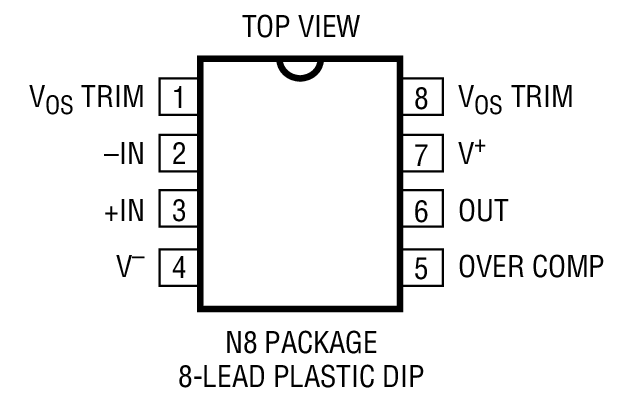

LT1097 achieves a new standard in combining low price and outstanding precision performance.On all operational amplifier data sheets, the specifications listed on the front page are for highly selected, expensive grades, while the specs for the low cost grades are buried deep in the data sheet.The LT1097 does not have any selected grades, the outstanding specifications shown in the Features section are for its only grade.The design effort of the LT1097 concentrated on optimizing the performance of all precision specs—at only 350µA of supply current. Typical values are 10µV offset voltage, 40pA bias and offset currents, 0.2µV/°C and 0.4pA/°C drift. Common mode and power supply rejections, voltage gain are typically in excess of 128dB.All parameters that are important for precision, low power op amps have been optimized. Consequently, using the LT1097 error budget calculations in most applications is unnecessary.ApplicationsReplaces OP-07/OP-77/OP-97/OP-177/AD707/LT1001 with Improved Price/PerformanceHigh Impedance Difference AmplifiersLogarithmic Amplifiers (Wide Dynamic Range)Thermocouple AmplifiersPrecision InstrumentationActive Filters (with Small Capacitors)

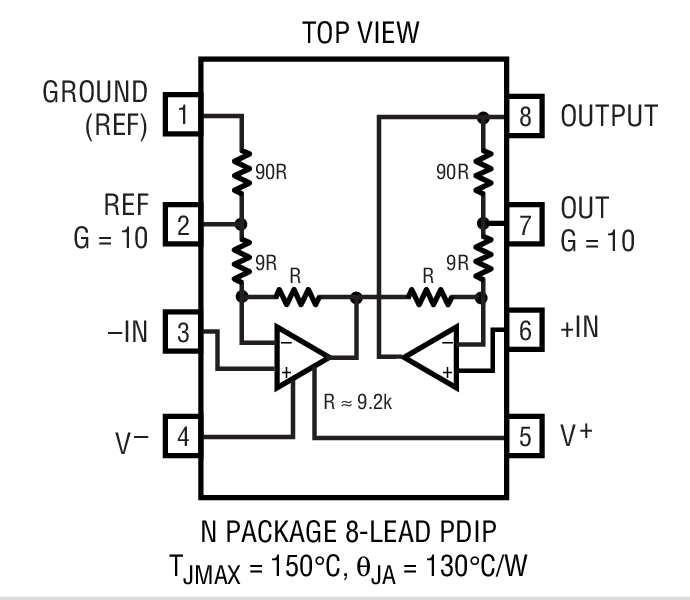

The LT1101 establishes the following milestones: (1) It is the first micropower instrumentation amplifier, (2) It is the first single supply instrumentation amplifier, (3) It is the first instrumentation amplifier to feature fixed gains of 10 and/or 100 in low cost, space-saving 8-lead packages.The LT1101 is completely self-contained: no external gain setting resistor is required. The LT1101 combines its micropower operation (75µA supply current) with again error of 0.008%, gain linearity of 3ppm, gain drift of 1ppm/°C. The output is guaranteed to drive a 2k load to ±10V with excellent gain accuracy.Other precision specifications are also outstanding: 50µV input offset voltage, 130pA input offset current, and low drift (0.4µV/°C and 0.7pA/°C). In addition, unlike other instrumentation amplifiers, there is no output offset voltage contribution to total error.A full set of specifications are provided with ±15V dual supplies and for single 5V supply operation. The LT1101 can be operated from a single lithium cell or two Ni-Cad batteries. Battery voltage can drop as low as 1.8V, yet the LT1101 still maintains its gain accuracy. In single supply applications, both input and output voltages swing to within a few millivolts of ground. The output sinks current while swinging to ground—no external, power consuming pull down resistors are needed.ApplicationsDifferential Signal Amplification in Presence of Common Mode VoltageMicropower Bridge Transducer AmplifierThermocouplesStrain GaugesThermistorsDifferential Voltage-to-Current ConverterTransformer Coupled Amplifier4mA to 20mA Bridge Transmitter

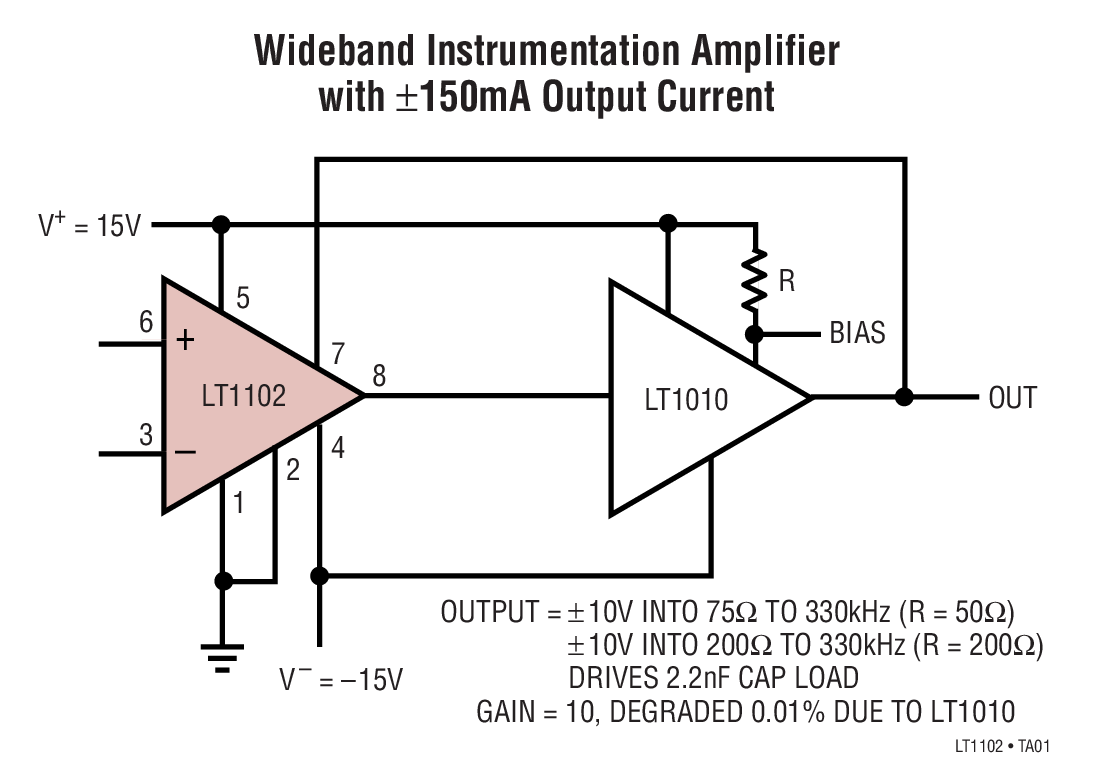

The LT1102 is the first fast FET input instrumentation amplifier offered in the low cost, space saving 8-pin packages. Fixed gains of 10 and 100 are provided with excellent gain accuracy (0.01%) and non-linearity (3ppm). No external gain setting resistor is required.Slew rate, settling time, gain-bandwidth product, overdrive recovery time are all improved compared to competitive high speed instrumentation amplifiers.Industry best speed performance is combined with impressive precision specifications: less than 10pA input bias and offset currents, 180µV offset voltage. Unlike other FET input instrumentation amplifiers, on the LT1102 there is no output offset voltage contribution to total error, and input bias currents do not double with every 10°C rise in temperature. Indeed, at 70°C ambient temperature the input bias current is only 40pA.ApplicationsFast Settling Analog Signal ProcessingMultiplexed Input Data Acquisition SystemsHigh Source Impedance Signal Amplification from High Resistance Bridges, Capacitance Sensors, Photodetector SensorsBridge Amplifier with < 1Hz Lowpass Filtering
