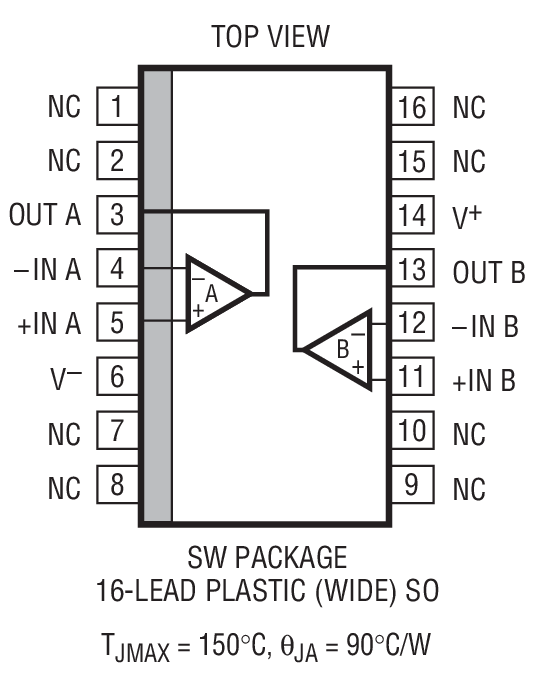

The LT®1057 is a matched JFET input dual op amp in the industry standard 8-pin configuration, featuring a combination of outstanding high speed and precision specifications. It replaces all the popular bipolar and JFET input dual opamps. In particular, the LT1057 upgrades the performance of systems using the LF412A and OP-215 JFET input duals.The LT1058 is the lowest offset quad JFET input operational amplifier in the standard 14-pin configuration. It offers significant accuracy improvement over presently available JFET input quad operational amplifiers. The LT1058 can replace four single precision JFET input op amps, while saving board space, power dissipation and cost.Both the LT1057 and LT1058 are available in the plastic PDIP package and the surface mount SO package.ApplicationsPrecision, High Speed InstrumentationFast, Precision Sample and HoldLogarithmic AmplifiersD/A Output AmplifiersPhotodiode AmplifiersVoltage to Frequency ConvertersFrequency to Voltage Converters

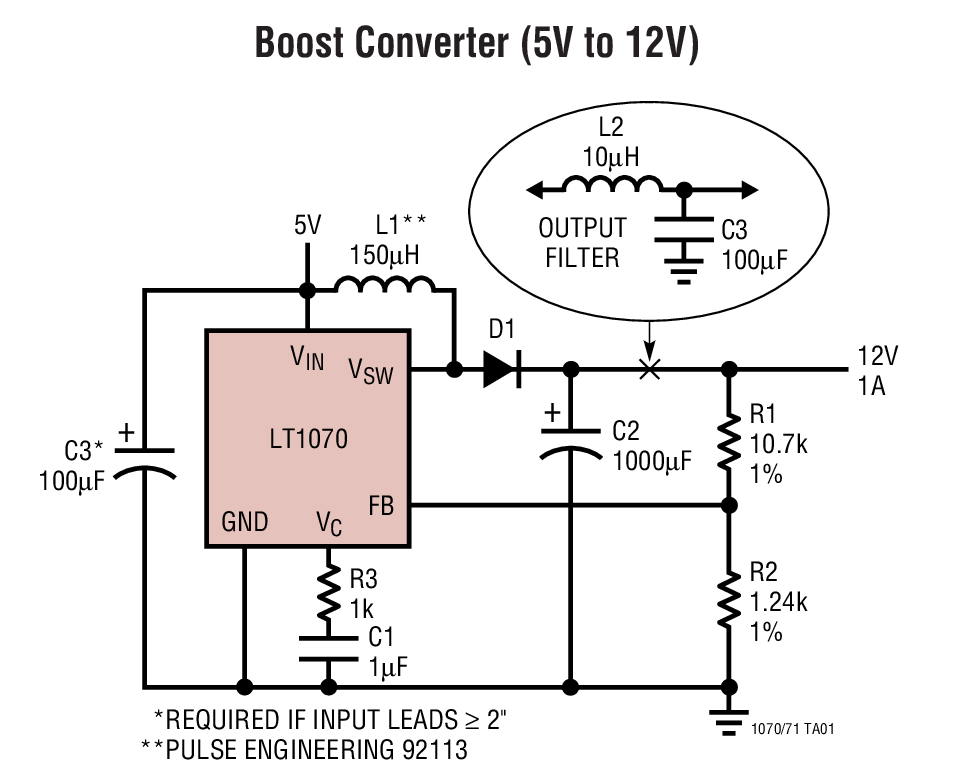

The LT1070/LT1071 are monolithic high power switching regulators. They can be operated in all standard switching configurations including buck, boost, flyback, forward,inverting and "Cuk". A high current, high efficiency switch is included on the die along with all oscillator,control and protection circuitry. Integration of all functions allows the LT1070/LT1071 to be built in a standard 5-pin T0-220 power package. This makes it extremely easy to use and provides "bust proof" operation similar to that obtained with 3-pin linear regulators.The LT1070/LT1071 operate with supply voltages from 3Vto 60V, and draw only 6mA quiescent current. They can deliver load power up to 100W with no external power devices. By utilizing current mode switching techniques, they provide excellent AC and DC load and line regulation.The LT1070/LT1071 have many unique features not found even on the vastly more difficult to use low power control chips presently available. They use adaptive antisat switch drive to allow very wide ranging load currents with no loss in efficiency. An externally activated shutdown mode reduces total supply current to 50µA typical for standby operation. Totally isolated and regulated outputs can be generated by using the optional "flyback regulation mode" built into the LT1070/LT1071, without the need for optocouplers or extra transformer windings.ApplicationsLogic Supply 5V at 10A5V Logic to ± 15V Op Amp SupplyOffline Converter up to 200WBattery UpconverterPower Inverter (+ to -) or (- to +)Fully Floating Multiple OutputsFor Lower Current Applications, See the LT1072

The LT®1070/LT1071 are monolithic high power switching regulators. They can be operated in all standard switching configurations including buck, boost, flyback, forward,inverting and "Cuk". A high current, high efficiency switch is included on the die along with all oscillator,control and protection circuitry. Integration of all functions allows the LT1070/LT1071 to be built in a standard 5-pin T0-220 power package. This makes it extremely easy to use and provides "bust proof" operation similar to that obtained with 3-pin linear regulators.The LT1070/LT1071 operate with supply voltages from 3Vto 60V, and draw only 6mA quiescent current. They can deliver load power up to 100W with no external power devices. By utilizing current mode switching techniques,they provide excellent AC and DC load and line regulation.The LT1070/LT1071 have many unique features not found even on the vastly more difficult to use low power control chips presently available. They use adaptive antisat switch drive to allow very wide ranging load currents with no loss in efficiency. An externally activated shutdown mode reduces total supply current to 50µA typical for standby operation. Totally isolated and regulated outputs can be generated by using the optional "flyback regulation mode" built into the LT1070/LT1071, without the need for optocouplers or extra transformer windings.ApplicationsLogic Supply 5V at 10A5V Logic to ± 15V Op Amp SupplyOffline Converter up to 200WBattery UpconverterPower Inverter (+ to -) or (- to +)Fully Floating Multiple OutputsFor Lower Current Applications, See the LT1072

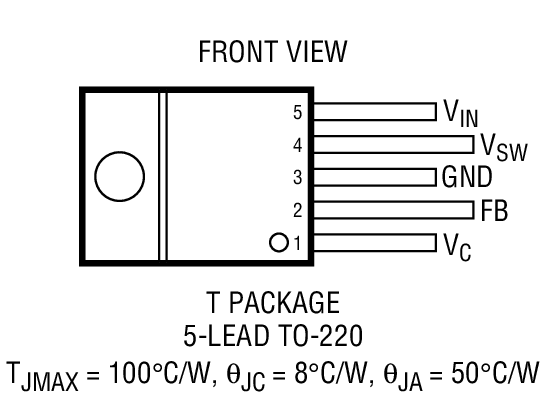

The LT®1072 is a monolithic high power switching regulator. It can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting and "Cuk". A high current, high efficiency switch is included on the die along with all oscillator, control, and protection circuitry. Integration of all functions allows the LT1072 to be built in a standard 5-pin TO-3 or TO-220 power package as well as the 8-pin miniDlP. This makes it extremely easy to use and provides "bustproof" operation similar to that obtained with 3-pin linear regulators.The LT1072 operates with supply voltages from 3V to 60V, and draws only 6mA quiescent current. It can deliver load power up to 20 watts with no external power devices. By utilizing current-mode switching techniques, it provides excellent AC and DC load and line regulation.The LT1072 has many unique features not found even on the vastly more difficult to use low power control chips presently available. It uses an adaptive anti-sat switch drive to allow very wide ranging load currents with no loss in efficiency. An externally activated shutdown mode reduces total supply current to 50µA typical for standby operation. Totally isolated and regulated outputs can be generated by using the optional "flyback regulation mode" built into the LT1072, without the need for optocouplers or extra transformer windings.ApplicationsLogic Supply 5V at 2.5A5V Logic to ±15V Op Amp SupplyOffline Converter up to 50WBattery UpconverterPower Inverter (+ to -) or (- to +)Fully Floating Multiple OutputsDriver for High Current Supplies

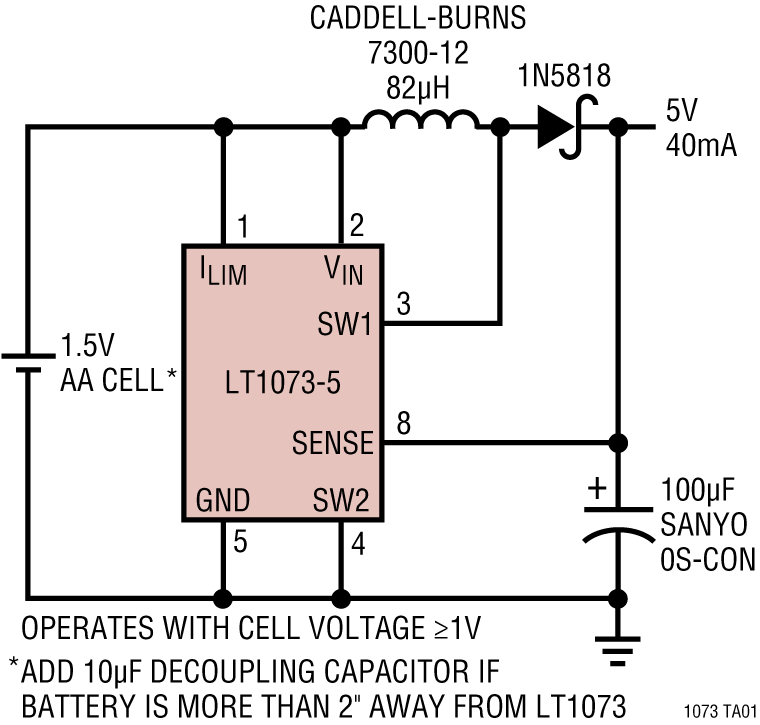

The LT1073 is a versatile micropower DC/DC converter. The device requires only three external components to deliver a fixed output of 5V or 12V. The very low minimum supply voltage of 1V allows the use of the LT1073 in applications where the primary power source is a single cell. An on-chip auxiliary gain block can function as a low-battery detector or linear post-regulator.Average current drain of the LT1073-5 used as shown in the Typical Application circuit below is just 135µA unloaded, making it ideal for applications where long battery life is important. The circuit shown can deliver 5V at 40mA from an input as low as 1.25V and 5V at 10mA from a 1V input.The device can easily be configured as a step-up or step-down converter, although for most step-down applications or input sources greater than 3V, the LT1173 is recommended. Switch current limiting is user-adjustable by adding a single external resistor. Unique reverse-battery protection circuitry limits reverse current to safe, nondestructive levels at reverse supply voltages up to 1.6V.APPLICATIONSPagersCamerasSingle-Cell to 5V ConvertersBattery Backup SuppliesLaptop and Palmtop ComputersCellular TelephonesPortable Instruments4mA to 20mA Loop Powered InstrumentsHand-Held Inventory ComputersBattery-Powered α, β and γ Particle Detectors

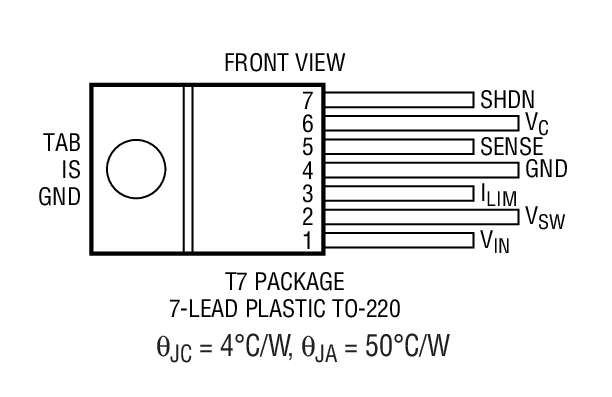

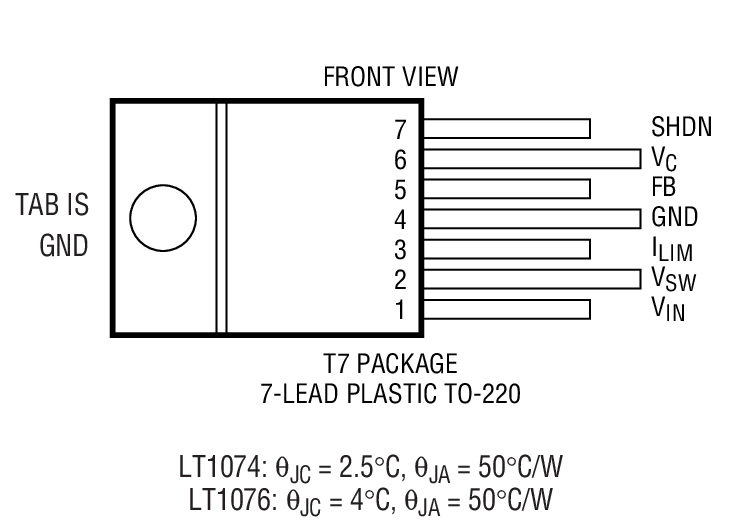

The LT1074 is a 5A (LT1076 is rated at 2A) monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, and all current limit components,are included on the chip. The topology is a classic positive "buck" configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing 40V below ground, allowing the LT1074 to drive a tapped-inductor in the buck mode with output currents up to 10A.The LT1074 uses a true analog multiplier in the feedback loop. This makes the device respond nearly instantaneously to input voltage fluctuations and makes loop gain independent of input voltage. As a result, dynamic behavior of the regulator is significantly improved over previous designs.On-chip pulse by pulse current limiting makes the LT1074 nearly bust-proof for output overloads or shorts. The input voltage range as a buck converter is 8V to 60V, but a self-boot feature allows input voltages as low as 5V in the inverting and boost configurations.The LT1074 is available in lowcost TO-220 or DD packages with frequency pre-set at 100kHz and current limit at 6.5A (LT1076 =2.6A). A 7-pin TO-220 package is also available which allows current limit to be adjusted down to zero. In addition, full micropower shutdown can be programmed. See Application Note 44 for design details.A fixed 5V output, 2A version is also available. See LT1076-5.ApplicationsBuck Converter with Output Voltage Range of 2.5V to 50VTapped-Inductor Buck Converter with 10A Output at 5VPositive-to-Negative ConverterNegative Boost ConverterMultiple Output Buck Converter

The LT1074 is a 5A (LT1076 is rated at 2A) monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, and all current limit components,are included on the chip. The topology is a classic positive "buck" configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing 40V below ground, allowing the LT1074 to drive a tapped-inductor in the buck mode with output currents up to 10A.The LT1074 uses a true analog multiplier in the feedback loop. This makes the device respond nearly instantaneously to input voltage fluctuations and makes loop gain independent of input voltage. As a result, dynamic behavior of the regulator is significantly improved over previous designs.On-chip pulse by pulse current limiting makes the LT1074 nearly bust-proof for output overloads or shorts. The input voltage range as a buck converter is 8V to 60V, but a self-boot feature allows input voltages as low as 5V in the inverting and boost configurations.The LT1074 is available in lowcost TO-220 or DD packages with frequency pre-set at 100kHz and current limit at 6.5A (LT1076 =2.6A). A 7-pin TO-220 package is also available which allows current limit to be adjusted down to zero. In addition, full micropower shutdown can be programmed. See Application Note 44 for design details.A fixed 5V output, 2A version is also available. See LT1076-5.ApplicationsBuck Converter with Output Voltage Range of 2.5V to 50VTapped-Inductor Buck Converter with 10A Output at 5VPositive-to-Negative ConverterNegative Boost ConverterMultiple Output Buck Converter

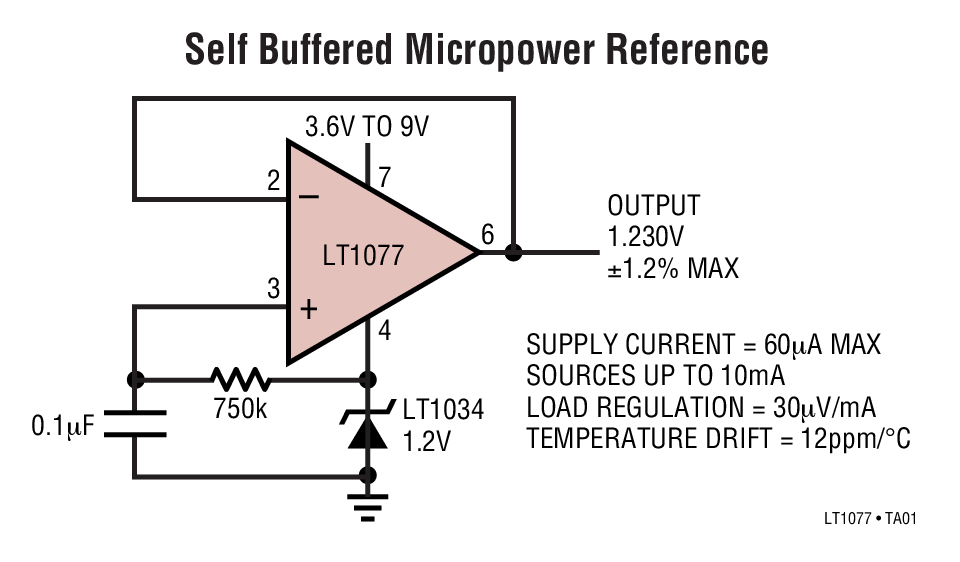

The LT1077 is a micropower precision operational amplifier optimized for single supply operation at 5V. In addition, ±15V specifications are provided.Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed, and output drive specifications. The LT1077 reduces supply current without sacrificing other parameters. The offset voltage achieved is the lowest of any micropower op amp. Offset current, voltage and current noise, slew rate and gain-bandwidth product are all two to ten times better than on previous micropower op amps.The 1/f corner of the voltage noise spectrum is at 0.7Hz. This results in low frequency (0.1Hz to 10Hz) noise performance which can only be found on devices with anorder of magnitude higher supply current.The LT1077 is completely plug-in compatible (including nulling) with all industry standard precision op amps. Thus, it can replace these precision op amps in many applications without sacrificing performance, yet with significant power savings.The LT1077 can be operated from one lithium cell or two Ni-Cad batteries. The input range goes below ground. The all-NPN output stage swings to ground while sinking current—no pull-down resistors are needed.For dual and quad op amps with similar specifications please see the LT1078/LT1079 datasheet.ApplicationsReplaces OP-07, OP-77, AD707, LT1001, LT1012 at 10 to 60 Times Lower PowerBattery or Solar Powered Systems4mA to 20mA Current LoopsTwo Terminal Current SourceMegaohm Source Resistance Difference Amplifier

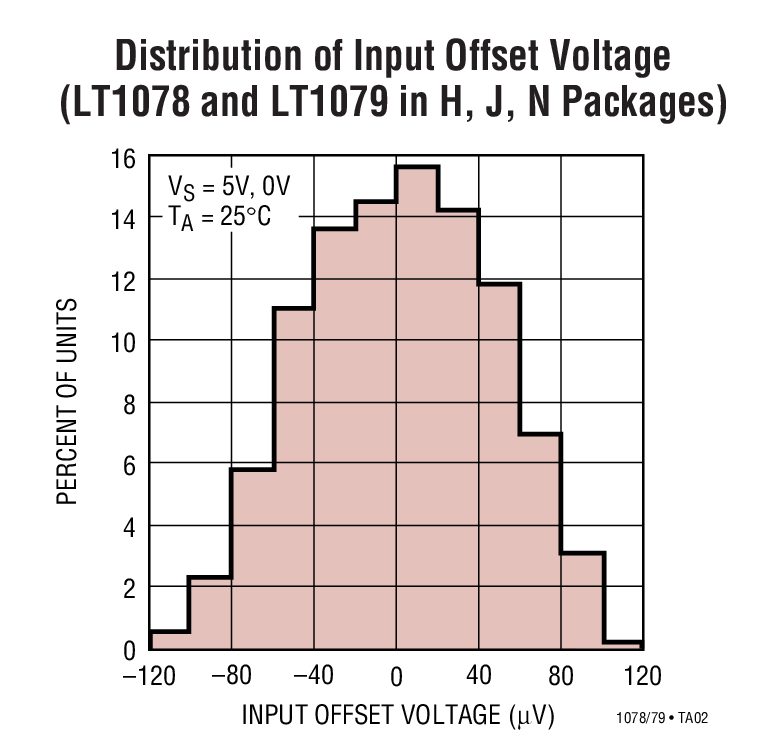

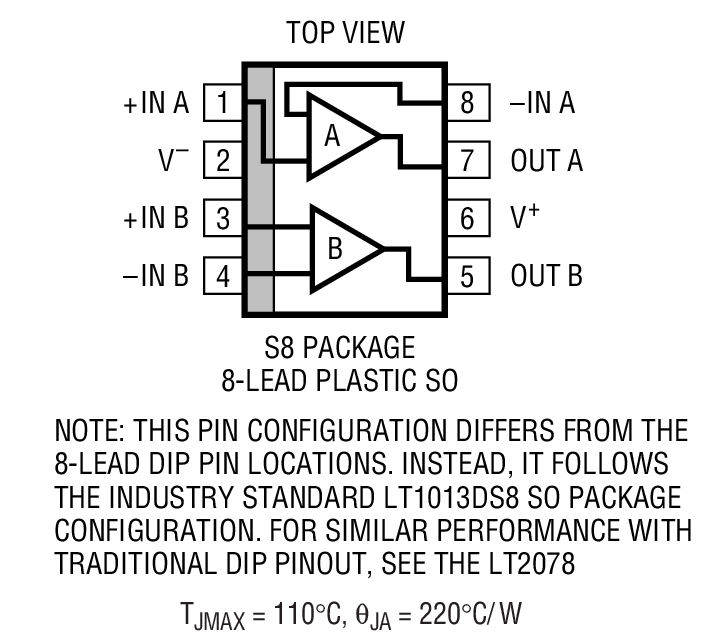

The LT1078 is a micropower dual op amp in 8-pin packages including the small outline surface mount package. The LT1079 is a micropower quad op amp offered in the standard 14-pin packages. Both devices are optimized for single supply operation at 5V. ±15V specifications are also provided.Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed and output drive specifications. The design effort of the LT1078/LT1079 was concentrated on reducing supply current without sacrificing other parameters. The offset voltage achieved is the lowest on any dual or quad nonchopper stabilized op amp—micropower or otherwise. Offset current, voltage and current noise, slew rate and gain bandwidth product are all two to ten times better than on previous micropower op amps.The 1/f corner of the voltage noise spectrum is at 0.7Hz, at least three times lower than on any monolithic op amp. This results in low frequency (0.1Hz to 10Hz) noise performance which can only be found on devices with an order of magnitude higher supply current.Both the LT1078 and LT1079 can be operated from a single supply (as low as one lithium cell or two Ni-Cad batteries). The input range goes below ground. The all-NPN output stage swings to within a few millivolts of ground while sinking current—no power consuming pull down resistors are needed.ApplicationsBattery or Solar-Powered SystemsPortable InstrumentationRemote Sensor AmplifierSatellite CircuitryMicropower Sample-and-HoldThermocouple AmplifierMicropower Filters

The LT1078 is a micropower dual op amp in 8-pin packages including the small outline surface mount package. The LT1079 is a micropower quad op amp offered in the standard 14-pin packages. Both devices are optimized for single supply operation at 5V. ±15V specifications are also provided.Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed and output drive specifications. The design effort of the LT1078/LT1079 was concentrated on reducing supply current without sacrificing other parameters. The offset voltage achieved is the lowest on any dual or quad nonchopper stabilized op amp—micropower or otherwise. Offset current, voltage and current noise, slew rate and gain bandwidth product are all two to ten times better than on previous micropower op amps.The 1/f corner of the voltage noise spectrum is at 0.7Hz, at least three times lower than on any monolithic op amp. This results in low frequency (0.1Hz to 10Hz) noise performance which can only be found on devices with an order of magnitude higher supply current.Both the LT1078 and LT1079 can be operated from a single supply (as low as one lithium cell or two Ni-Cad batteries). The input range goes below ground. The all-NPN output stage swings to within a few millivolts of ground while sinking current—no power consuming pull down resistors are needed.ApplicationsBattery or Solar-Powered SystemsPortable InstrumentationRemote Sensor AmplifierSatellite CircuitryMicropower Sample-and-HoldThermocouple AmplifierMicropower Filters
