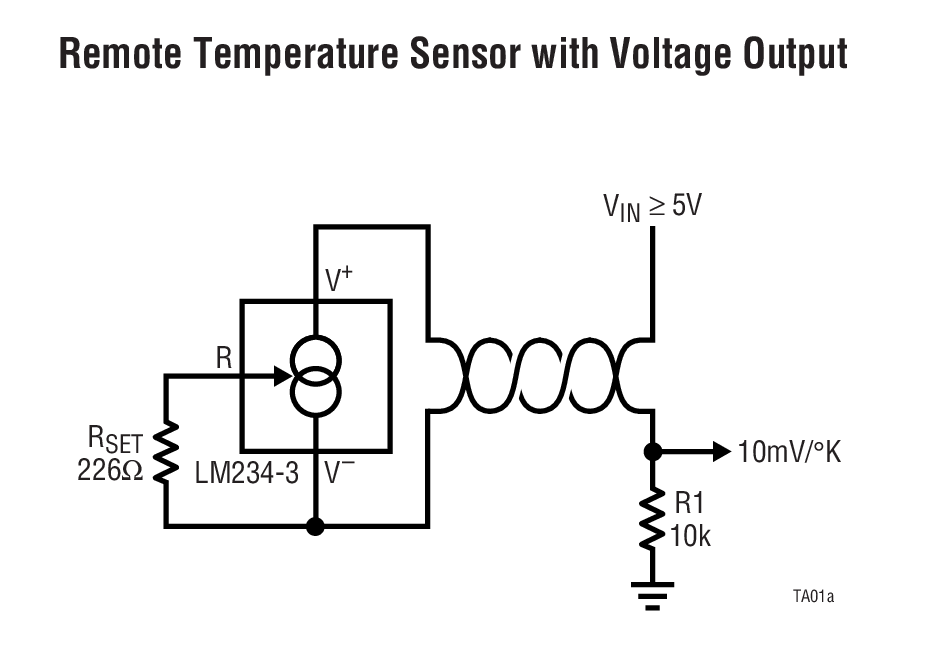

The LM134 is a three-terminal current source designed to operate at current levels from 1µA to 10mA, as set by an external resistor. The device operates as a true two terminal current source, requiring no extra power connections or input signals. Regulation is typically 0.02%/V and terminal-to-terminal voltage can range from 800mV to 40V.Because the operating current is directly proportional to absolute temperature in degrees Kelvin, the device will also find wide applications as a temperature sensor. The temperature dependence of the operating current is 0.336%/°C at room temperature. For example, a device operating at 298µA will have a temperature coefficient of 1mA/°C. The temperature dependence is extremely accurate and repeatable. Devices specified as temperature sensors in the 100µA to 1mA range are the LM134-3, LM234-3 and the LM134-6, LM234-6, with the dash numbers indicating ±3°C and ±6°C accuracies, respectively.If a zero temperature coefficient current source is required, this is easily achieved by adding a diode and a resistor.ApplicationsCurrent Mode Temperature SensingConstant Current Source for Shunt ReferencesCold Junction Compensation Constant-Gain Bias for Bipolar Differential StageMicropower Bias NetworksBuffer for Photoconductive CellCurrent Limiter

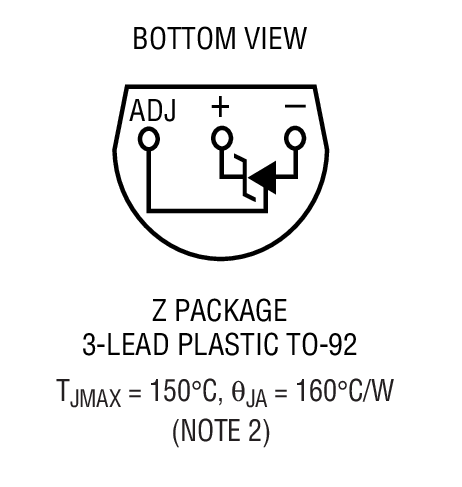

The LM336-2.5 is a general purpose shunt regulator diode designed to operate over a wide current range while maintaining good stability with time and temperature. The third terminal allows either the temperature coefficient to be minimized or the reference voltage to be adjusted without changing the temperature coefficient. Because it operates as a shunt regulator it can be used equally well as a positive or negative reference.The LM336-2.5 is available in a TO-92 plastic package.For more demanding precision reference applications requiring very low initial tolerance and temperature coefficients, consult the LT1009 data sheet.ApplicationsReference for 5V Systems8 Bit A/D and D/A ReferenceDigital VoltmetersCurrent Loop Measurement and Control SystemsPower Supply Monitor

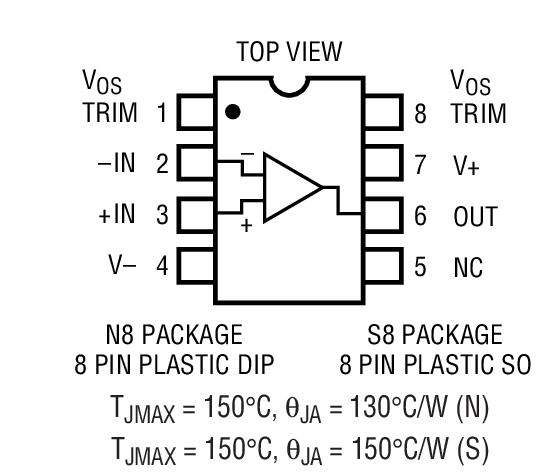

The LT1001 significantly advances the state-of-the-art of precision operational amplifiers. In the design, processing, and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications of the lowest cost, commercial temperature device, the LT1001C, have been dramatically improved when compared to equivalent grades of competing precision amplifiers.Essentially, the input offset voltage of all units is less than 50µV (see distribution plot below). This allows the LT1001AM/883 to be specified at 15µV. Input bias and offset currents, common-mode and power supply rejection of the LT1001C offer guaranteed performance which were previously attainable only with expensive, selected grades of other devices. Power dissipation is nearly halved compared to the most popular precision op amps, without adversely affecting noise or speed performance. A beneficial by-product of lower dissipation is decreased warm-up drift. Output drive capability of the LT1001 is also enhanced with voltage gain guaranteed at 10mA of load current. For similar performance in a dual precision op amp, with guaranteed matching specifications, see the LT1002. Shown below is a platinum resistance thermometer application.ApplicationsThermocouple amplifiersStrain gauge amplifiersLow level signal processingHigh accuracy data acquisition

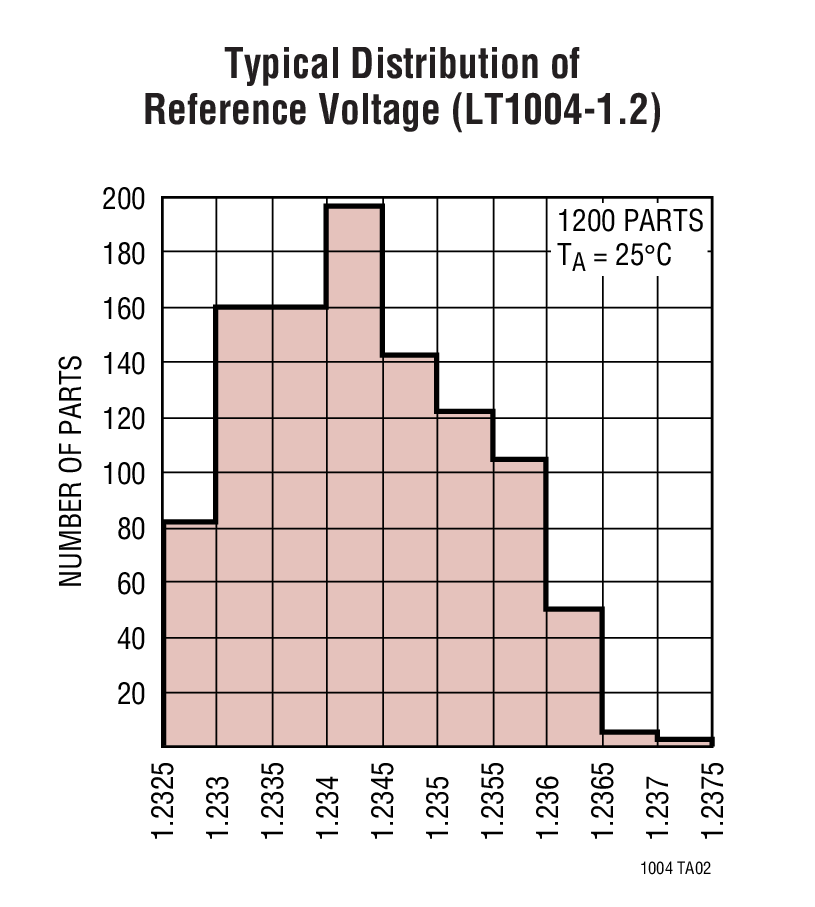

The LT1004 Micropower Voltage Reference is a 2-terminal bandgap reference diode designed to provide high accuracy and excellent temperature characteristics at very low operating currents. Optimization of the key parameters in the design, processing and testing of the device results in accuracy specifications previously attainable only with selected units. Below is a distribution plot of reference voltage for a typical lot of LT1004-1.2. Virtually all of the units fall well within the prescribed limits of ±4mV.The LT1004 is a pin-for-pin replacement for the LM185/LM385 series of references with improved accuracy specifications. More important, the LT1004 is an attractive device for use in systems where accuracy was previously obtained at the expense of power consumption and trimming.For a low drift micropower reference with guaranteed temperature coefficient, see the LT1034 data sheet.ApplicationsPortable Meter ReferencesPortable Test InstrumentsBattery-Operated SystemsCurrent Loop Instrumentation

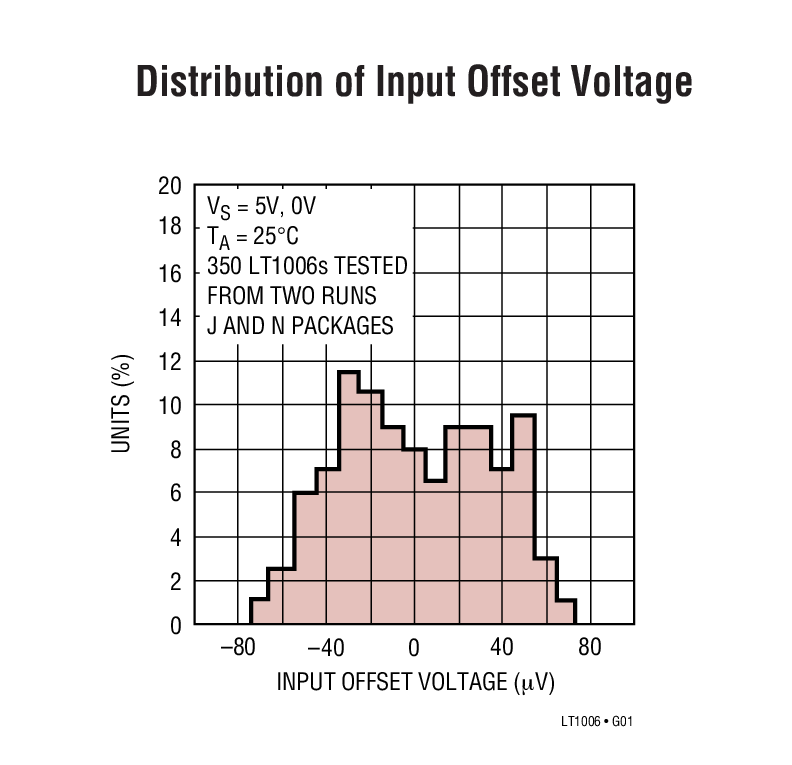

The LT1006 is the first precision single supply operational amplifier. Its design has been optimized for single supply operation with a full set of specifications at 5V. Specifications at ±15V are also provided.The LT1006 has a low offset voltage of 20µV, drift of 0.2µV/°C, offset current of 120pA, gain of 2.5 million, common mode rejection of 114dB and power supply rejection of 126dB.Although supply current is only 340µA, a novel output stage can source or sink in excess of 20mA while retaining high voltage gain. Common mode input range includes ground to accommodate low ground-referenced inputs from strain gauges or thermocouples, and output can swing to within a few millivolts of ground. If a higher slew rate (in excess of 1V/µs) or micropower operation (supply current down to 90µA) is required, the operating currents can be modified by connecting an external optional resistor to Pin 8.For similar single supply precision dual and quad op amps, please see the LT1013/LT1014 datasheet. For micropower dual and quad op amps, please see the LT1078/LT1079 data sheet.ApplicationsLow Power Sample and Hold CircuitsBattery Powered Precision InstrumentationStrain Gauge Signal ConditionersThermocouple Amplifiers4mA to 20mA Current Loop TransmittersActive Filters

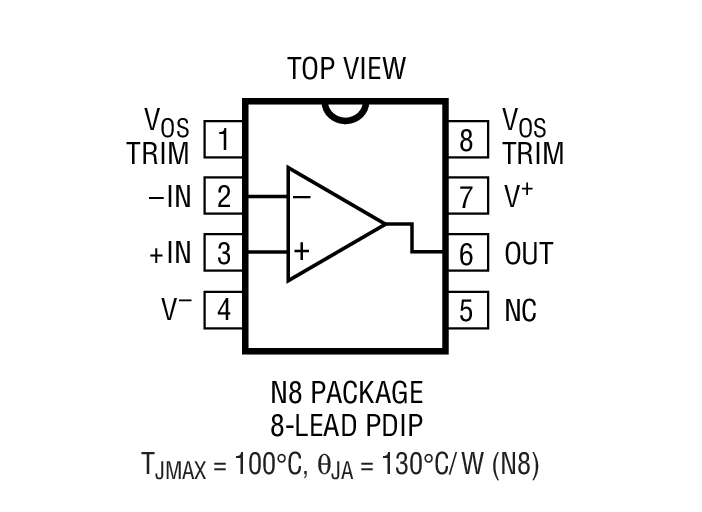

The LT1007/LT1037 series features the lowest noise performance available to date for monolithic operational amplifiers: 2.5nV/√Hzwideband noise (less than the noise of a 400Ω resistor), 1/f corner frequency of 2Hz and 60nV peak-to-peak 0.1Hz to 10Hz noise. Low noise is combined with outstanding precision and speed specifications: 10µV offset voltage, 0.2µV/°C drift, 130dB common mode and power supply rejection, and 60MHz gain bandwidth product on the decompensated LT1037, which is stable for closed-loop gains of 5 or greater.The voltage gain of the LT1007/LT1037 is an extremely high 20 million driving a 2kΩ load and 12 million driving a 600Ω load to ±10V.In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications of even the lowest cost grades (the LT1007C and the LT1037C) have been spectacularly improved compared to equivalent grades of competing amplifiers.The sine wave generator application shown below utilizes the low noise and low distortion characteristics of the LT1037.ApplicationsLow Noise Signal ProcessingMicrovolt Accuracy Threshold DetectionStrain Gauge AmplifiersDirect Coupled Audio Gain StagesSine Wave GeneratorsTape Head PreamplifiersMicrophone Preamplifiers

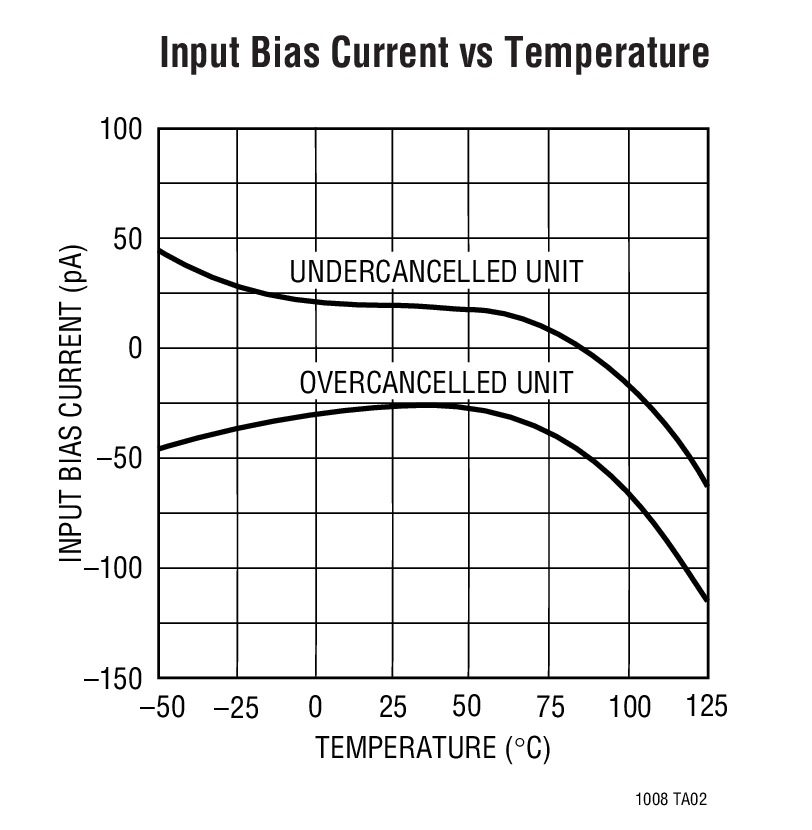

The LT1008 is a universal precision operational amplifier which can be used in practically all precision applications. The LT1008 combines for the first time picoampere bias currents (which are maintained over the full –55°C to 125°C temperature range) microvolt offset voltage (and low drift with time and temperature), low voltage and current noise, and low power dissipation. Extremely high common-mode and power supply rejection ratios, and the ability to deliver 5mA load current with high voltage gain round out the LT1008's superb precision specifications.The all around excellence of the LT1008 eliminates the necessity of the time consuming error analysis procedure of precision system design in many applications; the LT1008 can be stocked as the universal precision op amp.The LT1008 is externally compensated with a single capacitor for additional flexibility in shaping the frequency response of the amplifier. It plugs into and upgrades all standard LM108A/308A applications. For an internally compensated version with even lower offset voltage but otherwise similar performance see the LT1012.ApplicationsPrecision InstrumentationCharge IntegratorsWide Dynamic Range Logarithmic AmplifiersLight MetersLow Frequency Active FiltersStandard Cell BuffersThermocouple Amplifiers

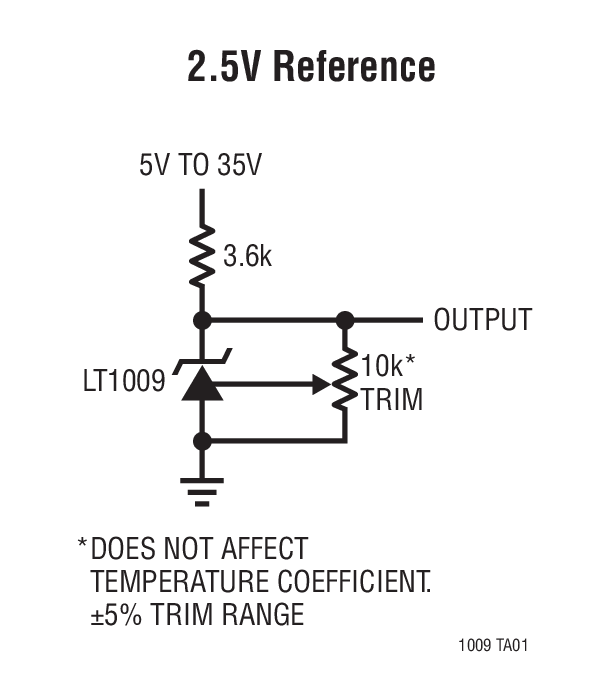

The LT1009 is a precision trimmed 2.5V shunt regulator diode featuring a maximum initial tolerance of only ±5mV. The low dynamic impedance and wide operating current range enhances its versatility. The 0.2% reference tolerance is achieved by on-chip trimming which not only minimizes the initial voltage tolerance but also minimizes the temperature drift.Even though no adjustments are needed with the LT1009, a third terminal allows the reference voltage to be adjusted ±5% to calibrate out system errors. In many applications, the LT1009 can be used as a pin-to-pin replacement of the LM136 and the external trim network eliminated.For a lower drift 2.5V reference, see the LT1019 data sheet.ApplicationsReference for 5V Systems8-Bit A/D and D/A ReferenceDigital VoltmetersCurrent Loop Measurement and Control SystemsPower Supply Monitor
