The OP07 has very low input offset voltage that is obtained by trimming at the wafer stage. These low offset voltages generally eliminate any need for external nulling. The OP07 also features low input bias current and high open-loop gain. The low offsets and high open-loop gain make the OP07 particularly useful for high gain instrumentation applications.The wide input voltage range of ±13 V minimum combined with a high CMRR and high input impedance provide high accuracy in the noninverting circuit configuration. Excellent linearity and gain accuracy can be maintained even at high closed-loop gains. Stability of offsets and gain with time or variations in temperature is excellent. The accuracy and stability of the OP07, even at high gain, combined with the freedom from external nulling have made the OP07 an industry standard for instrumentation applications.

The OP27 precision operational amplifier combines the low offset and drift of the OP07 with both high speed and low noise. Offsets down to 25µV and drift of 0.6µV/°C maximum make the OP27 ideal for precision instrumentation applications. Exceptionally low noise, a low 1/f noise corner frequency, and high gain (1.8 million), allow accurate high-gain amplification of low-level signals. A gain-bandwidth product of 8MHz and a 2.8V/µsec slew rate provides excellent dynamic accuracy in high-speed data-acquisition systems.A low input bias current of ±10nA typical is achieved by use of a bias-current-cancellation circuit.The output stage has good load driving capability. A guaranteed swing of ±10V into 600 Ohms and low output distortion make the OP27 an excellent choice for audio applications.PSRR and CMRR exceed 120dB. These characteristics, coupled with long-term drift of 0.2µV/month, allow the circuit designer to achieve performance levels previously attained only by discrete designs.

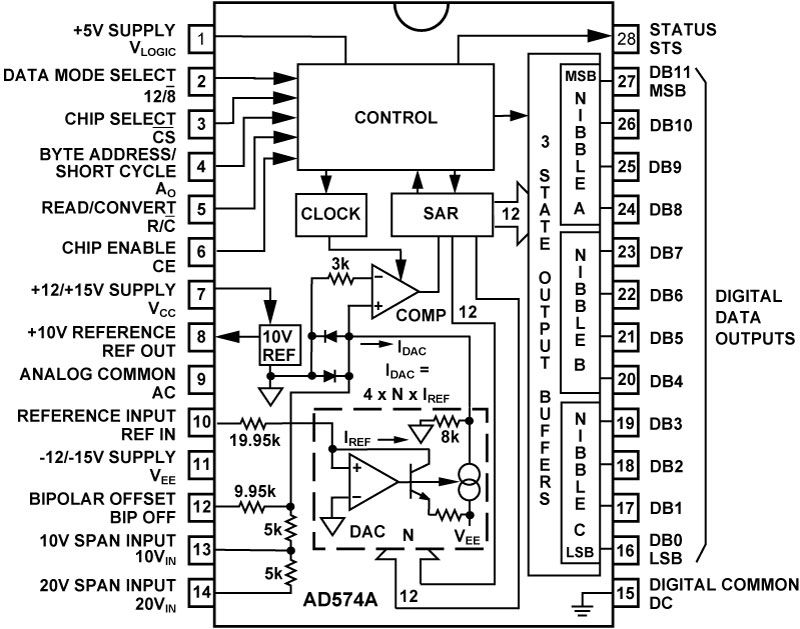

The AD574A is a complete 12-bit successive-approximation analog-to-digital converter with 3-state output buffer circuitry for direct interface to an 8- or 16-bit microprocessor bus. A high precision voltage reference and clock are included on-chip, and the circuit guarantees full-rated performance without external circuitry or clock signals.The AD574A design is implemented using Analog Devices' Bipolar/I2L process, and integrates all analog and digital functions on one chip. Offset, linearity and scaling errors are minimized by active laser-trimming of thin-film resistors at the wafer stage. The voltage reference uses an implanted buried Zener for low noise and low drift. On the digital side, I2L logic is used for the successive-approximation register, control circuitry and 3-state output buffers.The AD574A is available in six different grades. The AD574AJ, K, and L grades are specified for operation over the 0°C to +70°C temperature range. The AD574AS, T, and U are specified for the -55°C to +125°C range. All grades are available in a 28-pin hermetically-sealed ceramic DIP. Also, the J, K, and L grades are available in a 28-pin plastic DIP and PLCC, and the J and K grades are available in ceramic LCC.The S, T, and U grades in ceramic DIP or LCC are available with optional processing to MIL-STD-883C Class B; the T and U grades are available as JAN QPL. The Analog Devices' Military Products Databook should be consulted for details on /883B testing of the AD574A.

Metal Can and Ceramic Package Versions of this part are Obsolete: LF198AH, LF198H, LF398AH, LF398H, LF398J8. The LF398AN8 is Obsolete.The LF398 is a precision sample and hold amplifier which uses a combination of bipolar and junction FET transistors to provide precision, high speed, and long hold times. A typical offset voltage of 2mV and gain error of 0.004% allow this sample and hold amplifier to be used in 12-bit systems. Dynamic performance can be optimized by proper selection of the external hold capacitor. Acquisition times can be as low as 4µs for small capacitors while hold step and droop errors can be held below 0.1mV and 30µV/sec respectively when using larger capacitors.The LF398 is fixed at unity gain with 10Ω input impedance independent of sample/hold mode. The logic inputs are high impedence differential to allow easy interfacing to any logic family without ground loop problems. A separate offset adjust pin can be used to zero the offset voltage in either the sample or hold mode. Additionally, the hold capacitor can be driven with an external signal to provide precision level shifting or "differencing" operation. The device will operate over a wide supply voltage range from ±5V to ±18V with very little change in performance, and key parameters are specified over this full supply range.Applications12-Bit Data Acquisition SystemsRamp GeneratorsAnalog SwitchesStaircase GeneratorsSample and Difference Circuits

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Analog Devices Are Now ObsoleteThe LM108 series of precision operational amplifiers are particularly well-suited for high source impedance applications requiring low offset and bias currents as well as low power dissipation. Unlike FET input amplifiers, the offset and bias currents of the LM108 do not change significantly with temperature variations. Advanced design, processing and testing techniques make the LM108 a superior choice over previous devices.A photodiode sensor application is shown below. For applications requiring higher performance, see the LT1008, and LT1012.ApplicationsIntegratorsTransducer amplifiersAnalog memoriesLight meters

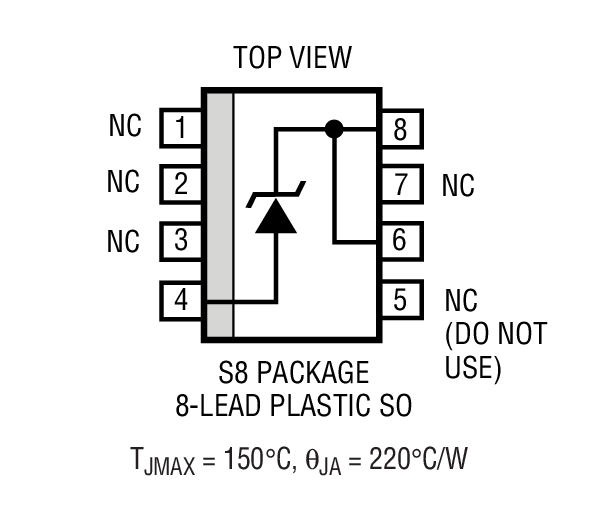

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages Are Now Obsolete.The LM185-2.5 is a two-terminal band gap reference diode that has been designed for applications which require precision performance with micropower operation. The device provides guaranteed operation specifications at currents as low as 20µA. The nominal voltage is 2.5V with both 1% and 2% tolerances available. Some additional features are: maximum dynamic impedance of 1Ω, low noise and excellent stability over time and temperature. The advanced design, processing and testing techniques make the LM185-2.5 a superior choice over previous designs. A circuit for cold junction compensation of a thermocouple is shown below.For applications requiring guaranteed temperature drift, see the LT1034 data sheet.ApplicationsPortable Meter ReferencesPortable Test InstrumentsBattery-Operated SystemsPanel MetersCurrent Loop Instrumentation

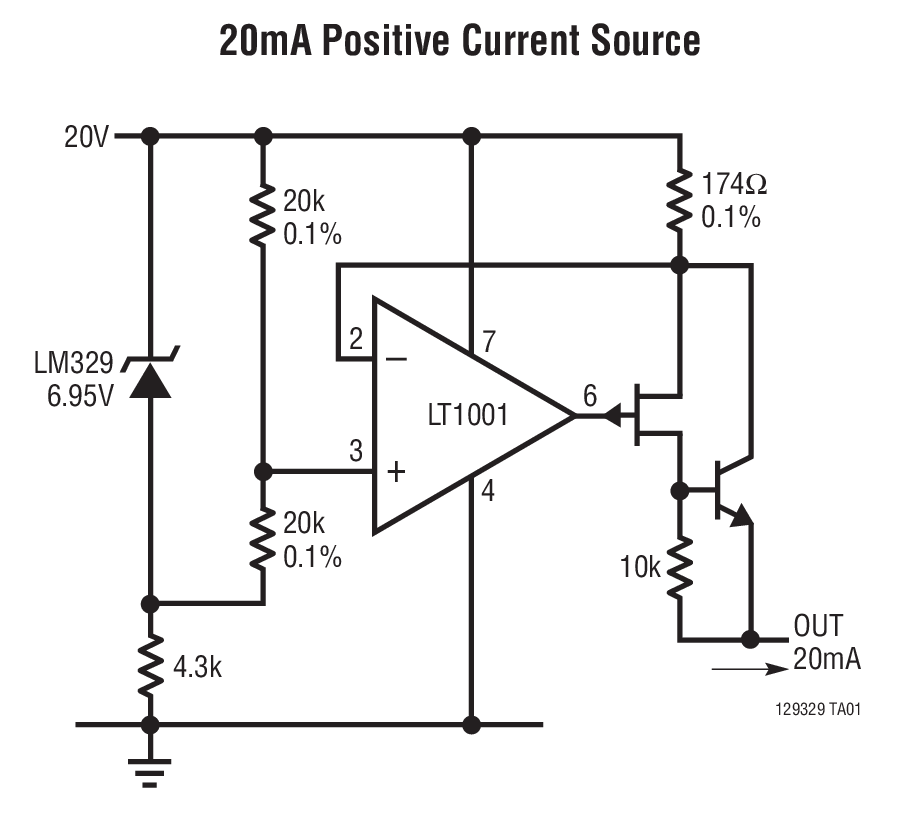

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages Are Now Obsolete.Download Complete Datasheet for Details.The LM329 temperature compensated 6.9 Volt Zener references provide excellent stability over time and temperature, very low dynamic impedance and a wide operating current range. The device achieves low dynamic impedance by incorporating a high gain shunt regulator around the Zener. The excellent noise performance of the device is achieved by using a "buried Zener" design which eliminates surface noise phenomenon associated with ordinary Zeners. To serve a wide variety of applications, the LM129 is available in several temperature coefficient grades and two package styles. A 20mA positive current source application is shown below.ApplicationsTransducersA/D and D/A ConvertersCalibration StandardsInstrumentation Reference
