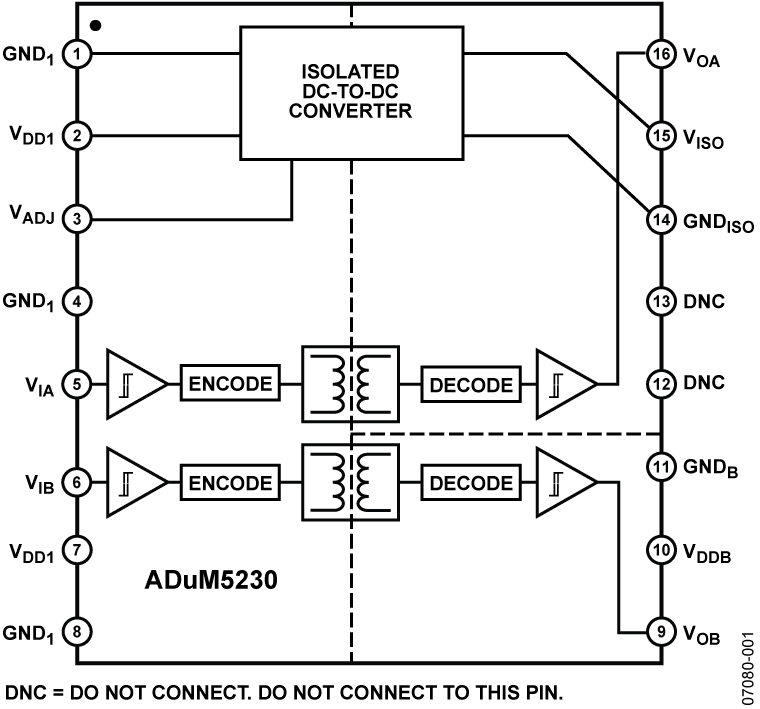

The ADuM5230 is an isolated half-bridge gate driver that employs Analog Devices, Inc.,iCoupler®technology to provide independent and isolated high-side and low-side outputs. Combining CMOS and microtransformer technologies, this isolation component contains an integrated dc-to-dc converter providing an isolated high-side supply. This eliminates the cost, space, and performance difficulties associated with external supply configurations such as bootstrap circuitry. This highside isolated supply powers not only the ADuM5230 high-side output but also any external buffer circuitry used with the ADuM5230.In comparison to gate drivers employing high voltage level translation methodologies, the ADuM5230 offers the benefit of true, galvanic isolation between the input and each output. Each output can operate up to ±700 VPrelative to the input, thereby supporting low-side switching to negative voltages. The differential voltage between the high side and low side may be as high as 700 VP.ApplicationsMOSFET/IGBT gate drivesAutomotiveMotor drivesPower supplies

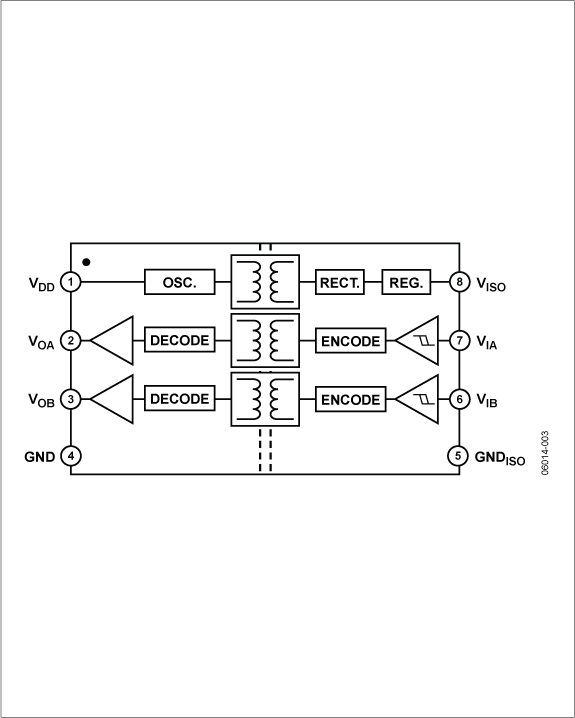

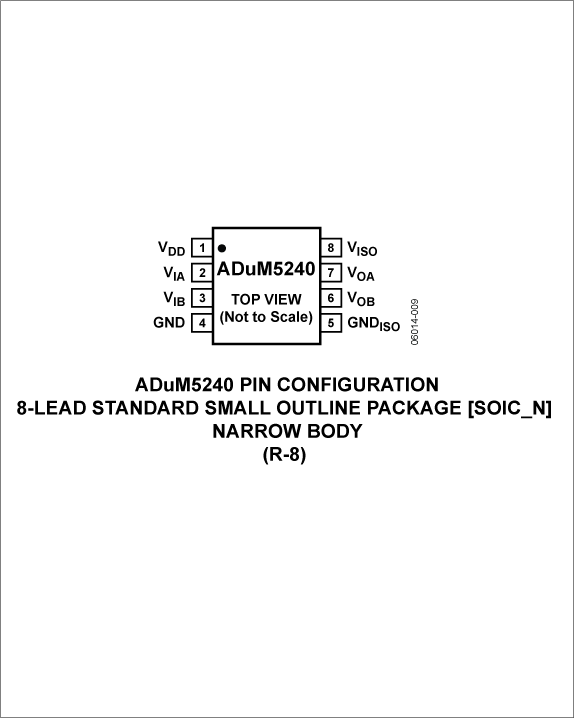

The ADuM524x are dual-channel digital isolators withisoPower integrated, isolated power. Based on the Analog Devices, Inc.iCoupler®technology, a chip-scale DC/DC converter provides up to 50 mW of regulated, isolated power at 5 V, which eliminates the need for a separate isolated DC/DC converter in low power isolated designs. The Analog Devices chip-scale transformeriCoupler technology is used both for the isolation of the logic signals as well as for the DC/DC converter. The result is a small form factor, total isolation solution.The ADuM524x isolators provide two independent isolation channels in a variety of channel configurations, operating from a 5 V input supply. ADuM524x units may be used in combination with otheriCoupler products to achieve greater channel counts.

The ADuM524x are dual-channel digital isolators withisoPower integrated, isolated power. Based on the Analog Devices, Inc.iCoupler®technology, a chip-scale DC/DC converter provides up to 50 mW of regulated, isolated power at 5 V, which eliminates the need for a separate isolated DC/DC converter in low power isolated designs. The Analog Devices chip-scale transformeriCoupler technology is used both for the isolation of the logic signals as well as for the DC/DC converter. The result is a small form factor, total isolation solution.The ADuM524x isolators provide two independent isolation channels in a variety of channel configurations, operating from a 5 V input supply. ADuM524x units may be used in combination with otheriCoupler products to achieve greater channel counts.

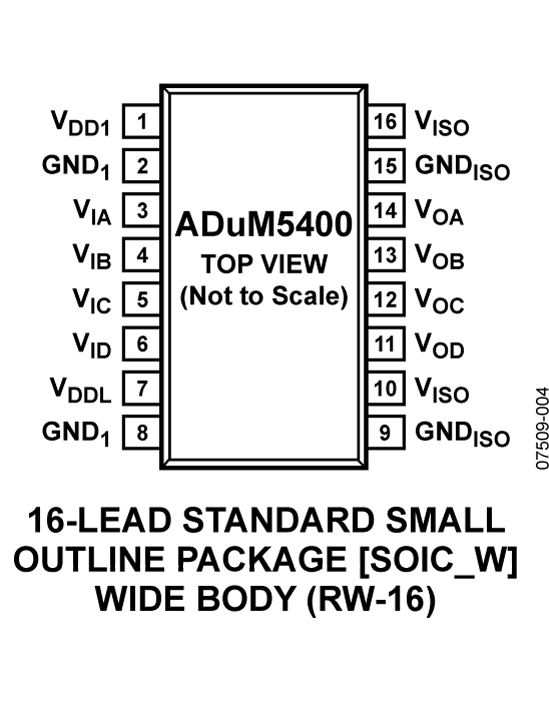

The ADuM5400 device is a quad-channel digital isolator withisoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power with 5.0 V input and 5.0 V output voltages. This architecture eliminates the need for a separate, isolated dc-to-dc converter in low power, isolated designs. TheiCoupler chip scale transformer technology is used to isolate the logic signals and the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM5400 isolator provides four independent isolation channels in two speed grades (see the Ordering Guide for more information).isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the AN-0971 application note for details on board layout recommendations.APPLICATIONSRS-232/RS-422/RS-485 transceiverIndustrial field bus isolationPower supply start-up bias and gate drivesIsolated sensor interfaceIndustrial PLCs

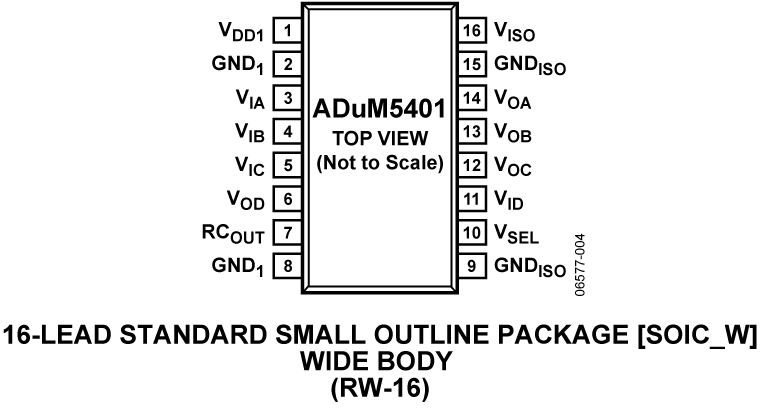

The ADuM5401 /ADuM5402/ADuM5403/ADuM5404are quad-channel digital isolators withisoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power at either 5.0 V or 3.3 V from a 5.0 V input supply, or at 3.3 V from a 3.3 V supply at the power levels shown in Table 1. These devices eliminate the need for a separate, isolated dc-to-dc converter in low power, isolated designs. TheiCoupler chip scale transformer technology is used to isolate the logic signals and for the power and feedback paths in the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM5401 / ADuM5402 / ADuM5403 / ADuM5404 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. See theAN-0971 Application Notefor board layout recommendations.APPLICATIONSRS-232/RS-422/RS-485 transceiversIndustrial field bus isolationPower supply startup bias and gate drivesIsolated sensor interfacesIndustrial PLCs

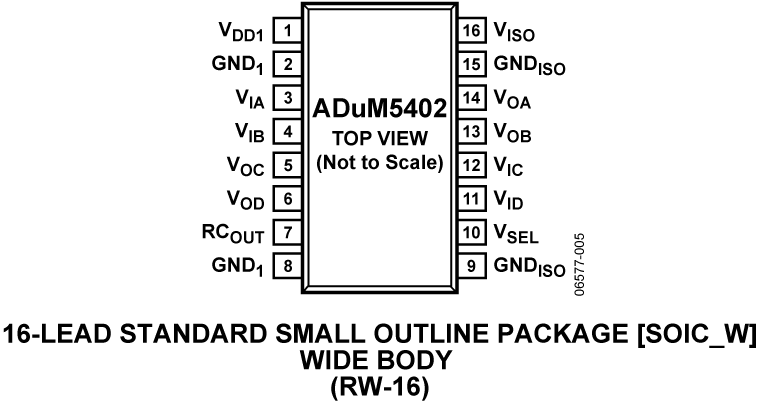

TheADuM5401/ ADuM5402 /ADuM5403/ADuM5404are quad-channel digital isolators withisoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power at either 5.0 V or 3.3 V from a 5.0 V input supply, or at 3.3 V from a 3.3 V supply at the power levels shown in Table 1. These devices eliminate the need for a separate, isolated dc-to-dc converter in low power, isolated designs. TheiCoupler chip scale transformer technology is used to isolate the logic signals and for the power and feedback paths in the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM5401 / ADuM5402 / ADuM5403 / ADuM5404 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. See theAN-0971 Application Notefor board layout recommendations.APPLICATIONSRS-232/RS-422/RS-485 transceiversIndustrial field bus isolationPower supply startup bias and gate drivesIsolated sensor interfacesIndustrial PLCs

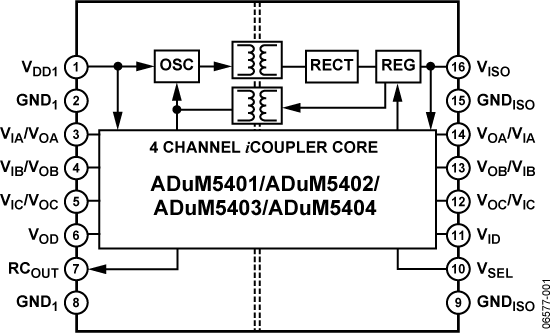

TheADuM5401/ADuM5402/ ADuM5403 /ADuM5404are quad-channel digital isolators withisoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power at either 5.0 V or 3.3 V from a 5.0 V input supply, or at 3.3 V from a 3.3 V supply at the power levels shown in Table 1. These devices eliminate the need for a separate, isolated dc-to-dc converter in low power, isolated designs. TheiCoupler chip scale transformer technology is used to isolate the logic signals and for the power and feedback paths in the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM5401 / ADuM5402 / ADuM5403 / ADuM5404 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. See theAN-0971 Application Notefor board layout recommendations.APPLICATIONSRS-232/RS-422/RS-485 transceiversIndustrial field bus isolationPower supply startup bias and gate drivesIsolated sensor interfacesIndustrial PLCs

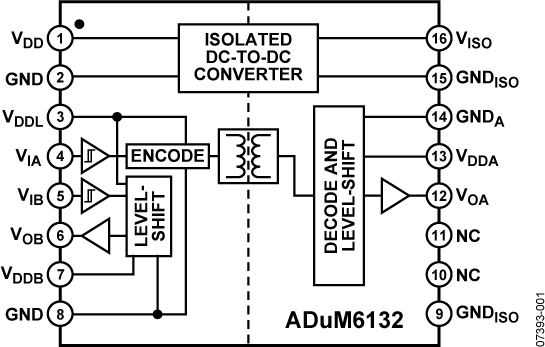

The ADuM6132 is an isolated half-bridge gate driver that employs the Analog Devices, Inc.,iCoupler®technology to provide an isolated high-side driver with an integrated 275 mW high-side supply. This supply, provided by an internal isolated dc-to-dc converter, powers not only the ADuM6132 high-side output but also any external buffer circuitry that is commonly used with the ADuM6132. This functionality eliminates the cost, space, and performance issues associated with external supply configurations such as a bootstrap circuit.The architecture of the ADuM6132 isolates the high-side channel and the high-side power from the control and low- side interface circuitry. Care has been taken to ensure close matching between the high-side and low-side driver timing characteristics to reduce the need for a dead time margin.In comparison to gate drivers that employ high voltage level translation methodologies, the ADuM6132 offers the benefit of true, galvanic isolation. The differential voltage between high-side and low-side channels can be as high as 800 V with good insulation lifetime (see Table 12).isoPower®uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to theAN-0971 Application Notefor details on board layout considerations.ApplicationsMOSFET/IGBT Gate DriversMotor DrivesSolar Panel InvertersPower Supplies

TheADuM6200/ ADuM6201 /ADuM6202are dual-channel digital isolators withisoPower®, an integrated, isolated DC/DC converter. Based on the Analog Devices, Inc.,iCoupler®technology, the DC/DC converter provides up to 400 mW of regulated, isolated power at either 5.0 V or 3.3 V from a 5.0 V input supply, or at 3.3 V from a 3.3 V supply at the power levels shown in Table 1 on the data sheet. These devices eliminate the need for a separate, isolated DC/DC converter in low power, isolated designs. TheiCoupler chip scale transformer technology is used to isolate the logic signals and for the magnetic components of the DC/DC converter. The result is a small form factor, total isolation solution. The ADuM6200 / ADuM6201 / ADuM6202 isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. See theAN-0971Application Note for board layout recommendations.APPLICATIONSRS-232/RS-422/RS-485 transceiversIndustrial field bus isolationPower supply start-up bias and gate drivesIsolated sensor interfacesIndustrial PLCs
