The ADuM3123 is a 4.0 A isolated, single channel driver that employs Analog Devices, Inc.’siCoupler®technology to provide precision isolation. The ADuM3123 provides 3000 VRMSisolation in the narrow body 8-lead SOIC package. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as the combination of pulse transformers and gate drivers.The ADuM3123 operate with an input supply ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. In comparison to gate drivers employing high voltage level translation methodologies, the ADuM3123 offer the benefit of true, galvanic isolation between the input and the output. The output may be continuously operated up to 380 V rms relative to the input.As a result, the ADuM3123 provide reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages.ApplicationsSwitching power suppliesIsolated IGBT/MOSFET gate drivesIndustrial inverters

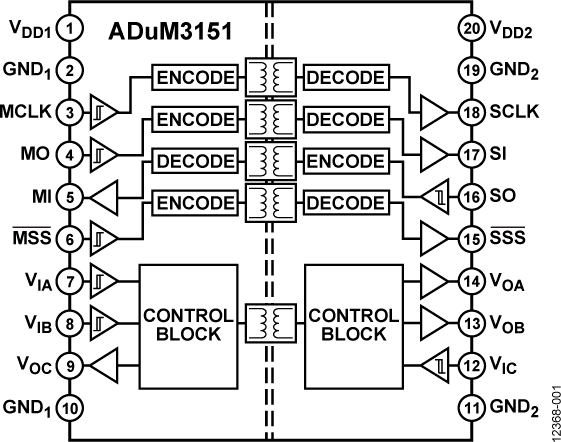

The ADuM3151/ADuM3152/ADuM3153are 7-channel, SPIsolator™digital isolators optimized for isolated serial peripheral interfaces (SPIs). Based on the Analog Devices, Inc.,iCoupler®chip scale transformer technology, the low propagation delay in the CLK, MO/SI, MI/SO, andSSSPI bus signals supports SPI clock rates of up to 17 MHz. These channels operate with 14 ns propagation delay and 1 ns jitter to optimize timing for SPI.The ADuM3151/ADuM3152/ADuM3153 isolators also provide three additional independent low data rate isolation channels in three different channel direction combinations. Data in the slow channels is sampled and serialized for a 250 kbps data rate with up to 2.5 μs of jitter in the low speed channels.ApplicationsIndustrial programmable logic controllers (PLCs)Sensor isolation

TheADuM3151/ADuM3152/ADuM3153are 7-channel, SPIsolator™ digital isolators optimized for isolated serial peripheral interfaces (SPIs). Based on the Analog Devices, Inc.,iCoupler®chip scale transformer technology, the low propagation delay in the CLK, MO/SI, MI/SO, andSSSPI bus signals supports SPI clock rates of up to 17 MHz. These channels operate with 14 ns propagation delay and 1 ns jitter to optimize timing for SPI.The ADuM3151/ADuM3152/ADuM3153 isolators also provide three additional independent low data rate isolation channels in three different channel direction combinations. Data in the slow channels is sampled and serialized for a 250 kbps data rate with up to 2.5 μs of jitter in the low speed channels.ApplicationsIndustrial programmable logic controllers (PLCs)Sensor isolation

TheADuM3151/ADuM3152/ADuM3153 are 7-channel, SPIsolator™ digital isolators optimized for isolated serial peripheral interfaces (SPIs). Based on the Analog Devices, Inc.,iCoupler®chip scale transformer technology, the low propagation delay in the CLK, MO/SI, MI/SO, andSSSPI bus signals supports SPI clock rates of up to 17 MHz. These channels operate with 14 ns propagation delay and 1 ns jitter to optimize timing for SPI.The ADuM3151/ADuM3152/ADuM3153 isolators also provide three additional independent low data rate isolation channels in three different channel direction combinations. Data in the slow channels is sampled and serialized for a 250 kbps data rate with up to 2.5 μs of jitter in the low speed channels.ApplicationsIndustrial programmable logic controllers (PLCs)Sensor isolation

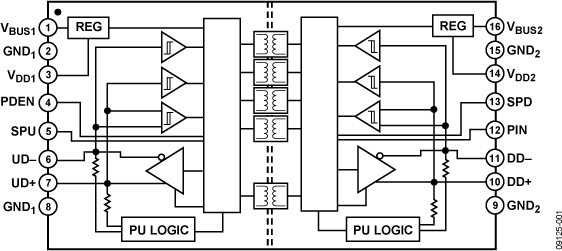

The ADuM3160 is aUSBport isolator, based on Analog Devices, Inc.,iCoupler®technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics and is easily integrated with low and full speed USB-compatible peripheral devices.Many microcontrollers implement USB so that it presents only the D+ and D− lines to external pins. This is desirable in many cases because it minimizes external components and simplifies the design; however, this presents particular challenges when isolation is required. Because the USB lines must switch between actively driving D+/D− and allowing external resistors to set the state of the bus, the ADuM3160 provides mechanisms for detecting the direction of data flow and control over the state of the output buffers. Data direction is determined on a packet-by-packet basis.The ADuM3160 uses the edge detection basediCoupler technology in conjunction with internal logic to implement a transparent, easily configured, upstream-facing port isolator. Isolating the upstream port provides several advantages in simplicity, power management, and robust operation.The isolator has propagation delay comparable to that of a standard hub and cable. It operates with the supply voltage on either side ranging from 3.0 V to 5.5 V, allowing connection directly to VBUSxby internally regulating the voltage to the signaling level. The ADuM3160 provides isolated control of the pull-up resistor to allow the peripheral to control connection timing. The device draws low enough idle current that a suspend state is not required. A 5 kV, reinforced insulation version, the ADuM4160, is available.APPLICATIONSUSB peripheral isolationIsolated USB hub

The ADuM3190 is an isolated error amplifier based on Analog Devices, Inc.,iCoupler®technology. The ADuM3190 is ideal for linear feedback power supplies. The primary side controllers of the ADuM3190 enable improvements in transient response, power density, and stability as compared to commonly used optocoupler and shunt regulator solutions.Unlike optocoupler-based solutions, which have an uncertain current transfer ratio over lifetime and at high temperatures, the ADuM3190 transfer function does not change over its lifetime, and it is stable over a wide temperature range of −40°C to +125°C.Included in the ADuM3190 is a wideband operational amplifier for a variety of commonly used power supply loop compensation techniques. The ADuM3190 is fast enough to allow a feedback loop to react to fast transient conditions and overcurrent conditions. Also included is a high accuracy 1.225 V reference to compare with the supply output setpoint.The ADuM3190 is packaged in a small 16-lead QSOP package for a 2.5 kV rms isolation voltage rating.ApplicationsLinear power suppliesInvertersUninterruptible Power Supply (UPS)DOSA-compatible modulesVoltage monitorsAutomotive systems

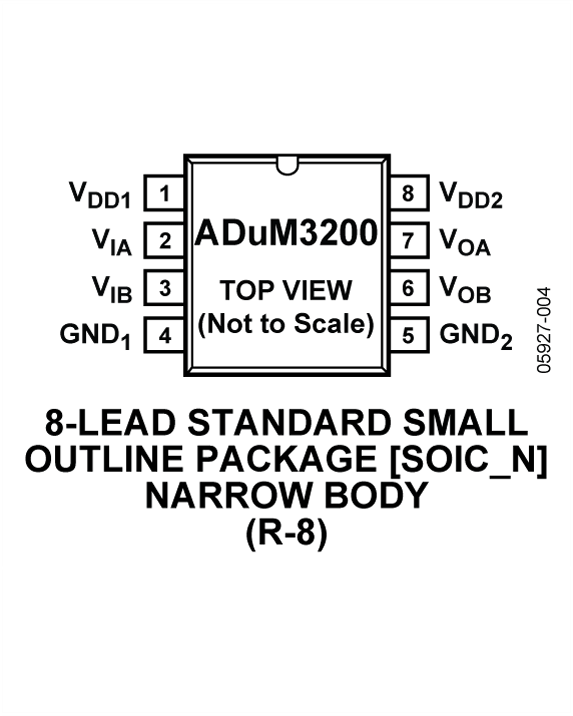

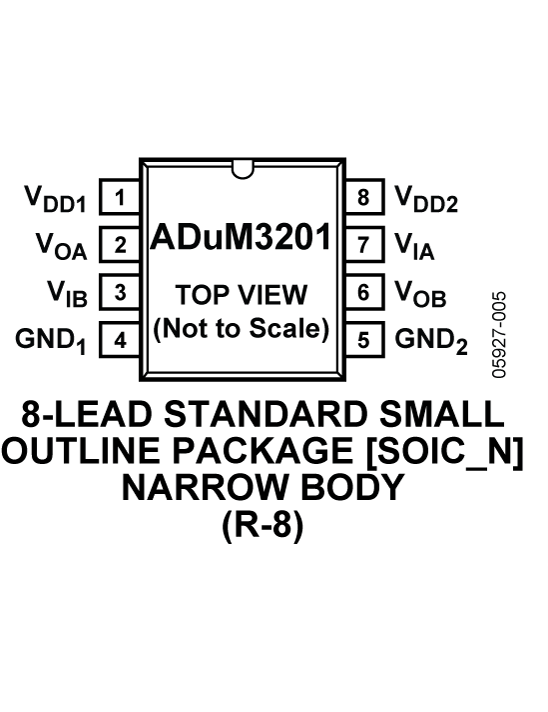

The ADuM3200 /ADuM3201are dual-channel, digital isolators based on the Analog Devices, Inc.,iCoupler®technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices.By avoiding the use of LEDs and photodiodes,iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simpleiCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with theseiCoupler products. Furthermore,iCoupler devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.The ADuM3200 / ADuM3201 isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). They operate with 3.3 V or 5 V supply voltages on either side, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier. The ADuM3200W and ADuM3201W are automotive grade versions qualified for 125°C operation.In comparison to the ADuM1200 / ADuM1201 isolators, the ADuM3200 / ADuM3201 isolators contain various circuit and layout changes to provide increased capability relative to system-level IEC 61000-4-x testing (ESD, burst, and surge). The precise capability in these tests for either the ADuM1200 / ADuM1201 or ADuM3200 / ADuM3201 products is strongly determined by the design and layout of the user’s board or module. For more information, see the AN-793 Application Note, ESD/Latch-Up Considerations withiCoupler Isolation Products.APPLICATIONSSize-critical multichannel isolationSPI interface/data converter isolationRS-232/RS-422/RS-485 transceiver isolationDigital field bus isolationHybrid electric vehicles, battery monitor

TheADuM3200/ ADuM3201 are dual-channel, digital isolators based on the Analog Devices, Inc.,iCoupler®technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices.By avoiding the use of LEDs and photodiodes,iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simpleiCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with theseiCoupler products. Furthermore,iCoupler devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.The ADuM3200 / ADuM3201 isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). They operate with 3.3 V or 5 V supply voltages on either side, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier. The ADuM3200W and ADuM3201W are automotive grade versions qualified for 125°C operation.In comparison to the ADuM1200 / ADuM1201 isolators, the ADuM3200 / ADuM3201 isolators contain various circuit and layout changes to provide increased capability relative to system-level IEC 61000-4-x testing (ESD, burst, and surge). The precise capability in these tests for either the ADuM1200 / ADuM1201 or ADuM3200 / ADuM3201 products is strongly determined by the design and layout of the user’s board or module. For more information, see the AN-793 Application Note, ESD/Latch-Up Considerations with iCoupler Isolation Products.ApplicationsSize-critical multichannel isolationSPI interface/data converter isolationRS-232/RS-422/RS-485 transceiver isolationDigital field bus isolationHybrid electric vehicles, battery monitor

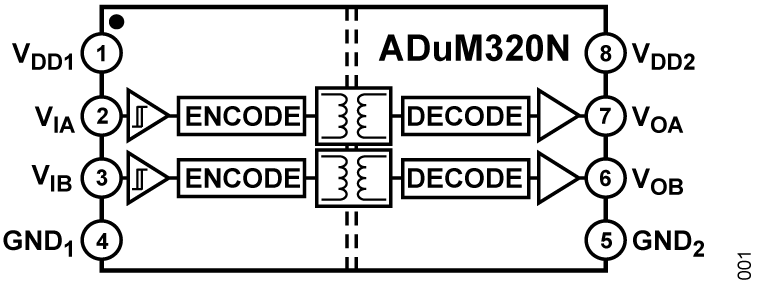

The ADuM320N/ADuM321Nare dual-channel digital isolators based on Analog Devices, Inc.,iCoupler®technology. Combining high speed, complementary metal-oxide semiconductor (CMOS) and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics and meet CISPR 32/EN 55032 Class B limits at 5 Mbps. The maximum propagation delay is 10 ns with a pulse width distortion of less than 3 ns at 5 V operation. Channel matching is hard at 3.0 ns maximum.The ADuM320N/ADuM321N data channels are independent and are available in a variety of configurations with a withstand voltage rating of 5.7 kV RMS and 3.0 kV RMS (for more information, see the Ordering Guide section of the data sheet). The devices operate with the supply voltage on either side ranging from 2.25 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier.Two different fail-safe options are available, by which the outputs transition to a predetermined state when the input power supply is not applied.ApplicationsInvertersPower suppliesIndustrial field bus isolationPWM controller signal isolationGeneral-purpose multichannel isolationProtected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.

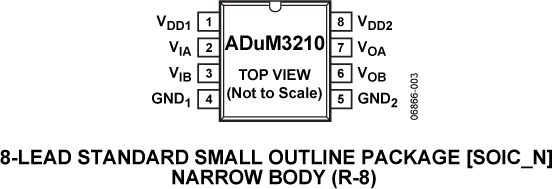

The ADuM3210/ADuM3211are dual-channel, digital isolators based on Analog Devices, Inc.,iCoupler®technology. Combining high speed CMOS and monolithic transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives such as optocoupler devices.By avoiding the use of LEDs and photodiodes,iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simpleiCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with theseiCoupler products. Furthermore,iCoupler devices consume one-tenth to one- sixth the power of optocouplers at comparable signal data rates.The ADuM3210/ADuM3211 isolators provide two independent isolation channels in two channel configurations with data rates up to 25 Mbps (see the Ordering Guide). They operate with 3.3 V or 5 V supply voltages on either side, providing compatibility with lower voltage systems, as well as enabling voltage translation functionality across the isolation barrier. The ADuM3210/ADuM3211 isolators have a default output low characteristic in comparison to the ADuM3200/ADuM3201 models, which have a default output high characteristic. The ADuM3210W and ADuM3211W models are automotive grade versions qualified for 125°C operation.In comparison to theADuM1200/ADuM1201isolator, the ADuM3210/ADuM3211 isolators contain various circuit and layout changes providing increased capability relative to system-level IEC 61000-4-x testing (ESD, burst, and surge). The precise capability in these tests for either the ADuM1200/ADuM1201 or ADuM3210/ADuM3211 products is strongly determined by the design and layout of the user’s board or module. For more information, see theAN-793 Application Note, ESD/Latch-Up Considerations withiCoupler Isolation Products.ApplicationsSize-critical multichannel isolationSPI interface/data converter isolationRS-232/RS-422/RS-485 transceiver isolationDigital field bus isolationGate drive interfaceHybrid electric vehicles, battery monitor, and motor driver
