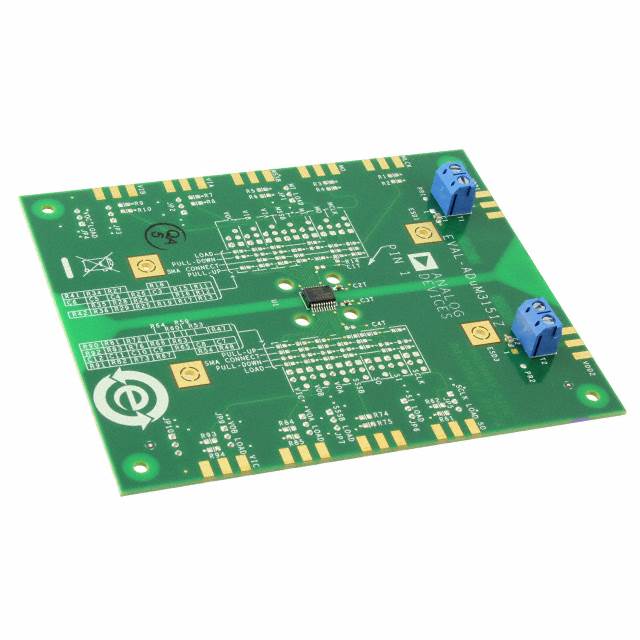

ADUM3151 Series
3.75 kV, 7-Channel, SPIsolator Digital Isolators for SPI (with 2/1 Aux channel directionality)
Manufacturer: Analog Devices
Catalog
3.75 kV, 7-Channel, SPIsolator Digital Isolators for SPI (with 2/1 Aux channel directionality)
Key Features
• Supports up to 17 MHz SPI clock speed
• 4 high speed, low propagation delay, SPI signal isolation channels
• Three 250 kbps data channels
• 20-lead SSOP package with 5.1 mm creepage
• High temperature operation: 125°C
• High common-mode transient immunity: >25 kV/μs
• Safety and regulatory approvalsUL recognition per UL 15773750 V rms for 1 minuteCSA Component Acceptance Notice 5AVDE certificate of conformityDIN V VDE V 0884-10 (VDE V 0884-10):2006-12VIORM= 565 V peak
• UL recognition per UL 15773750 V rms for 1 minute
• 3750 V rms for 1 minute
• CSA Component Acceptance Notice 5A
• VDE certificate of conformityDIN V VDE V 0884-10 (VDE V 0884-10):2006-12VIORM= 565 V peak
• DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
• VIORM= 565 V peak
Description
AI
The ADuM3151/ADuM3152/ADuM3153are 7-channel, SPIsolator™digital isolators optimized for isolated serial peripheral interfaces (SPIs). Based on the Analog Devices, Inc.,iCoupler®chip scale transformer technology, the low propagation delay in the CLK, MO/SI, MI/SO, andSSSPI bus signals supports SPI clock rates of up to 17 MHz. These channels operate with 14 ns propagation delay and 1 ns jitter to optimize timing for SPI.The ADuM3151/ADuM3152/ADuM3153 isolators also provide three additional independent low data rate isolation channels in three different channel direction combinations. Data in the slow channels is sampled and serialized for a 250 kbps data rate with up to 2.5 μs of jitter in the low speed channels.ApplicationsIndustrial programmable logic controllers (PLCs)Sensor isolation
