The ADL8141 is a low power consumption, low noise amplifier that operates from 14 GHz to 24 GHz. Typical gain, noise figure, and output third-order intercept (OIP3) are 29 dB, 1.4 dB, and 18 dBm, respectively. Typical supply current is 25 mA from a 2 V supply. OIP3 and output power for 1 dB compression (OP1dB) can be increased by adjusting a supply-referenced resistor connected to the RBIAS pin. The RF input and output of the ADL8141 are internally matched and AC-coupled.The ADL8141 is fabricated on a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC) process. The ADL8141 is housed in a RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP and is specified for operation from −40°C to +85°C.ApplicationsKu band and K band satellite communications

The ADL8142 is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low noise wideband amplifier that operates from 23 GHz to 31 GHz. The ADL8142 provides a typical gain of 27 dB, a 1.6 dB typical noise figure, and a typical output third-order intercept (OIP3) of 21.5 dBm at 27 GHz to 31 GHz, requiring only 25 mA from a 2 V supply voltage. Note that the OIP3 can be improved with larger drain currents. The ADL8142 also features inputs and outputs that are ac-coupled and internally matched to 50 Ω, making it ideal for high capacity microwave radio applications.The ADL8142 is housed in a RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP.APPLICATIONSSatellite communicationTelecommunicationsCivilian radar

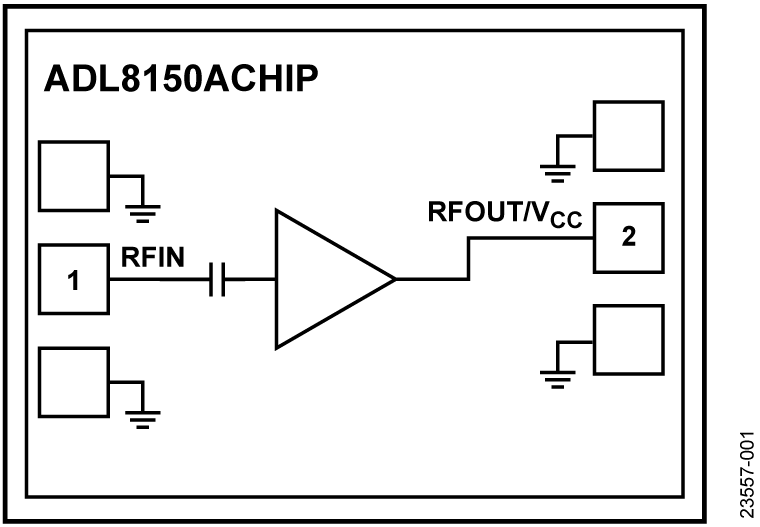

The ADL8150 is a self biased gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), heterojunction bipolar transistor (HBT), low phase noise amplifier that operates from 6 GHz to 14 GHz. The amplifier provides 12 dB of typical signal gain, 18 dBm output power at 1 dB gain compression (OP1dB), and a typical output third-order intercept (OIP3) of 30 dBm. The amplifier requires 74 mA from a 5 V collector supply voltage.The ADL8150 also features inputs and outputs (I/Os) that are internally matched to 50 Ω, and facilitates integration into multichip modules (MCMs). Note that throughout the data sheet, multifunction pins, such as RFOUT/VCC, are referred to either by the entire pin name or by a single function of the pin, for example, RFOUT, when only that function is relevant.ApplicationsMilitary and spaceTest instrumentationCommunications

The ADL9006 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC), low noise amplifier that operates between 2 GHz and 28 GHz. The amplifier provides 15.5 dB of gain, 2.5 dB noise figure, 26 dBm output third-order intercept (OIP3), and 20 dBm of output power for 1 dB compression (P1dB) while requiring 53 mA from a 5 V supply. The ADL9006 is self biased with only a single positive supply needed to achieve a supply current (IDD) of 53 mA.The ADL9006 amplifier input and output are internally matched to 50 Ω.ADL9006CHIPSThe ADL9006CHIPS is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC), low noise amplifier that operates from 2 GHz to 28 GHz. The amplifier provides 15.5 dB of gain, 2.2 dB of noise figure, 24 dBm of output third-order intercept (IP3), 20 dBm of output saturated power (PSAT), and 19 dB of power output for 1 dB compression (P1dB) while requiring a 55 mA power supply current (IDD) from a 5 V total supply voltage. The ADL9006CHIPS is self biased with only a single positive supply needed to achieve an IDDof 55 mA.The ADL9006CHIPS amplifier input and output are internally matched to 50 Ω facilitating integration into multichip modules (MCMs).APPLICATIONSTest instrumentationMilitary and spaceLocal oscillator driver ampADL9006CHIPSTest instrumentationMicrowave radios and very small aperture terminals (VSATs)Military and space

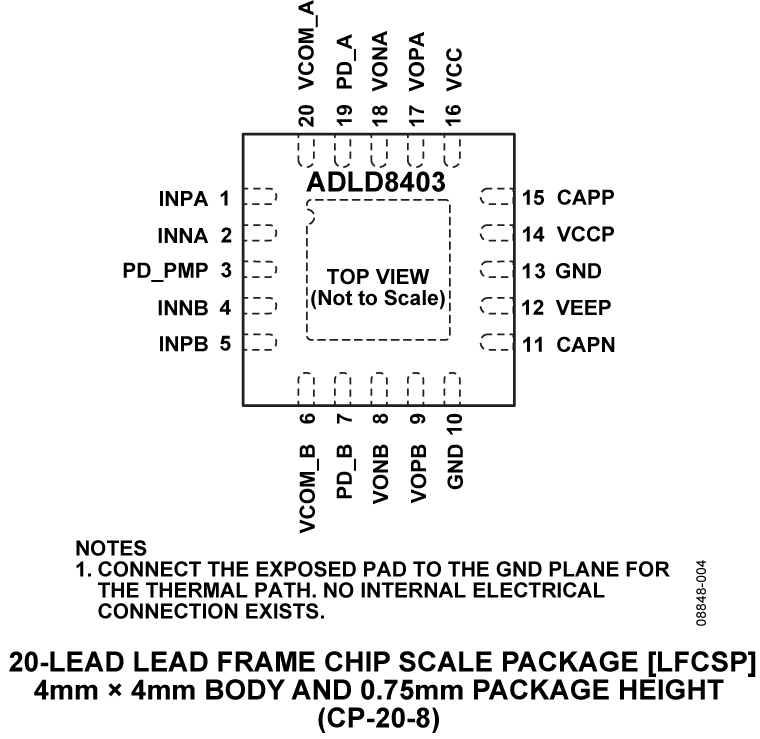

The ADLD8403 comprises two differential, high output current, low power consumption operational amplifiers. It is particularly well suited for the CO driver interface in digital subscriber line systems, such as ADSL and ADSL2+. The driver can deliver 20.4 dBm to a line while compensating for losses due to hybrid insertion and back termination resistors. The ADLD8403 uses the Analog Devices, Inc., second generation Adaptive Linear Power™ (Class H) architecture to achieve unprecedented power efficiency using a single power supply. Additional functionality allows the shutdown of pumps for enhanced power savings for line powers of less than 14.5 dBm. This functionality yields the smallest printed circuit board (PCB) footprint and lowest total cost of ownership.The low power consumption, high output current, high output voltage swing, and robust thermal packaging enable the ADLD8403 to be the CO line driver in ADSL and other xDSL systems.The ADLD8403 is available in a 4 mm × 4 mm, 20-lead LFCSP.ApplicationsADSL/ADSL2+ CO line drivers

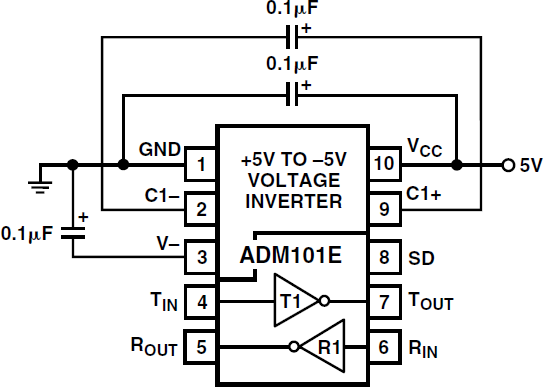

The ADM101E is a single channel RS-232 driver and receiver in the Analog Devices Craft Port series, designed to operate from a single, 5 V supply. A highly efficient charge-pump voltage inverter generates an on-chip –5 V supply, which eliminates the need for a negative power supply for the driver and permits RS-232 compatible output levels to be developed using charge pump capacitors as small as 0.1 μF.A shutdown input disables the charge pump and puts the device into a low power shutdown mode, in which the current consumption is typically less than 1 μA. The transmitter is disabled during shutdown but the receiver remains functional. Craft Port is a trademark of Analog Devices, Inc. An epitaxial BiCMOS construction minimizes power consumption to 3 mW and also guards against latch-up. Overvoltage protection is provided allowing the receiver inputs to withstand continuous voltages in excess of ±30 V. In addition, all I-O pins have ESD protection to levels greater than 15 kV.The ADM101E is available in a 10-lead μSOIC package, which makes it ideal for serial communications in small, portable applications such as palmtop computers and mobile telephones, where a full, RS-232 serial interface is not required, but compact size and low power drain are paramount.
