A
Analog Devices

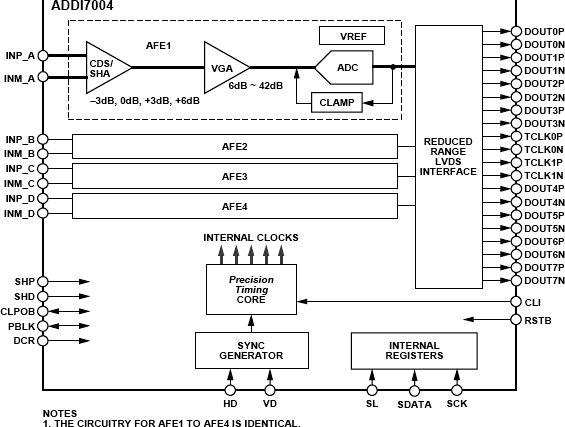

| Series | Category | # Parts | Status | Description |
|---|---|---|---|---|
| Part | Spec A | Spec B | Spec C | Spec D | Description |
|---|---|---|---|---|---|
| Series | Category | # Parts | Status | Description |
|---|---|---|---|---|
| Part | Spec A | Spec B | Spec C | Spec D | Description |
|---|---|---|---|---|---|
| Series | Category | # Parts | Status | Description |
|---|---|---|---|---|
| Video Processing | 3 | Active | ||
| Integrated Circuits (ICs) | 2 | Obsolete | ||
| Integrated Circuits (ICs) | 2 | Obsolete | ||
| Integrated Circuits (ICs) | 2 | Obsolete | ||
ADDI7018Dual-Channel, 16-Bit HD Image Signal Processor withPrecision TimingCore | Video Processing | 1 | Active | The ADDI7018 is a highly integrated, dual-channel, charge-coupled device (CCD) signal processor for high speed digital video camera applications. Each channel is specified at pixel rates of up to 75 MHz and consists of a complete analog front end (AFE) with ADC conversion. ThePrecision Timing™core allows adjustment of the correlated double sampler (CDS) and sample-and-hold amplifier (SHA) clocks with 210 ps resolution at 75 MHz operation. The ADDI7018 also contains a reduced range low voltage differential signaling (LVDS) interface for the dual-channel data outputs.Each analog front end includes black level clamping, a CDS, a VGA, and a 75 MHz, 16-bit analog-to-digital converter (ADC). Operation is programmed using a 3-wire serial interface.Packaged in a space-saving, 6 mm × 6 mm, 40-lead LFCSP, the ADDI7018 is specified over an operating temperature range of −25°C to +85°C.APPLICATIONSHD broadcast camerasHigh speed industrial camerasProfessional digital camerasDigital copiers |
| Integrated Circuits (ICs) | 1 | Active | ||
| Linear | 2 | Obsolete | ||
| Video Processing | 1 | Obsolete | ||

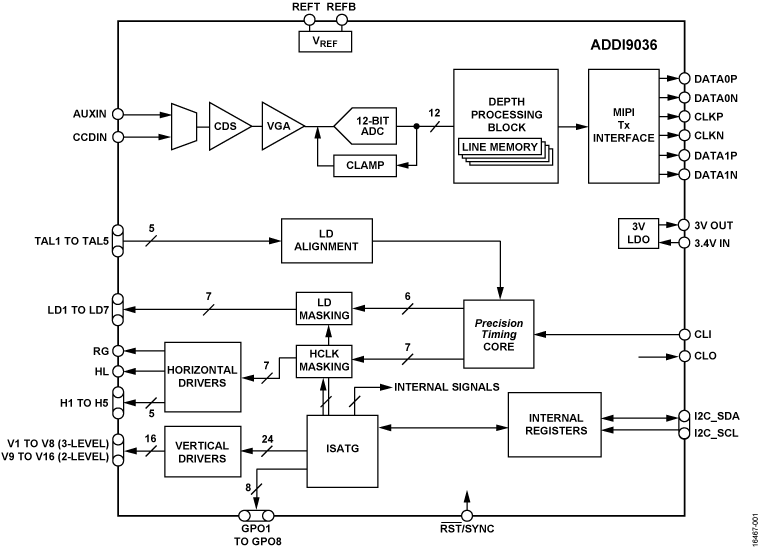

ADDI9036CCD TOF Signal Processor with Programmable Timing and V-Driver | Development Boards, Kits, Programmers | 2 | Active | The ADDI9036 is a complete, 45 MHz, front-end solution for charge coupled device (CCD) time of flight (TOF) imaging applications. The ADDI9036 includes an analog front end (AFE), a programmable instruction set architecture (ISA) timing generator (ISATG), a 7-channel laser diode (LD) driver, a 7-channel H-driver, and a 16-channel vertical driver (V-driver). ThePrecision Timing®core allows adjustment of the CCD horizontal clocks and LD outputs with approximately 174 ps resolution at 45 MHz operation.The AFE includes black level clamping, a correlated double sampler (CDS), a variable gain amplifier (VGA), and a 12-bit analog-to-digital converter (ADC). The AFE data is output through the MIPI®CSI-2 transmit interface.The internal registers can be programmed by an I2C serial interface.The ADDI9036 is packaged in a 6 mm × 6 mm, 117-ball WLCSP and is specified over an operating temperature range of −20°C to +85°C.ApplicationsTOF CCD cameras |
ADE1201Single Channel, Configurable, Isolated Digital Input | Analog to Digital Converters (ADCs) Evaluation Boards | 3 | Active | The ADE12011is a single channel, configurable, isolated digital input monitoring solution for energy transmission and distribution applications. The ADE1201 is configured through the serial port interface (SPI) to perform an isolated measurement of the digital input that is also called binary input or contact input. The ADE1201 digital output signal on the DOUT1 pin reflects the state of the input signal after user configurable signal conditioning. The SPI protocol supports addressing to allow up to eight devices sharing one 4-wire SPI port.The ADE1201 application circuit accepts a wide range of input voltages from ±10 V dc to ±300 V dc, or 8 V rms to 240 V rms. The programmable wetting current and robust application circuit enable the device to meet stringent, system level electromagnetic capability (EMC) requirements.The ADE1201 includes anisoPower®integrated, isolated dc-to-dc converter that eliminates the need for an external isolated power supply. TheiCoupler®chip scale transformer technology is used to isolate the logic signals between the high voltage, isolated side and the low voltage, nonisolated side of the digital input monitor. This technology creates a small form factor design that includes data and power isolation.An integrated successive approximation register (SAR) analog-to-digital converter (ADC) and a programmable gain amplifier (PGA) from 1× to 10× measure the analog inputs. The ADC waveforms are available through the SPI port to allow system level diagnostics.Product HighlightsSingle channel, configurable, isolated digital input.Single hardware design supports 24 V to 300 V systems.Robust architecture.Enables system level diagnostics.ApplicationsEnergy transmission and distributionMultifunction relay protectionSubstation battery monitoringBay or substation interlockingMerge unitCircuit breaker status indicationRemote terminal unitBuilding automation1Protected by U.S. Patent Number 2017/0250043. Other patents pending. |
| Part | Category | Description |
|---|---|---|
Analog Devices ADM6713RAKSZ-REELObsolete | Integrated Circuits (ICs) | IC SUPERVISOR 1 CHANNEL SC70-4 |
Analog Devices | RF and Wireless | RF AMP SINGLE GENERAL PURPOSE RF AMPLIFIER 20GHZ 3.6V 22-PIN DIE TRAY |
Analog Devices | Integrated Circuits (ICs) | LOW NOISE, SWITCHED CAPACITOR REGULATED VOLTAGE INVERTERS |
Analog Devices | Integrated Circuits (ICs) | QUAD 16-BIT/12-BIT ±10V VOUTSOFTSPAN DACS WITH 10PPM/°C MAX REFERENCE |
Analog Devices | Integrated Circuits (ICs) | SERIAL 14-BIT, 3.5MSPS SAMPLING ADC WITH BIPOLAR INPUTS |
Analog Devices | Integrated Circuits (ICs) | ISOSPI ISOLATED COMMUNICATIONS INTERFACE |
Analog Devices | Integrated Circuits (ICs) | 4.5A, 500KHZ STEP-DOWN SWITCHING REGULATOR |
Analog Devices | Integrated Circuits (ICs) | 300 MA, LOW QUIESCENT CURRENT, ADJUSTABLE OUTPUT, CMOS LINEAR REGULATOR |
Analog Devices AD767KNObsolete | Integrated Circuits (ICs) | IC DAC 12BIT V-OUT 24DIP |
Analog Devices | Integrated Circuits (ICs) | QUAD 12-/10-/8-BIT RAIL-TO-RAIL DACS WITH 10PPM/°C REFERENCE |
