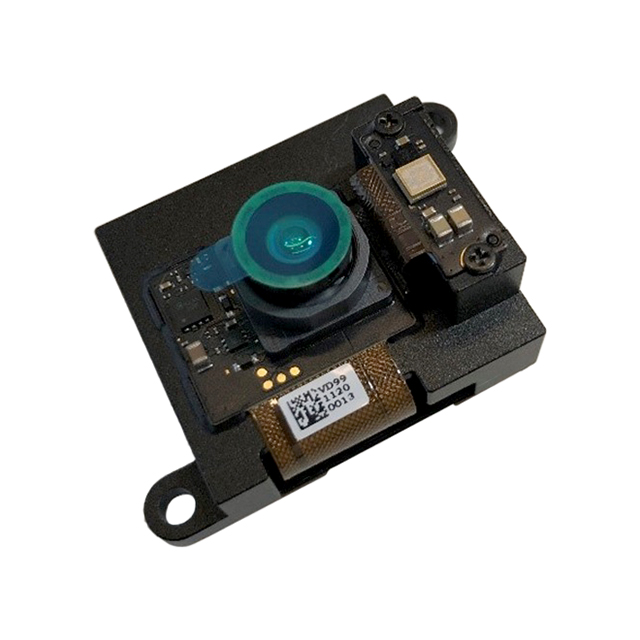

ADDI9036 Series
CCD TOF Signal Processor with Programmable Timing and V-Driver
Manufacturer: Analog Devices
Catalog
CCD TOF Signal Processor with Programmable Timing and V-Driver
Key Features
• 12-bit, 45 MHz ADC
• CDS with variable gain
• 0 dB to 36 dB, 10-bit VGA
• Black level clamp with variable level control
• Precision Timingcore with 174 ps resolution
• Integrated, 7-channel H-driver and RG clock drivers
• 7-channel LD driver
• Integrated 16-channel V-driver
• Complete on-chip ISA timing generator
• I2C serial interface
• MIPI CSI-2 transmit interface with support for 1 or 2 data lanes
• On-chip driver for external crystal
• 8 GPOs
• 6 mm × 6 mm, 117-ball WLCSP package with 0.5 mm pitch
Description
AI
The ADDI9036 is a complete, 45 MHz, front-end solution for charge coupled device (CCD) time of flight (TOF) imaging applications. The ADDI9036 includes an analog front end (AFE), a programmable instruction set architecture (ISA) timing generator (ISATG), a 7-channel laser diode (LD) driver, a 7-channel H-driver, and a 16-channel vertical driver (V-driver). ThePrecision Timing®core allows adjustment of the CCD horizontal clocks and LD outputs with approximately 174 ps resolution at 45 MHz operation.The AFE includes black level clamping, a correlated double sampler (CDS), a variable gain amplifier (VGA), and a 12-bit analog-to-digital converter (ADC). The AFE data is output through the MIPI®CSI-2 transmit interface.The internal registers can be programmed by an I2C serial interface.The ADDI9036 is packaged in a 6 mm × 6 mm, 117-ball WLCSP and is specified over an operating temperature range of −20°C to +85°C.ApplicationsTOF CCD cameras
