ADA4858-3Single-Supply, High Speed, Triple Op Amp with Charge Pump | Linear | 2 | Active | The ADA4858-3 (triple) is a single-supply, high speed current feedback amplifier with an integrated charge pump that eliminates the need for negative supplies to output negative voltages or output a 0 V level for video applications. The 600 MHz, −3 dB bandwidth and 600 V/μs slew rate make this amplifier well suited for many high speed applications. In addition, its 0.1 dB flatness out to 85 MHz at G = 2, along with its differential gain and phase errors of 0.01% and 0.02° into a 150 Ω load, make it well suited for professional and consumer video applications.This triple operational amplifier is designed to operate on supply voltages of 3.3 V to 5 V, using only 42 mA of total quiescent current, including the charge pump. To further reduce the power consumption, it is equipped with a power-down feature that lowers the total supply current to as low as 2.5 mA when the amplifier is not being used. Even in power-down mode, the charge pump can be used to power external components. The maximum output current for external use is 50 mA at −3 V. The amplifier also has a wide input common-mode voltage range that extends from 1.8 V below ground to 1.2 V below the positive rail at a 5 V supply.The ADA4858-3 is available in a 16-lead LFCSP, and it is designed to work over the extended industrial temperature range of −40°C to +105°C.ApplicationsProfessional videoConsumer videoImagingActive filtersData Sheet, Rev. A, 05/09 |

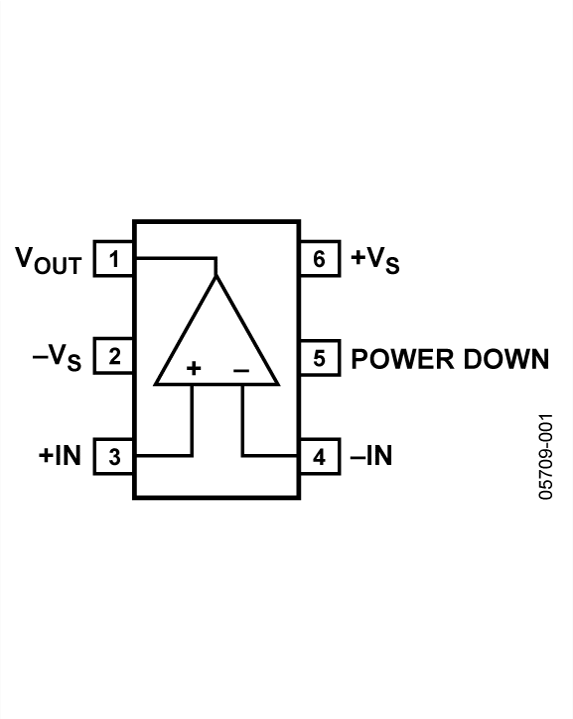

| Linear | 3 | Active | The ADA4860-1 is a low cost, high speed, current feedback op amp that provides excellent overall performance. The 800 MHz, -3 dB bandwidth, and 790 V/µs slew rate make this amplifier well suited for many high speed applications. With its combination of low price, excellent differential gain (0.02%), differential phase (0.02°), and 0.1 dB flatness out to 125 MHz, this amplifier is ideal for both consumer and professional video applications.The ADA4860-1 is designed to operate on supply voltages as low as +5 V and up to ±5 V using 6 mA of supply current. To further reduce power consumption, the amplifier is equipped with a power-down feature, that lowers the supply current to 0.25 mA.The ADA4860-1 is available in the 6-lead SOT-23 package and is designed to work over the extended temperature range of -40°C to +105°C. |
| Op Amp Evaluation Boards | 2 | Active | |

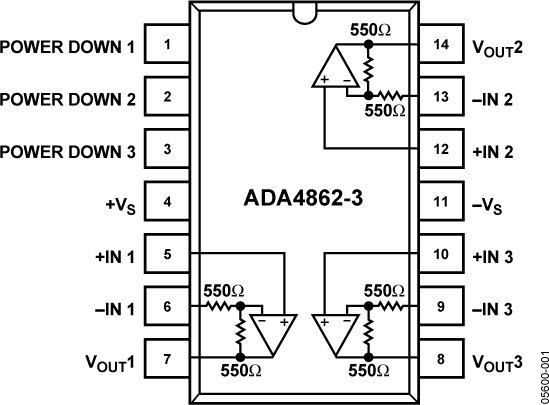

ADA4862-3High Speed, G = +2, Low Cost, Triple Op Amp | Development Boards, Kits, Programmers | 3 | Active | The ADA4862-3 (triple) is a low cost, high speed, internally fixed G = +2 op amp, which provides excellent overall performance for high definition and RGB video applications. The 300 MHz, G = +2, -3 dB bandwidth, and 750 V/µs slew rate make this amplifier well suited for many high speed applications. The ADA4862-3 can also be configured to operate in gains of G = +1 and G = -1With its combination of low price, excellent differential gain (0.02%), differential phase (0.03°), and 0.1 dB flatness out to 65 MHz, this amplifier is ideal for both consumer and professional video applications.The ADA4862-3 is available in a 14-lead SOIC package and is designed to work in the extended temperature range of -40°C to +105°C. |

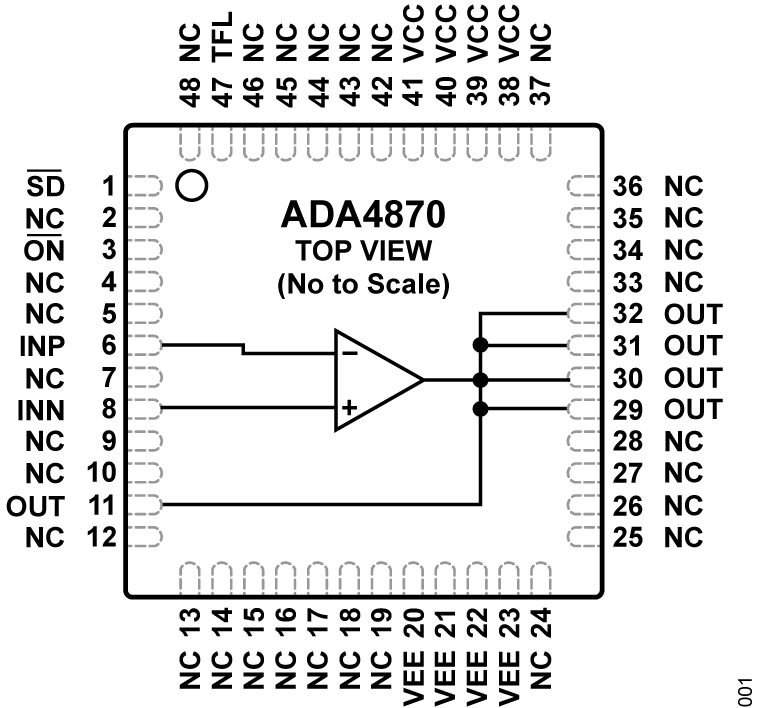

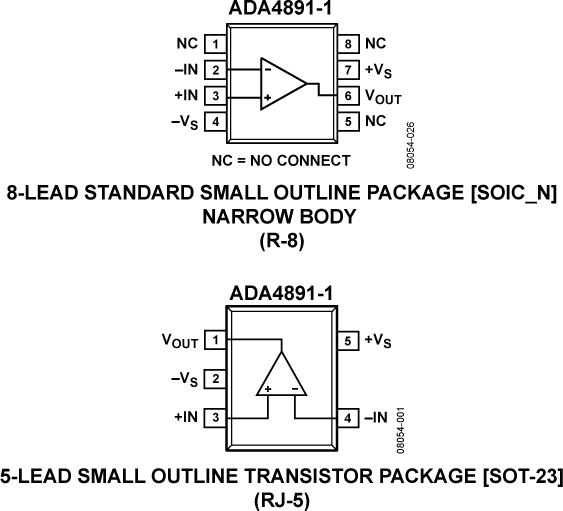

ADA48702500 V/μs Slew Rate, High Voltage, 1 A Output Drive Amplifier | Op Amp Evaluation Boards | 1 | Obsolete | The ADA4870 is a unity gain stable, high speed current feedback amplifier capable of delivering 1 A of output current and 2500 V/μs slew rate from a 40 V supply. Manufactured using the Analog Devices, Inc., proprietary high voltage extra fast complementary bipolar (XFCB) process, the innovative architecture of the ADA4870 enables high output power, high speed signal processing solutions in applications that require driving a low impedance load.The ADA4870 is ideal for driving high voltage power FETs, piezo transducers, PIN diodes, CCD panels, and a variety of other demanding applications that require high speed from high supply voltage at high output current.The ADA4870 is available in a 48-lead frame chip scale package (LFCSP) with an exposed pad that provides high thermal conductivity, enabling efficient heat transfer for improved performance and reliability in demanding applications. The ADA4870 operates over the industrial temperature range (−40°C to +85°C).APPLICATIONSEnvelope trackingPower FET driverUltrasoundPiezo driversPIN diode driversWaveform generationAutomated test equipment (ATE)CCD panel driversComposite amplifiers |
ADA4891-2Low Cost CMOS, High Speed, Rail-to-Rail Amplifier (Triple) | Instrumentation, Op Amps, Buffer Amps | 12 | Active | The ADA4891-1 (single), ADA4891-2 (dual), ADA4891-3 (triple), and ADA4891-4 (quad) are CMOS, high speed amplifiers that offer high performance at a low cost. The amplifiers feature true single-supply capability, with an input voltage range that extends 300 mV below the negative rail.In spite of their low cost, the ADA4891 family provides high performance and versatility. The rail-to-rail output stage enables the output to swing within 50 mV of each rail, enabling maximum dynamic range.The ADA4891 family of amplifiers is ideal for imaging applications, such as consumer video, CCD buffers, and contact image sensor buffers. Low distortion and fast settling time also make them ideal for active filter applications.The ADA4891-1/ADA4891-2/ADA4891-3/ADA4891-4 are available in a wide variety of packages.The ADA4891-1 is available in 8-lead SOIC and 5-lead SOT-23 packages.The ADA4891-2 is available in 8-lead SOIC and 8-lead MSOP packages.The ADA4891-3 and ADA4891-4 are available in 14-lead SOIC and 14-lead TSSOP packages.The amplifiers are specified to operate over the extended temperature range of −40°C to +125°C.ApplicationsImagingConsumer videoActive filtersCoaxial cable driversClock buffersPhotodiode preampContact image sensor and buffers |
ADA4895-1Low Power, 1nV/√Hz, G ≥ 10 Stable, Rail-to-Rail Output Amplifier | Integrated Circuits (ICs) | 5 | Active | The ADA4895-1 is a single, high speed voltage feedback amplifier that is gain ≥ 10 stable with low input noise, rail-to-rail output, and quiescent current of 3 mA per amplifier. With a 1/f noise of 2 nV/√Hz at 10 Hz and a spurious-free dynamic range of −72 dBc at 2 MHz, the ADA4895-1 is an ideal solution in a variety of applications, including ultrasound, low noise preamplifiers, and drivers of high performance ADCs. The Analog Devices, Inc., proprietary next generation SiGe bipolar process and innovative architecture enable this high performance amplifier.The ADA4895-1 has a large signal bandwidth of 146 MHz at a gain of +10 with a slew rate of 943 V/μs, and settles to 0.1% in 22 ns. The wide supply voltage range (3 V to 10 V) of the ADA4895-2 makes this amplifier an ideal candidate for systems that require high dynamic range, high gain, precision, and high speed.The ADA4895-1 is available in a 8-Lead SOIC package and 6-Lead SOT package and operates over the extended industrial temperature range of −40°C to +125°C.ApplicationsLow noise preamplifierUltrasound amplifiersPLL loop filtersHigh performance ADC driversDAC buffers |
ADA4896-21nV/√Hz, Low Power, Rail-to-Rail Output Amplifiers | Instrumentation, Op Amps, Buffer Amps | 3 | Active | The ADA4896-2/ADA4897-1are unity gain stable, low noise, rail-to-rail output, high speed voltage feedback amplifiers that have a quiescent current of 3 mA. With the 1/f noise of 2.4 nV/√Hz at 10 Hz and a spurious-free dynamic range of −80 dBc at 2 MHz, the ADA4896-2/ADA4897-1 are an ideal solution in a variety of applications, including ultrasound, low noise preamplifiers, and drivers of high performance ADCs. The Analog Devices, Inc., proprietary next generation SiGe bipolar process and innovative architecture enable such high performance amplifiers.TheADA4896-2/ADA4897-1 have 230 MHz bandwidth, 120 V/μs slew rate, and settle to 0.1% in 45 ns. With a wide supply voltage range (3 V to 10 V), the ADA4896-2/ADA4897-1 are ideal candidates for systems that require high dynamic range, precision, and high speed.The ADA4896-2 is available in 8-lead LFCSP and 8-lead MSOP packages. The ADA4897-1 is available in 8-lead SOIC and 6-lead SOT-23 packages. Both the ADA4896-2 and ADA4897-1 work over the extended industrial temperature range of −40°C to +125°C.ApplicationsLow noise preamplifierUltrasound amplifiers PLL loop filtersHigh performance ADC driversDAC buffers |
ADA4897-21nV/√Hz, Low Power, Rail-to-Rail Output Amplifiers | Development Boards, Kits, Programmers | 4 | Active | TheADA4896-2/ADA4897-1 are unity gain stable, low noise, rail-to-rail output, high speed voltage feedback amplifiers that have a quiescent current of 3 mA. With the 1/f noise of 2.4 nV/√Hz at 10 Hz and a spurious-free dynamic range of −80 dBc at 2 MHz, the ADA4896-2/ADA4897-1 are an ideal solution in a variety of applications, including ultrasound, low noise preamplifiers, and drivers of high performance ADCs. The Analog Devices, Inc., proprietary next generation SiGe bipolar process and innovative architecture enable such high performance amplifiers.TheADA4896-2/ADA4897-1 have 230 MHz bandwidth, 120 V/μs slew rate, and settle to 0.1% in 45 ns. With a wide supply voltage range (3 V to 10 V), the ADA4896-2/ADA4897-1 are ideal candidates for systems that require high dynamic range, precision, and high speed.The ADA4896-2 is available in 8-lead LFCSP and 8-lead MSOP packages. The ADA4897-1 is available in 8-lead SOIC and 6-lead SOT-23 packages. Both the ADA4896-2 and ADA4897-1 work over the extended industrial temperature range of −40°C to +125°C.ApplicationsLow noise preamplifierUltrasound amplifiers PLL loop filtersHigh performance ADC driversDAC buffers |
ADA4898-1High Voltage, Low Noise, Low Distortion, Unity Gain Stable, High Speed Op Amp | Integrated Circuits (ICs) | 2 | Active | The ADA4898-1 is an ultralow noise and distortion, unity gain stable, voltage feedback op amp that is ideal for use in 16-bit and 18-bit systems with power supplies from ±5 V to ±16 V. The ADA4898-1 features a linear, low noise input stage and internal compensation that achieves high slew rates and low noise.With the wide supply voltage range, low offset voltage, and wide bandwidth, the ADA4898-1 is extremely versatile, and it features a cancellation circuit that reduces input bias current. The ADA4898-1 is available in an 8-lead SOIC package that features an exposed metal paddle to improve power dissipation and heat transfer to the negative supply plane. This EPAD offers a significant thermal relief over traditional plastic packages. The ADA4898-1 is rated to work over the extended industrial temperature range of −40°C to +105°C.ApplicationsInstrumentationActive filtersDAC buffersSAR ADC driversOptoelectronicsData Sheet, Rev. B, 6/09 |
