ADA4870 Series

2500 V/μs Slew Rate, High Voltage, 1 A Output Drive Amplifier

Catalog

2500 V/μs Slew Rate, High Voltage, 1 A Output Drive Amplifier

Part	Supplied Contents	Output Type	Current - Supply (Main IC)	Utilized IC / Part	Board Type	Amplifier Type	-3db Bandwidth	Channels per IC	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Slew Rate	Current - Output / Channel

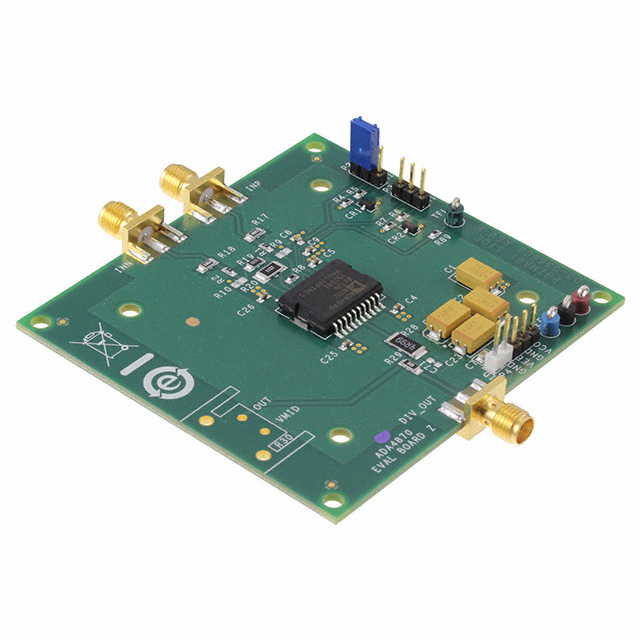

Analog Devices ADA4870ARR-EBZ	Board(s)	Single-Ended	32.5 mA	ADA4870	Fully Populated	Current Feedback	60 MHz	1 - Single	-5 V 10 V	20 V 40 V	2500 V/µs	1 A

Catalog

2500 V/μs Slew Rate, High Voltage, 1 A Output Drive Amplifier

Key Features

• Ideal for driving high capacitive or low resistive loads

• Wide supply range: 10 V to 40 V

• High output current drive: 1A

• Wide output voltage swing: 37 V swing with 40 V supply

• High slew rate: 2500 V/μs

• High bandwidth: 52 MHz large signal, 70 MHz small signal

• Low noise: 2.1 nV/√Hz

• Quiescent current: 32.5 mAPower down: 0.75 mA

• Power down: 0.75 mA

• Short-circuit protection and flag

• Thermal protection

Description

The ADA4870 is a unity gain stable, high speed current feedback amplifier capable of delivering 1 A of output current and 2500 V/μs slew rate from a 40 V supply. Manufactured using the Analog Devices, Inc., proprietary high voltage extra fast complementary bipolar (XFCB) process, the innovative architecture of the ADA4870 enables high output power, high speed signal processing solutions in applications that require driving a low impedance load.The ADA4870 is ideal for driving high voltage power FETs, piezo transducers, PIN diodes, CCD panels, and a variety of other demanding applications that require high speed from high supply voltage at high output current.The ADA4870 is available in a 48-lead frame chip scale package (LFCSP) with an exposed pad that provides high thermal conductivity, enabling efficient heat transfer for improved performance and reliability in demanding applications. The ADA4870 operates over the industrial temperature range (−40°C to +85°C).APPLICATIONSEnvelope trackingPower FET driverUltrasoundPiezo driversPIN diode driversWaveform generationAutomated test equipment (ATE)CCD panel driversComposite amplifiers
