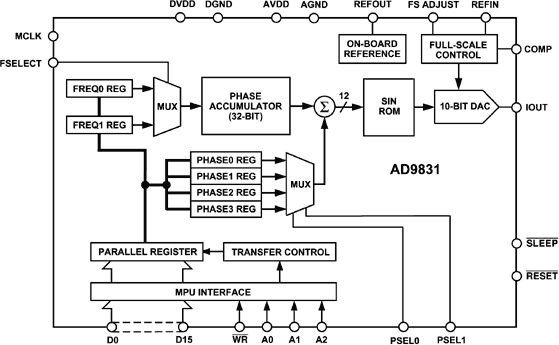

AD9831Direct Digital Synthesizer Waveform Generator | Interface | 4 | Active | This DDS device is a numerically controlled oscillator employing a phase accumulator, a sine look-up table and a 10-bit D/A converter integrated on a single CMOS chip. Modulation capabilities are provided for phase modulation and frequency modulation.Clock rates up to 25 MHz are supported. Frequency accuracy can be controlled to one part in 4 billion. Modulation is effected by loading registers through the parallel microprocessor interface.A powerdown pin allows external control of a powerdown mode. The part is available in a 48-pin TQFP package. |
| Direct Digital Synthesis (DDS) | 4 | Active | |
| Evaluation and Demonstration Boards and Kits | 4 | Active | |

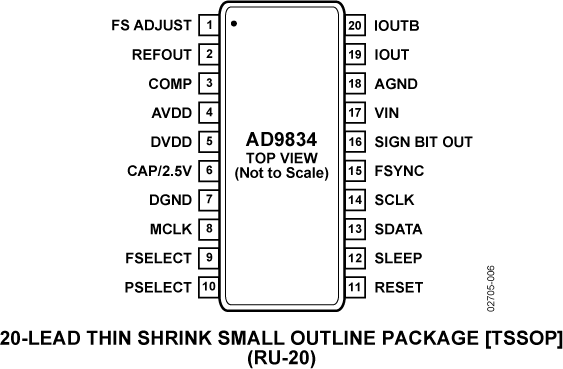

AD983420mW Power, 2.3 V to 5.5 V, 75 MHzComplete DDS | Direct Digital Synthesis (DDS) | 8 | Active | The AD9834 is a 75 MHz low power DDS device capable of producing high performance sine and triangular outputs. It also has an on-board comparator that allows a square wave to be produced for clock generation. Consuming only 20 mW of power at 3 V makes the AD9834 an ideal candidate for power-sensitive applications.Capability for phase modulation and frequency modulation is provided. The frequency registers are 28 bits; with a 75 MHz clock rate, resolution of 0.28 Hz can be achieved. Similarly, with a 1 MHz clock rate, the AD9834 can be tuned to 0.004 Hz resolution. Frequency and phase modulation are affected by loading registers through the serial interface and toggling the registers using software or the FSELECT pin and PSELECT pin, respectively.The AD9834 is written to using a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards.The device operates with a power supply from 2.3 V to 5.5 V. The analog and digital sections are independent and can be run from different power supplies, for example, AVDD can equal 5 V with DVDD equal to 3 V.The AD9834 has a power-down pin (SLEEP) that allows external control of the power-down mode. Sections of the device that are not being used can be powered down to minimize the current consumption. For example, the DAC can be powered down when a clock output is being generated.The part is available in a 20-lead TSSOP.APPLICATIONSFrequency stimulus/waveform generationFrequency phase tuning and modulationLow power RF/communications systemsLiquid and gas flow measurementSensory applications: proximity, motion, and defect detectionTest and medical equipment |

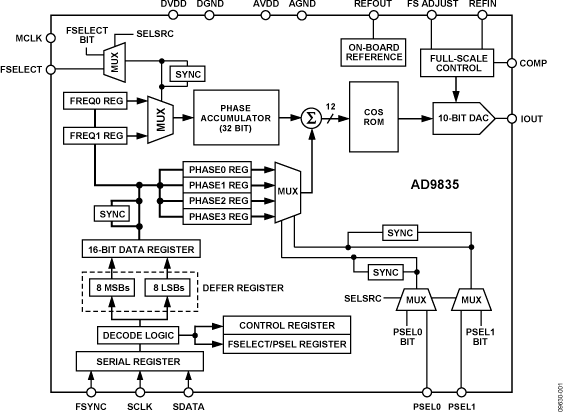

AD983550 MHz Direct Digital Synthesizer, Waveform Generator | Direct Digital Synthesis (DDS) | 4 | Active | The AD9835 is a numerically-controlled oscillator employing a phase accumulator, a COS lookup table, and a 10-bit digital-to-analog converter integrated on a single CMOS chip. Modulation capabilities are provided for phase modulation and frequency modulation.Clock rates of up to 50 MHz are supported. Frequency accuracy can be controlled to one part in 4 billion. Modulation is effected by loading registers through the serial interface. A power-down bit allows the user to power down the AD9835 when it is not in use, the power consumption reduces to 1.75 mW.The part is available in a 16-lead TSSOP package.APPLICATIONSFrequency stimulus/waveform generationFrequency phase tuning and modulationLow power RF/communications systemsLiquid and gas flow measurementSensory applications: proximity, motion, and defect detectionTest and medical equipment |

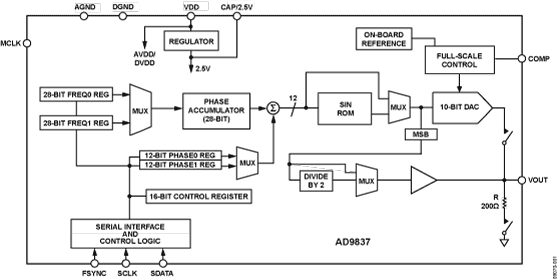

AD9837Low Power, 8.5mW, 2.3 V to 5.5 V, Programmable Waveform Generator | Evaluation and Demonstration Boards and Kits | 3 | Active | The AD9837 is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in various types of sensing, actuation, and time domain reflectometry (TDR) applications. The output frequency and phase are software programmable, allowing easy tuning. The frequency registers are 28 bits: with a 16 MHz clock rate, resolution of 0.06 Hz can be achieved; with a 5 MHz clock rate, the AD9837 can be tuned to 0.02 Hz resolution.The AD9837 is written to via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards. The device operates with a power supply from 2.3 V to 5.5 V.The AD9837 has a power-down (SLEEP) function. Sections of the device that are not being used can be powered down to minimize the current consumption of the part. For example, the DAC can be powered down when a clock output is being generated.The AD9837 is available in a 10-lead LFCSP_WD package.APPLICATIONSFrequency stimulus/waveform generationLiquid and gas flow measurementSensory applications: proximity, motion, and defect detectionLine loss/attenuationTest and medical equipmentSweep/clock generatorsTime domain reflectometry (TDR) applications |
AD983811mW Power, 2.3 V to 5.5 V, Complete DDS | Direct Digital Synthesis (DDS) | 2 | Active | The AD9838 is a low power DDS device capable of producing high performance sine and triangular outputs. It also has an on-board comparator that allows a square wave to be produced for clock generation. Consuming only 11 mW of power at 2.3 V the AD9838 is an ideal candidate for power-sensitive applications.Capability for phase modulation and frequency modulation is provided. The frequency registers are 28 bits; with a 16 MHz clock rate, resolution of 0.06 Hz can be achieved; with a 5 MHz clock rate, the AD9838 can be tuned to 0.02 Hz resolution. Frequency and phase modulation are configured by loading registers through the serial interface and toggling the registers using software or the FSELECT pin and PSELECT pin, respectively.The AD9838 is written to via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards.The device operates with a power supply from 2.3 V to 5.5 V. The analog and digital sections are independent and can be run from different power supplies; for example, AVDD can equal 5 V with DVDD equal to 3 V.The AD9838 has a power-down pin (SLEEP) that allows external control of the power-down mode. Sections of the device that are not being used can be powered down to minimize current consumption. For example, the DAC can be powered down when a clock output is being generated.The AD9838 is available in a 20-lead LFCSP_WQ package.APPLICATIONSFrequency stimulus/waveform generationFrequency phase tuning and modulationLow power RF/communications systemsLiquid and gas flow measurementSensory applications: proximity, motion, and defect detectionTest and medical equipment |

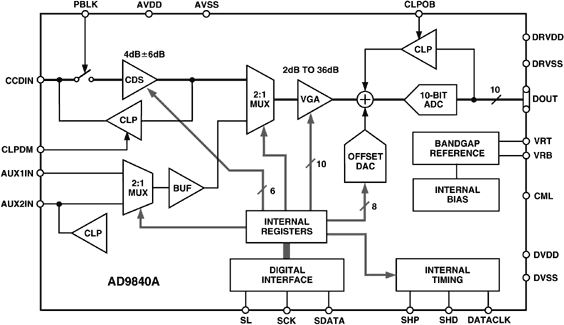

AD9840AComplete 10-Bit, 40 MHz CCD Signal Processor | Interface | 2 | Active | The AD9840A is a complete Analog Front-End (AFE) product for high-speed CCD camera applications. It features the circuitry necessary to sample, condition, and digitize the analog output of interlaced and progressive scan area CCDs. The AD9840A performs correlated double sampling (CDS), gain adjustment, black level correction, and analog-to-digital conversion. Additional input modes are provided for processing analog video signals. The internal registers of the AD9840A - used to control gain, offset level, and other functions - are programmed through a 3-Wire serial digital interface. |

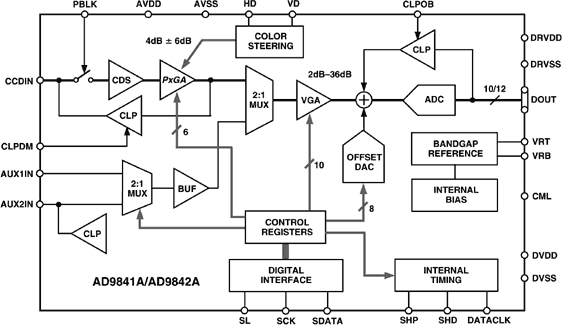

AD9841AComplete 10-bit, 20 MHz CCD Signal Processor with PxGA™ | Integrated Circuits (ICs) | 2 | Obsolete | The AD9841A is a complete Analog Front-End (AFE) product for CCD camera applications. It features the circuitry necessary to sample, condition, and digitize the analog output of interlaced and progressive scan area CCDs. The AD9841A performs correlated double sampling (CDS), color pixel gain amplification (using PxGA), overall gain adjustment, black level correction, and analog-to-digital conversion. Additional input modes are provided for processing analog video signals. The internal registers of the AD9841A - used to control gain, offset level, and other functions - are programmed through a 3-Wire serial digital interface.PxGA is a trademark of Analog Devices, Inc. |
| Interface | 2 | Obsolete | |
