The LTC1603 is a 250ksps, 16-bit sampling A/D converter that draws only 220mW from ±5V supplies. This high performance device includes a high dynamic range sample-and-hold, a precision reference and a high speed parallel output. Two digitally selectable power shutdown modes provide power savings for low power systems.The LTC1603’s full-scale input range is ±2.5V. Outstanding AC performance includes 90dB S/(N+D) and –100dB THD at a sample rate of 250ksps.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 15MHz bandwidth. The 68dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The ADC has µP compatible,16-bit parallel output port. There is no pipeline delay in conversion results. A separate convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.ApplicationsTelecommunicationsDigital Signal ProcessingMultiplexed Data Acquisition SystemsHigh Speed Data AcquisitionSpectrum AnalysisImaging Systems

The LTC1605-1/LTC1605-2 are 100ksps, sampling 16-bit A/D converters that draw only 55mW (typical) from a single 5V supply. These easy-to-use devices include a sample-and-hold, precision reference, switched capacitor successive approximation A/D and trimmed internal clock.The LTC1605-1’s input range is 0V to 4V while the LTC1605-2’s input range is ±4V. An external reference can be used if greater accuracy over temperature is needed.The ADC has a microprocessor compatible, 16-bit or two byte parallel output port. A convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.ApplicationsIndustrial Process ControlMultiplexed Data Acquisition SystemsHigh Speed Data Acquisition for PCsDigital Signal Processing

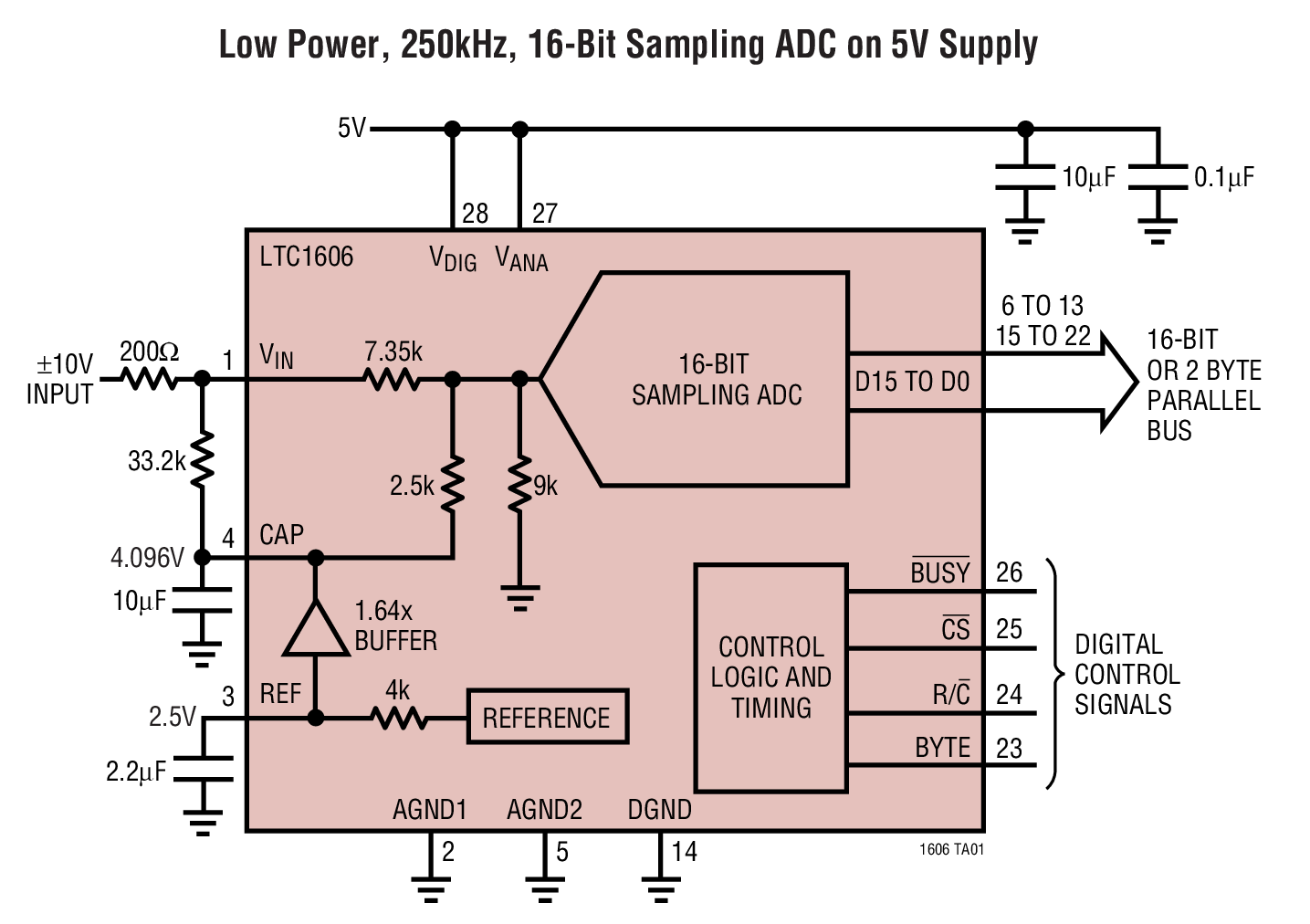

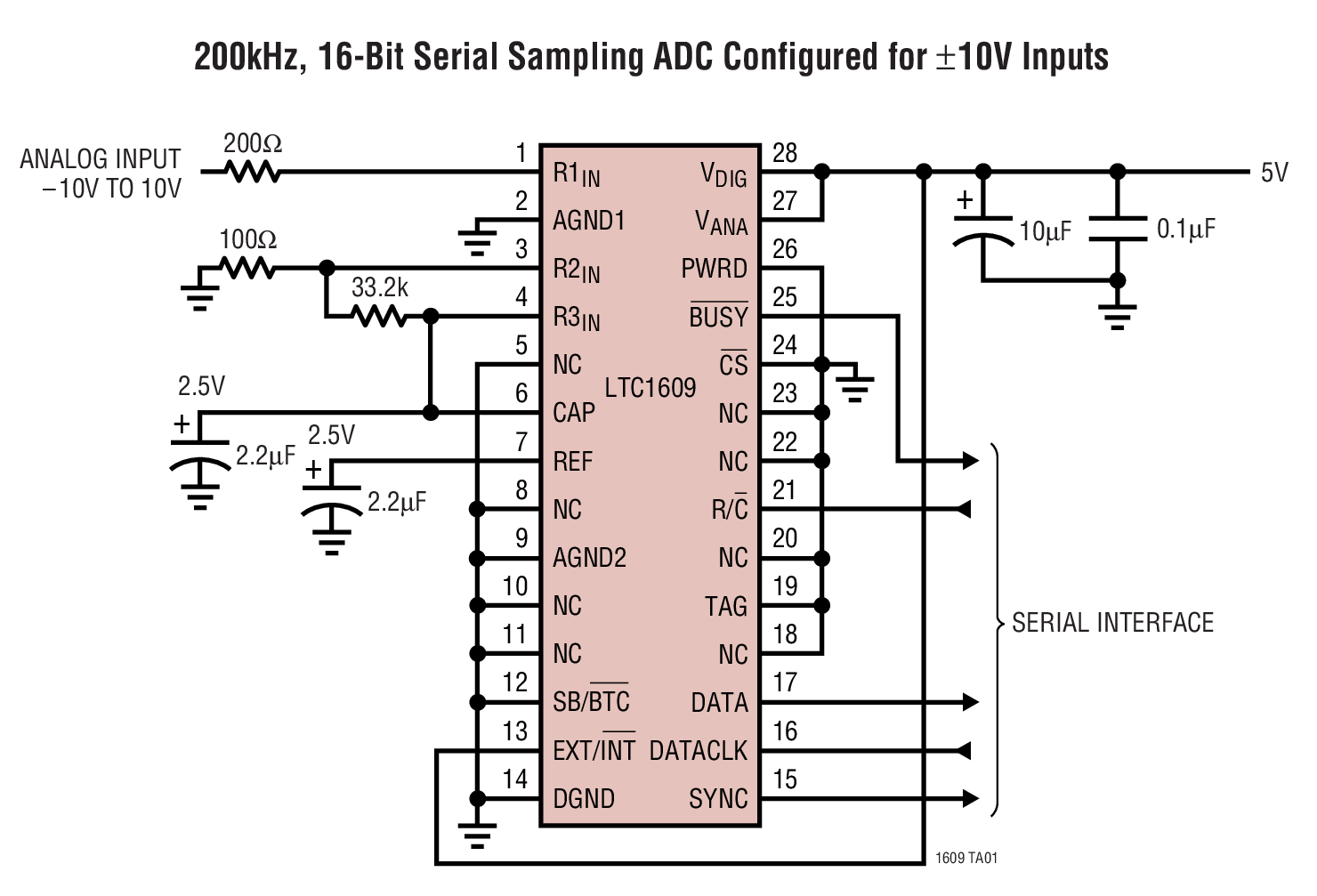

The LTC1609 is a 200ksps, serial sampling 16-bit A/D converter that draws only 65mW (typical) from a single 5V supply. This easy-to-use device includes a sample-and- hold, a precision reference, a switched capacitor successive approximation A/D and trimmed internal clock.The input range is specified for bipolar inputs of ±10V, ±5V and ±3.3V and unipolar inputs of 0V to 10V, 0V to 5V and 0V to 4V. Maximum DC specs include ±2LSB INL and 16-bit no missing codes overtemperature. It has a typical signal-to-noise ratio of 87dB.The ADC has a high speed serial interface. The serial output data can be clocked out using either the internal serial shift clock or be clocked out by an external shift clock. A separate convert start input(R/C) and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.ApplicationsIndustrial Process ControlMultiplexed Data Acquisition SystemsHigh Speed Data Acquisition for PCsDigital Signal Processing

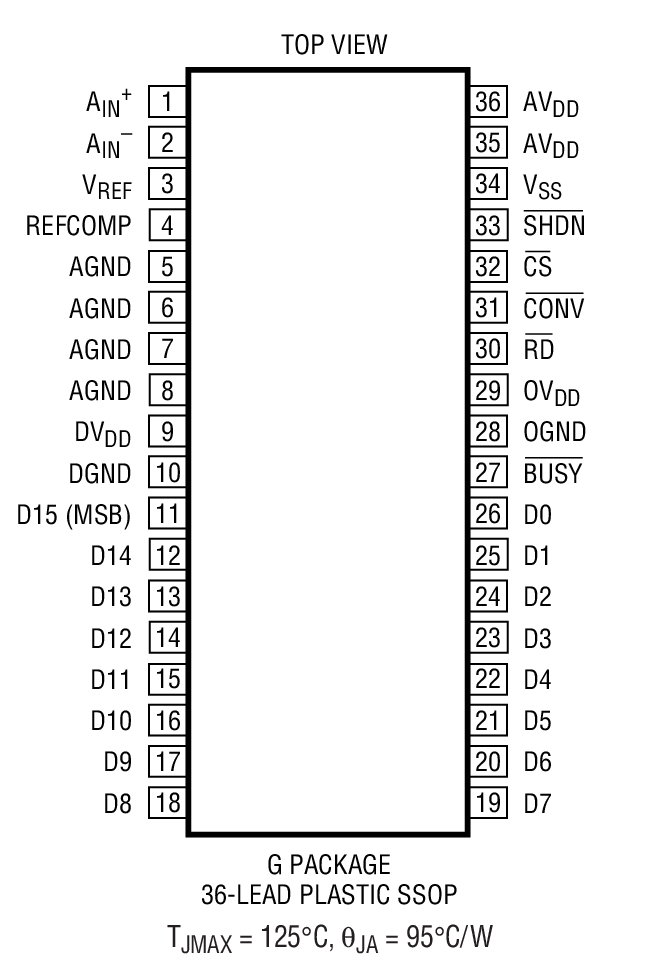

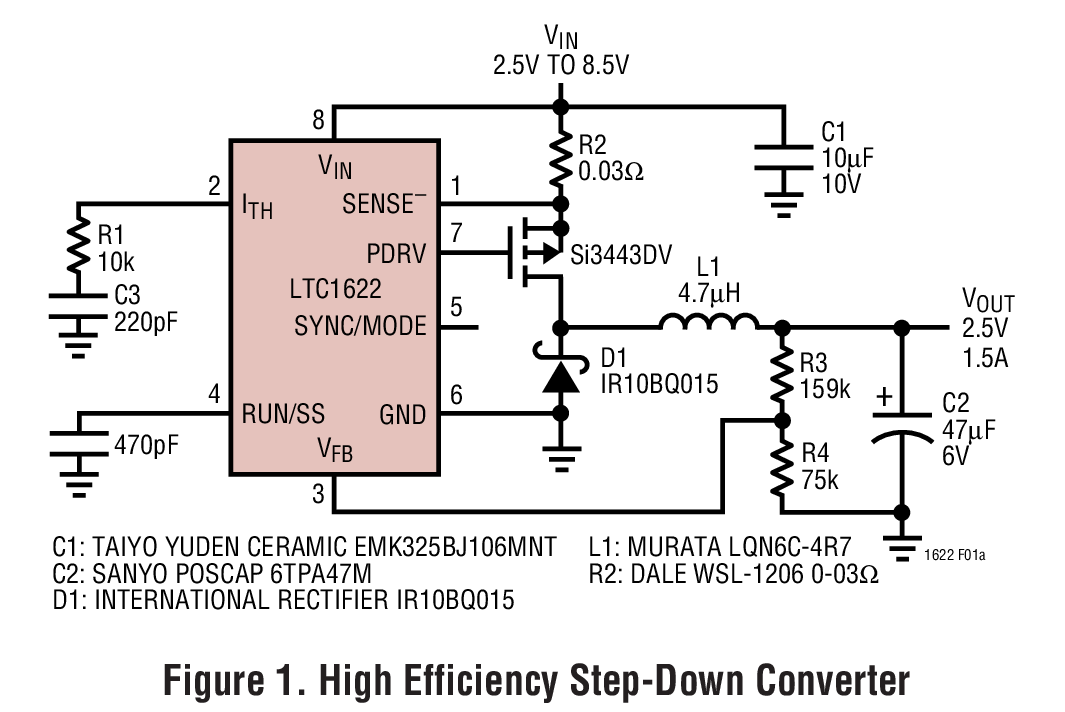

The LTC1622 is a constant frequency current mode step-down DC/DC controller providing excellent AC and DC load and line regulation. The device incorporates an accurate undervoltage feature that shuts the LTC1622 down when the input voltage falls below 2V.The LTC1622 boasts a ±1.9% output voltage accuracy and consumes only 350µA of quiescent current. For applications where efficiency is a prime consideration and the load current varies from light to heavy, the LTC1622 can be configured for Burst Mode™operation. Burst Mode operation enhances low current efficiency and extends battery run time. Burst Mode operation is inhibited during synchronization or when the SYNC/MODE pin is pulled low to reduce noise and possible RF interference.High constant operating frequency of 550kHz allows the use of a small inductor. The device can also be synchronized up to 750kHz for special applications. The high frequency operation and the available 8-lead MSOP package create a high performance solution in an extremely small amount of PCB area.To further maximize the life of the battery source, the P-channel MOSFET is turned on continuously in dropout (100% duty cycle). In shutdown, the device draws a mere 15µA.Applications1- or 2-Cell Li-Ion Powered ApplicationsCellular TelephonesWireless ModemsPortable ComputersDistributed 3.3V, 2.5V or 1.8V Power SystemsScannersBattery-Powered Equipment

The LTC1623 SMBus switch controller is a slave device that controls two high-side N-channel MOSFETs on either the SMBus or the I2C bus. The LTC1623 operates with an input voltage from 2.7V to 5.5V with a low standby current of 14µA (at 3.3V). In accordance with the SMBus specification, the LTC1623 maintains the 0.6V VILand 1.4V VIHinput thresholds throughout the supply voltage range.Using the 2-wire interface, CLK and DATA, the LTC1623 monitors the bus for a start condition (DATA going from high to low while CLK is high). Once detected, the LTC1623 compares its address with the first (address) byte sent over the bus from the master. If matched, the LTC1623 will execute the second (command) byte from the master and independently control the built-in charge pumps to drive two external switches.The LTC1623 has two three-state programmable address pins, thus allowing eight different addresses and a total of sixteen available switches on the same bus.ApplicationsComputer Peripheral ControlLaptop Computer Power Plane SwitchingPortable Equipment Power ControlIndustrial Control SystemsHandheld Equipment
