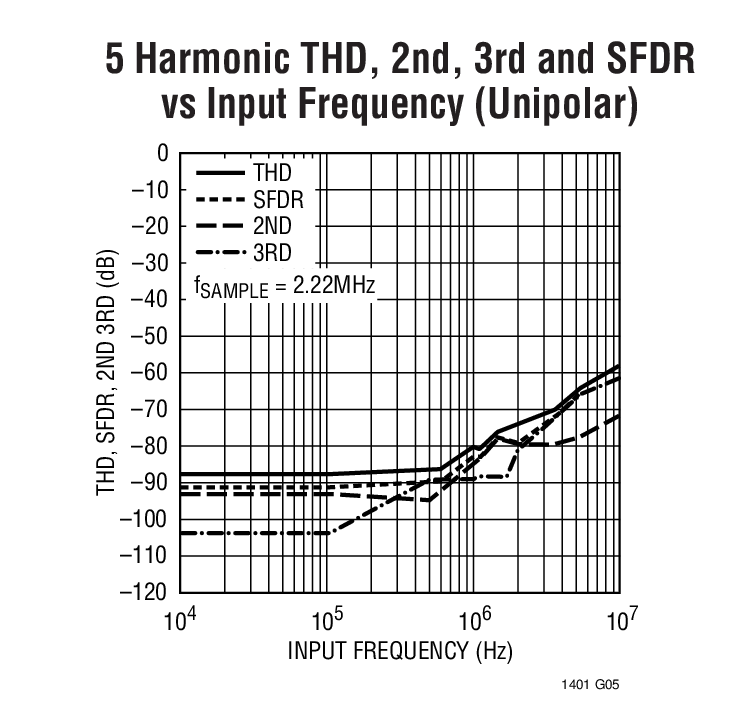

The LTC1402 is a 12-bit, 2.2Msps sampling A/D converter. This high performance device includes a high dynamic range sample-and-hold and a precision reference. It operates from a single 5V supply or dual ±5V supplies and draws only 90mW from 5V.The versatile differential input offers a unipolar range of 4.096V and a bipolar range of ±2.048V for dual supply systems where high performance op amps perform best, eliminating the need for special translation circuitry.The high common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.Outstanding AC performance includes 72dB S/(N + D) and –93dB SFDR at the Nyquist input frequency of 1.1MHz with dual ±5V supplies and –84dB SFDR with a single 5V supply.The LTC1402 has two power saving modes: Nap and Sleep. Nap mode consumes only 15mW of power and can wake up and convert immediately. In Sleep mode, it typically consumes 10µW of power. Upon power-up from Sleep mode, a reference ready (REFRDY) signal is available in the serial data word to indicate that the reference has settled and the chip is ready to convert.The 3-wire serial port allows compact and efficient data transfer to a wide range of microprocessors, microcontrollers and DSPs. A digital output driver power supply pin allows direct connection to 3V or lower logic.ApplicationsTelecommunicationsHigh Speed Data and Signal AcquisitionDigitally Multiplexed Data Acquisition SystemsDigital Radio ReceiversSpectrum AnalysisLow Power and Battery-Operated SystemsHandheld or Portable InstrumentsImaging Systems

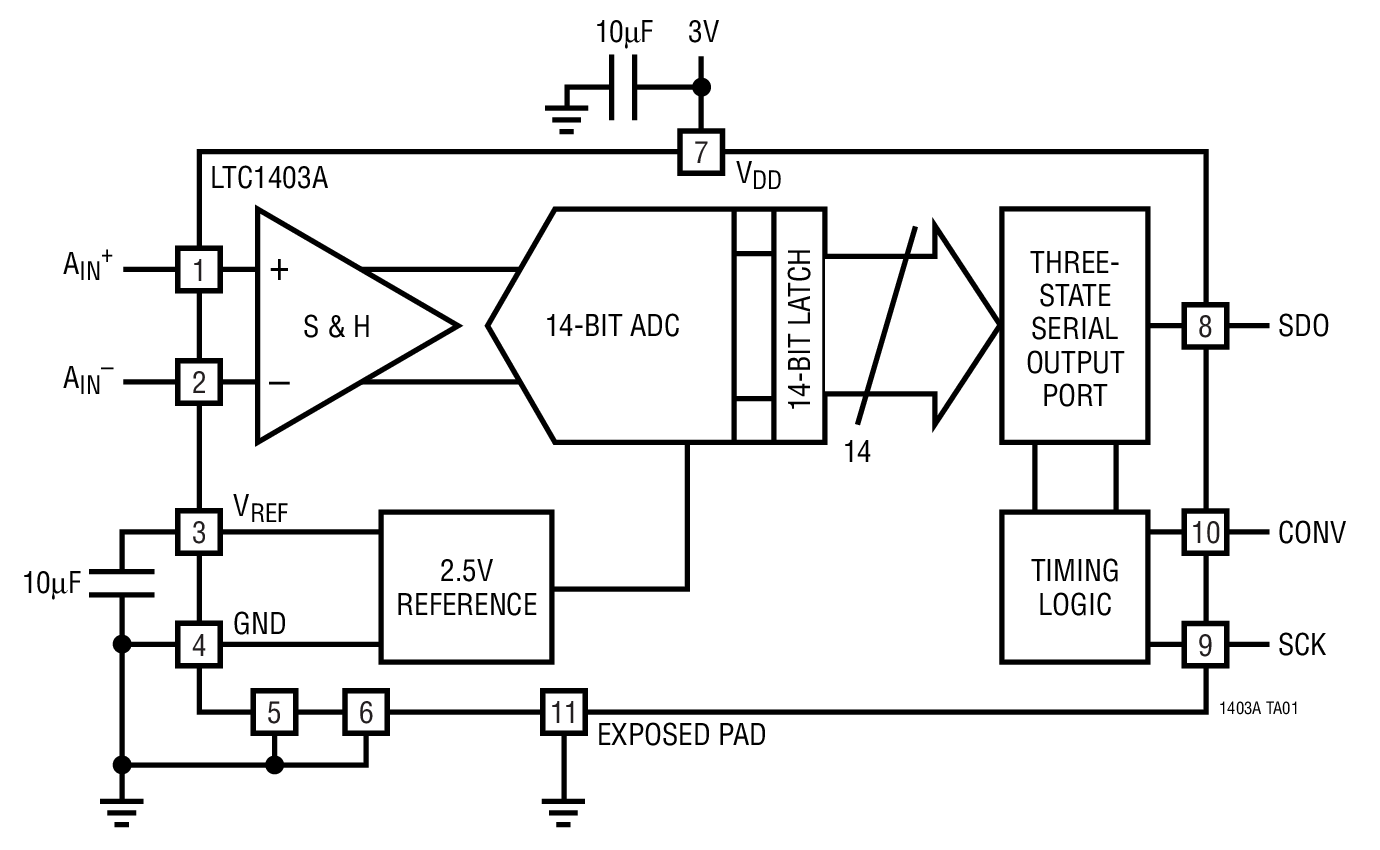

The LTC1403/LTC1403A are 12-bit/14-bit, 2.8Msps serial ADCs with differential inputs. The devices draw only 4.7mA from a single 3V supply and come in a tiny 10-lead MS package. A Sleep shutdown feature lowers power consumption to 10µW. The combination of speed, low power and tiny package makes the LTC1403/LTC1403A suitable for high speed, portable applications.The 80dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The devices convert 0V to 2.5V unipolar inputs differentially. The absolute voltage swing for +AINand –AINextends from ground to the supply voltage.The serial interface sends out the conversion results during the 16 clock cycles following the rising edge of­ CONV for compatibility with standard serial interfaces. If two additional clock cycles for acquisition time are allowed after the data stream in between conversions, the full sampling rate of 2.8Msps can be achieved with a 50.4MHz clock.ApplicationsAutomotiveCommunicationsData Acquisition SystemsUninterrupted Power SuppliesMultiphase Motor ControlMultiplexed Data Acquisition

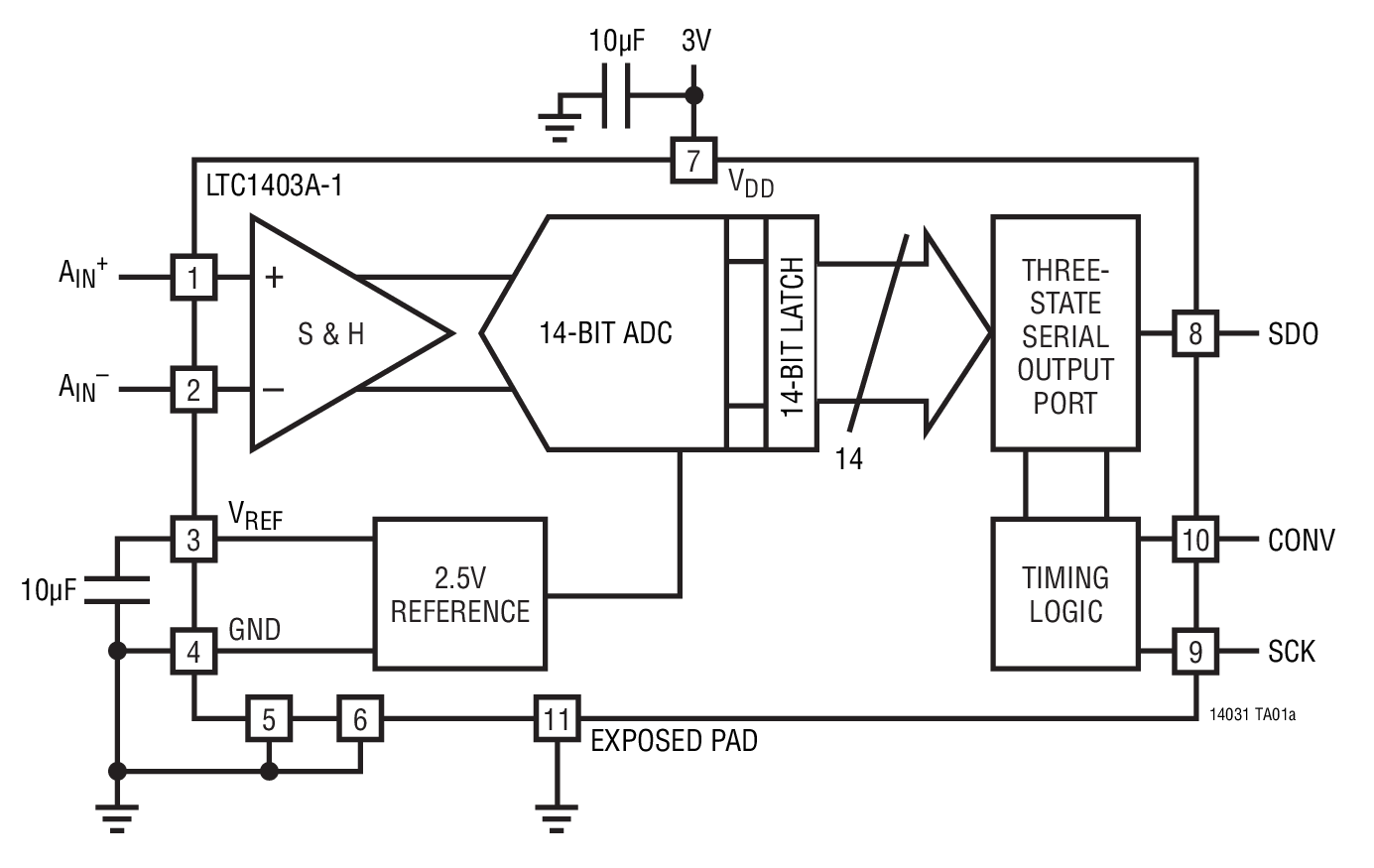

The LTC1403-1/LTC1403A-1 are 12-bit/14-bit, 2.8Msps serial ADCs with differential inputs. The devices draw only 4.7mA from a single 3V supply and come in a tiny 10-lead MSE package. A Sleep shutdown feature lowers power consumption to 10μW. The combination of speed, low power and tiny package makes the LTC1403-1/LTC1403A‑1 suitable for high speed, portable applications.The 80dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The devices convert –1.25V to 1.25V bipolar inputs differentially. The absolute voltage swing for +AINand –AINextends from ground to the supply voltage.The serial interface sends out the conversion results during the 16 clock cycles following CONV↑ for compatibility with standard serial interfaces. If two additional clock cycles for acquisition time are allowed after the data stream in between conversions, the full sampling rate of 2.8Msps can be achieved with a 50.4MHz clock.ApplicationsCommunicationsData Acquisition SystemsUninterrupted Power SuppliesMultiphase Motor ControlMultiplexed Data Acquisition

The LTC1403/LTC1403A are 12-bit/14-bit, 2.8Msps serial ADCs with differential inputs. The devices draw only 4.7mA from a single 3V supply and come in a tiny 10-lead MS package. A Sleep shutdown feature lowers power consumption to 10µW. The combination of speed, low power and tiny package makes the LTC1403/LTC1403A suitable for high speed, portable applications.The 80dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The devices convert 0V to 2.5V unipolar inputs differentially. The absolute voltage swing for +AINand –AINextends from ground to the supply voltage.The serial interface sends out the conversion results during the 16 clock cycles following the rising edge of­ CONV for compatibility with standard serial interfaces. If two additional clock cycles for acquisition time are allowed after the data stream in between conversions, the full sampling rate of 2.8Msps can be achieved with a 50.4MHz clock.ApplicationsAutomotiveCommunicationsData Acquisition SystemsUninterrupted Power SuppliesMultiphase Motor ControlMultiplexed Data Acquisition

The LTC1403-1/LTC1403A-1 are 12-bit/14-bit, 2.8Msps serial ADCs with differential inputs. The devices draw only 4.7mA from a single 3V supply and come in a tiny 10-lead MSE package. A Sleep shutdown feature lowers power consumption to 10μW. The combination of speed, low power and tiny package makes the LTC1403-1/LTC1403A‑1 suitable for high speed, portable applications.The 80dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The devices convert –1.25V to 1.25V bipolar inputs differentially. The absolute voltage swing for +AINand –AINextends from ground to the supply voltage.The serial interface sends out the conversion results during the 16 clock cycles following CONV↑ for compatibility with standard serial interfaces. If two additional clock cycles for acquisition time are allowed after the data stream in between conversions, the full sampling rate of 2.8Msps can be achieved with a 50.4MHz clock.ApplicationsCommunicationsData Acquisition SystemsUninterrupted Power SuppliesMultiphase Motor ControlMultiplexed Data Acquisition

The LTC1405 is a 5Msps, 12-bit sampling A/D converter that draws only 115mW from either single 5V or dual ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold, a precision reference and a PGA input circuit.The LTC1405 has a flexible input circuit that allows full-scale input ranges of ±2.048V, ±1.024V and ±0.512V. The input common mode range is rail-to-rail and a common mode bias voltage is provided for single supply applications. The input PGA has a digitally selectable 1x or 2x gain.Maximum DC specs include ±1LSB INL and ±1LSB DNL over temperature. Outstanding AC performance includes 71.3dB S/(N + D) and 85dB SFDR at the Nyquist input frequency of 2.5MHz.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 100MHz bandwidth. The 75dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. A separate output logic supply allows direct connection to 3V components.ApplicationsTelecommunicationsDigital Signal ProcessingMultiplexed Data Acquisition SystemsHigh Speed Data AcquisitionSpectral AnalysisImaging Systems

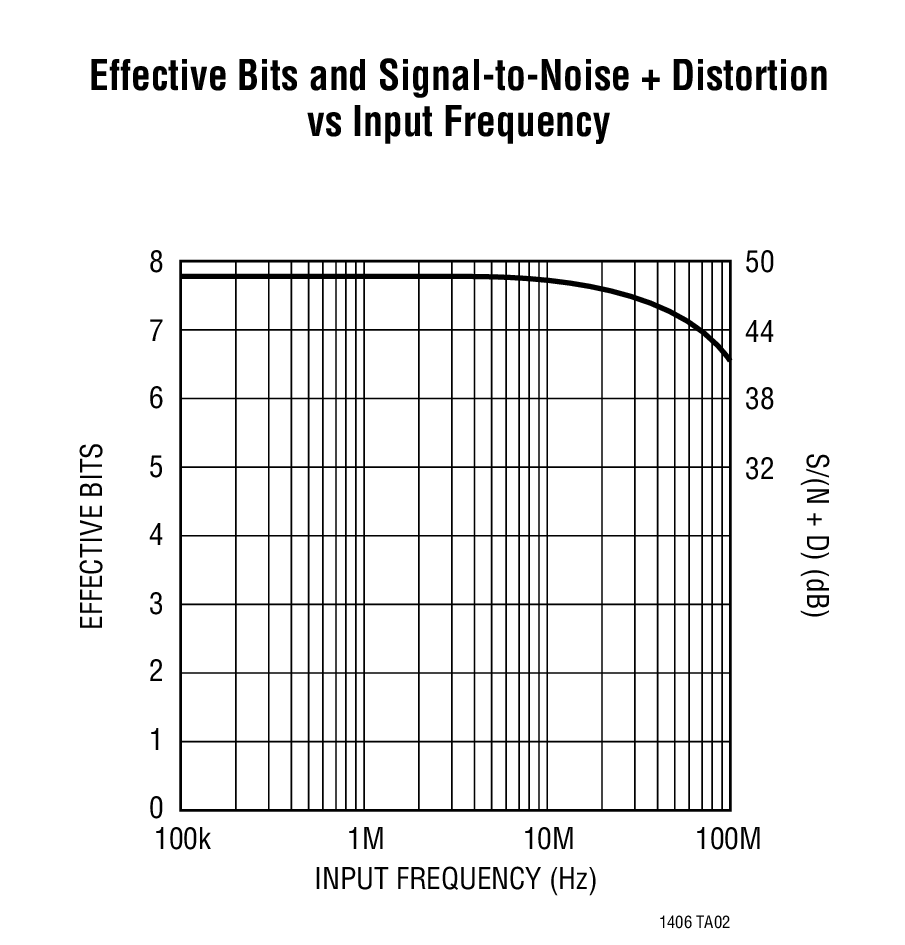

The LTC1406 is a 20Msps, 8-bit, sampling A/D converter which draws only 150mW from a single 5V supply. This easy-to-use device includes a high dynamic range sample-and-hold with a 250MHz bandwidth.The LTC1406’s full-scale input range is ±1V. The inputs can be driven differentially or one input can be tied to a fixed voltage and the other input driven with a ±1V bipolar input. Maximum DC specifications include ±1LSB DNL and INL over temperature. Outstanding AC performance includes 48.5dB S/(N + D) and 62dB THD with a 1MHz input; 47.5dB S/(N + D) and 59dB THD at the Nyquist input frequency of 10MHz.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 250MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The ADC has an 8-bit parallel output port with separate power supply and ground allowing easy interface to 3V digital systems. The pipelined architecture has five clock cycles of data latency.ApplicationsTelecommunicationsWireless CommunicationsDigital Cellular TelephonesCCDs and Image ScannersVideo Digitizing and Digital TelevisionDigital Color CopiersHigh Speed UndersamplingPersonal Computer VideoHigh Speed Data Acquisition

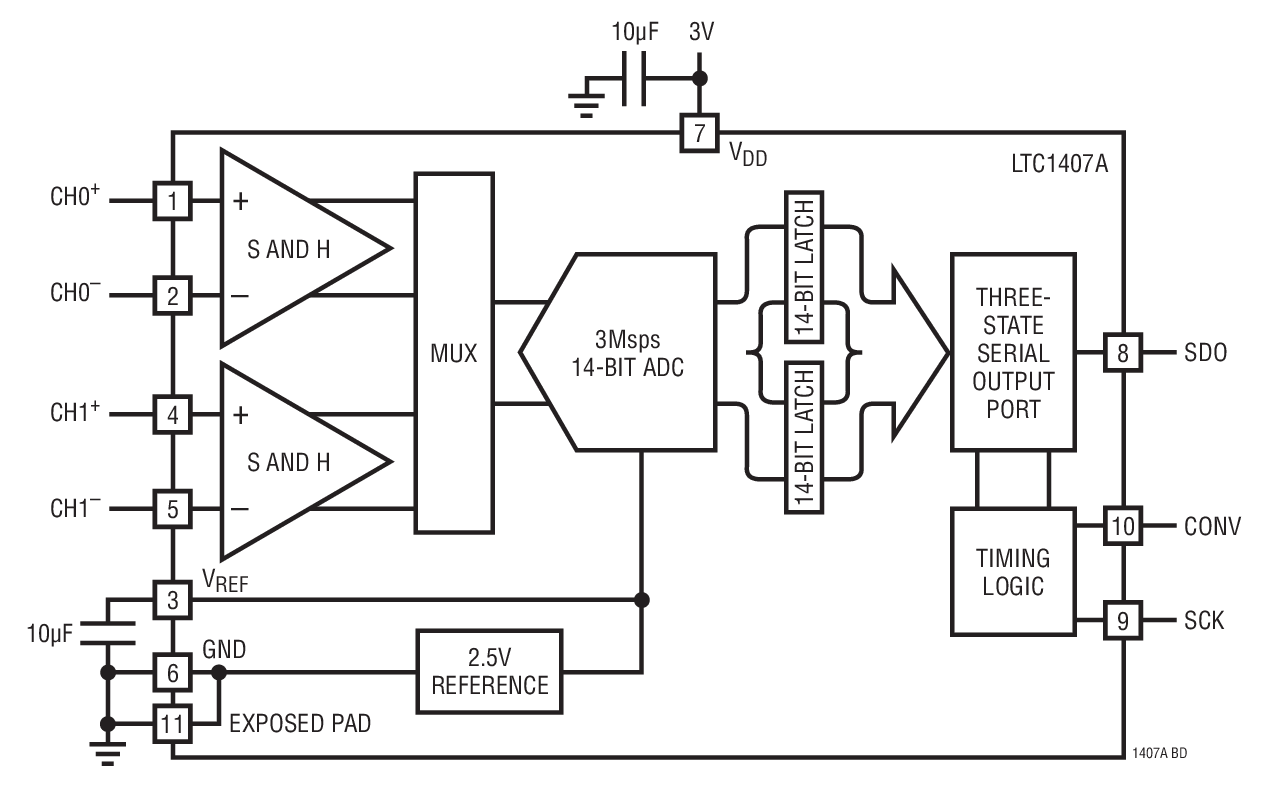

The LTC1407-1/LTC1407A-1 are 12-bit/14-bit, 3Msps ADCs with two 1.5Msps simultaneously sampled differential inputs. The devices draw only 4.7mA from a single 3V supply and come in a tiny 10-lead MS package. A sleep shutdown feature lowers power consumption to 10μW.The combination of speed, low power and tiny package makes the LTC1407-1/LTC1407A-1 suitable for high speed,portable applications.The LTC1407-1/LTC1407A-1 contain two separate differential inputs that are sampled simultaneously on the rising edge of the CONV signal. These two sampled inputs are then converted at a rate of 1.5Msps per channel.The 80dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.The devices convert –1.25V to 1.25V bipolar inputs differentially.The absolute voltage swing for CH0+, CH0–, CH1+and CH1–extends from ground to the supply voltage.The serial interface sends out the two conversion results in 32clocks for compatibility with standard serial interfaces.ResolutionINL (typ/max)Input RangeLTC140712 bits0.25 LSB typ / 2 LSB max0V-2.5VLTC1407A14 bits0.5 LSB typ / 4 LSB max0V-2.5VLTC1407-112 bits0.25 LSB typ / 2 LSB max±1.25VLTC1407A-114 bits0.5 LSB typ / 4 LSB max±1.25VApplicationsTelecommunicationsData Acquisition SystemsUninterrupted Power SuppliesMultiphase Motor ControlI & Q DemodulationIndustrial Radio
