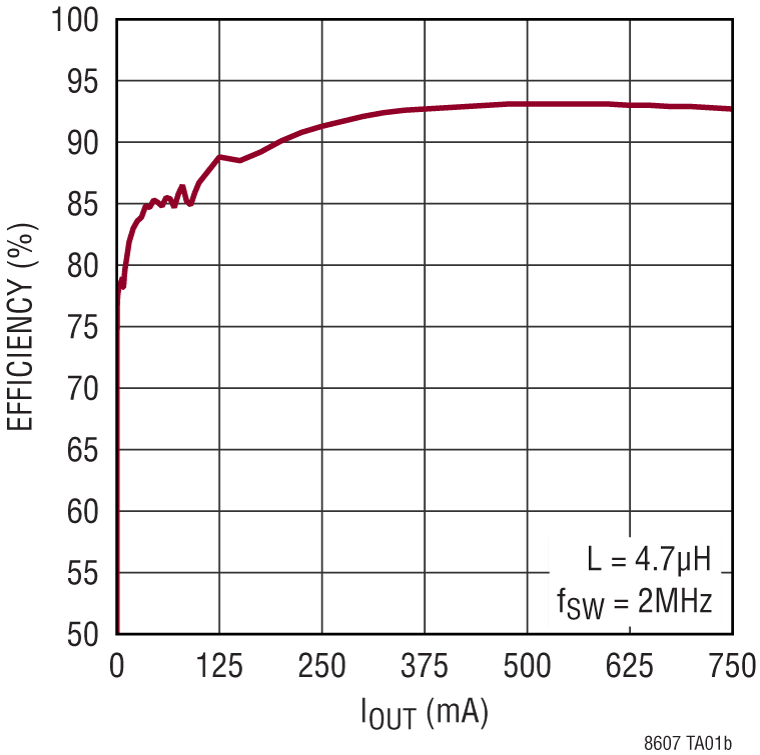

The LT8607 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7µA of non-switching quiescent current. The LT8607 can deliver 750mA of continuous current. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VINundervoltage lockout or to shut down the LT8607 reducing the input supply current to 1µA.The MSOP package includes a SYNC pin to synchronize to an external clock, or to select Burst Mode operation or pulse-skipping with or without spread spectrum; the TR/SS pin programs soft-start or tracking. The DFN package omits these pins and can be purchased in pulse-skipping or Burst Mode operation.Part NumberPackageOutput VoltageSynch FunctionalityLT8607MSEMSEProgrammableProgrammableLT8607-5MSEMSEFixed 5V OutProgrammableLT8607DFNDFNProgrammableBurst Mode OperationLT8607BDFNDFNProgrammablePulse-Skipping ModeAPPLICATIONSGeneral Purpose Step Down ConverterLow EMI Step Down

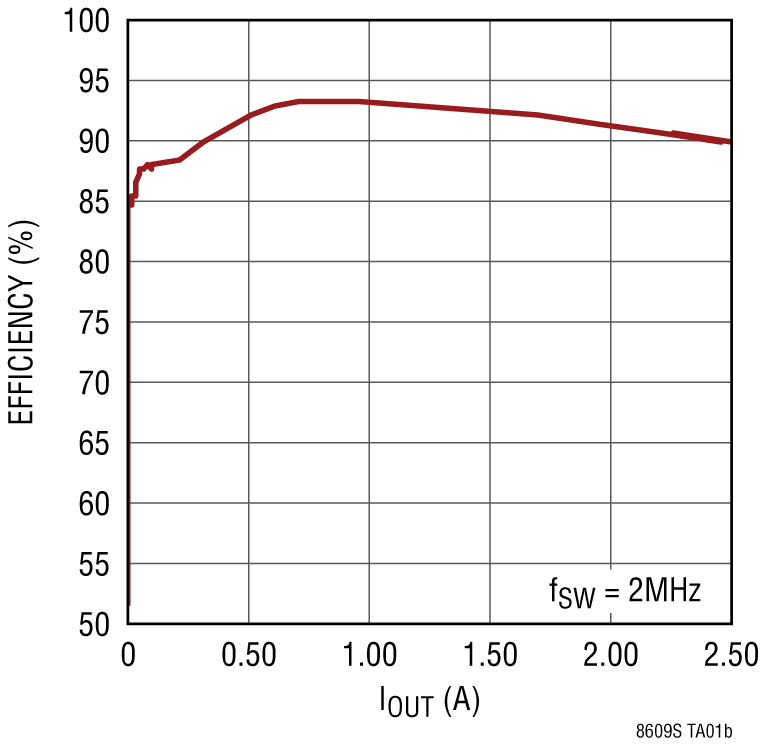

The LT8609S is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7µA of non-switching quiescent current. The LT8609S can deliver 2A of continuous current with peak loads of 3A (<1sec) to support applications such as GSM transceivers which require high transient loads. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock, or spread spectrum modulation of switching frequencies for low EMI operation. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VINundervoltage lockout or to shut down the LT8609S reducing the input supply current to 1µA. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up while the PG flag signals when VOUTis within ±8.5% of the programmed output voltage as well as fault conditions. The LT8609S is available in a small 16-lead 3mm × 3mm LQFN package.APPLICATIONSGeneral Purpose Step DownLow EMI Step Down

The LT8610 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VINundervoltage lockout or to shut down the LT8610 reducing the input supply current to 1μA. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up. The PG flag signals when VOUTis within ±9% of the programmed output voltage as well as fault conditions. The LT8610 is available in a small 16-lead MSOP package with exposed pad for low thermal resistance.Feedback VoltageMin VINOutput CurrentNotesLT8610AC-10.80V3.0V3.5AFsw = 1.5MHz to 2.2MHz, Optimized Transient ResponseLT8610AC0.80V3.0V3.5AFsw = 200kHz to 2.2MHzLT8610AB0.97V3.4V3.5AImproved Burst Mode EfficiencyLT8610AX0.97V3.4V3.5A175°C Max Junction TempLT8610A0.97V3.4V3.5AHigher Iout, 30ns Min On TimeLT86100.97V3.4V2.5A-ApplicationsAutomotive and Industrial SuppliesGeneral Purpose Step-DownGSM Power Supplies

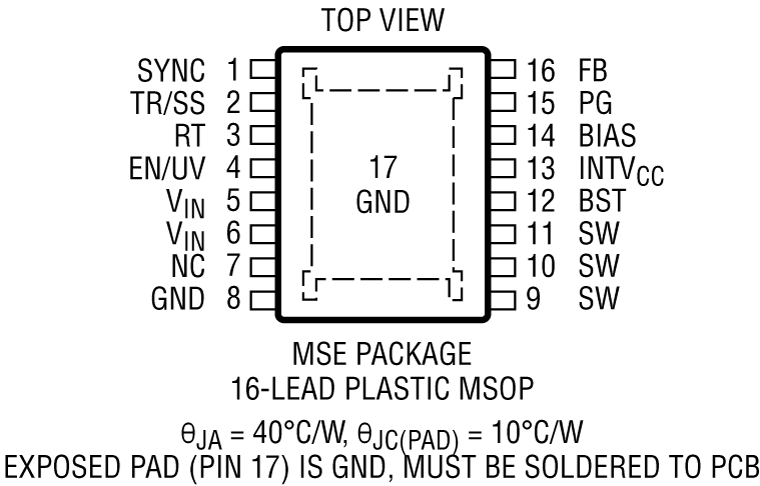

The LT8610AC/LT8610AC-1 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current. Compared to the LT8610AB, the LT8610AC/LT8610AC-1 has a lower feedback voltage of 800mV and a lower minimum VINof 3V. The LT8610AC/LT8610AC-1 has the same additional features of the LT8610AB as compared to the LT8610: higher maximum output current of 3.5A, faster minimum on time of 30ns, and higher light load efficiency.The LT8610AC/LT8610AC-1 has a SYNC pin for synchronization to an external clock. A capacitor on the TR/SS pin programs the output voltage ramp rate during startup. The PG flag signals when VOUTis within ±8% of the programmed output voltage as well as fault conditions. The LT8610AC-1 has internal compensation optimized for high switching frequencies resulting in improved transient response compared to the LT8610AC. The LT8610AC-1 also has a feature which will soft-start the part when exiting dropout or brownout conditions reducing output voltage overshoot.Feedback VoltageMin VINOutput CurrentNotesLT8610AC-10.80V3.0V3.5AFSW= 1.5MHz to 2.2MHz, Optimized Transient ResponseLT8610AC0.80V3.0V3.5AFSW= 200kHz to 2.2MHzLT8610AB0.97V3.4V3.5AImproved Burst Mode EfficiencyLT8610AX0.97V3.4V3.5A175°C Max Junction TempLT8610A0.97V3.4V3.5AHigher IOUT, 30ns Min On TimeLT86100.97V3.4V2.5A-ApplicationsAutomotive and Industrial SuppliesGSM Power Supplies

The LT8610A/LT8610AB series are compact, high efficiency, high speed synchronous monolithic step-down switching regulators that consume only 2.5μA of quiescent current. Compared to the LT8610, they have higher maximum output currents of 3.5A and a faster minimum switch-on time of 30ns. The LT8610A has the same low ripple burst mode performance of the LT8610, while the LT8610AB has even higher light load efficiency.The other features of the LT8610 remain unchanged in the LT8610A/LT8610AB series. A SYNC pin allows synchronization to an external clock. The EN/UV pin has an accurate 1V threshold for VINundervoltage lockout or shut down. A capacitor on the TR/SS pin programs the output voltage ramp rate during startup. The PG flag signals when VOUTis within ±9% of the programmed output voltage as well as fault conditions.FEEDBACK VOLTAGEMIN VINOUTPUT CURRENTNOTESLT8610AC-10.80V3.0V3.5AFsw = 1.5MHz to 2.2MHz, Optimized Transient ResponseLT8610AC0.80V3.0V3.5AFsw = 200kHz to 2.2MHzLT8610AB0.97V3.4V3.5AImproved Burst Mode EfficiencyLT8610AX0.97V3.4V3.5A175°C Max Junction TempLT8610A0.97V3.4V3.5AHigher Iout, 30ns Min On TimeLT86100.97V3.4V2.5A-ApplicationsAutomotive and Industrial SuppliesGSM Power Supplies
