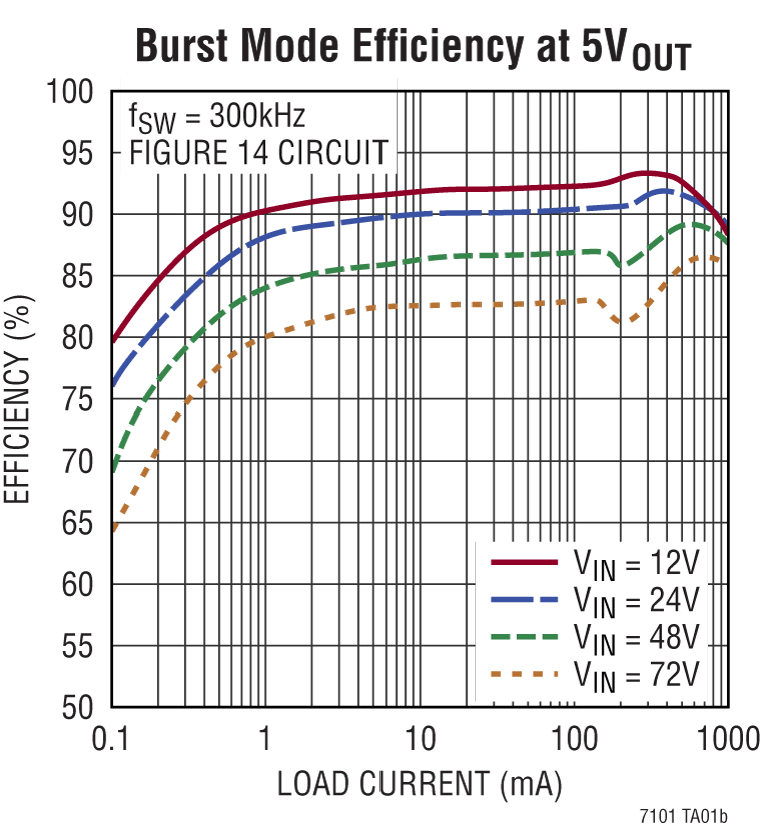

The LT7101 is a high efficiency, monolithic synchronous step-down DC/DC converter utilizing a constant frequency, average current mode control architecture. It operates from an input voltage range of 4.4V to 105V and provides an adjustable regulated output voltage from 1V to VINwhile delivering up to 1A of output current.The LT7101 features high frequency operation and a low minimum on-time that reduce inductor size and enable constant-frequency operation even at very high stepdown ratios. In addition, the LT7101 achieves the lowest possible dropout voltage with 100% maximum duty cycle operation. During light load operation, converter efficiency and output ripple can be optimized by selecting Burst Mode, pulse-skipping or forced continuous operation.The LT7101 includes accurate, high speed average current programming and monitoring without the need for an external sense resistor. Additional features include a bypass LDO to maximize efficiency, fixed or adjustable output voltage and loop compensation, and a wide array of protection features to enhance reliability.ApplicationsBattery Chargers and CC/CV SuppliesAutomotive and Military SystemsIndustrial, Avionics and Heavy EquipmentMedical Instruments and Telecommunication Systems

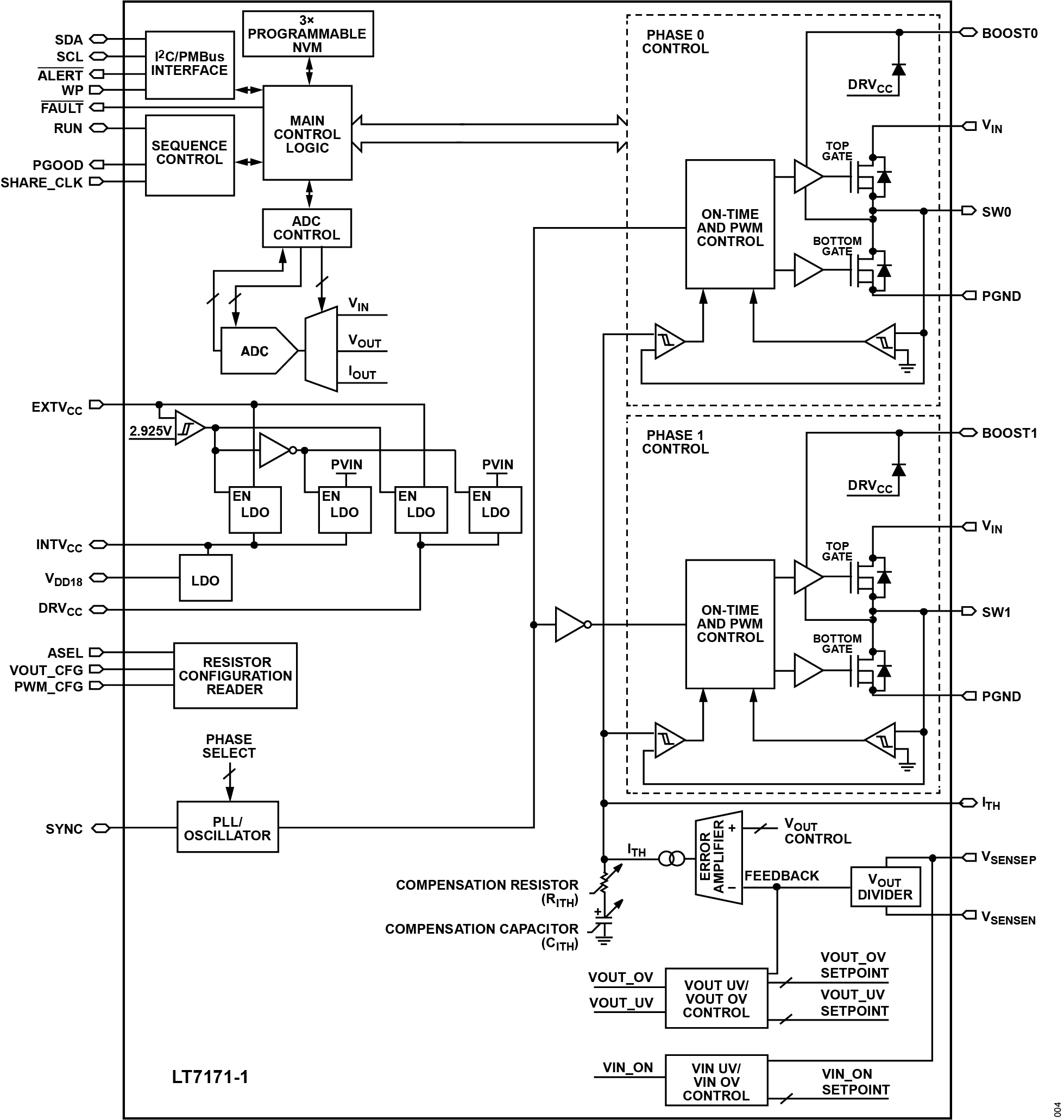

The LT7171/LT7171-1 are monolithic PolyPhase DC/DC synchronous step-down regulators that deliver up to 20A of continuous output current. The LT7171-1 option has two switching phases that are connected to two inductors to drive a single-regulated output supply. The quick, clean, low-overshoot switching edges deliver high efficiency while minimizing electromagnetic interference (EMI) emissions. The I2C-based PMBus 1.3-compliant serial interface enables control of device functions while providing telemetry information for system monitoring. The LT7171/LT7171-1 are supported by the LTpowerPlay®graphical user interface (GUI) tool.The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency (fSW) at a low output voltage (VOUT) with excellent transient response in a small overall solution size.VOUT, fSW, and phase are selectable using external configuration resistors. Settings can also be set via the PMBus interface or stored in the on-chip, three times programmable nonvolatile memory (NVM).The LT7171/LT7171-1 use forced-continuous switching operation.APPLICATIONSCommunications, Storage, and Industrial SystemsData Center and Solid-State Drives

The LT7182S is a dual-output monolithic PolyPhase DC/DC synchronous step-down regulator. It can deliver up to 6A of continuous current from both channels simultaneously and can support loads up to 8A from either channel. The LT7182S features the second generation Silent Switcher®architecture with integrated VINbypass capacitors for fast, clean, low-overshoot switching edges delivering high efficiency at high switching frequencies while minimizing EMI emissions.The I2C-based PMBus 1.3 compliant serial interface enables control of device functions and provides telemetry information for system monitoring. The LT7182S is supported by the LTpowerPlay®graphical user interface tool.Output voltage, frequency, phase, and device address can be configured using resistors for operation without programming. Settings may also be written via the serial interface and/or stored in EEPROM.The controlled on-time valley current mode control architecture with 20ns (typical) minimum on-time enables high switching frequency at low output voltage with excellent transient response in a small overall solution size.APPLICATIONSCommunications, Storage, and Industrial SystemsData Center and Solid State Drive Power Supplies

The LT7200S is a quad-channel, high efficiency monolithic synchronous buck regulator, capable of sinking/sourcing 5A to the load per channel. Its multichannel flexibility is ideal for powering complex systems with the compact layout. The operating supply voltage range is from 2.9V to 18V, making it suitable for various supply applications from a 3.3V, 5V to 12V supply.The operating frequency is programmable from 400kHz to 3MHz with an external resistor, or externally synchronized for switching noise sensitive applications. The unique "phase lockable, controlled on-time, constant frequency, current mode" architecture, is ideal for high frequency, high stepdown applications while demanding fast transient responses. The high frequency capability allows smaller surface mount inductors and capacitors. The MODE/SYNC pin selects low noise Forced Continuous Mode (FCM) or high efficiency Discontinuous Mode (DCM). The PHMODE pin allows to run out-of-phase among 4 channels, which lessens the required input and output capacitors. The LT7200S uses second generation Silent Switcher technology with integrated bypass capacitors to deliver a highly efficient solution at high frequencies with excellent EMI performance.APPLICATIONSDistributed Power Systems, Server PowerPoint of Load Supply for ASIC, FPGA, Etc.
