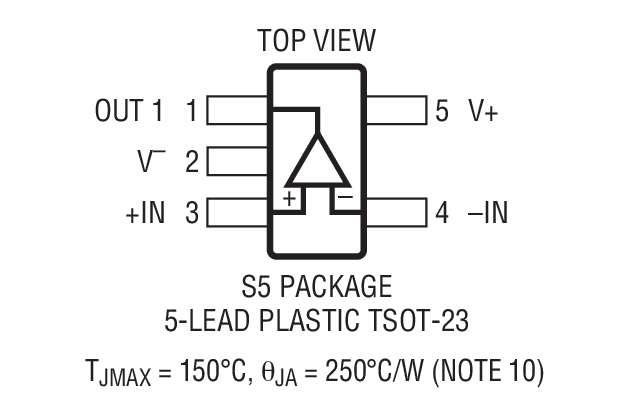

The LT1818/LT1819 are single/dual wide bandwidth, high slew rate, low noise and distortion operational amplifiers with excellent DC performance. The LT1818/LT1819 have been designed for wider bandwidth and slew rate, much lower input offset voltage and lower noise and distortion than devices with comparable supply current. The circuit topology is a voltage feedback amplifier with the excellent slewing characteristics of a current feedback amplifier.The output drives a 100Ω load to ±3.8V with ±5V supplies. On a single 5V supply, the output swings from 1V to 4V with a 100Ω load connected to 2.5V. The amplifier is unity-gain stable with a 20pF capacitive load without the need for a series resistor. Harmonic distortion is –85dBc up to 5MHz for a 2VP-Poutput at a gain of 2.The LT1818/LT1819 are manufactured on our advanced low voltage complementary bipolar process. The LT1818 (single op amp) is available in TSOT-23 and SO-8 packages; the LT1819 (dual op amp) is available in MSOP-8 and SO-8 packages.ApplicationsWideband AmplifiersBuffersActive FiltersVideo and RF AmplificationCommunication ReceiversCable DriversData Acquisition Systems

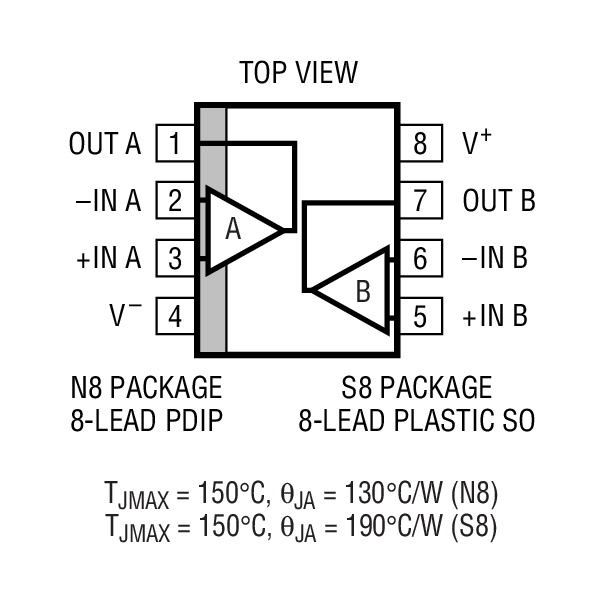

The LT1884/LT1885 op amps bring high accuracy input performance to amplifiers with rail-to-rail output swing while providing faster response than other precision amplifiers. Input offset voltage is trimmed to less than 50µV and the low drift maintains this accuracy over the operating temperature range. Input bias currents are an ultralow 400pA maximum.The amplifiers work on any total power supply voltage between 2.7V and 36V (fully specified from 5V to ±15V). Output voltage swings to within 40mV of the negative supply and 220mV of the positive supply make these amplifiers good choices for low voltage single supply operation.Slew rates of 1V/µs with a supply current of less than 1mA per amplifier give superior response and settling time performance in a low power precision amplifier.The dual LT1884 is available with standard pinouts in 8-pin SO and PDIP packages. The quad LT1885 is also in the standard pinout 14-pin SO package.ApplicationsThermocouple AmplifiersBridge Transducer ConditionersInstrumentation AmplifiersBattery-Powered SystemsPhoto Current AmplifiersPrecision IntegratorsPrecision Current Sources

The LT1886 is a 200mA minimum output current dual op amp with outstanding distortion performance. The amplifiers are gain-of-ten stable, but can be easily compensated for lower gains. The LT1886 features balanced, high impedance inputs with 4µA maximum input bias current, and 4mV maximum input offset voltage. Single supply applications are easy to implement and have lower total noise than current feedback amplifier implementations.The output drives a 25Ω load to ±4.3V with ±6V supplies. On ±2.5V supplies the output swings ±1.5V with a 100Ω load. The amplifier is stable with a 1000pF capacitive load which makes it useful in buffer and cable driver applications.The LT1886 is manufactured on our advanced low voltage complementary bipolar process and is available in a thermally enhanced SO-8 package.ApplicationsDSL ModemsxDSL PCI CardsUSB ModemsLine Drivers
