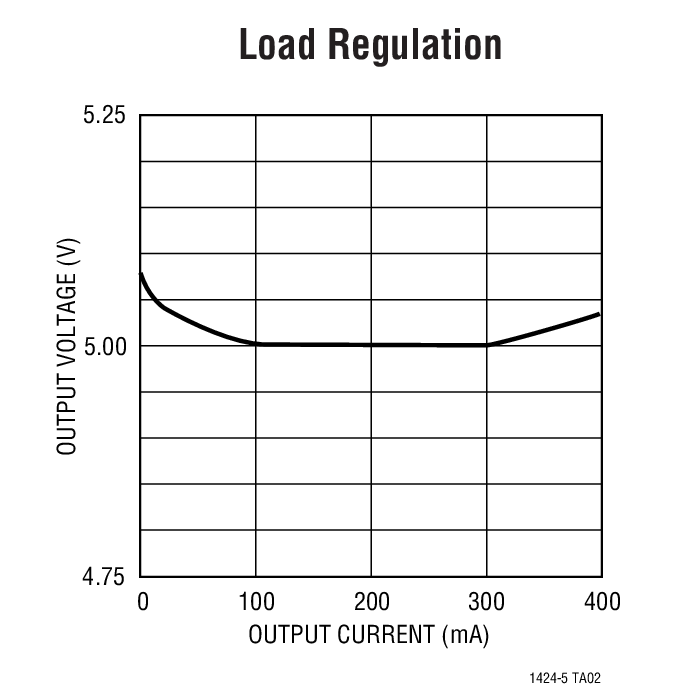

The LT1424-5 is a monolithic high power switching regulator specifically designed for the isolated flyback topology. No "third winding" or optoisolator is required; the integrated circuit senses the isolated output voltage directly from the primary side flyback waveform. A high current, high efficiency switch is included on the die along with all oscillator, control and protection circuitry.The LT1424-5 operates with input supply voltages from 3V to 20V and draws only 7mA quiescent current. It can deliver up to 400mA at 5V with no external power devices. By utilizing current mode switching techniques, it provides excellent AC and DC line regulation.The LT1424-5 has a number of features not found on other switching regulator ICs. Its unique control circuitry can maintain regulation well into discontinuous mode. Load compensation circuitry allows for improved load regulation. An externally activated shutdown mode reduces total supply current to 20µA typical for standby operation.ApplicationsIsolated Communication SuppliesIndustrial AutomationInstrumentation Systems

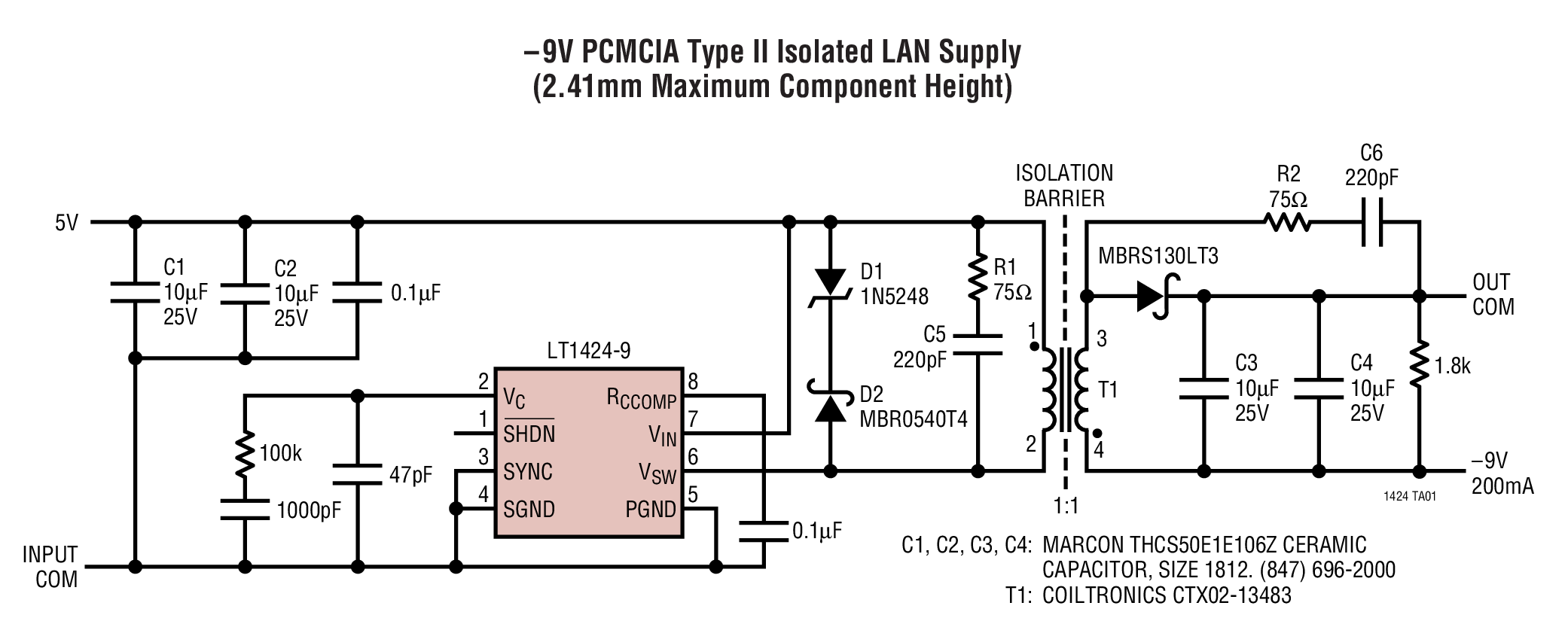

The LT1424-9 is a monolithic high power switching regulator specifically designed for the isolated flyback topology. No "third winding" or optoisolator is required; the integrated circuit senses the isolated output voltage directly from the primary side flyback waveform. A high current, high efficiency switch is included on the die along with all oscillator, control and protection circuitry.The LT1424-9 operates with input supply voltages from 3V to 20V and draws only 7mA quiescent current. It can deliver up to 200mA at 9V with no external power devices. By utilizing current mode switching techniques, it provides excellent AC and DC line regulation.The LT1424-9 has a number of features not found on other switching regulator ICs. Its unique control circuitry can maintain regulation well into discontinuous mode. Load compensation circuitry allows for improved load regulation. An externally activated shutdown mode reduces total supply current to 20µA typical for standby operation.ApplicationsEthernet Isolated 5V to –9V Converter

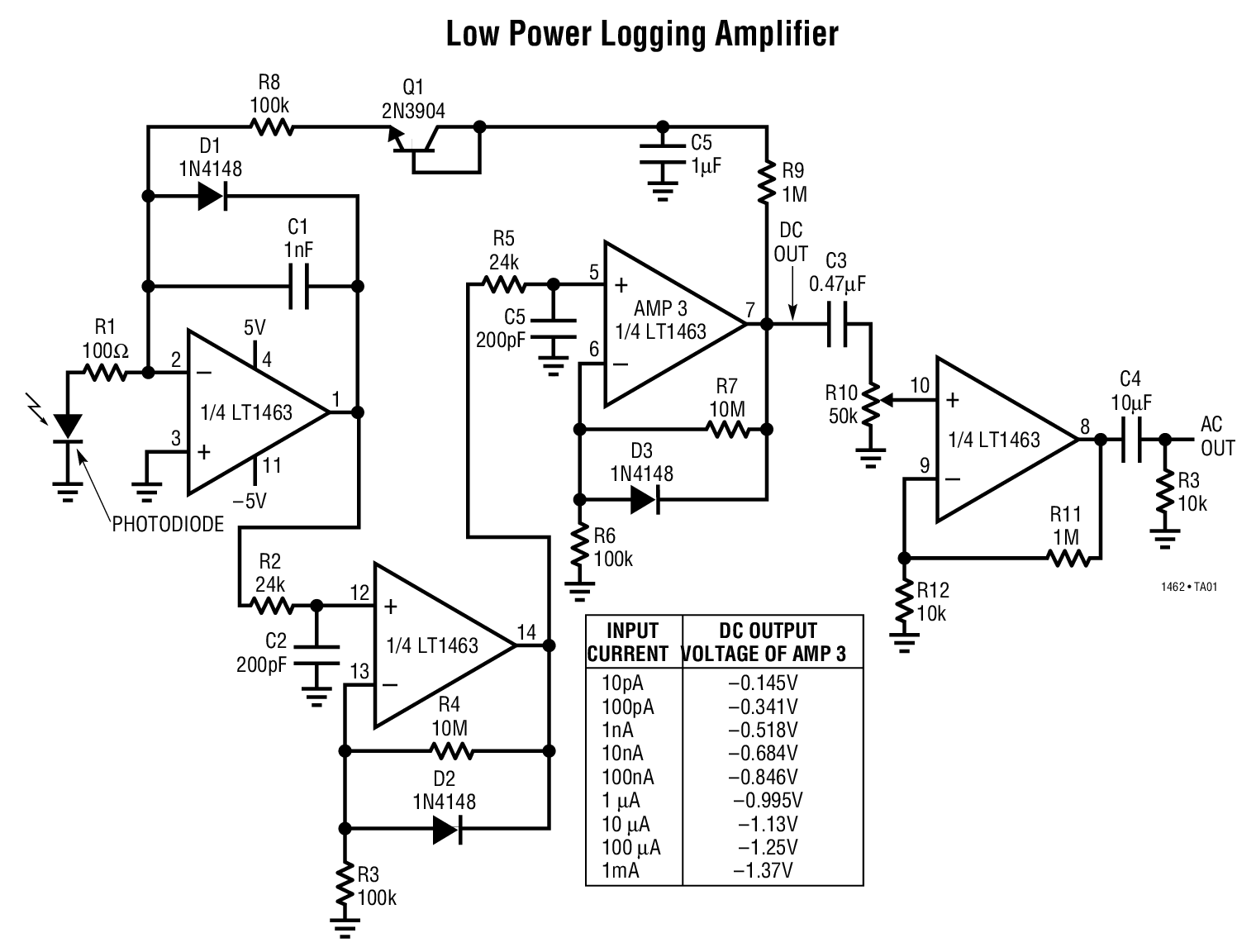

The LT1462 (dual) and LT1463 (quad) are the first micropower op amps (45µA max per amp) to offer picoampere input bias currents (1pA typ) and unity gain stability for capacitive loads up to 10nF. The output can swing a 10k load to within 1.5V of either supply, just like op amps that require an order of magnitude more supply current. This unique combination of performance makes the LT1462/LT1463 ideal over a wide range of input and output impedances.In the design and testing of the LT1462/LT1463, particular emphasis has been placed on optimizing performance in the low cost SO-8 (dual) and 14-lead SO package (quad) for ±15V and ±5V supplies. The input common mode range includes the positive rail. Slew rate (0.08V/µs min) and gain bandwidth product (125kHz min) are 100% tested. A full set of matching specifications is also provided.ApplicationsBattery-Powered SystemsPhotocurrent AmplifiersLow Frequency, Micropower Active FiltersLow Droop Track-and-Hold Circuits
