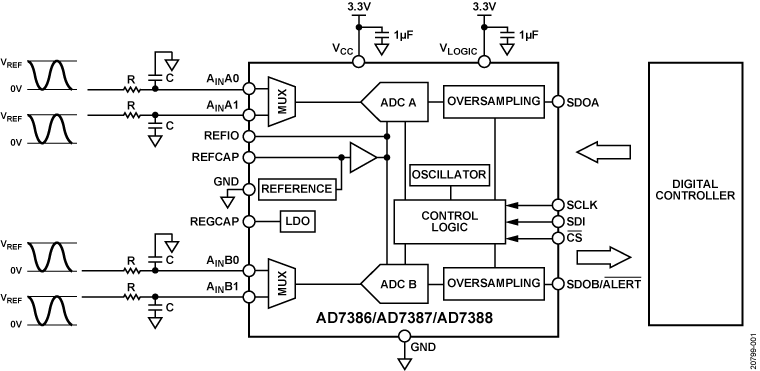

AD73864-Channel, 4 MSPS, 16-Bit Dual Simultaneous Sampling SAR ADC | Development Boards, Kits, Programmers | 3 | Active | The AD7386/AD7387/AD7388are 16-bit, 14-bit, and 12-bit dual, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converters (ADCs) that operate from a 3.0 V to 3.6 V power supply and feature throughput rates of up to 4 MSPS. The analog input types are single-ended and are sampled and converted on the falling edge of CS.The AD7386/AD7387/AD7388 have an on-chip sequencer and integrated on-chip oversampling block to improve dynamic range and reduce noise at lower bandwidths. Abuffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used. The conversion process and data acquisition use standard control inputs, allowing interfacing to microprocessors or digital signal processors (DSPs). The AD7386 is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces by using the separate logic supply.The AD7386/AD7387/AD7388 are available in a 16-lead LFCSP with operation specified from −40°C to +125°C.Product Highlights4-channel, dual simultaneous sampling ADC.Pin-compatible product family.High 4 MSPS throughput rate.Space-saving 3 mm × 3 mm LFCSP.Integrated oversampling block to increase dynamic range and SNR and to reduce SCLK speed requirements.Single-ended analog inputs.Small sampling capacitor reduces amplifier drive burden.ApplicationsMotor control position feedbackMotor control current senseSonarPower qualityData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsInphase and quadrature demodulation |

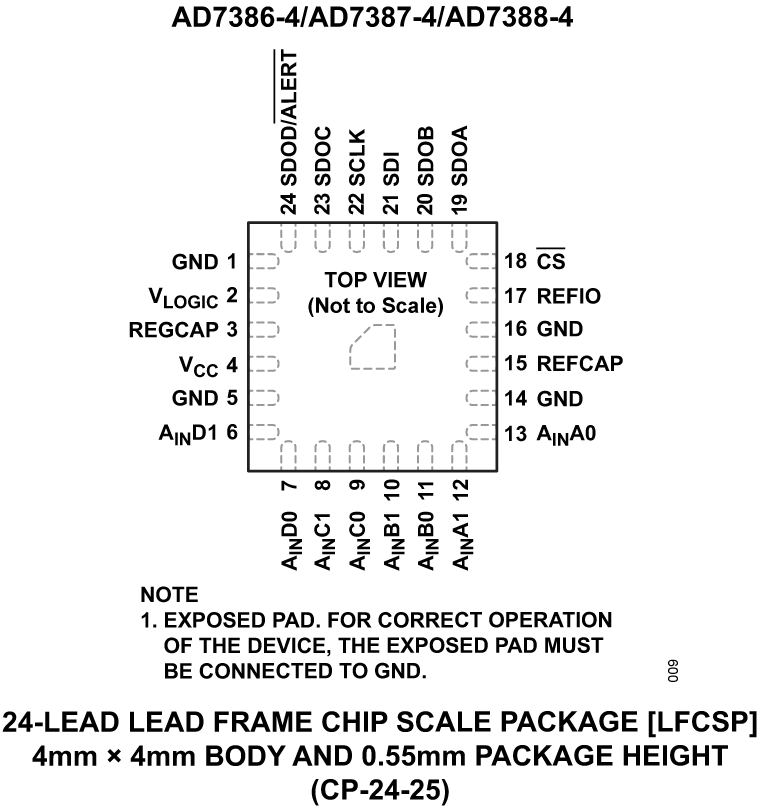

AD7386-4Single-Ended Input, Quad, Simultaneous Sampling, 16-Bit/14-Bit/12-Bit, SAR ADC | Data Acquisition | 3 | Active | The AD7386-4/AD7387-4/AD7388-4 are 16-bit, 14-bit, and 12-bit compatible, quad, simultaneous sampling, high-speed, successive approximation register (SAR), analog-to-digital converters (ADCs) operating from a 3.0 V to 3.3 V power supply with throughput rates up to 4 MSPS. The single-ended analog input accepts voltage from 0 V to VREF, and is sampled and converted on the falling edge of CS.The AD7386-4/AD7387-4/AD7388-4 have on-chip oversampling blocks to improve dynamic range and reduce noise at lower bandwidths. The oversampling can boost up to two bits of added resolution. The REFIO pin can have a reference voltage (VREF) of 2.5 V to 3.3 V.The conversion process and data acquisition use standard control inputs, allowing easy interfacing to microprocessors or digital signal processors (DSPs). The conversion result can clock out simultaneously via 4-wire mode for faster throughput or via 1-wire serial mode when slower throughput is allowed. The device is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces using the separate logic supply.The AD7386-4/AD7387-4/AD7388-4 are available in a 24-lead lead frame chip scale package (LFCSP) and operate over a temperature range of −40°C to +125°CAPPLICATIONSMotor control position feedbackMotor control current senseData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsTraveling wave fault detectionIn-phase and quadrature demodulation |
AD73874-Channel, 4 MSPS, 14-Bit, Dual, Simultaneous Sampling SAR ADC | Integrated Circuits (ICs) | 2 | Active | TheAD7386/AD7387/AD7388are 16-bit, 14-bit, and 12-bit dual, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converters (ADCs) that operate from a 3.0 V to 3.6 V power supply and feature throughput rates of up to 4 MSPS. The analog input types are single-ended and are sampled and converted on the falling edge of CS.The AD7386/AD7387/AD7388 have an on-chip sequencer and integrated on-chip oversampling block to improve dynamic range and reduce noise at lower bandwidths. Abuffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used. The conversion process and data acquisition use standard control inputs, allowing interfacing to microprocessors or digital signal processors (DSPs). The AD7386 is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces by using the separate logic supply.The AD7386/AD7387/AD7388 are available in a 16-lead LFCSP with operation specified from −40°C to +125°C.Product Highlights4-channel, dual simultaneous sampling ADC.Pin-compatible product family.High 4 MSPS throughput rate.Space-saving 3 mm × 3 mm LFCSP.Integrated oversampling block to increase dynamic range and SNR and to reduce SCLK speed requirements.Single-ended analog inputs.Small sampling capacitor reduces amplifier drive burden.ApplicationsMotor control position feedbackMotor control current senseSonarPower qualityData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsInphase and quadrature demodulation |
| Data Acquisition | 3 | Active | |
AD73884-Channel, 4 MSPS, 12-Bit, Dual, Simultaneous Sampling SAR ADCs | Integrated Circuits (ICs) | 1 | Active | TheAD7386/AD7387/AD7388 are 16-bit, 14-bit, and 12-bit dual, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converters (ADCs) that operate from a 3.0 V to 3.6 V power supply and feature throughput rates of up to 4 MSPS. The analog input types are single-ended and are sampled and converted on the falling edge of CS.The AD7386/AD7387/AD7388 have an on-chip sequencer and integrated on-chip oversampling block to improve dynamic range and reduce noise at lower bandwidths. Abuffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used. The conversion process and data acquisition use standard control inputs, allowing interfacing to microprocessors or digital signal processors (DSPs). The AD7386 is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces by using the separate logic supply.The AD7386/AD7387/AD7388 are available in a 16-lead LFCSP with operation specified from −40°C to +125°C.Product Highlights4-channel, dual simultaneous sampling ADC.Pin-compatible product family.High 4 MSPS throughput rate.Space-saving 3 mm × 3 mm LFCSP.Integrated oversampling block to increase dynamic range and SNR and to reduce SCLK speed requirements.Single-ended analog inputs.Small sampling capacitor reduces amplifier drive burden.ApplicationsMotor control position feedbackMotor control current senseSonarPower qualityData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsInphase and quadrature demodulation |
AD7388-4Single-Ended Input, Quad, Simultaneous Sampling, 16-Bit/14-Bit/12-Bit, SAR ADC | Integrated Circuits (ICs) | 3 | Active | The AD7386-4/AD7387-4/AD7388-4 are 16-bit, 14-bit, and 12-bit compatible, quad, simultaneous sampling, high-speed, successive approximation register (SAR), analog-to-digital converters (ADCs) operating from a 3.0 V to 3.3 V power supply with throughput rates up to 4 MSPS. The single-ended analog input accepts voltage from 0 V to VREF, and is sampled and converted on the falling edge of CS.The AD7386-4/AD7387-4/AD7388-4 have on-chip oversampling blocks to improve dynamic range and reduce noise at lower bandwidths. The oversampling can boost up to two bits of added resolution. The REFIO pin can have a reference voltage (VREF) of 2.5 V to 3.3 V.The conversion process and data acquisition use standard control inputs, allowing easy interfacing to microprocessors or digital signal processors (DSPs). The conversion result can clock out simultaneously via 4-wire mode for faster throughput or via 1-wire serial mode when slower throughput is allowed. The device is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces using the separate logic supply.The AD7386-4/AD7387-4/AD7388-4 are available in a 24-lead lead frame chip scale package (LFCSP) and operate over a temperature range of −40°C to +125°CAPPLICATIONSMotor control position feedbackMotor control current senseData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsTraveling wave fault detectionIn-phase and quadrature demodulation |

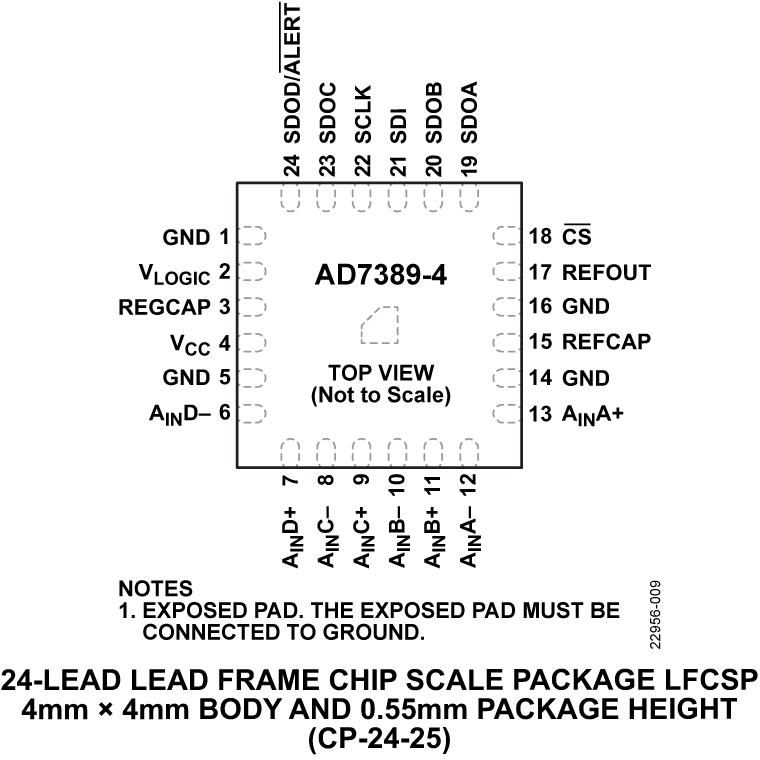

AD7389-4Differential Input, Quad, Internal Reference Simultaneous Sampling, 16-Bit SAR ADC | Data Acquisition | 2 | Active | The AD7389-4 a 16-bit, quad, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converter (ADC) that operates from a 3.0 V to 3.6 V power supply and features throughput rates up to 2 MSPS. The analog input type is differential, accepts a wide common-mode input voltage, and the analog inputs are sampled and converted on the falling edge ofCS.The AD7389-4 has on-chip oversampling blocks to improve dynamic range and reduce noise at lower bandwidths. The oversampling can boost up to two bits of added resolution. A buffered internal 2.5 V reference (10 ppm/°C) is included.The conversion process and data acquisition use standard control inputs allowing for easy interfacing to microprocessors or digital signal processors (DSPs). The conversion result can clock out simultaneously via 4-wire mode for faster throughput or via 1-wire serial mode when slower throughput is allowed. The device is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces, using the separate logic supply.The AD7389-4 is available in a 24-lead lead frame chip scale package (LFCSP) with operation specified from −40°C to +125°C.APPLICATIONSMotor control position feedbackMotor control current senseData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsIn phase and quadrature demodulationPRODUCT HIGHLIGHTSQuad simultaneous sampling and conversion.Pin-compatible product family.High throughput rate, 2 MSPS at 16-bit.Space-saving, 4 mm × 4 mm LFCSP.Integrated oversampling block to increase dynamic range, reduce noise and reduce SCLK speed requirements.Differential analog inputs with wide common-mode range.Small sampling capacitor reduces amplifier drive burden. |
| Data Acquisition | 4 | Active | |
| Digital to Analog Converters (DAC) | 11 | Active | |
AD73923 V, Parallel Input Micropower 12-Bit DACs | Data Acquisition | 5 | Active | The AD7392 /AD7393comprise a set of pin-compatible 10-/12-bit voltage output, digital-to-analog converters. The parts are designed to operate from a single 3 V supply. Built using a CBCMOS process, these monolithic DACs offer low cost and ease of use in single-supply 3 V systems. Operation is guaranteed over the supply voltage range of 2.7 V to 5.5 V, making this device ideal for battery-operated applications.The full-scale voltage output is determined by the external reference input voltage applied. The rail-to-rail REFINto DACOUTallows a full-scale voltage equal to the positive supply VDDor any value in between. The voltage outputs are capable of sourcing 5 mA.A data latch load of 12 bits with a 45 ns write time eliminates wait states when interfacing to the fastest processors. Addition-ally, an asynchronousRSinput sets the output to a zero scale at power-on or upon user demand.Both parts are offered with similar pinouts, which allows users to select the amount of resolution appropriate for their applications without changing the circuit card.The AD7392 / AD7393 are specified for operation over the extended industrial temperature range of −40°C to +85°C. The AD7393AR is specified for the automotive temperature range of −40°C to +125°C. The AD7392 / AD7393 are available in 20-lead PDIP and 20-lead SOIC packages.For serial data input, 8-lead packaged versions, see the AD7390 and AD7391.APPLICATIONSAutomotive 0.5 V to 4.5 V output span voltagePortable communicationsDigitally controlled calibrationPC peripherals |
