Analog Devices Inc./Maxim Integrated

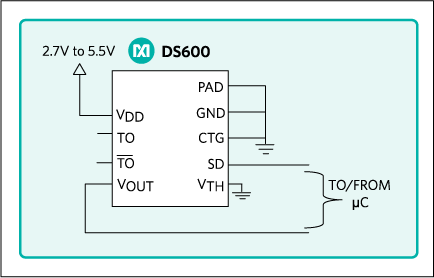

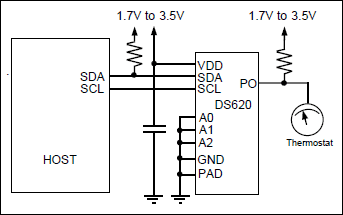

The DS620 digital thermometer and thermostat provides low-voltage (1.7V<VDD<3.5V) temperature measurements with ±0.5°C accuracy from 0°C to +70°C and an operating temperature range of -55°C to +125°C. The DS620 communicates over a 2-wire digital interface. For distributed-sensing applications, it is multidroppable with three address pins that allow up to eight DS620s to operate on a single bus.The DS620 has thermostat functionality with userdefined thresholds stored in EEPROM registers, and it can be configured for standalone thermostat operation. The programmable output (PO) pin serves as the thermostat output, and this pin can also be configured to function as an active-low control for peripheral devices.ApplicationsComputers/ServersIndustrialLow-Voltage Temperature-Sensitive ApplicationsMedical InstrumentsPortable ApplicationsTest Equipment

The DS75 digital thermometer and thermostat provides 9, 10, 11, or 12-bit digital temperature readings over a -55°C to +125°C range with ±2°C accuracy over a -25°C to +100°C range. At power-up, the DS75 defaults to 9-bit resolution for software compatibility with the LM75. Communication with the DS75 is achieved via a simple 2-wire serial interface. Three address pins allow up to eight DS75 devices to operate on the same 2-wire bus, which greatly simplifies distributed temperature sensing applications.The DS75 thermostat has a dedicated open-drain output (O.S.) and programmable fault tolerance, which allows the user to define the number of consecutive error conditions that must occur before O.S is activated. There are two thermostatic operating modes that control thermostat operation based on user-defined trip-points (TOSand THYST).A block diagram of the DS75 is shown in Figure 1 and detailed pin descriptions are given in Table 2.ApplicationsAny Thermally Sensitive SystemCell Phone Base StationsOffice EquipmentPersonal Computing

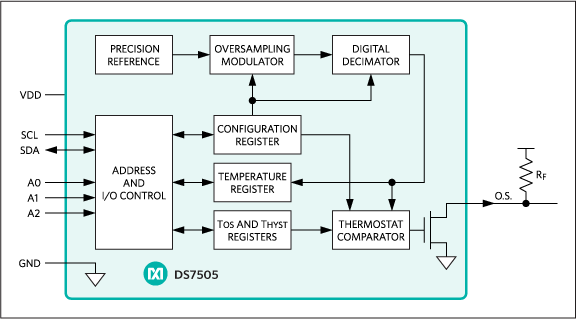

The DS7505 low-voltage (1.7V to 3.7V) digital thermometer and thermostat provides 9-, 10-, 11-, or 12-bit digital temperature readings over a -55°C to +125°C range with ±0.5°C accuracy over a -0°C to +70°C range. A 9-bit resolution mode is software compatible with the LM75.The DS7505 thermostat has a dedicated open-drain output (O.S.) and programmable fault tolerance, which allows the user to define the number of consecutive error conditions that must occur before O.S. is activated. There are two thermostatic operating modes that control thermostat operation based on user-defined trip points (TOSand THYST) that are stored in EEPROM registers.ApplicationsAny Thermally Sensitive SystemCellular Base StationsMedical EquipmentNetworking EquipmentOffice Equipment
