The DS3645 is a secure supervisor with 4096 bytes of SRAM for applications requiring the secure storage of sensitive data and the physical tamper-sensing response functions required in cryptographic processors and data security equipment.One of the DS3645's primary features is the on-chip encryption key memory, consisting of 32 128-byte banks incorporating a high-speed, direct-clearing function. The 4KB key memory is constantly complemented in the background to prevent memory imprinting. In the event of a qualified tamper event, the key memory is rapidly cleared and a negative bias is applied to clear SRAM external to the DS3645.The device includes a real-time seconds counter, watchdog timer, CPU supervisor, nonvolatile (NV) SRAM controller, and on-chip temperature sensor. In the event of a primary power failure, an external battery source is automatically switched in to keep the key memory, seconds counter, and tamper-detection circuitry active. The DS3645 provides low-leakage tamper-detection inputs for interface to external sensors, interlocks, and antitamper meshes. The DS3645 also invokes a tamper event if the backup battery drops below a specified threshold or absolute temperature, if the temperature rate-of-change exceeds programmed limits, or if the crystal oscillator frequency falls outside a specified window. The tamper event is latched and timestamped for future debugging purposes.Access to the seconds counter, tamper monitoring, key memory, and device configuration is conducted through an I2-C-compatible interface. The DS3645 is assembled in a CSBGA package, which enhances key security because the leads are not exposed to the outer edges of the package.ApplicationsAlarm SystemsGamingIT SecurityPoint-of-Sale TerminalsRouters/Switches

DeepCover®embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.The DeepCover Security Manager (DS3650) is a 4-wire-compatible controller specifically intended to address the temperature and voltage monitoring requirements of the payment card industry (PCI) and other equipment where data protection and security is critical. The device incorporates a battery-backup controller, system power monitor, CPU supervisor, temperature sensor, and two tamper detection comparator inputs for interface to external sensors, interlocks, or antitamper meshes. In the event of primary power failure, an external battery power source is automatically switched in to keep the tamper-detection circuitry alive.ApplicationsAlarm SystemsAutomated Teller MachinesDigital Cinema TechnologyGamingHealthcareIT SecurityNetwork ServersPIN PadsPOSSoftware-Defined Radios

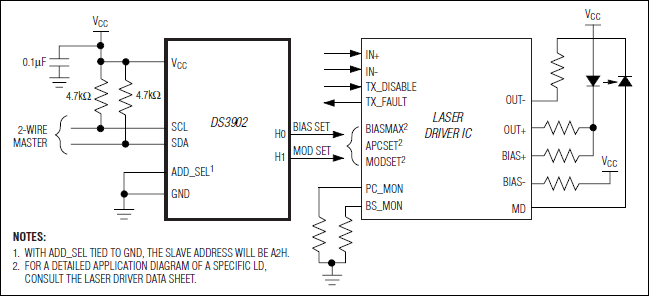

The DS3902 features a dual, nonvolatile (NV), low temperature-coefficient, variable digital resistor with 256 user-selectable positions. The DS3902 can operate over a wide supply range of 2.4V to 5.5V, and communication with the device is achieved through an I²C compatible serial interface. Internal address settings allow the DS3902 slave address to be programmed to one of 128 possible addresses. The low cost and the small size of the DS3902 make it an ideal replacement for conventional mechanical-trimming resistors.ApplicationsAudio Power-Amp BiasingInstrumentation and Industrial ControlsOptical TransceiversOptical TranspondersReplacement for Mechanical Variable Resistors and Dip SwitchesRF Power Amps
