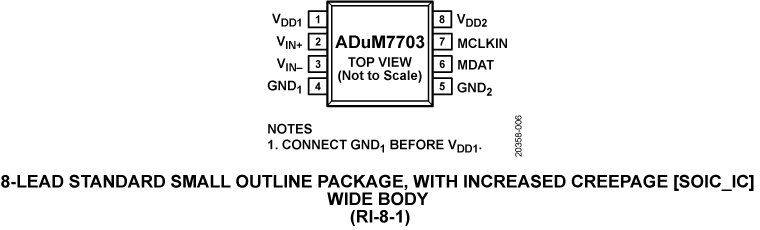

The ADuM7703 is a high performance, second-order, Σ-Δ analog-to-digital converter (ADC) with an integrated low dropout (LDO) regulator that converts an analog input signal into a high speed, single-bit data stream with on-chip digital isolation based on Analog Devices, Inc.,iCoupler®technology. The device operates from a 4.5 V to 20 V power supply range (VDD1) and accepts a pseudo differential input signal of ±250 mV (±320 mV full-scale). The pseudo differential input is ideally suited to shunt voltage monitoring in high voltage applications where galvanic isolation is required.The analog input is continuously sampled by a high performance analog modulator and converted to a ones density digital output stream with a data rate of up to 21 MHz. The original information can be reconstructed with an appropriate sinc3 digital filter to achieve an 86 dB signal-to-noise ratio (SNR) at 78.1 kSPS with a 256 decimation rate and a 20 MHz master clock. The serial input and output operates from a 5 V or a 3.3 V supply (VDD2).The serial interface is digitally isolated. High speed complementary metal-oxide semiconductor (CMOS) technology, combined with monolithic transformer technology, results in the on-chip isolation providing outstanding performance characteristics, superior to alternatives such as optocoupler devices. The ADuM7703 device is available in a 16-lead, wide-body SOIC with an operating temperature range of −40°C to +125°C and an 8-lead, wide-body SOIC with an operating temperature range of −40°C to +105°C.ApplicationsShunt current monitoringAC motor controlsPower and solar invertersWind turbine invertersAnalog-to-digital and optoisolator replacement

The AMP-02 is the first precision instrumentation amplifier available in an 8-pin package. Gain of the AMP-02 is set by a single external resistor, and can range from 1 to 10,000. No gain set resistor is required for unity gain. The AMP-02 includes an input protection network that allows the inputs to be taken 60V beyond either supply rail without damaging the device.Laser trimming reduces the input offset voltage to under 100 µV. Output offset voltage is below 4 mV and gain accuracy is better than 0.5% for gain of 1000. PMI's proprietary thin-film resistor process keeps the gain temperature coefficient under 50 ppm/°C.Due to the AMP-02's design, its bandwidth remains very high over a wide range of gain. Slew rate is over 4V/µS making the AMP-02 ideal for fast data acquisition systems.A reference pin is provided to allow the output to be referenced to an external DC level. This pin may be used for offset correction or level shifting as required. In the 8-pin package, sense is internally connected to the output.For an instrumentation amplifier with the highest precision, consult the AMP-01 data sheet.

The AMP03 is a monolithic unity-gain, high-speed differential amplifier. Incorporating a matched thin-film resistor network, the AMP03 features stable operation over temperature without requiring expensive external matched components. The AMP03 is a basic analog building block for differential amplifier and instrumentation amplifiers.

The CAB-01 is a 26-pin cable with 3 connectors used to daisy-chain 5B02 16-channel, or 5B08-MUX 8-channel mux backplanes. The number of CAB-01 cables needed is equal to the number of backplanes to be connected minus one. A maximum of four backplanes can be chained together, requiring three CAB-01 cables and one AC1315 cable (or similar cable) to connect to an interface board or control system.
