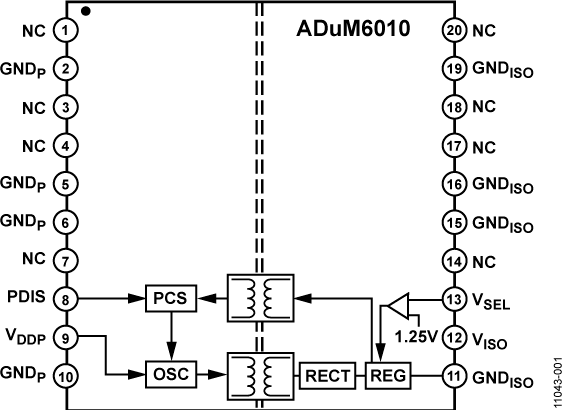

The ADuM6010 is an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides regulated, isolated power, adjustable between 3.15 V and 5.25 V. Input supply voltages can range from slightly below the required output to significantly higher.TheiCoupler chip-scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards.ApplicationsPower supply start-up bias and gate drivesIsolated sensor interfacesIndustrial PLCs

The ADuM6020/ADuM60281areisoPower®, integrated, isolated dc-to-dc converters. Based on the Analog Devices, Inc.,iCoupler®technology, these dc-to-dc converters provide regulated, isolated power that is below CISPR22 Class B limits at full load on a 2‑layer printed circuit board (PCB) with ferrites. Common voltage combinations and the associated current output levels are shown in Table 1 through Table 4 in the data sheet.The ADuM6020/ADuM6028 eliminate the need to design and build isolated dc-to-dc converters in applications up to 500 mW. TheiCoupler chip scale transformer technology is used for the magnetic components of the dc-to-dc converter. The result is a small form factor, isolated solution.The ADuM6020/ADuM6028 isolated dc-to-dc converters provide two different package variants: the ADuM6020 in a wide-body, 16-lead SOIC_IC package, and the ADuM6028 in the space-saving, 8-lead, wide-body SOIC_IC package. For 5 V input operations, use the ADuM6020-5BRIZ and the ADuM6028-5BRIZ. For 3.3 V input to 3.3 V output operations, use the ADuM6020-3BRIZ and the ADuM6028-3BRIZ. See the Pin Configuration and Function Descriptions section and the Ordering Guide in the data sheet for more information.APPLICATIONSRS-485/RS-422/CAN transceiver powerPower supply start-up bias and gate drivesIsolated sensor interfacesAutomotive on-board charger (OBC) and dc to dcIndustrial PLCs1Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.

TheADuM6020/ADuM60281areisoPower®, integrated, isolated dc-to-dc converters. Based on the Analog Devices, Inc.,iCoupler®technology, these dc-to-dc converters provide regulated, isolated power that is below CISPR22 Class B limits at full load on a 2‑layer printed circuit board (PCB) with ferrites. Common voltage combinations and the associated current output levels are shown in Table 1 through Table 4 in the data sheet.The ADuM6020/ADuM6028 eliminate the need to design and build isolated dc-to-dc converters in applications up to 500 mW. TheiCoupler chip scale transformer technology is used for the magnetic components of the dc-to-dc converter. The result is a small form factor, isolated solution.The ADuM6020/ADuM6028 isolated dc-to-dc converters provide two different package variants: the ADuM6020 in a wide-body, 16-lead SOIC_IC package, and the ADuM6028 in the space-saving, 8-lead, wide-body SOIC_IC package. For 5 V input operations, use the ADuM6020-5BRIZ and the ADuM6028-5BRIZ. For 3.3 V input to 3.3 V output operations, use the ADuM6020-3BRIZ and the ADuM6028-3BRIZ. See the Pin Configuration and Function Descriptions section and the Ordering Guide in the data sheet for more information.APPLICATIONSRS-485/RS-422/CAN transceiver powerPower supply start-up bias and gate drivesIsolated sensor interfacesAutomotive on-board charger (OBC) and dc to dcIndustrial PLCs1Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.

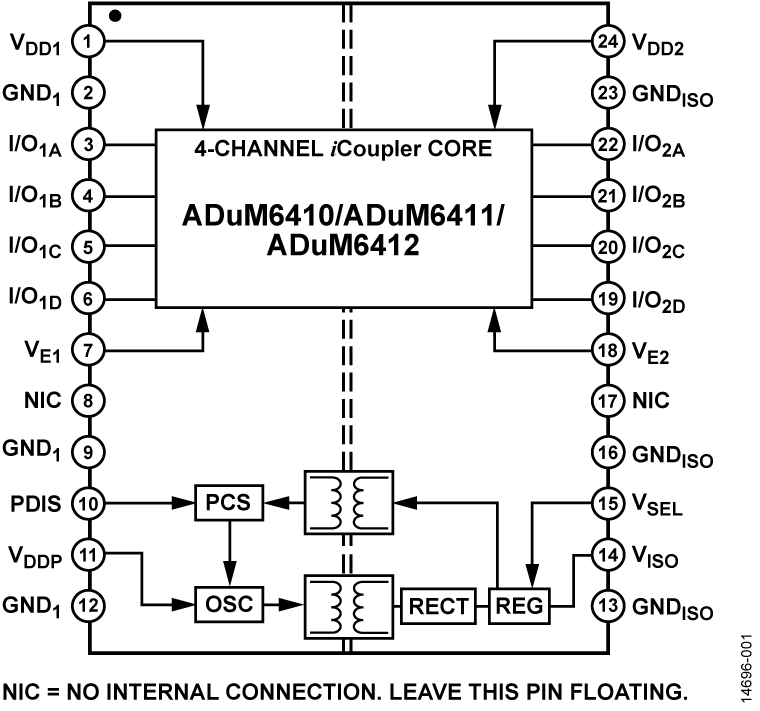

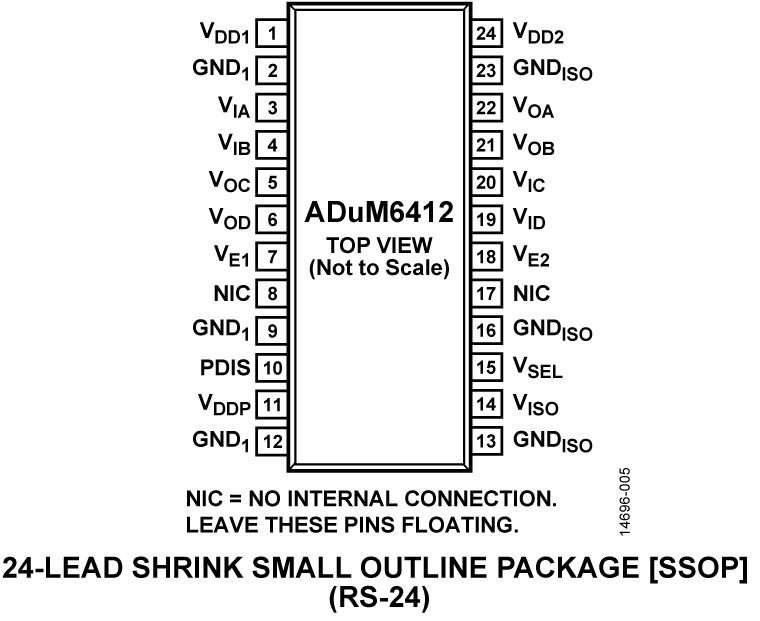

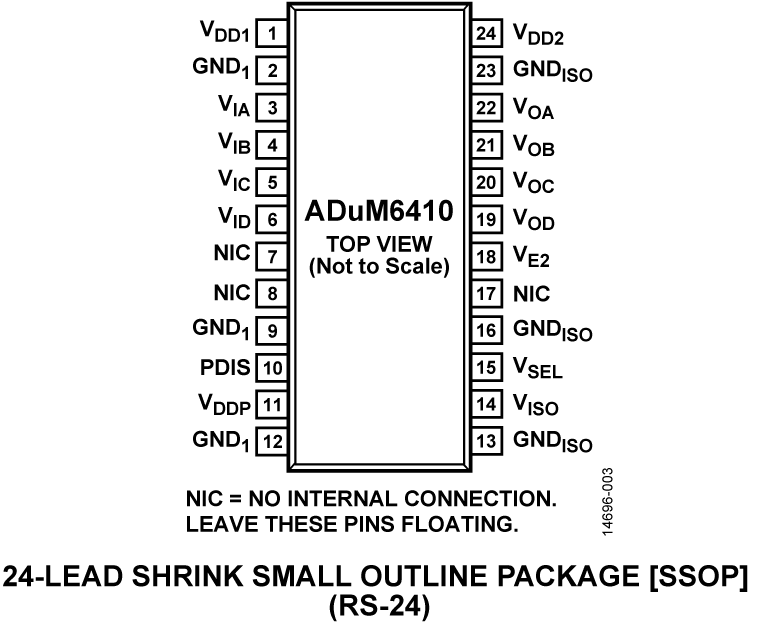

The ADuM6410/ADuM6411/ADuM6412are quad-channel digital isolators withisoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides regulated, isolated power that is adjustable between 3.15 V and 5.25 V.The ADuM6410/ADuM6411/ADuM6412 eliminate the need for a separate, isolated dc-to-dc converters in low power, isolated designs. TheiCoupler chip-scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM6410/ADuM6411/ADuM6412 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).ApplicationsRS-232 transceiversPower supply startup bias and gate drivesIsolated sensor interfacesIndustrial PLCs

TheADuM6410/ADuM6411/ADuM6412are quad-channel digital isolators withisoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides regulated, isolated power that is adjustable between 3.15 V and 5.25 V.The ADuM6410/ADuM6411/ADuM6412 eliminate the need for a separate, isolated dc-to-dc converters in low power, isolated designs. TheiCoupler chip-scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM6410/ADuM6411/ADuM6412 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).ApplicationsRS-232 transceiversPower supply startup bias and gate drivesIsolated sensor interfacesIndustrial PLCs

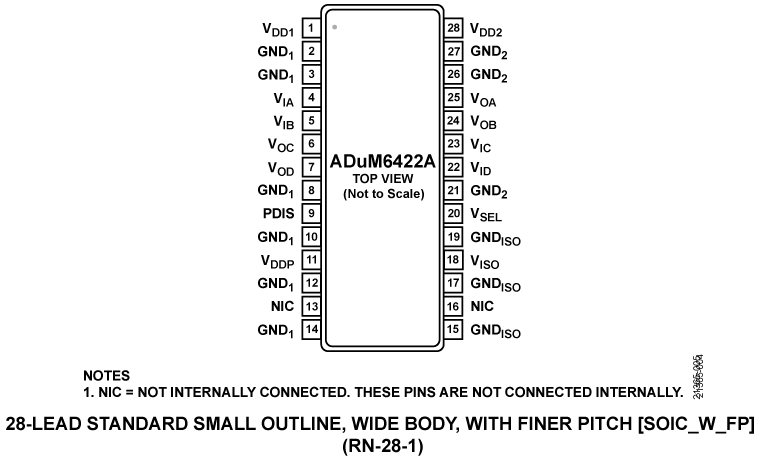

TheADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A1are quad-channel digital isolators with anisoPower®, integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides regulated, isolated power that meets CISPR 32/EN 55032 Class B limits at a full load on a 2-layer printed circuit board (PCB) with ferrites. Popular voltage combinations and the associated output current levels are listed in Table 1 in the data sheet.The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A eliminate the need for a separate, isolated dc-to-dc converter in 500 mW, isolated designs. TheiCoupler chip scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A isolators provide four independent isolation channels. See the Pin Configurations and Function Descriptions in the data sheet for additional information.APPLICATIONSRS-232 transceiversPower supply start-up bias and gate drivesIsolated sensor interfacesAutomotive on-board charger (OBC) and dc to dcIndustrial programmable logic controllers (PLCs)1Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.

TheADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A1are quad-channel digital isolators with anisoPower®, integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides regulated, isolated power that meets CISPR 32/EN 55032 Class B limits at a full load on a 2-layer printed circuit board (PCB) with ferrites. Popular voltage combinations and the associated output current levels are listed in Table 1 in the data sheet.The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A eliminate the need for a separate, isolated dc-to-dc converter in 500 mW, isolated designs. TheiCoupler chip scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A isolators provide four independent isolation channels. See the Pin Configurations and Function Descriptions in the data sheet for additional information.APPLICATIONSRS-232 transceiversPower supply start-up bias and gate drivesIsolated sensor interfacesAutomotive on-board charger (OBC) and dc to dcIndustrial programmable logic controllers (PLCs)1Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.
