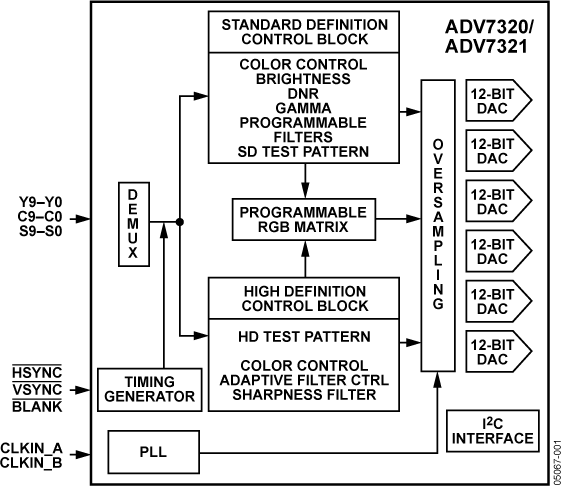

The ADV7321 is a digital-to-analog video encoder for standard definition, progressive scan and high definition video. It converts a wide variety of digital video formats into analog CVBS, S-Video, YPbPr or RGB video signals.CGMS-A support for 625p output standards allows DVD players & recorders to comply with industry requirements for copy-protection.The ADV7320 provides enhanced performance for SDTV and supports a range of directly supported SMPTE HDTV input standards.ApplicationsHD Video Players/RecordersHD Set-Top-Boxes and iDTVProfessional Video Editing & Studio EquipmentMedical & Industrial Imaging

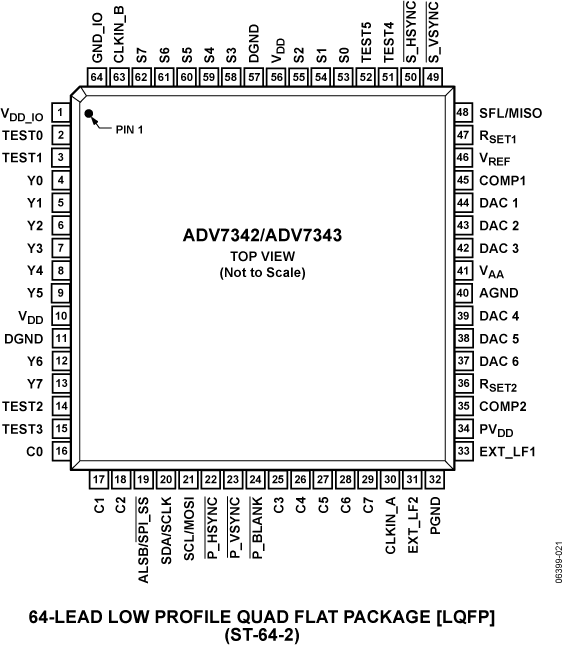

The ADV7342/ADV7343 are high speed, digital-to-analog video encoders in a 64-lead LQFP package. Six high speed, 3.3 V, 11-bit video DACs provide support for composite (CVBS), SVideo (Y/C), and component (YPrPb/RGB) analog outputs in either standard definition (SD), enhanced definition (ED), or high definition (HD) video formats.The ADV7342/ADV7343 each have a 24-bit pixel input port that can be configured in a variety of ways. SD video formats are supported over a SDR interface and ED/HD video formats are supported over SDR and DDR interfaces. Pixel data can be supplied in either the YCrCb or RGB color spaces. The parts also support embedded EAV/SAV timing codes, external video synchronization signals, and the I2C communication protocol.In addition, simultaneous SD and ED/HD input and output are supported. 216 MHz (SD and ED) and 297 MHz (HD) oversampling ensures that external output filtering is not required, while full-drive DACs ensure that external output buffering is not required.Cable detection and DAC auto power-down features keep power consumption to a minimum.ApplicationsDVD recorders and playersHigh definition Blu-ray DVD playersHD-DVD players

The ADV7342/ADV7343 are high speed, digital-to-analog video encoders in a 64-lead LQFP package. Six high speed, 3.3 V, 11-bit video DACs provide support for composite (CVBS), SVideo (Y/C), and component (YPrPb/RGB) analog outputs in either standard definition (SD), enhanced definition (ED), or high definition (HD) video formats.The ADV7342/ADV7343 each have a 24-bit pixel input port that can be configured in a variety of ways. SD video formats are supported over a SDR interface and ED/HD video formats are supported over SDR and DDR interfaces. Pixel data can be supplied in either the YCrCb or RGB color spaces. The parts also support embedded EAV/SAV timing codes, external video synchronization signals, and the I2C communication protocol.In addition, simultaneous SD and ED/HD input and output are supported. 216 MHz (SD and ED) and 297 MHz (HD) oversampling ensures that external output filtering is not required, while full-drive DACs ensure that external output buffering is not required.Cable detection and DAC auto power-down features keep power consumption to a minimum.ApplicationsDVD recorders and playersHigh definition Blu-ray DVD playersHD-DVD players

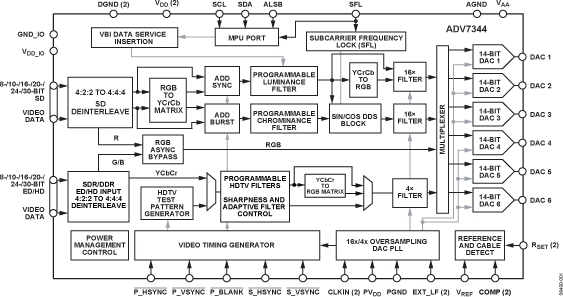

The ADV7344 is a high speed, digital-to-analog video encoder in a 64-pin LQFP package. Six high speed, NSV, 3.3 V, 14-bit video DACs provide support for composite (CVBS), S-Video (YC), and component (YPrPb/RGB) analog outputs in either standard definition (SD), enhanced definition (ED) or high definition (HD) video formats.The ADV7344 has a 30-bit pixel input port that can be configured in a variety of ways. SD video formats are supported over a SDR interface and ED/HD video formats are supported over SDR and DDR interfaces. Pixel data can be supplied in either the YCrCb or RGB color spaces.The ADV7344 also supports embedded EAV/SAV timing codes, external video synchronization signals, and the I2C communication protocol.In addition, simultaneous SD and ED/HD input and output is supported. 216 MHz (SD and ED) and 297 MHz (HD) oversampling ensures that external output filtering is not required, while full-drive DACs ensure that external output buffering is not required.Cable detection and DAC auto power-down features keep power consumption to a minimum.APPLICATIONSDVD recorders and playersHigh definition Blu-ray DVD playersHD-DVD players

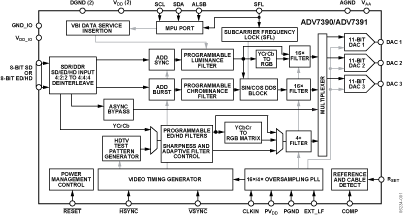

TheADV7390/ ADV7391 /ADV7392/ADV7393are a family of high speed, digital-to-analog video encoders on single monolithic chips. Three 2.7 V/3.3 V 10-bit video digital-to-analog converters (DACs) provide support for composite (CVBS), S-Video (Y-C), or component (YPrPb/RGB) analog outputs in either standard definition (SD) or high definition (HD) video formats.Optimized for low power operation, occupying a minimal footprint and requiring few external components, these encoders are ideally suited to portable and power sensitive applications requiring TV-out functionality. Cable detection and DAC automatic power-down features ensure that power consumption is kept to a minimum.The ADV7390 / ADV7391 have an 8-bit video input port that supports SD video formats over a software defined radio (SDR) interface and HD video formats over a double data rate (DDR) interface.The ADV7392 / ADV7393 have a 16-bit video input port that can be configured in a variety of ways. SD RGB input is supported. All members of the family support embedded EAV/SAV timing codes, external video synchronization signals, and the I2C communication protocol.APPLICATIONSMobile handsetsDigital still camerasPortable media and DVD playersPortable game consolesDigital camcordersSet-top box (STB)Automotive infotainment (ADV7392andADV7393only)

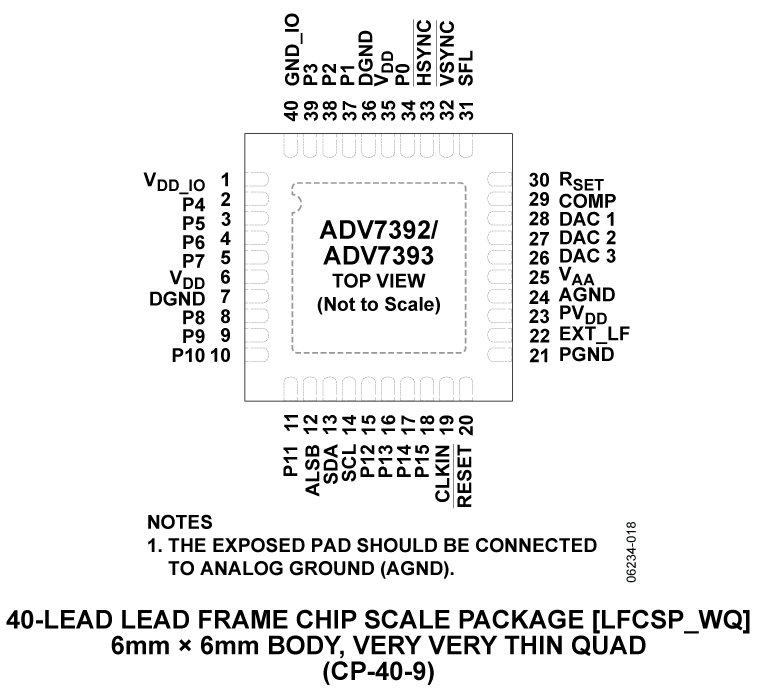

TheADV7390/ADV7391/ ADV7392 /ADV7393are a family of high speed, digital-to-analog video encoders on single monolithic chips. Three 2.7 V/3.3 V, 10-bit video DACs (a single DAC for the WLCSP package) provide support for composite (CVBS), S-Video (Y-C), or component (YPrPb/RGB) analog outputs in either standard definition (SD) or high definition (HD) video formats. The single DAC WLCSP package supports CVBS (NTSC and PAL) output only in SD resolution (see Table 2).Optimized for low power operation, occupying a minimal footprint, and requiring few external components, these encoders are ideally suited to portable and power-sensitive applications requiring TV-out functionality. Cable detection and DAC auto power-down features ensure that power consumption is kept to a minimum.The ADV7390 / ADV7391 have an 8-bit video input port that supports SD video formats over an SDR interface and HD video formats over a DDR interface. The ADV7392 / ADV7393 have a 16-bit video input port that can be configured in a variety of ways. SD RGB input is supported.All members of the family support embedded EAV/SAV timing codes, external video synchronization signals, and the I2 C®and communication protocol. Table 1 and Table 2 list the video standards directly supported by the ADV7390 / ADV7391 / ADV7392 / ADV7393 family.APPLICATIONSMobile handsetsDigital still camerasPortable media and DVD playersPortable game consolesDigital camcordersSet-top box (STB)Automotive infotainment (ADV7392 and ADV7393 only)
