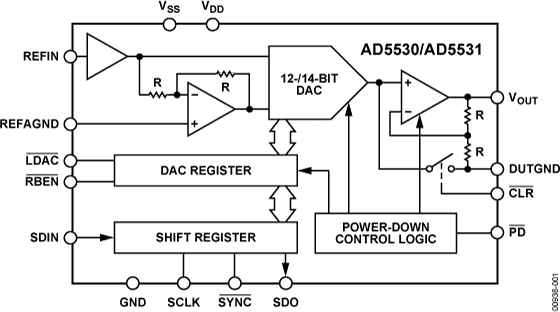

The AD5530 / AD5531 are single 12- and 14-bit (respectively) serial input, voltage output digital-to-analog converters (DAC).They utilize a versatile 3-wire interface that is compatible with SPI®, QSPI™, MICROWIRE™, and DSP interface standards. Data is presented to the part in a 16-bit serial word format. Serial data is available on the SDO pin for daisy-chaining purposes. Data readback allows the user to read the contents of the DAC register via the SDO pin.The DAC output is buffered by a gain of two amplifier and referenced to the potential at DUTGND.LDACcan be used to update the output of the DAC asynchronously. A power-down pin (PD) allows the DAC to be put into a low power state, and aCLRpin allows the output to be cleared to a user-defined voltage, the potential at DUTGND.The AD5530 / AD5531 are available in 16-lead TSSOP.APPLICATIONSIndustrial automationAutomatic test equipmentProcess controlGeneral-purpose instrumentation

The AD5532HS is a 32-channel bipolar voltage-output 14-bit DAC with a high-speed serial interface and is packaged in a tiny 12x12 mm CSPBGA. The selected DAC register is written to via the 3-wire interface. The serial interface operates at clock rates up to 30 MHz and is compatible with DSP and microcontroller interface standards. The output voltage range is 0 V to 5 V or -2.5 V to +2.5 V and is determined by the offset voltage at the OFFS_IN pin. It is restricted to a range from VSS+ 2 V to VDD- 2 V because of the headroom of the output amplifier.The device is operated with AVCC= 5 V ± 5%, DVCC= 2.7 V to 5.25 V, VSS= –4.75 V to –12 V and VDD= +4.75 V to +12 V and requires a stable 2.5 V reference on REF_IN.PRODUCT HIGHLIGHTS32 14-bit DACs in one package, guaranteed monotonic.The AD5532HS is available in a 74-ball LFBGA package with a body size of 12 mm by 12 mm.APPLICATIONSOpticalNetworksLevel SettingInstrumentationAutomatic Test EquipmentIndustrial Control SystemsData AcquisitionLow Cost I/O

The AD5532B is a 32-channel, bipolar, voltage-output, 14-bit DAC with an additional infinite sample-and-hold mode. The device is operated with AVCC= +5V±5%, DVCC= 2.7 V to 5.25 V, VSS= -4.75 V to -16.5 V and VDD= 8 V to 16.5 V and requires a stable +3 V reference on REF_IN as well as an offset voltage on OFFS_IN. It is available in a 74-lead 12mm x 12mm CSPBGA package.Also available is theAD5533B, which is specified in the sample and hold mode only and is the same part but without the DAC mode of operation.The AD5532B is an improved spec version of the existing AD5532.Differences are:AD5532ABC-1AD5532BBC-1ModeOffset Error±50 mV±10 mV max (±1 mV typ)I-SHATUENot spec'd±12 mV max (±2 mV typ)I-SHAGain3.46/3.52/3.63.51/3.52/3.53 min/typ/maxtdI-SHADAC Full Scale Error±2%-1%, +0.5%DACPRODUCT HIGHLIGHTS32-channel, 14-bit DAC in one package, guaranteed monotonic.The AD5532B is available in a 74-lead CSPBGA with a body size of 12 mm × 12 mm.In infinite sample-and-hold mode, a total unadjusted error of ±2.5 mV is achieved by laser-trimming on-chip resistors.APPLICATIONSAutomatic Test EquipmentOptical NetworksLevel SettingInstrumentationIndustrial Control SystemsData AcquisitionLow Cost I/O

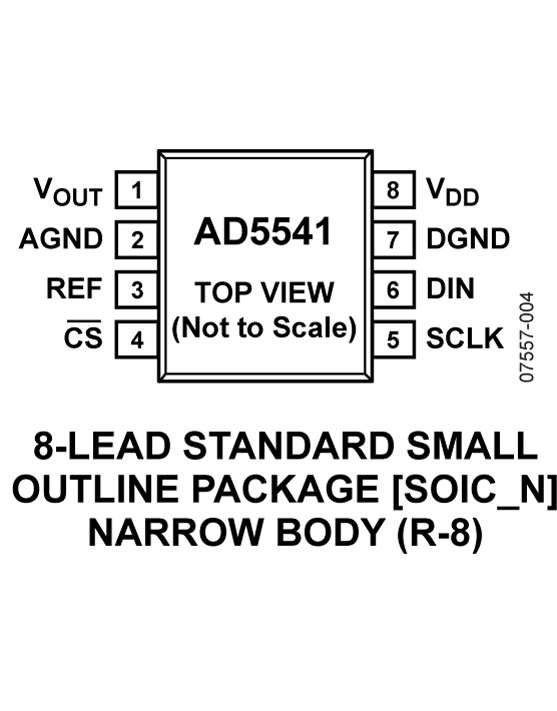

The AD5541 / AD5542 are single, 16-bit, serial input, voltage output digital-to-analog converters (DACs) that operate from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREF.The DAC output range extends from 0 V to VREFand is guaranteed monotonic, providing 1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +85°C. Offering unbuffered outputs, the AD5541 / AD5542 achieve a 1 μs settling time with low power consumption and low offset errors. Providing a low noise performance of 11.8 nV/√Hzand low glitch, the AD5541 / AD5542 is suitable for deployment across multiple end systems.The AD5542 can be operated in bipolar mode, which generates a ±VREFoutput swing. The AD5542 also includes Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity.The AD5541 / AD5542 utilize a versatile 3-wire interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards. The AD5541 / AD5542 are available in 8-lead and 14-lead SOIC packages.PRODUCT HIGHLIGHTSSingle-Supply Operation. The AD5541 and AD5542 are fully specified and guaranteed for a single 2.7 V to 5.5 V supply.Low Power Consumption. These parts consume typically 0.625 mW with a 5 V supply and 0.375 mW at 3 V.3-Wire Serial Interface.Unbuffered Output Capable of Driving 60 kΩ Loads. This reduces power consumption because there is no internal buffer to drive.Power-On Reset Circuitry.APPLICATIONSDigital gain and offset adjustmentAutomatic test equipmentData acquisition systemsIndustrial process control

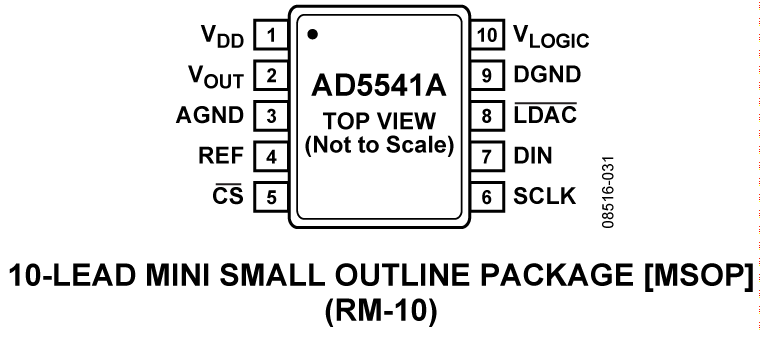

The AD5541A is a single, 16-bit, serial input, unbuffered voltage output digital-to-analog converter (DAC) that operate from a single 2.7 V to 5.5 V supply.The DAC output range extends from 0 V to VREF and is guaranteed monotonic, providing ±1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +125°C. The AD5541A is available in a 3 mm × 3 mm, 10-lead LFCSP and 10-lead MSOP. The AD5541A-1 is available in a 3 mm × 3 mm, 8-lead LFCSP.Offering unbuffered outputs, the AD5541A achieves a 1 μs set-tling time with low power consumption and low offset errors. Providing low noise performance of 11.8 nV/√Hz and low glitch, the AD5541A is suitable for deployment across multiple end systems.The AD5541A uses a versatile 3-wire interface that is compatible with a 50 MHz SPI, QSPI™, MICROWIRE™, and DSP interface standards.PRODUCT HIGHLIGHTS16-bit performance without adjustment.2.7 V to 5.5 V single operation.Low 11.8 nV/√Hz noise spectral density.Low 0.05 ppm/°C temperature drift.3 mm × 3 mm LFCSP and MSOP packaging.ApplicationsAutomatic test equipmentPrecision Source-measure InstrumentsData Acquisition SystemsMedical InstrumentationAerospace InstrumentationCommunications Infrastructure equipmentIndustrial Control

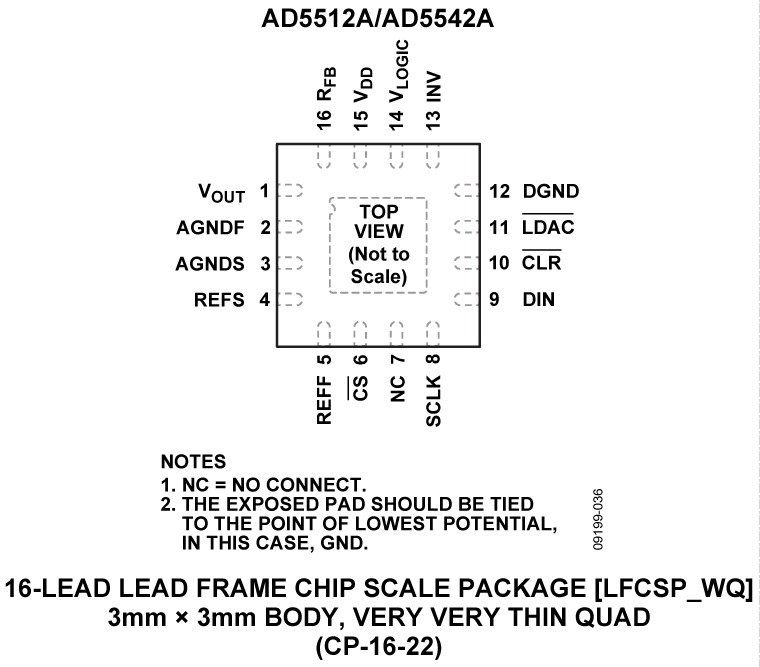

TheAD5512A/ AD5542A are single, 12-/16-bit, serial input, unbuffered voltage output digital-to-analog converters (DAC) that operate from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREFand is guaranteed monotonic, providing 1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +85°C (AD5542A) or −40°C to +125°C (AD5512A).Offering unbuffered outputs, the AD5512A / AD5542A achieve a 1 μs settling time with low offset errors ideal for high speed open loop control.The AD5512A / AD5542A incorporate a bipolar mode of operation that generates a ±VREFoutput swing. The AD5512A / AD5542A also include Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity.The AD5512A / AD5542A are available in a 16-lead LFCSP with the AD5542A also available in a 10-lead LFCSP and a 16-lead TSSOP. The AD5512A / AD5542A use a versatile 3-wire interface that is compatible with 50 MHz SPI, QSPI™, MICROWIRE™, and DSP interface standards.APPLICATIONSAutomatic test equipmentPrecision Source-measure InstrumentsData Acquisition SystemsMedical and aerospace InstrumentationCommunications equipmentPRODUCT HIGHLIGHTS16-bit performance without adjustment.2.7 V to 5.5 V single supply operation.Low 11.8 nV/√Hznoise spectral density.Low 0.05 ppm/°C temperature drift.3 mm × 3 mm LFCSP and TSSOP packaging.

TheAD5512A/ AD5542A are single, 12-/16-bit, serial input, unbuffered voltage output digital-to-analog converters (DAC) that operate from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREFand is guaranteed monotonic, providing 1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +85°C (AD5542A) or −40°C to +125°C (AD5512A).Offering unbuffered outputs, the AD5512A / AD5542A achieve a 1 μs settling time with low offset errors ideal for high speed open loop control.The AD5512A / AD5542A incorporate a bipolar mode of operation that generates a ±VREFoutput swing. The AD5512A / AD5542A also include Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity.The AD5512A / AD5542A are available in a 16-lead LFCSP with the AD5542A also available in a 10-lead LFCSP and a 16-lead TSSOP. The AD5512A / AD5542A use a versatile 3-wire interface that is compatible with 50 MHz SPI, QSPI™, MICROWIRE™, and DSP interface standards.APPLICATIONSAutomatic test equipmentPrecision Source-measure InstrumentsData Acquisition SystemsMedical and aerospace InstrumentationCommunications equipmentPRODUCT HIGHLIGHTS16-bit performance without adjustment.2.7 V to 5.5 V single supply operation.Low 11.8 nV/√Hznoise spectral density.Low 0.05 ppm/°C temperature drift.3 mm × 3 mm LFCSP and TSSOP packaging.
