AD53102.7 V to 5.5 V, 140µA, Rail-to-Rail Voltage Output 10-Bit DAC in a SOT-23 | Development Boards, Kits, Programmers | 12 | Active | The AD5310 is a single, 10-bit, buffered voltage output DAC that operates from a single 2.7 V to 5.5 V supply, consuming 115 μA at 3 V. Its on-chip precision output amplifier allows rail-to-rail output swing. The AD5310 utilizes a versatile 3-wire serial interface that operates at clock rates of up to 30 MHz and is compatible with standard SPI™, QSPI™, MICROWIRE®, and DSP interface standards.The reference for AD5310 is derived from the power supply inputs and, therefore, provides the widest dynamic output range. The part incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V and remains there until a valid write takes place to the device. The part contains a power-down feature, which reduces the current consumption of the device to 200 nA at 5 V and provides software-selectable output loads while in power-down mode. The part is put into power-down mode over the serial interface.The low power consumption of this part in normal operation makes it ideally suited for portable, battery-operated equipment. The power consumption is 0.7 mW at 5 V, reducing to 1 μW in power-down mode.The AD5310 is one of a family of pin-compatible DACs. TheAD5300is the 8-bit version, and theAD5320is the 12-bit version. The AD5300 / AD5310 / AD5320 are available in 6-lead SOT-23 packages and 8-lead μSOIC packages.PRODUCT HIGHLIGHTSAvailable in 6-lead SOT-23 and 8-lead μSOIC packages.Low power, single supply operation. This part operates from a single 2.7 V to 5.5 V supply and typically consumes 0.35 mW at 3 V and 0.7 mW at 5 V, making it ideal for battery-powered applications.The on-chip output buffer amplifier allows the output of the DAC to swing rail-to-rail with a slew rate of 1 V/μs.Reference derived from the power supply.High speed serial interface with clock speeds up to 30 MHz. Designed for very low power consumption. The interface only powers up during a write cycle.Power-down capability. When powered down, the DAC typically consumes 50 nA at 3 V and 200 nA at 5 V.APPLICATIONSPortable battery-powered instrumentsDigital gain and offset adjustmentProgrammable voltage and current sourcesProgrammable attenuators |
AD5310R10-BitnanoDAC, SPI Interface and 2ppm/°C On-Chip Reference | Digital to Analog Converters (DAC) | 1 | Active | The AD5310R /AD5311R, members of thenanoDAC®family, are low power, single-channel, 10-bit buffered voltage-out DACs. The devices include an enabled by default internal 2.5 V reference, and provides 2 ppm/°C. The output span can be programmed to be 0 V to VREFor 0 V to 2 × VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in 10-lead MSOP packages.The internal power-on reset circuit of the AD5310R/AD5311R ensures that the DAC register is written to zero scale at powerup when the internal output buffer is configured in normal mode. The devices contain a power-down mode that reduces the current consumption of the device to 2 µA at 5 V.The AD5310R / AD5311R use a versatile SPI or I2C interface, including an asynchronousRESETpin and a VLOGICpin, allowing 1.8 V compatibility.Product HighlightsHigh Relative Accuracy (INL): ±0.5 LSB maximum.Low Drift 2.5 V On-Chip Reference: 5 ppm/°C maximum temperature coefficient.ApplicationsProcess controlsData acquisition systemsDigital gain and offset adjustmentProgrammable voltage sourcesOptical modules |

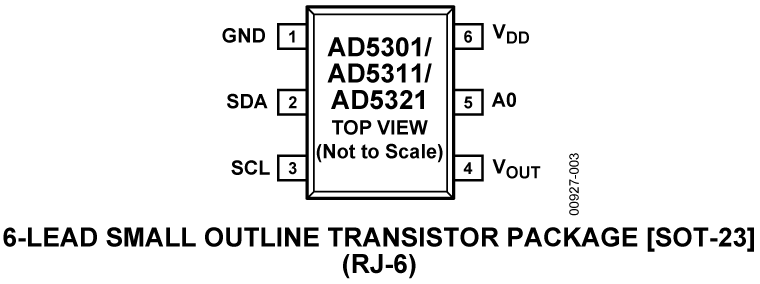

AD53112.5 V to 5.5 V, 120 µA, 2-Wire Interface, Voltage-Output 10-Bit DAC | Evaluation Boards | 11 | Active | TheAD5301/AD5311/AD5321are single 8-/10-/12-bit, buffered, voltage-output DACs that operate from a single 2.5 V to 5.5 V supply, consuming 120 μA at 3 V. The on-chip output amplifier allows rail-to-rail output swing with a slew rate of 0.7 V/μs. It uses a 2-wire (I2C-compatible) serial interface that operates at clock rates up to 400 kHz. Multiple devices can share the same bus.The reference for the DAC is derived from the power supply inputs and thus gives the widest dynamic output range. These parts incorporate a power-on reset circuit, which ensures that the DAC output powers up to 0 V and remains there until a valid write takes place. The parts contain a power-down feature that reduces the current consumption of the device to 50 nA at 3 V and provides software-selectable output loads while in power-down mode.The low power consumption in normal operation makes these DACs ideally suited to portable battery-operated equipment. The power consumption is 0.75 mW at 5 V and 0.36 mW at 3 V, reducing to 1 μW in all power-down modes.ApplicationsPortable battery-powered instrumentsDigital gain and offset adjustmentProgrammable voltage and current sourcesProgrammable attenuators |
| Data Acquisition | 9 | Active | |
AD53132.5 V to 5.5 V, 230 µA, Dual Rail-to-Rail Voltage Output 10-Bit DAC | Development Boards, Kits, Programmers | 14 | Active | The AD5313/AD5323 are dual 8-/10-/12-bit buffered voltage output DACs in a 16-lead TSSOP package that operate from a single 2.5 V to 5.5 V supply, consuming 230 μA at 3 V. Their on-chip output amplifiers allow the outputs to swing rail-to-rail with a slew rate of 0.7 V/μs. The AD5313/AD5323 utilize a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards.The references for the two DACs are derived from two reference pins (one per DAC). These reference inputs may be configured as buffered or unbuffered inputs. The parts incorporate a power-on reset circuit, which ensures that the DAC outputs power up to 0 V and remain there until a valid write to the device takes place. There is also an asynchronous active low CLR pin that clears both DACs to 0 V. The outputs of both DACs may be updated simultaneously using the asynchronous LDAC input. The parts contain a power-down feature that reduces the current consumption of the devices to 200 nA at 5 V (50 nA at 3 V) and provides software-selectable output loads while in power-down mode. The parts may also be used in daisy-chaining applications using the SDO pin.The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equipment. The power consumption is 1.5 mW at 5 V and 0.7 mW at 3 V, reducing to 1 μW in power-down mode.APPLICATIONSPortable battery-powered instrumentsDigital gain and offset adjustmentProgrammable voltage and current sourcesProgrammable attenuators |
| Integrated Circuits (ICs) | 11 | Active | |
AD53152.5 V to 5.5 V, 500µA, 2-Wire Interface Quad Voltage Output 10-Bit DAC | Data Acquisition | 8 | Active | TheAD5305/ AD5315 /AD5325are quad 8-, 10- and 12-bit buffered voltage output DACs in a 10-lead microSOIC package that operate from a single 2.5 V to 5.5 V supply consuming 500 µA at 3 V. Their on-chip output amplifiers allow rail-to-rail output swing with a slew rate of 0.7 V/µs. A 2-wire serial interface is used which operates at clock rates up to 400 kHz. This interface is SMBus-compatible at VDD< 3.6 V. Multiple devices can be placed on the same bus.PRODUCT HIGHLIGHTSAvailable in a 10-lead MicroSOIC packageLow power, single supply operation from 2.5 V to 5.5 V supplyConsumes 1.5mW at 3 V and 3 mW at 5 VRail-to-Rail output with a slew rate of 0.7 V/µsMultiple devices can share the same busSerial interface with clock rates up to 400 kHzPin- and Software-Compatible with the AD5305 (8-Bit) and the AD5325 (12-Bit)I2C (Inter-IC) is a trademark of Philips Semiconductors. |
AD53162.5 V to 5.5 V, 400µA, 2-Wire Interface Quad Voltage Output 10-Bit DAC | Evaluation Boards | 10 | Active | The AD5316R, a member of thenanoDAC®family, is a low power, quad, 10-bit buffered voltage output DAC. The device includes a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm lead lead frame chip scale package (LFCSP) and in a thin shrink small outline package (TSSOP).The AD5316R also incorporates a power-on reset circuit and a RSTSEL pin. The RSTSEL pin ensures that the DAC outputs power up to zero scale or midscale and remain at that level until a valid write takes place. The device contains a per channel power-down feature that reduces the current consumption of the device in power-down mode to 4 μA at 3 V.The AD5316R uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz and includes a VLOGICpin intended for 1.8 V/3 V/5 V logic.Product HighlightsPrecision DC Performance.Total unadjusted error (TUE): ±0.1% of FSR maximumOffset error: ±1.5 mV maximumGain error: ±0.1% of FSR maximumLow Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient5 ppm/°C maximum temperature coefficientTwo Package Options.3 mm × 3 mm, 16-lead LFCSP16-lead TSSOPApplicationsDigital gain and offset adjustmentProgrammable attenuatorsIndustrial automationData acquisition systems |

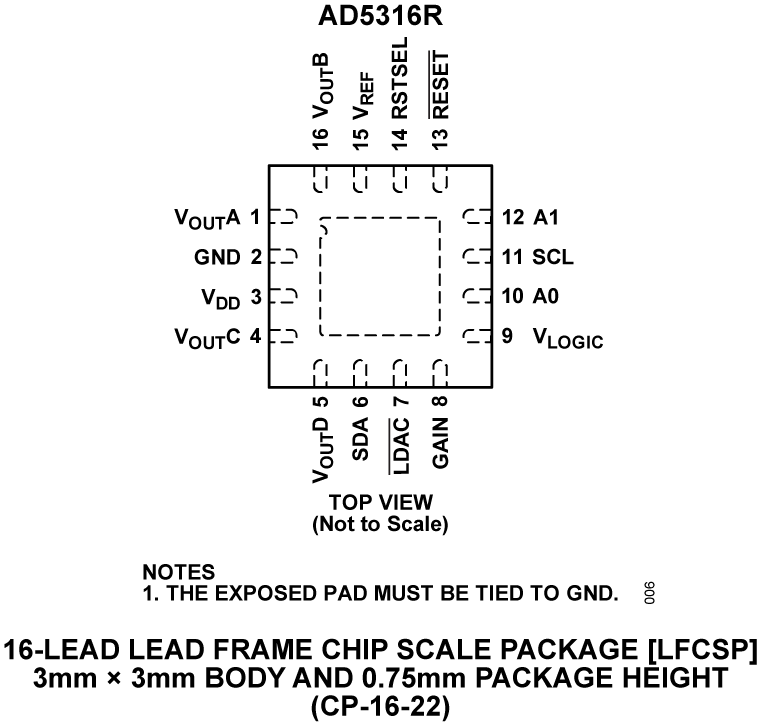

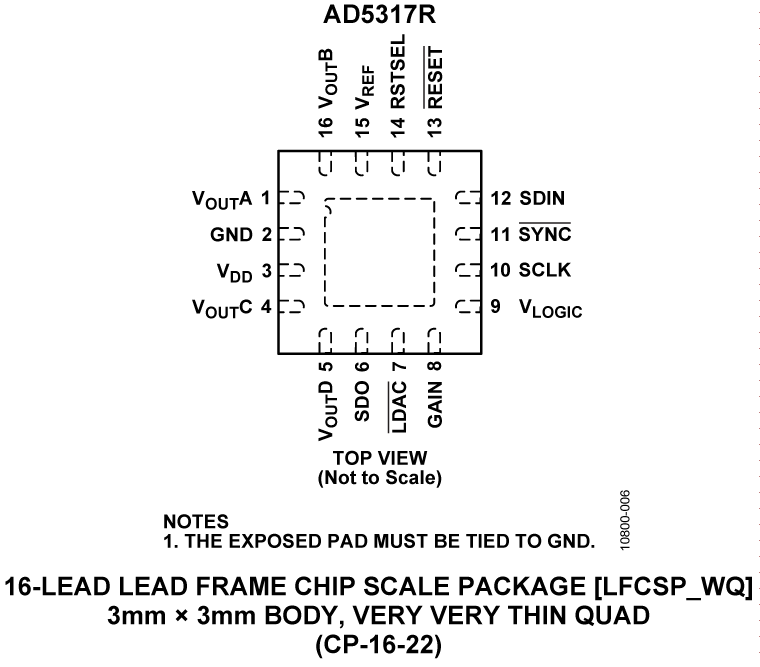

AD5316RQuad, 10-BitnanoDAC with 2 ppm/°C Reference, I2C Interface | Digital to Analog Converters (DAC) | 1 | Active | The AD5316R, a member of thenanoDAC®family, is a low power, quad, 10-bit buffered voltage output DAC. The device includes a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm lead lead frame chip scale package (LFCSP) and in a thin shrink small outline package (TSSOP).The AD5316R also incorporates a power-on reset circuit and a RSTSEL pin. The RSTSEL pin ensures that the DAC outputs power up to zero scale or midscale and remain at that level until a valid write takes place. The device contains a per channel power-down feature that reduces the current consumption of the device in power-down mode to 4 μA at 3 V.The AD5316R uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz and includes a VLOGICpin intended for 1.8 V/3 V/5 V logic.Product HighlightsPrecision DC Performance.Total unadjusted error (TUE): ±0.1% of FSR maximumOffset error: ±1.5 mV maximumGain error: ±0.1% of FSR maximumLow Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient5 ppm/°C maximum temperature coefficientTwo Package Options.3 mm × 3 mm, 16-lead LFCSP16-lead TSSOPApplicationsDigital gain and offset adjustmentProgrammable attenuatorsIndustrial automationData acquisition systems |
AD5317Quad, 10-BitnanoDAC®with 2 ppm/°C Reference, SPI Interface | Evaluation Boards | 11 | Active | TheAD5307/ AD5317 /AD5327are quad 8-, 10-, and 12-bit buffered voltage-output DACs, in a 16-lead TSSOP package, which operate from a single 2.5 V to 5.5 V supply consuming 400 µA at 3 V. Their on-chip output amplifiers allow the outputs to swing rail-to-rail with a slew rate of 0.7 V/µs. The AD5307 / AD5317 / AD5327 utilize a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and are compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards.PRODUCT HIGHLIGHTSAvailable in a 16-lead TSSOP packageLow power, single supply operation from 2.5 V to 5.5 V supplyConsumes 1.2mW at 3 V and 2.5 mW at 5 VRail-to-Rail output with a slew rate of 0.7 V/µs3-wire serial interface with clock rates up to 30 MHzPin- and Software-Compatible with the AD5307 (8-Bit) and the AD5327 (12-Bit) |
