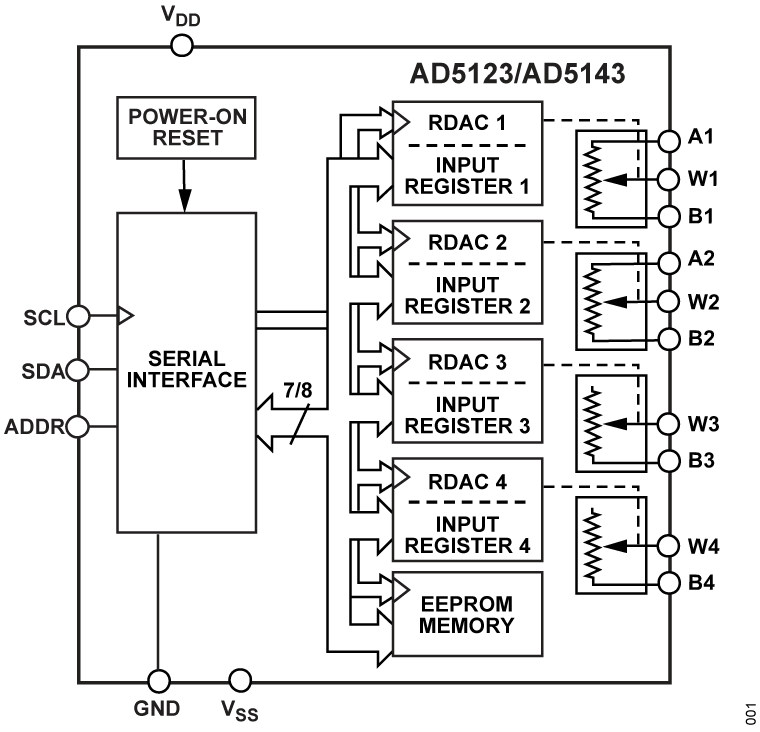

The AD5123/AD5143potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAWand RWBstring resistors, allowing very accurate resistor matching.The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making the devices suitable for filter design.The low wiper resistance of only 40 Ω at the ends of the resistor array allows for pin to pin connection.The wiper values can be set through an I2C-compatible digital interface that also reads back the wiper register and EEPROM contents.The AD5123/AD5143 are available in a compact, 16-lead, 3 mm × 3 mm LFCSP. The devices are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.ApplicationsPortable electronics level adjustmentLCD panel brightness and contrast controlsProgrammable filters, delays, time constantsProgrammable power supplies

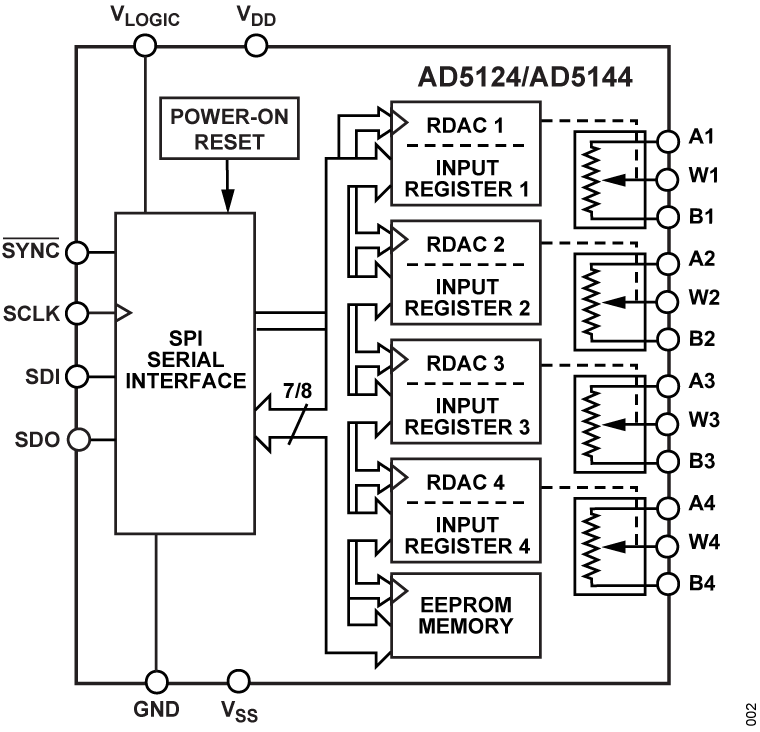

The AD5124/AD5144/AD5144Apotentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAWand RWBstring resistors, allowing very accurate resistor matching.The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making these devices suitable for filter design.The low wiper resistance of only 40 Ω at the ends of the resistor array allow for pin-to-pin connection.The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.The AD5124/AD5144/AD5144A are available in a compact, 24-lead, 4 mm × 4 mm LFCSP and a 20-lead TSSOP. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.ApplicationsPortable electronics level adjustmentLCD panel brightness and contrast controlsProgrammable filters, delays, and time constantsProgrammable power supplies

TheAD5121/AD5141 potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins.The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through RAWand RWBstring resistors, allowing very accurate resistor matching.The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making it suitable for filter design.The low wiper resistance of only 40 Ω at the ends of the resistor array allows for pin-to-pin connection.The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.The AD5121/AD5141 is available in a compact, 16-lead, 3 mm × 3 mm LFCSP. The devices are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.ApplicationsPortable electronics level adjustmentLCD panel brightness and contrast controlsProgrammable filters, delays, and time constantsProgrammable power supplies

The AD5122A/AD5142A potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through RAWand RWBthe string resistors, allowing very accurate resistor matching.The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making it suitable for filter design.The low wiper resistance of only 40 Ω at the ends of the resistor array allows for pin-to-pin connection.The wiper values can be set through an I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.The AD5122A/AD5142A are available in a compact, 16-lead, 3 mm × 3 mm LFCSP and a 16-lead TSSOP. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.ApplicationsPortable electronics level adjustmentLCD panel brightness and contrast controlsProgrammable filters, delays, time constantsProgrammable power supplies

TheAD5123/AD5143 potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAWand RWBstring resistors, allowing very accurate resistor matching.The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making the devices suitable for filter design.The low wiper resistance of only 40 Ω at the ends of the resistor array allows for pin to pin connection.The wiper values can be set through an I2C-compatible digital interface that also reads back the wiper register and EEPROM contents.The AD5123/AD5143 are available in a compact, 16-lead, 3 mm × 3 mm LFCSP. The devices are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.ApplicationsPortable electronics level adjustmentLCD panel brightness and contrast controlsProgrammable filters, delays, time constantsProgrammable power supplies

TheAD5124/AD5144/AD5144Apotentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAWand RWBstring resistors, allowing very accurate resistor matching.The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making these devices suitable for filter design.The low wiper resistance of only 40 Ω at the ends of the resistor array allow for pin-to-pin connection.The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.The AD5124/AD5144/AD5144A are available in a compact, 24-lead, 4 mm × 4 mm LFCSP and a 20-lead TSSOP. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.ApplicationsPortable electronics level adjustmentLCD panel brightness and contrast controlsProgrammable filters, delays, and time constantsProgrammable power suppliesThe AD5144-EP supports defense and aerospace applications (AQEC).

TheAD5124/AD5144/ AD5144A potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAWand RWBstring resistors, allowing very accurate resistor matching.The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making these devices suitable for filter design.The low wiper resistance of only 40 Ω at the ends of the resistor array allow for pin-to-pin connection.The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.The AD5124 / AD5144 / AD5144A are available in a compact, 24-lead, 4 mm × 4 mm LFCSP and a 20-lead TSSOP. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.ApplicationsPortable electronics level adjustmentLCD panel brightness and contrast controlsProgrammable filters, delays, and time constantsProgrammable power supplies
