PD60/86-1278 is a full-mechatronic solution combining of easy-to-use, high-power motion controller/ driver module and PANdrive™smart stepper motor.The driver module is conveniently mounted on the NEMA24/34 size PANdrive™motor. This driver module is controlled via a CAN bus interface and comes with two firmware options – TMCL™and CANopen®. PD60/86-1278 features StealthChop™for absolute silent motor control, SpreadCycle™for high speed stepper motor commutation, a fully integrated hardware motion controller with SixPoint™motion ramps, as well as StallGuard2™and CoolStep™.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLab-AutomationManufacturingRoboticsFactory AutomationCNC

PD-1180 PANdrive™is a full mechatronic solution including a high torque stepper motor and a motion controller/driver using the new outstanding CoolStep™technology for sensorless load dependent current control. This allows the first time an energy efficient operation of an open-loop stepper motor system. With the advanced StallGuard2™feature the load of the motor can be detected with high resolution.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDE

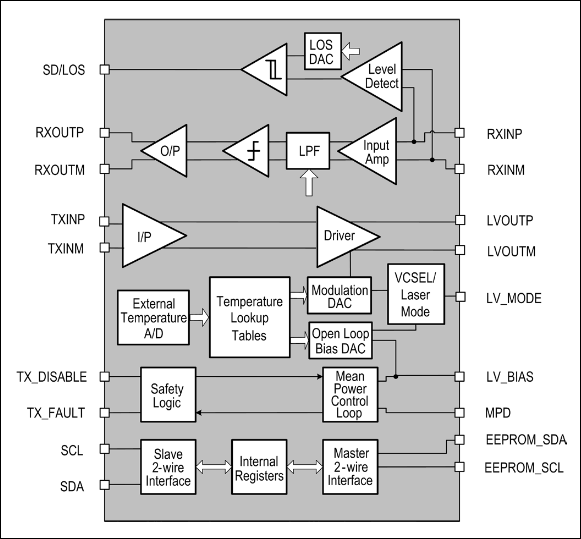

The PHY1040-01 is a continuous-mode VCSEL/laser driver and limiting amplifier for use within fiber optic modules for SFP and SFF applications. Used with the PHY1095-01 transimpedance amplifier and a low-cost serial EEPROM or microcontroller, the device forms a complete SFP module solution. The transmit section integrates a modulator output stage optimized as a laser or VCSEL driver in common anode configurations.The bias current can be controlled either by a fast-settling APC loop or in open-loop mode, which uses a temperature lookup table. The receiver includes a limiting amplifier with programmable bandwidth. A signal-detect/loss-of-signal function is implemented using the input-signal modulation amplitude with user-selectable threshold and hysteresis.Operating with a 3.3V supply and rated from the -40°C to +95°C ambient operating temperature range, the PHY1040-01 is housed in a 32-pin, 5mm x 5mm, RoHS-compliant QFN package.ApplicationsFast EthernetGigabit EthernetOC-3
