| Linear | 5 | Active | |
| Integrated Circuits (ICs) | 6 | Active | |
| Integrated Circuits (ICs) | 7 | Active | |

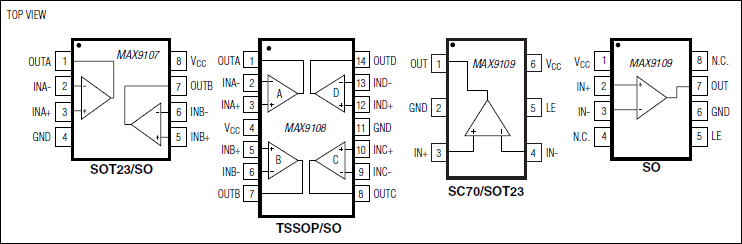

MAX910925ns, Dual/Quad/Single, Low-Power, TTL Comparators | Linear | 8 | Active | The MAX9107/MAX9108/MAX9109 dual/quad/single, high-speed, low-power voltage comparators are designed for use in systems powered from a single +5V supply. Their 25ns propagation delay (with 10mV input overdrive) is achieved with a power consumption of only 1.75mW per comparator. The wide input common- mode range extends from 200mV below ground to within 1.5V of the positive supply rail.The MAX9107/MAX9108/MAX9109 outputs are TTL-compatible, requiring no external pullup circuitry. These easy-to-use comparators incorporate internal hysteresis to ensure clean output switching even when the devices are driven by a slow-moving input signal.The MAX9107/MAX9108/MAX9109 are higher-speed, lower-power, lower-cost upgrades to industry-standard comparators MAX907/MAX908/MAX909. The MAX9109 features an output latch but does not have complementary outputs.The dual MAX9107 is available in both 8-pin SO and SOT23 packages. The quad MAX9108 is available in 14-pin TSSOP and SO packages while the single MAX9109 is available in an ultra-small 6-pin SC70 package, a space-saving 6-pin SOT23 package and an 8-pin SO package.ApplicationsA/D ConvertersBattery-Powered ApplicationsLine ReceiversSampling CircuitsThreshold Detectors/DiscriminatorsZero-Crossing Detectors |
| Integrated Circuits (ICs) | 1 | Obsolete | |
| Integrated Circuits (ICs) | 4 | Active | |

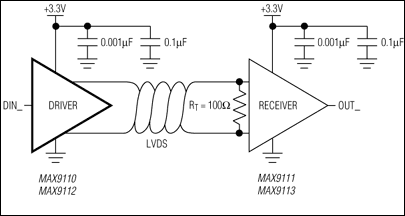

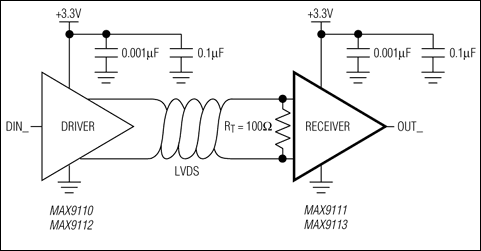

MAX9111Single/Dual LVDS Line Receivers with Ultra-Low Pulse Skew in SOT23 | Drivers, Receivers, Transceivers | 3 | Active | The MAX9111/MAX9113 single/dual low-voltage differential signaling (LVDS) receivers are designed for high-speed applications requiring minimum power consumption, space, and noise. Both devices support switching rates exceeding 500Mbps while operating from a single +3.3V supply, and feature ultra-low 300ps (max) pulse skew required for high-resolution imaging applications such as laser printers and digital copiers.The MAX9111 is a single LVDS receiver, and the MAX9113 is a dual LVDS receiver.Both devices conform to the EIA/TIA-644 LVDS standard and convert LVDS to LVTTL/CMOS-compatible outputs. A fail-safe feature sets the outputs high when the inputs are undriven and open, terminated, or shorted. The MAX9111/MAX9113 are available in space-saving 8-pin SOT23 and SO packages. Refer to the MAX9110/MAX9112 data sheet for single/dual LVDS line drivers.ApplicationsBackplane and Interconnect ApplicationsCell Phone Base StationsClock/Data DistributionDigital CopiersLaser PrintersLCD DisplaysNetwork Routers and SwitchesTelecom Switching Equipment |
| Interface | 4 | Active | |
| Drivers, Receivers, Transceivers | 5 | Active | |
| Linear | 4 | Active | |
