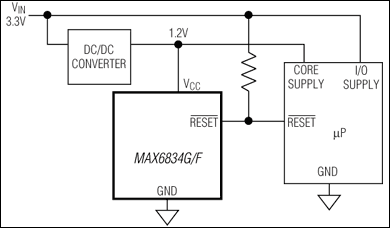

MAX6840Ultra-Low-Voltage SC70 Voltage Detectors and µP Reset Circuits | Integrated Circuits (ICs) | 2 | Active | The MAX6832–MAX6840 are microprocessor (µP) supervisory circuits used to monitor low-voltage power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +1.2V to +1.8V powered circuits.These devices assert a reset signal whenever the VCCsupply voltage declines below a preset threshold or whenever manual reset (active-low MR) is asserted. Reset remains asserted for a fixed timeout delay after VCChas risen above the reset threshold or when manual reset is deasserted. Five different timeout periods are available: 70µs (voltage detector), 1.5ms, 30ms, 210ms, and 1.68s. Reset thresholds suitable for operation with a variety of supply voltages are available.The MAX6832/MAX6835/MAX6838 have a push-pull active-low reset output (active-low RESET). The MAX6833/MAX6836/MAX6839 have a push-pull active-high reset output (RESET) and the MAX6834/MAX6837/MAX6840 have an open-drain active-low reset output (active-low RESET). The open-drain active-low reset output requires a pullup resistor that can be connected to a voltage higher than VCC.The MAX6835/MAX6836/MAX6837 feature a debounced manual reset input (active-low MR), while the MAX6838/MAX6839/MAX6840 provide a RESET-IN input allowing the user to externally adjust the reset threshold. The reset comparator is designed to ignore fast transients on VCC.Low supply current of 7.5µA makes the MAX6832–MAX6840 ideal for use in portable equipment. These devices are available in 3- and 4-pin SC70 packages.ApplicationsComputers: Desktop, Workstation, ServerControllersCritical µP and µC Power MonitoringIntelligent InstrumentsPortable Battery-Powered Equipment |
| Supervisors | 5 | Obsolete | |
| Integrated Circuits (ICs) | 5 | Active | |
| Supervisors | 2 | Active | |
| Supervisors | 2 | Obsolete | |

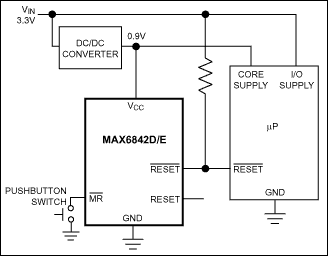

MAX6845Ultra-Low-Voltage µP Reset Circuits and Voltage Detectors | Integrated Circuits (ICs) | 3 | Active | The MAX6841–MAX6845 microprocessor (µP) supervisory circuits monitor ultra-low-voltage power supplies in µP and digital systems. They provide excellent circuit reliability at low cost by eliminating external components and adjustments when used with +0.9V to +1.5V systems. Factory-trimmed reset thresholds are available for the MAX6841/MAX6842. The MAX6843/MAX6844/MAX6845 provide a RESET IN input, allowing the user to externally adjust the reset threshold. The MAX6841–MAX6845 family features a debounced manual reset input (active-low MR). The reset comparator is designed to ignore fast transients on VCC.The MAX6841–MAX6845 assert a reset signal whenever the VCCsupply voltage declines below a preset or adjustable threshold or whenever manual reset (active-low MR) is asserted. Reset remains asserted for a fixed timeout delay after VCChas risen above the reset threshold and when manual reset is deasserted. Five timeout periods are available for each part: 150µs (voltage detector version), 1.5ms, 30ms, 210ms, and 1.68s (typ).The MAX6841/MAX6843 have an active-low push-pull reset output. The MAX6841/MAX6842/MAX6844 have an active-high push-pull reset output, and the MAX6842/MAX6845 have an active-low open-drain reset output. The active-low open-drain reset output requires a pullup resistor that can be connected to a voltage from 0 to VCC.The low supply current (5.7µA) and small package (SOT23-5) make the MAX6841–MAX6845 ideal for use in portable equipment.ApplicationsComputersControllersCritical µP and µC Power MonitoringIntelligent InstrumentsPortable Battery-Powered EquipmentServers and WorkstationsTelecom/Networking EquipmentWireless Base Stations |
MAX6846Low-Power, Adjustable Battery Monitors with Hysteresis and Integrated µP Reset | Integrated Circuits (ICs) | 2 | Obsolete | The MAX6846–MAX6849 are a family of ultra-low-power battery monitors with integrated microprocessor (µP) supervisors. The user-adjustable battery monitors are offered with single or dual low-battery output options that can be used to signal when the battery is OK (enabling full system operation), when the battery is low (for low-power system operation), and when the battery is dead (to disable system operation). These devices also have an independent µP supervisor that monitors VCCand provides an active-low reset output. A manual reset function is available to reset the µP with a pushbutton.The MAX6846–MAX6849 are ideal for single-cell lithium-ion (Li+) or multicell alkaline/NiCd/NiMH applications. When the battery voltage drops below each adjusted low threshold, the low-battery outputs are asserted to alert the system. When the voltage rises above the adjusted high thresholds, the outputs are deasserted after a 150ms minimum timeout period, ensuring the voltages have stabilized before power circuitry is activated or providing microprocessor reset timing.These devices have user-adjustable battery threshold voltages, providing a wide hysteresis range to prevent chattering that can result due to battery recovery after load removal. Single low-battery outputs are supplied by the MAX6846/MAX6847 and dual low-battery outputs are supplied by the MAX6848/MAX6849. All battery monitors have open-drain low-battery outputs.The MAX6846–MAX6849 monitor system voltages (VCC) from 1.8V to 3.3V with seven fixed reset threshold options. Each device is offered with two minimum reset timeout periods of 150ms or 1200ms. The MAX6846/MAX6848 are offered with an open-drain active-low RESET output and the MAX6847/MAX6849 are offered with a push-pull active-low RESET output.The MAX6846–MAX6849 are offered in a SOT23 package and are fully specified over a -40°C to +85°C temperature range.ApplicationsBattery-Powered Systems (Single-Cell Li+ or Multicell NiMH, NiCd, Alkaline)Cell Phones/Cordless PhonesDigital CamerasElectronic ToysMP3 PlayersPagersPDAsPortable Medical Devices |
