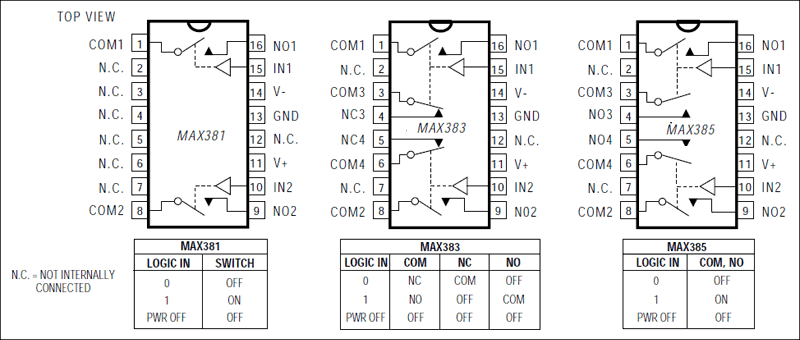

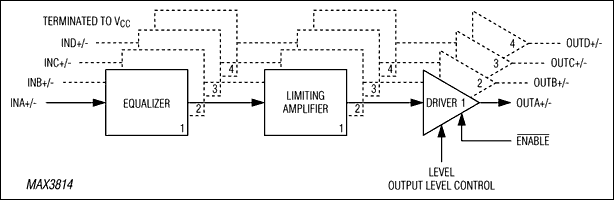

MAX381Precision, Low-Voltage, SPST CMOS Analog Switch | Analog Switches, Multiplexers, Demultiplexers | 3 | Active | The MAX381/MAX383/MAX385 are precision, low-voltage analog switches. The single-pole single-throw MAX381 and double-pole single-throw MAX385 dual switches are normally open. The single-pole double-throw MAX383 has two normally open and two normally closed poles. All three parts offer low on-resistance (less than 35Ω), guaranteed to match to within 2Ω between channels and to remain flat over the specified analog signal range (4Ω max). They also offer low leakage (less than 250pA at +25°C and less than 2.5nA at +85°C) and fast switching (turn-on time less than 175ns and turn-off time less than 100ns).The MAX381/MAX383/MAX385 are fabricated with Maxim's low-voltage silicon-gate process for high system accuracy. Design improvements guarantee extremely low charge injection (< 5pC) and low power consumption (< 10µW).These monolithic switches operate with a single positive supply (+3V to +15V) or with split supplies (±3V to ±8V) while retaining CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading.ApplicationsAudio-Signal RoutingBattery-Powered ApplicationsCommunication SystemsGuidance and Control SystemsHeads-Up DisplaysMilitary RadiosPBX, PABXSample-and-Hold CircuitsTest Equipment |
| Drivers, Receivers, Transceivers | 1 | Obsolete | |
| Specialized | 2 | Active | |

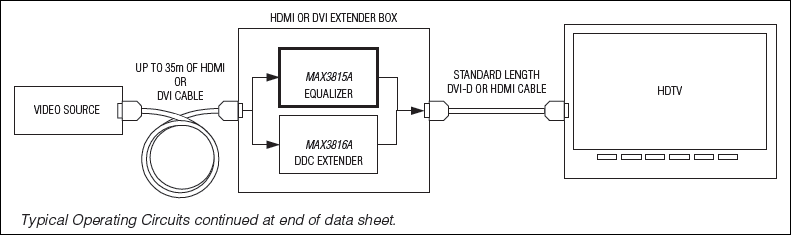

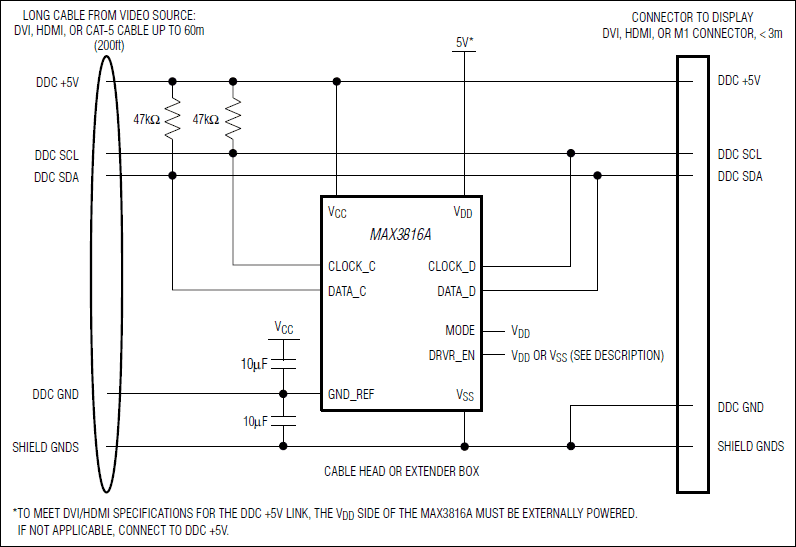

MAX3815TMDS Digital Video Equalizer for DVI/HDMI Cables | Integrated Circuits (ICs) | 6 | Active | The MAX3815A cable equalizer automatically provides compensation for DVI™ and HDMI™ v1.3 cables. It extends the usable cable distance up to 40 meters (1.65Gbps) and 35 meters (2.25Gbps). The MAX3815A is designed to equalize signals encoded in the transition-minimized differential signaling (TMDS®) format.The MAX3815A features four CML-differential inputs and outputs (three data and one clock). It provides a loss-of-signal (LOS) output that indicates loss-of-clock signal. The outputs include a disable function. Upon LOS, the chip is powered down. For direct chip-to-chip communication, the output drivers can be switched to one-half the DVI output specification to conserve power and reduce EMI. The output drive current can also be increased to allow the use of back termination resistors for improved signal integrity. Equalization can be automatic or set to manual control for specific in-cable applications.The MAX3815A is available in a 7mm x 7mm, 48-pin TQFP-EP package and operates over a 0°C to +70°C temperature range.ApplicationsFront-Projector HDMI/DVI InputsHDMI 1.3 Deep Color SystemsHDMI/DVI-D Cable-Extender Modules and Active Cable AssembliesHigh-Definition Televisions and DisplaysLCD Computer Monitors |
| Linear | 4 | Active | |

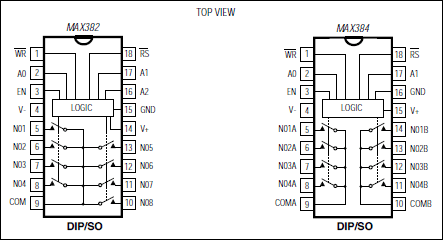

MAX382Low-Voltage, 8-Channel/Dual 4-Channel Multiplexers with Latchable Inputs | Interface | 7 | Active | The MAX382/MAX384 are low-voltage, CMOS, 1-of-8 and dual 4-channel muxes with latchable digital inputs. They feature low-voltage operation from a +2.7V to +16.5V single supply and from ±3V to ±8V dual supplies. Pin compatible with the DG428/DG429, these muxes offer low on-resistance (100Ω max) matched to within 4Ω max between channels. Additional features include off leakage less than 2.5nA at +85°C and guaranteed low charge injection (10pC max). ESD protection is greater than 2000V per Method 3015.7.ApplicationsAudio-Signal RoutingAutomated Test Equipment (ATE)Battery-Powered ApplicationsLow-Voltage Data AcquisitionSample-and-Hold Circuits |
MAX383Precision, Low-Voltage, SPST CMOS Analog Switch | Analog Switches, Multiplexers, Demultiplexers | 8 | Active | The MAX381/MAX383/MAX385 are precision, low-voltage analog switches. The single-pole single-throw MAX381 and double-pole single-throw MAX385 dual switches are normally open. The single-pole double-throw MAX383 has two normally open and two normally closed poles. All three parts offer low on-resistance (less than 35Ω), guaranteed to match to within 2Ω between channels and to remain flat over the specified analog signal range (4Ω max). They also offer low leakage (less than 250pA at +25°C and less than 2.5nA at +85°C) and fast switching (turn-on time less than 175ns and turn-off time less than 100ns).The MAX381/MAX383/MAX385 are fabricated with Maxim's low-voltage silicon-gate process for high system accuracy. Design improvements guarantee extremely low charge injection (< 5pC) and low power consumption (< 10µW).These monolithic switches operate with a single positive supply (+3V to +15V) or with split supplies (±3V to ±8V) while retaining CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading.ApplicationsAudio-Signal RoutingBattery-Powered ApplicationsCommunication SystemsGuidance and Control SystemsHeads-Up DisplaysMilitary RadiosPBX, PABXSample-and-Hold CircuitsTest Equipment |
| Specialized | 10 | Obsolete | |
MAX3840+3.3V, 2.7Gbps Dual 2 x 2 Crosspoint Switch | Specialized | 2 | Active | The MAX3840 is a dual 2 x 2 asynchronous crosspoint switch for SDH/SONET DWDM and other high-speed data switching applications where serial data stream loop-through and protection channel switching are required. It is ideal for OC-48 systems with forward error correction. A high-bandwidth, fully differential signal path minimizes jitter accumulation, crosstalk, and signal skew. Each 2 x 2 crosspoint switch can fan out and/or multiplex up to 2.7Gbps data and 2.7GHz clock signals. All inputs and outputs are current mode logic (CML) compatible and easily adaptable to interface with an AC-coupled LVPECL signal. When not used, each CML output stage can be powered down with an enable control to conserve power. The typical power consumption is 460mW with all outputs enabled.The MAX3840 is compatible with the MAX3876 2.5Gbps clock and data recovery (CDR) circuit.The MAX3840 is available in a 32-pin exposed-pad QFN package (5mm x 5mm footprint) and operates from a +3.3V supply over a temperature range of -40°C to +85°C.ApplicationsAdd/Drop MultiplexersATM Switch CoresHigh-Speed BackplanesSDH/SONET and DWDM Transport SystemsWDM Cross-Connects |

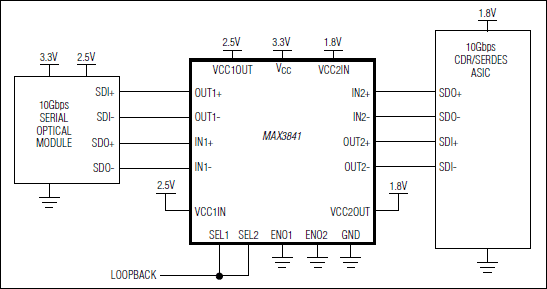

MAX384112.5Gbps, CML, 2 x 2 Crosspoint Switch | Interface | 2 | Active | The MAX3841 is a low-power, 12.5Gbps, 2 x 2 crosspoint switch IC for high-speed serial data loopback, redundancy, and switching applications. The MAX3841 current-mode logic (CML) inputs and outputs have isolated VCCconnections to enable DC-coupled interfaces to 1.8V, 2.5V, or 3.3V CML ICs. Fully differential signal paths and Maxim's second-generation SiGe technology provide optimum signal integrity, minimizing jitter, crosstalk, and signal skew. The MAX3841 is ideal for serial OC-192 and 10GbE optical module, line card, switch fabric, and similar applications.The MAX3841 has 150mVP-Pminimum differential input sensitivity and 500mVP-Pnominal differential output swing. Unused outputs can be powered down individually to conserve power. In addition to functioning as a 2 x 2 switch, the MAX3841 can be configured as a 2:1 multiplexer, 1:2 buffer, or dual 1:1 buffer. The MAX3841 is available in a 4mm x 4mm 24-pin thin QFN package, and consumes only 215mW with both outputs enabled.ApplicationsClock FanoutOC-192, 10GbE Optical ModulesOC-192, 10GbE Switch/Line CardsSystem Redundancy/Self Test |
