MAX22520One-Time Programmable (OTP) Industrial Sensor Output Driver | Interface | 2 | Active | The MAX22520 24V line driver for industrial sensors incorporates a one-time programmable (OTP) analog interface for signal conditioning of binary switching sensors. Sensor calibration and configuration settings can be permanently programmed with the inline data interface using one-time programming (OTP). Additionally, an accurate integrated linear regulator provides a programmable (3.3V or 5V) low-noise supply for analog signal sensing circuitry.The driver output (DO) is configurable using the Maxim®1-Wire®protocol and an OTP interface to permanently operate in a normally-open or normally-closed state and in a high-side (PNP), low-side (NPN), or push-pull configuration. The maximum driver load current can be programmed to 100mA (min) or 200mA (min).Configuration and OTP programming are done using VCC, DO, and GND. This use of the standard three-wire interface pins simplifies programming at the end-of-line, when the sensor is already in its final housing.The MAX22520 also features a programmable comparator, PWM oscillator, and digital potentiometer. These integrated functions further support sensor calibration for analog sensing circuitry. Additionally, an on-board LED driver provides visual feedback of the logic state of the sensor DO output.Robust protection enables the MAX22520 to function in harsh industrial environments. DO, VCC, and GND are all protected against hot-plug events, ±1kV/500Ω surge events, reverse-polarity, short circuits, and ESD strikes.The MAX22520 operates from a wide 4.75V/8V to 36V supply and is available in a 20-bump wafer-level package (WLP) (2mm x 2.5mm, 0.5mm pitch). The device operates over the -40°C to +105°C temperature range.ApplicationsIndustrial Binary SensorsProximity SwitchesInductive and Magnetic Sensors |
MAX22530Field-Side Self-Powered, 4-Channel, 12-bit, Isolated ADC | Data Acquisition | 2 | Active | The MAX22530–MAX22532 are galvanically isolated, 4-channel, multiplexed, 12-bit, analog-to-digital converters (ADC) in the MAXSafe™family product line. An integrated, isolated, DC-DC converter powers all field-side circuitry, and this allows field-side diagnostics even when no input signal is present.The MAX22530–MAX22532 family continually digitizes the input voltage on the field-side of an isolation barrier and transmits the data across the isolation barrier to the logic-side of the devices where the magnitude of the input voltage is compared to programmable thresholds. The 12-bit ADC core has a sample rate of 20ksps (typ) per-channel. ADC data is available through the SPI interface either directly or filtered. Filtering averages the most recent 4 readings depending on the setting.Each input has a comparator with programmable high and low thresholds, and an interrupt is asserted when any input crosses its programmed level based on the mode setting. The comparator output pin (COUT_) is high when the input voltage is above the upper threshold and low when it is below the lower threshold in digital input mode. Typical response time of the comparator to an input change is less than 75µs with filtering disabled. With filtering enabled, the comparator uses the moving average of the last 4 ADC readings.The MAX22530 in a 16-pin wide SOIC package provides 8mm of creepage and clearance, and 5kVRMS isolation. The MAX22531 in a 20-pin SSOP package and the MAX22532 in a 28-pin SSOP package, both provide 5.5mm of creepage and clearance, and 3.5kVRMS isolation. All package material has a minimum comparative tracking index (CTI) of 400, which gives it a group II rating in creepage tables.All devices are rated for operation at ambient temperatures between -40°C to +125°C.ApplicationsHigh-Voltage Binary InputSubstation AutomationDistribution AutomationProcess AutomationMotion Control |
MAX22531Field-Side Self-Powered, 4-Channel, 12-bit, Isolated ADC | Data Acquisition | 2 | Active | The MAX22530–MAX22532 are galvanically isolated, 4-channel, multiplexed, 12-bit, analog-to-digital converters (ADC) in the MAXSafe™family product line. An integrated, isolated, DC-DC converter powers all field-side circuitry, and this allows field-side diagnostics even when no input signal is present.The MAX22530–MAX22532 family continually digitizes the input voltage on the field-side of an isolation barrier and transmits the data across the isolation barrier to the logic-side of the devices where the magnitude of the input voltage is compared to programmable thresholds. The 12-bit ADC core has a sample rate of 20ksps (typ) per-channel. ADC data is available through the SPI interface either directly or filtered. Filtering averages the most recent 4 readings depending on the setting.Each input has a comparator with programmable high and low thresholds, and an interrupt is asserted when any input crosses its programmed level based on the mode setting. The comparator output pin (COUT_) is high when the input voltage is above the upper threshold and low when it is below the lower threshold in digital input mode. Typical response time of the comparator to an input change is less than 75µs with filtering disabled. With filtering enabled, the comparator uses the moving average of the last 4 ADC readings.The MAX22530 in a 16-pin wide SOIC package provides 8mm of creepage and clearance, and 5kVRMS isolation. The MAX22531 in a 20-pin SSOP package and the MAX22532 in a 28-pin SSOP package, both provide 5.5mm of creepage and clearance, and 3.5kVRMS isolation. All package material has a minimum comparative tracking index (CTI) of 400, which gives it a group II rating in creepage tables.All devices are rated for operation at ambient temperatures between -40°C to +125°C.ApplicationsHigh-Voltage Binary InputSubstation AutomationDistribution AutomationProcess AutomationMotion Control |
MAX22564Reinforced, Fast, Low-Power, Six-Channel Digital Isolators | Isolators | 4 | Active | The MAX22563−MAX22566 are a family of 6-channel, reinforced, fast, low-power digital galvanic isolators using Maxim Integrated’s proprietary process technology. All devices feature reinforced isolation with a withstand voltage rating of 3.75kVRMSfor 60 seconds. Both automotive and general-purpose devices are rated for operation at ambient temperatures from -40°C to +125°C.These devices transfer digital signals between circuits with different power domains, using as little as 0.71mW per channel at 1Mbps (1.8V supply). The low-power feature reduces system dissipation, increases reliability, and enables compact designs.Devices are available with a maximum data rate of either 25Mbps or 200Mbps and with user-selectable default-high or default-low outputs. The devices feature low propagation delay and low clock jitter, which reduces system latency.Independent 1.71V to 5.5V supplies on each side also make the devices suitable for use as level translators.The MAX22563 features three channels transmitting signals in one direction and three in opposite; the MAX22564 offers four channels transmitting signals in one direction and two in opposite; the MAX22565 provides five channels transmitting signals in one direction and one in opposite; the MAX22566 features all six channels transmitting signals in one direction.ApplicationsAutomotiveHybrid Electric VehicleChargersBattery Management System (BMS)InvertersIndustrialIsolated SPI, RS-232/422/485, CAN, Digital I/OFieldbus CommunicationsMotor ControlMedical Systems |

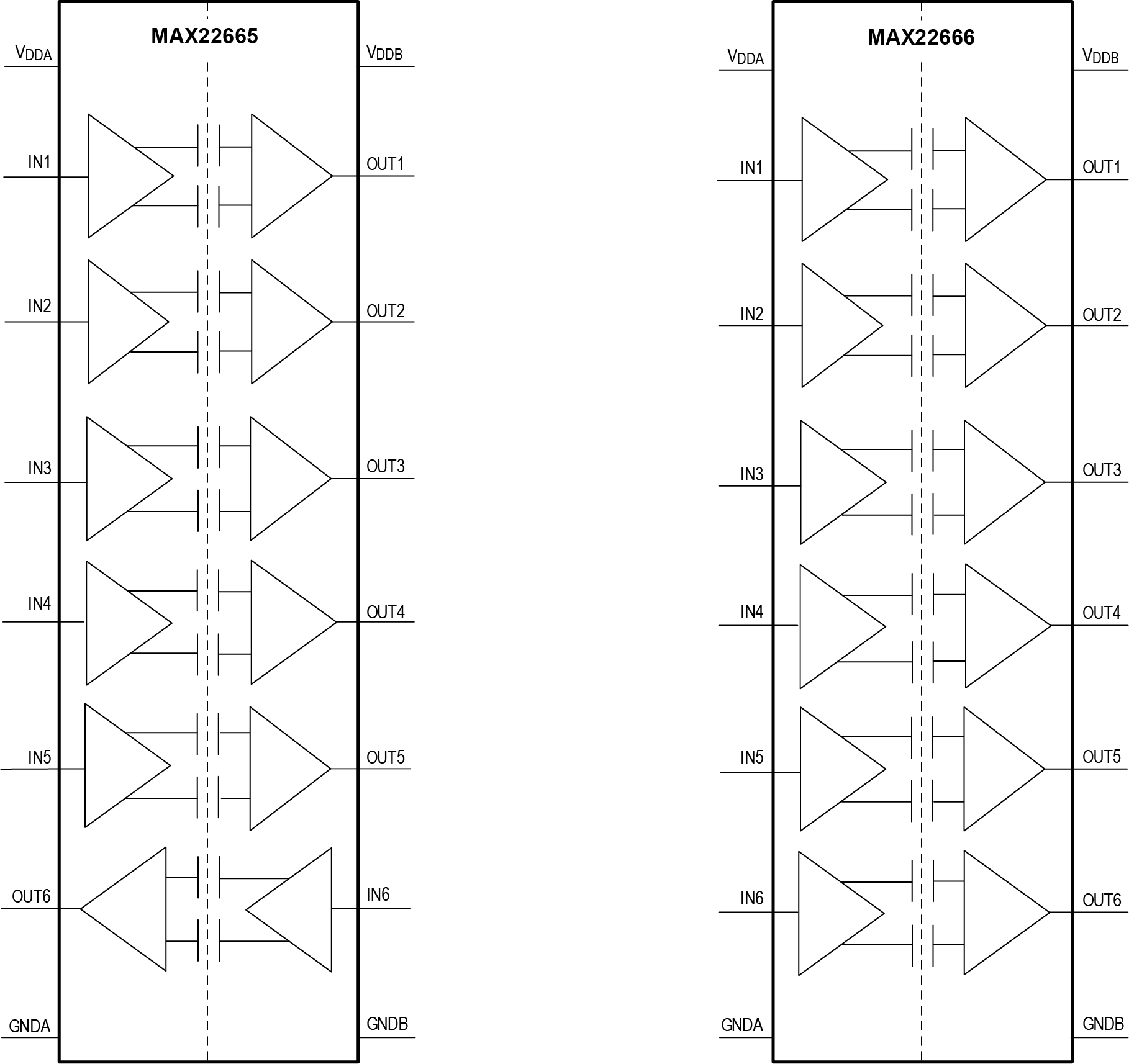

MAX22565Reinforced, Fast, Low-Power, Six-Channel Digital Isolators | Digital Isolators | 2 | Active | The MAX22563−MAX22566 are a family of 6-channel, reinforced, fast, low-power digital galvanic isolators using Maxim Integrated’s proprietary process technology. All devices feature reinforced isolation with a withstand voltage rating of 3.75kVRMSfor 60 seconds. Both automotive and general-purpose devices are rated for operation at ambient temperatures from -40°C to +125°C.These devices transfer digital signals between circuits with different power domains, using as little as 0.71mW per channel at 1Mbps (1.8V supply). The low-power feature reduces system dissipation, increases reliability, and enables compact designs.Devices are available with a maximum data rate of either 25Mbps or 200Mbps and with user-selectable default-high or default-low outputs. The devices feature low propagation delay and low clock jitter, which reduces system latency.Independent 1.71V to 5.5V supplies on each side also make the devices suitable for use as level translators.The MAX22563 features three channels transmitting signals in one direction and three in opposite; the MAX22564 offers four channels transmitting signals in one direction and two in opposite; the MAX22565 provides five channels transmitting signals in one direction and one in opposite; the MAX22566 features all six channels transmitting signals in one direction.ApplicationsAutomotiveHybrid Electric VehicleChargersBattery Management System (BMS)InvertersIndustrialIsolated SPI, RS-232/422/485, CAN, Digital I/OFieldbus CommunicationsMotor ControlMedical Systems |
| RF Amplifiers | 1 | Obsolete | |
| Instrumentation, Op Amps, Buffer Amps | 1 | Unknown | |
| Development Boards, Kits, Programmers | 1 | Obsolete | |
MAX22663Reinforced, Fast, Low-Power, Six-Channel Digital Isolators | Digital Isolators | 1 | Active | The MAX22663−MAX22666 are a family of 6-channel, reinforced, fast, low-power digital galvanic isolators using Analog Devices’ proprietary process technology. All devices feature reinforced isolation with a withstand voltage rating of 5kVRMS for 60 seconds. Both automotive and general-purpose devices are rated for operation at ambient temperatures from -40°C to +125°C. Devices with /V suffix are AEC-Q100 qualified. See the Ordering Information for all automotive grade part numbers.IndustrialIsolated SPI, RS-232/422/485, CAN, Digital I/OFieldbus CommunicationsMotor ControlMedical SystemsThese devices transfer digital signals between circuits with different power domains, using as little as 0.71mW per channel at 1Mbps (1.8V supply). The low-power feature reduces system dissipation, increases reliability, and enables compact designs.Devices are available with a maximum data rate of either 25Mbps or 200Mbps and with default-high or default-low outputs. The devices feature low propagation delay and low clock jitter, reducing system latency.Independent 1.71V to 5.5V supplies on each side also make the devices suitable for use as level translators.Three channels of the MAX22663 transmit digital signals in one direction, while the remaining three do in the opposite. The MAX22664 provides four channels for digital signal transmission, two of which travel in one direction and the other two in the opposite direction. The MAX22665 provides five channels for digital signal transmission in one direction and the other in the opposite direction. The MAX22666 features all six channels transmitting digital signals in one direction.ApplicationsAutomotiveHybrid Electric VehicleChargersBattery Management System (BMS)Inverters |
| Digital Isolators | 3 | Active | |
