| RF Mixers | 1 | Obsolete | |
MAX20320Smart, Compact, 6A, Power-Path Selector with Reset Control | Integrated Circuits (ICs) | 1 | Active | The MAX14740/MAX14742/MAX20320 compact 6A smart power-path selector with reset control features a low 11mΩ (typ) RON internal FET and provides the system power from two separate power sources. The devices feature reset and disconnect functions to provide system power, reset, and disconnect based on multiple inputs, including active-low MR1, active-low MR2, and TAIN.The devices feature two individual enable inputs to control each power path. The MAX14740 enable function is provided through I2C control, while those of the MAX14741/MAX14742/MAX20320 are performed by GPIO control. Each enable input controls the corresponding path as an independent switch. However, when both paths are enabled, the device can either autoselect the input source or have both inputs connected to the output. When autoselect is chosen, the internal comparator controls the path based on the voltage at the input nodes. The devices also feature an ultra-low supply current, even during an operating state or off state, providing longer battery life.The devices are available in 20-bump (1.6mm × 2.1mm) wafer-level packages (WLPs) and operate over the -40°C to +85°C extended temperature range.ApplicationsCamerasGame ConsoleSmart PhonesTablet PCs |

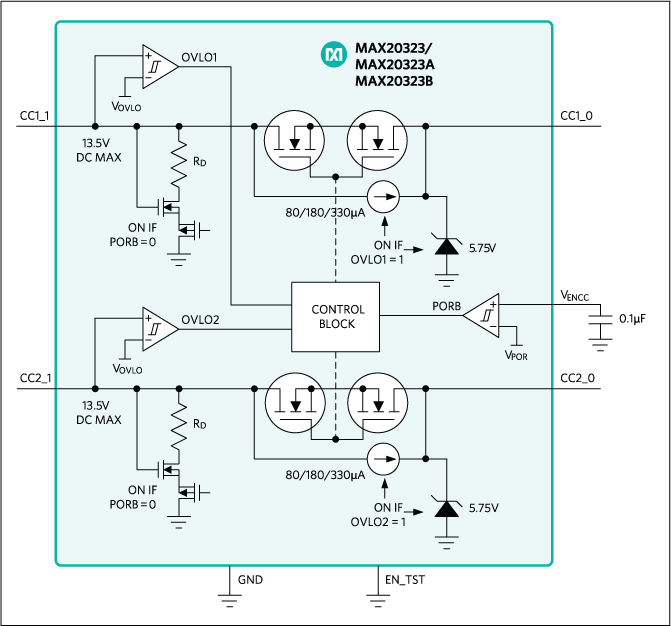

MAX20323USB Type-C CC-Pin Overvoltage Protector | Development Boards, Kits, Programmers | 9 | Active | The MAX20323, MAX20323A, MAX20323B, MAX20323C, MAX20323D, MAX20323E, MAX20323F overvoltage protectors feature internal overvoltage threshold and surge protection to turn off the switches and prevent damage to USB type-C CC/SBU pins.The devices have two channels switches with 0.27Ω (typ) on-resistance that are turned on when inputs are below overvoltage threshold. When overvoltage threshold is exceeded on one of the channels, the corresponding switch is turned off and replaced by an accurate pullup current to output (CC1_O/CC2_O) that is sourced from input (CC1_I/CC2_I). (The MAX20323A/C/F does not have pullup current feature).The devices are available in a 12-bump (0.4mm pitch, 1.7mm x 1.32mm) WLP package and operate over the -40°C to +85°C extended temperature range.ApplicationsIndustrial PCsPhabletsSmart PhonesTablets |

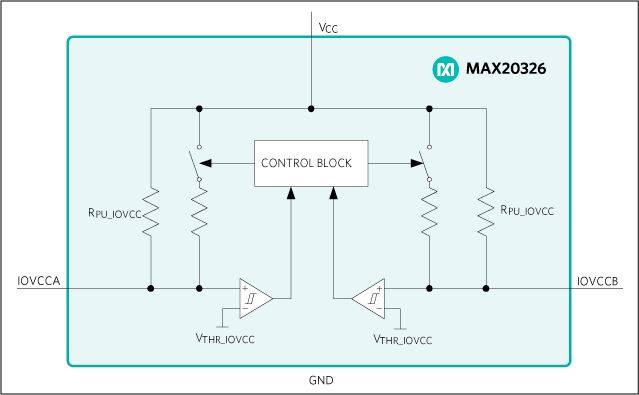

| Evaluation Boards | 3 | Active | The MAX20326 is a dual-channel, precision, open-drain, communication-line accelerator. It provides the acceleration from a low-to-high transition necessary to allow faster data transfer in a highly capacitive, multidrop node system.The MAX20326 is optimized for the I2C bus, as well as 1-Wire®bus, where a high-speed, open-drain operation is often required with a highly capacitive load.This device is available in a 4-pin 0.5mm pitch 1.25mm x 1.25mm flip-chip QFN package and operates over the -40°C to +85°C extended temperature range. |
| Evaluation Boards | 3 | Active | |

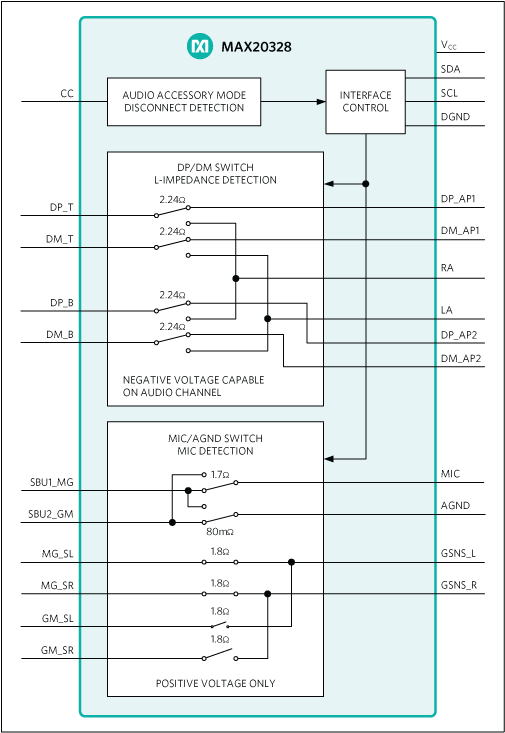

MAX20328MUX Switch for USB Type-C Audio Adapter Accessories | Specialized | 5 | Active | The MAX20328/MAX20328A/MAX20328B are USB Type-C audio interface ICs for use in portable devices. As USB Type-C and USB power delivery (PD) make a high-voltage charging solution readily available, the data and SBU lines are at risk of shorting to a high bus voltage, risking permanent damage to the portable device. USB 2.0 data lines also need protection when multiplexed with analog audio signals that vary from positive to negative voltages. The devices can detect a CC pin connection event to disable the microphone bias and eliminate pop up noise when an audio accessory is attached.The MAX20328/MAX20328A/MAX20328B come in a 5 x 5 array, 25-bump, 0.4mm pitch, 2.31mm x 2.31mm wafer-level package (WLP).ApplicationsPhabletsSmart PhonesTablet PCs |
MAX20328BMUX Switch for USB Type-C Audio Adapter Accessories | Interface | 2 | Unknown | The MAX20328/MAX20328A/MAX20328B are USB Type-C audio interface ICs for use in portable devices. As USB Type-C and USB power delivery (PD) make a high-voltage charging solution readily available, the data and SBU lines are at risk of shorting to a high bus voltage, risking permanent damage to the portable device. USB 2.0 data lines also need protection when multiplexed with analog audio signals that vary from positive to negative voltages. The devices can detect a CC pin connection event to disable the microphone bias and eliminate pop up noise when an audio accessory is attached.The MAX20328/MAX20328A/MAX20328B come in a 5 x 5 array, 25-bump, 0.4mm pitch, 2.31mm x 2.31mm wafer-level package (WLP).ApplicationsPhabletsSmart PhonesTablet PCs |
MAX20330Programmable OVP Controller with VBUS Short Detection | Specialized ICs | 7 | Active | The MAX20330 is an overvoltage controller with the VBUS impedance detection function. The device drives an external low RONpath for the device that requires a flexible and adjustable OVLO threshold. The VBUS impedance detection can detect the soft short on VBUS and warn the user about the potential connector overheating.The MAX20330 is designed to drive a single or dual back-to-back external N-channel MOSFET with a low RON(10mΩ max). An external TVS can be used to protect the device from a high energy surge if necessary.The device is available in an 8-bump (0.35mm pitch, 1.77mm x 1.03mm) wafer-level package (WLP) and operate over the -40ºC to +85°C extended temperature range.ApplicationsDesktopsPhabletsSmart PhonesTablets |
| Evaluation and Demonstration Boards and Kits | 4 | Active | |
| Development Boards, Kits, Programmers | 3 | Active | |
