The MAX14829 integrates the high-voltage functions commonly found in industrial sensors. The MAX14829 features two ultra low-power drivers with active reversepolarity protection and is specified for operation with supply voltages from 9V to 60V. The high-voltage tolerance of the MAX14829 allows for the use of micro-TVS, simplifying transient protection.Pins are used to configure and monitor the device. Driver overload and supply monitor outputs are available. Pin-control allows for operation with switching sensors that do not use a microcontroller.Two integrated linear regulators (3.3V and 5V) provide low-noise analog and logic supply rails for the device or external circuits.The MAX14829 is available in a (4mm x 4mm) 24-pin TQFN package and is specified over the extended -40°C to +125°C temperature range.ApplicationsIndustrial SensorsIO-Link® Sensors and ActuatorsSafety Applications

The MAX1482 and MAX1483 are low-power transceivers for RS-485 and RS-422 communication. Both feature slew-rate-limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables. Data rates are guaranteed up to 250kbps.The MAX1482/MAX1483 draw only 20µA of supply current. Additionally, they have a low-current shutdown mode that consumes only 0.1µA. Both parts operate from a single +5V supply.Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.The MAX1482 is full duplex and the MAX1483 is half duplex. Both parts have a 1/8-unit-load input impedance that guarantees up to 256 transceivers on the bus.ApplicationsIndustrial Control Local Area NetworksLarge 256-Node LANsLow-Power RS-485/RS-422 NetworksTransceivers for EMI-Sensitive Applications

The MAX14832 is a 24V, 100mA driver for industrial binary sensors. The device is configurable through one-time programming (OTP) and integrates the common high-voltage circuitry needed for industrial binary sensors into a single-device solution. Integrated transient protection meets IEC60255-5 surges up to ±1.3kV.The output of the device can be configured for high-side (pnp), low-side (npn), or push-pull operation through OTP. Additionally, the device features an OTP option for the internal low-dropout (LDO) regulator, allowing the user to select a 3.3V or 5V output, as well as an option to configure the device for sensors with normally open (NO) or normally closed (NC) logic. Also configurable during OTP is the timing of the power-on reset (POR) delay. OTP programming options are performed with the sensor interface pins (VCC, DO, and GND) using the 1-Wire®interface protocol.The MAX14832 operates from a wide 4.75V to 34V supply and is available in a 10-pin TDFN-EP (3mm x 3mm) package and 9-bump wafer-level package (WLP) (1.6mm x 2.0mm). The device functions over the extended -40°C to +85°C temperature range.ApplicationsCapacitive and Inductive SensorsIndustrial Binary SensorsProximity Switches

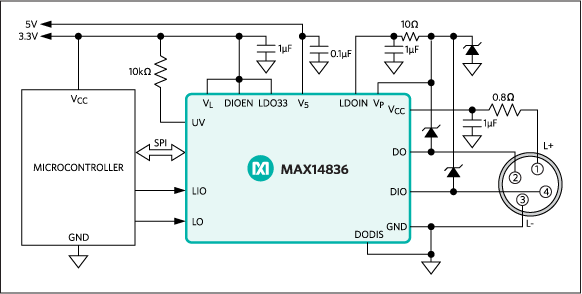

The MAX14836 transceiver is suitable for 24V binary sensors. Additional 24V digital inputs and outputs are provided. Two internal linear regulators generate common sensor power requirements: 5V and 3.3V.On-board DIO and DO drivers are independently configurable for push-pull, high-side (pnp), or low-side (npn) operation. The device detects a wake-up condition and generates a wake-up signal on the active-low WU output.An SPI interface allows configuration and monitoring of the devices. Extensive alarm conditions are detected and communicated through the active-low IRQ output and the SPI interface. The device features reverse-polarity, short-circuit, and thermal protection. All power lines are monitored for undervoltage conditions.Both DIO and DO drivers are specified for sinking/sourcing 200mA.The MAX14836 is available in a 4mm x 4mm, 24-pin TQFN package, and is specified over the -40°C to +105°C temperature range.ApplicationsIndustrial Sensors

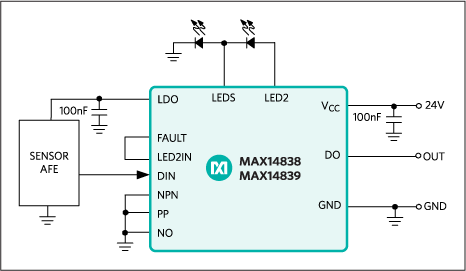

The MAX14838/MAX14839 24V/100mA drivers are optimized for use in industrial sensors. These devices integrate all of the high-voltage (24V) circuitry commonly found in industrial sensors, including a configurable PNP/ NPN/push-pull driver and an integrated linear regulator that meets common sensor power requirements.The MAX14838/MAX14839 are pin-configurable. Logic inputs allow the driver to be configured for high-side (PNP), low-side (NPN), or push-pull operation. An additional input allows the user to select between normally-open and normally-closed logic.The MAX14838 features an onboard 5V linear regulator, while the MAX14839 features a 3.3V linear regulator.Each device includes two LED drivers for visual feedback. One LED driver reflects the output logic status and the other is a general-purpose driver that can be used to signal a fault condition.The DO output, supply (VCC), and ground (GND) pins are reverse polarity-protected and are protected against IEC ESD and surge events.The MAX14838 and MAX14839 operate from a wide supply range and are available in a 12-pin TDFN-EP package (3mm x 3mm) or a 12-bump wafer-level package (WLP) (2.1mm x 1.6mm) and operate over the -40°C to +105°C temperature range.ApplicationsCapacitive and Inductive SensorsIndustry Binary SensorsProximity Switches

The MAX14840E/MAX14841E are +3.3V ESD-protected transceivers intended for half-duplex RS-485 communication up to 40Mbps. These transceivers are optimized for high speeds over extended cable runs while maximizing tolerance to noise.The MAX14840E features symmetrical fail-safe and larger receiver hysteresis, providing improved noise rejection and improved recovered signals in high-speed and long cable applications. The MAX14841E has true fail-safe receiver inputs guaranteeing a logic-high receiver output when inputs are shorted or open.The MAX14840E/MAX14841E are available in 8-pin SO and small, 8-pin (3mm x 3mm) TDFN-EP packages. Both devices operate over the -40°C to +125°C automotive temperature range.ApplicationsBackplane BusesFieldbus NetworksHVAC NetworksIndustrial Control SystemsMotion Controllers
