The MAX14778 dual 4:1 analog multiplexer supports analog signals up to ±25V with a single 3.0 to 5.5V supply. Each multiplexer has separate control inputs to allow independent switching, making the device ideal for multiplexing different communications signals with the same connector pins. Extended ESD protection of ±6kV (Human Body Model) enable direct interfacing to cables and connectors.The MAX14778 features a low 1.5Ω (max) on-resistance and 3mΩ (typ) flatness to maximize signal integrity over the entire common-mode voltage range. Each multiplexer can carry up to 300mA of continuous current through the multiplexer in either direction.The MAX14778 supports switching of full-speed USB 1.1 signals (12Mbps) and RS-485 data rates of up to 20Mbps.The MAX14778 is available in a 20-pin (5mm x 5mm) TQFN package and is specified over the -40°C to +125°C extended temperature range.ApplicationsAudio/Data MultiplexingCommunication SystemsConnector SharingGaming MachinesHandheld Industrial DevicesPOS PeripheralsRS-485/RS-232/USB 1.1 Multiplexing

The MAX14774 quad SPST and the MAX14779 dual SPDT Beyond-The-Rails switches support switching analog signals of up to ±25V using a single 3.0V to 5.5V supply. The MAX14774 is a quad SPST switch configuration with four EN_ control inputs, and the MAX14779 is a dual SPDT switch configuration with two EN_ and two S_ control inputs. Both the MAX14774 and MAX14779 have a flexible 1.62V to 5.5V CMOS logic interface.The switches feature 2.5Ω (max) on-resistance and 18mΩ (typ) flatness at 85°C. The MAX14774 has a low on-leakage current of ±100nA (max) while the MAX14779 has ±200nA (max) at 85°C. The switches maintain the performance over the entire common-mode voltage range to maximum signal integrity. Each device can carry up to 200mA (max) of continuous current in either direction while operating from -40°C to +125°C.ApplicationsATE SystemsSwitching Full Speed USB, CAN, RS-232/485, TTL, AudioInstrumentation Systems

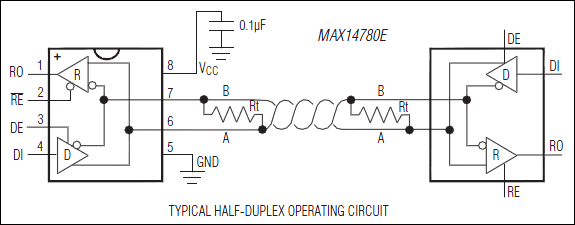

The MAX14780E is a +5V, ±30kV HBM ESD half duplex RS-485 transceiver.The MAX14780E features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps.The MAX14780E is available in an 8-pin SO and PDIP packages operating over a temperature range from -40°C to +85°C.ApplicationsIndustrial ControlInstrumentationLighting SystemsPROFIBUSSecurity SystemsTelecomUtility Meters

The MAX14780E is a +5V, ±30kV HBM ESD half duplex RS-485 transceiver.The MAX14780E features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps.The MAX14780E is available in an 8-pin SO and PDIP packages operating over a temperature range from -40°C to +85°C.ApplicationsIndustrial ControlInstrumentationLighting SystemsPROFIBUSSecurity SystemsTelecomUtility Meters
