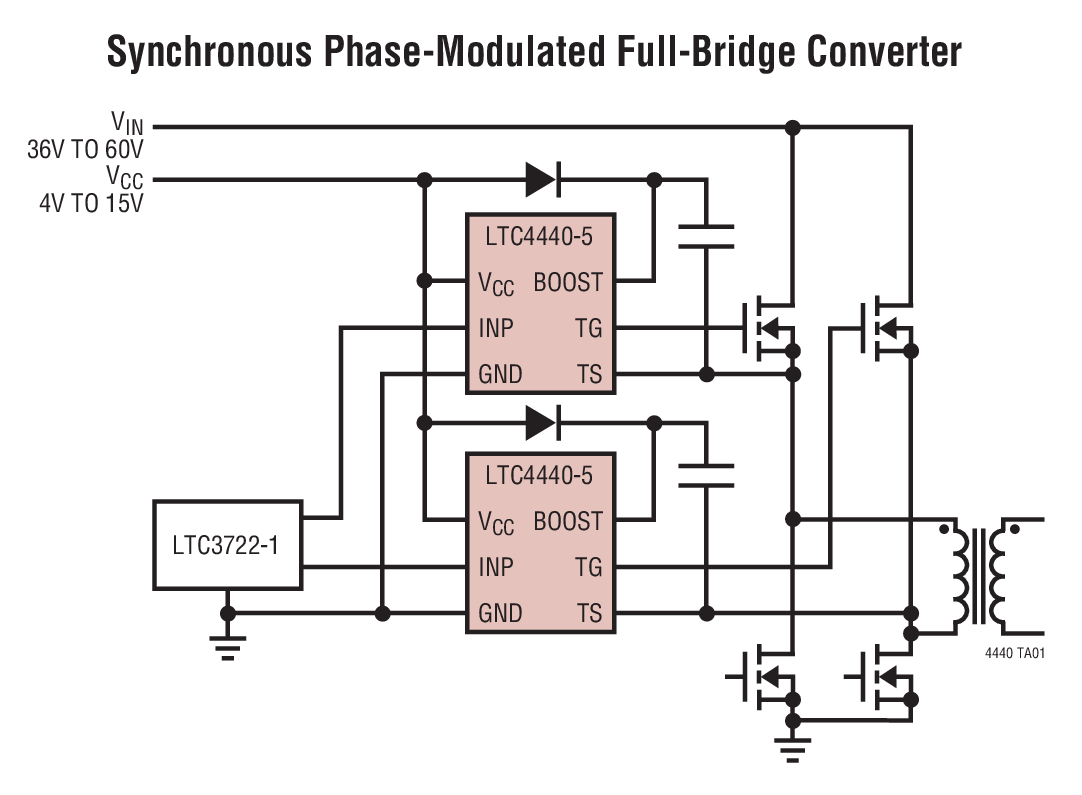

The LTC4440-5 is a high frequency high side N-channel MOSFET gate driver that is designed to operate in applications with VINvoltages up to 60V. The LTC4440-5 can also withstand and continue to function during 80V VINtransients. The powerful driver capability reduces switching losses in MOSFETs with high gate capacitances. The LTC4440-5’s pull-up has a peak output current of 1.1A and its pull-down has an output impedance of 1.85Ω.The LTC4440-5 features supply independent TTL/CMOS compatible input thresholds with 350mV of hysteresis. The input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 95V above ground.The LTC4440-5 is optimized for driving (5V) logic level FETs and contains an undervoltage lockout circuit that disables the external MOSFET when activated.The LTC4440-5 is available in the low profile (1mm) SOT-23 or a thermally enhanced 8-lead MSOP package.ParameterLTC4440-5LTC4440A-5LTC4440Max Operating TS60V80V80VAbssolute Max TS80V100V100VMOSFET Gate Drive4V to 15V4V to 15V8V to 15VVCC UV+3.2V3.2V6.3VVCC UV-3.04V3.04V6.0VApplicationsTelecommunications Power SystemsDistributed Power ArchitecturesServer Power SuppliesHigh Density Power ModulesGeneral Purpose Low-Side Driver

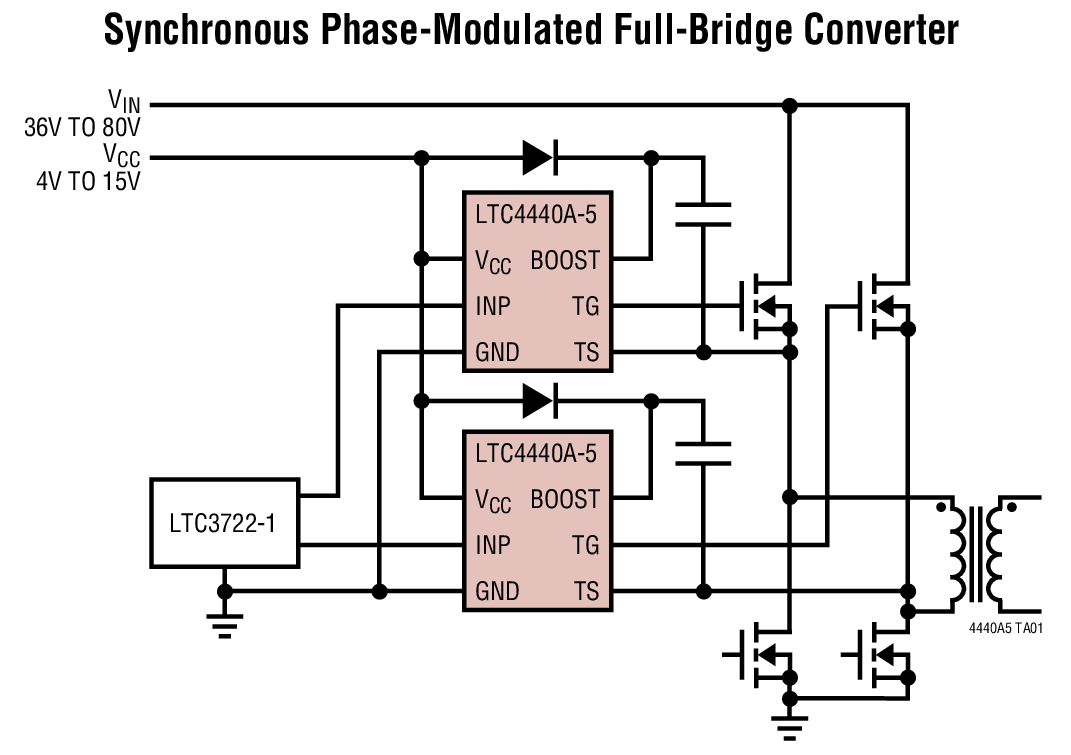

The LTC4440A-5 is a high frequency high side N-channel MOSFET gate driver that is designed to operate in applications with VINvoltages up to 80V. The LTC4440A-5 can also withstand and continue to function during 100V VINtransients. The powerful driver capability reduces switching losses in MOSFETs with high gate capacitances. The LTC4440A-5’s pull-up has a peak output current of 1.1A and its pull-down has an output impedance of 1.85Ω.The LTC4440A-5 features supply independent TTL/CMOS compatible input thresholds with 350mV of hysteresis. The input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 95V above ground.The LTC4440A-5 is optimized for driving (5V) logic level FETs and contains an undervoltage lockout circuit that disables the external MOSFET when activated.The LTC4440A-5 is available in the thermally enhanced 8-lead MSOP package.ParameterLTC4440A-5LTC4440-5LTC4440Max Operating TS80V60V80VAbssolute Max TS100V80V100VMOSFET Gate Drive4V to 15V4V to 15V8V to 15VVCCUV+3.23.26.3VCCUV–3.04V3.04V6.0VApplicationsAutomotive Power SystemsTelecommunications Power SystemsDistributed Power ArchitecturesServer Power SuppliesHigh Density Power ModulesGeneral Purpose Low or High Side Driver

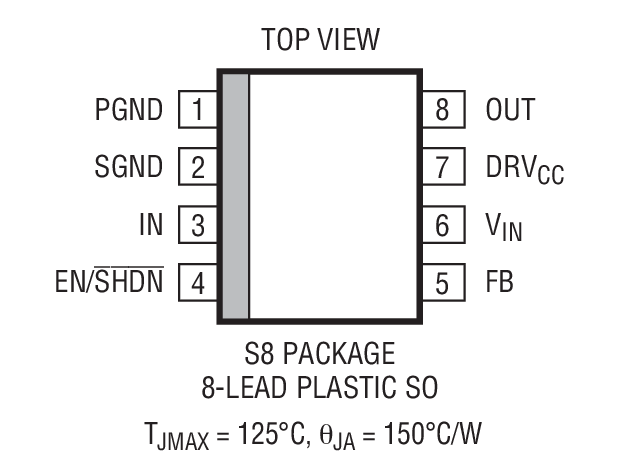

The LTC4441/LTC4441-1 is an N-channel MOSFET gate driver that can supply up to 6A of peak output current. The chip is designed to operate with a supply voltage of up to 25V and has an adjustable linear regulator for the gate drive. The gate drive voltage can be programmed between 5V and 8V.The LTC4441/LTC4441-1 features a logic threshold driver input. This input can be driven below ground or above the driver supply. A dual function control input is provided to disable the driver or to force the chip into shutdown mode with <12µA of supply current. Undervoltage lockout and overtemperature protection circuits will disable the driver output when activated. The LTC4441 also comes with an open-drain output that provides adjustable leading edge blanking to prevent ringing when sensing the source current of the power MOSFETs.The LTC4441 is available in a thermally enhanced 10-lead MSOP package. The LTC4441-1 is the SO-8 version without the blanking function.Protected by U.S. Patents including 6677210.ApplicationsPower SuppliesMotor/Relay ControlLine DriversCharge Pumps

The LTC4444 is a high frequency high voltage gate driver that drives two N-channel MOSFETs in a synchronous DC/DC converter with supply voltages up to 100V. This powerful driver reduces switching losses in MOSFETs with high gate capacitance.The LTC4444 is configured for two supply-independent inputs. The high side input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 114V above ground.The LTC4444 contains undervoltage lockout circuits that disable the external MOSFETs when activated. Adaptive shoot-through protection prevents both MOSFETs from conducting simultaneously.For a similar driver in this product family, please refer to the chart below.ParameterLTC4444LTC4446LTC4444-5Shoot-Through ProtectionYesNoYesAbsolute Max TS100V100V100VMOSFET Gate Drive7.2V to 13.5V7.2V to 13.5V4.5V to 13.5VVCCUV+6.6V6.6V4VVCCUV–6.15V6.15V3.55VApplicationsDistributed Power ArchitecturesAutomotive Power SuppliesHigh Density Power ModulesTelecommunications

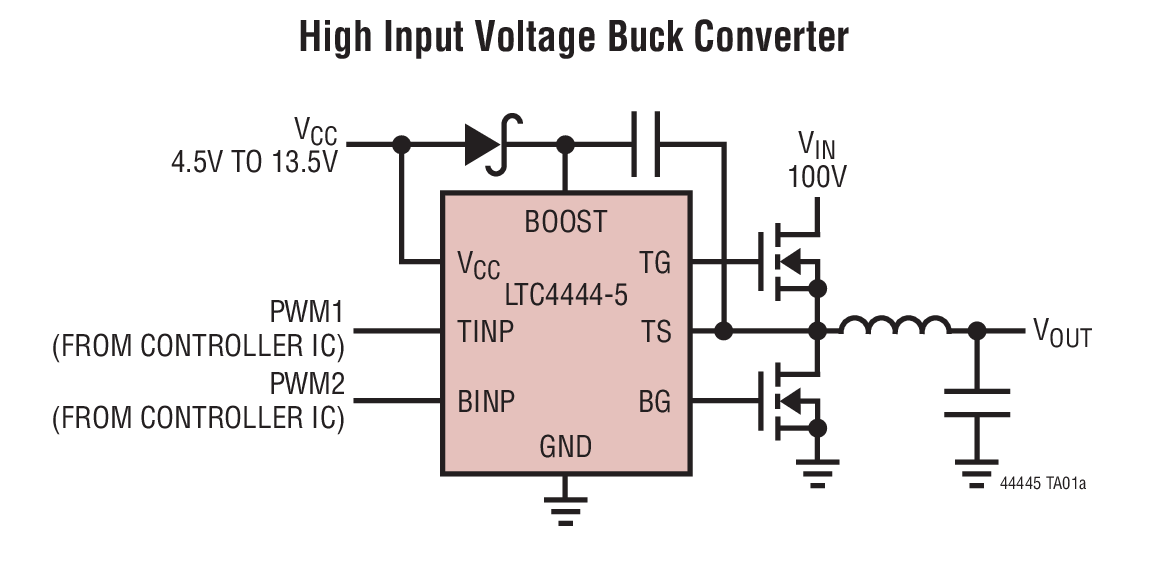

The LTC4444-5 is a high frequency high voltage gate driver that drives two N-channel MOSFETs in a synchronous DC/DC converter with supply voltages up to 100V. This powerful driver reduces switching losses in MOSFETs with high gate capacitance.The LTC4444-5 is configured for two supply-independent inputs. The high side input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 114V above ground.The LTC4444-5 contains undervoltage lockout circuits that disable the external MOSFETs when activated. Adaptive shoot-through protection prevents both MOSFETs from conducting simultaneously.ApplicationsDistributed Power ArchitecturesAutomotive Power SuppliesHigh Density Power ModulesTelecommunication Systems

The LTC4446 is a high frequency high voltage gate driver that drives two N-channel MOSFETs in a DC/DC converter with supply voltages up to 100V. The powerful driver capability reduces switching losses in MOSFETs with high gate capacitance. The LTC4446’s pull-up for the top gate driver has a peak output current of 2.5A and its pull-down has an output impedance of 1.2Ω. The pull-up for the bottom gate driver has a peak output current of 3A and the pull-down has an output impedance of 0.55Ω.The LTC4446 is configured for two supply-independent inputs. The high side input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 114V above ground.The LTC4446 contains undervoltage lockout circuits that disable the external MOSFETs when activated.The LTC4446 is available in the thermally enhanced 8-lead MSOP package.The LTC4446 does not have adaptive shoot-through protection. For similar drivers with adaptive shoot-through protection, please refer to the chart below.PARAMETERLTC4446LTC4444LTC4444-5Shoot-Through ProtectionNoYesYesAbsolute Max TS100V100V100VMOSFET Gate Drive7.2V to 13.5V7.2V to 13.5V4.5V to 13.5VVCC UV+6.6V6.6V4VVCC UV–6.15V6.15V3.5VApplicationsDistributed Power ArchitecturesAutomotive Power SuppliesHigh Density Power ModulesTelecommunication Systems

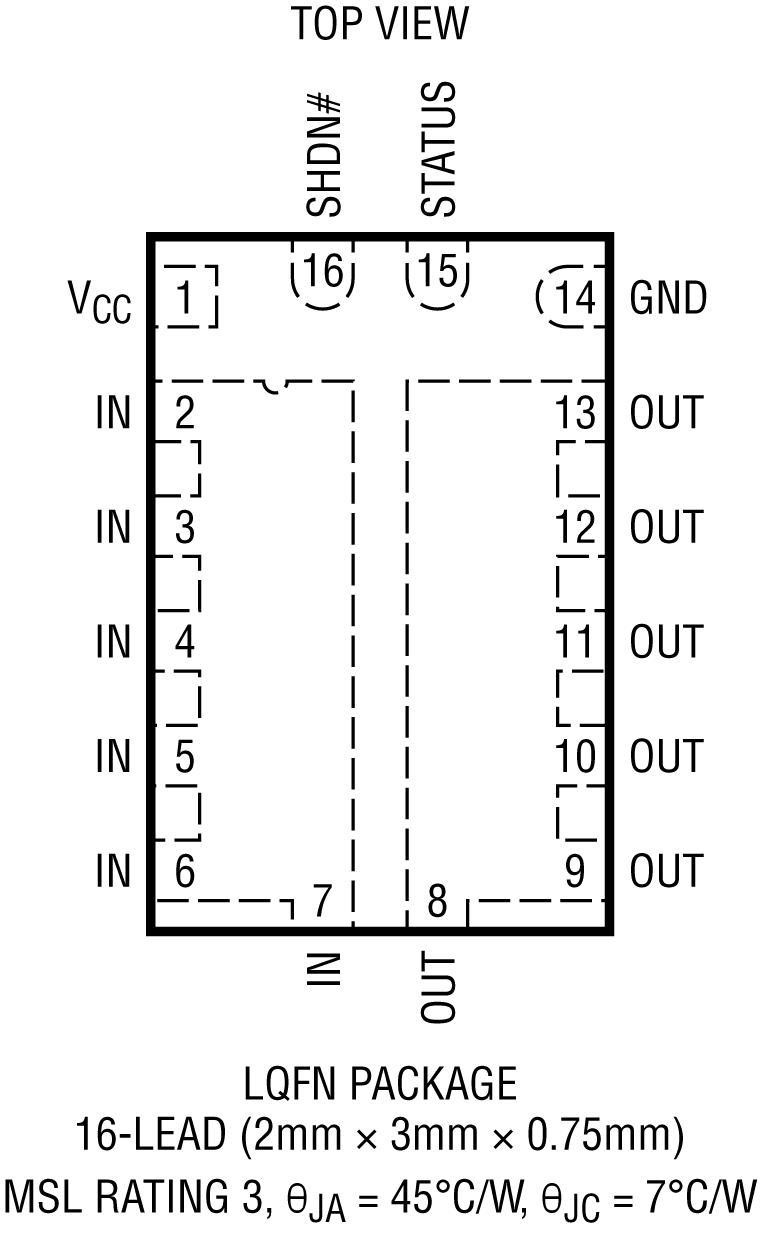

The LTC4450 is a high performance Schottky diode replacement using an integrated N-Channel power MOSFET. It easily ORs power supplies together to increase system reliability and prevent reverse conduction.The LTC4450 regulates the forward voltage at 15mV to minimize power loss compared to Schottky diodes. Regulation ensures smooth current transfer without oscillation in diode-OR applications. When the power MOSFET is fully enhanced, the RDS(ON)of the transistor is 7mΩ and rated for forward conduction up to 12A while dissipating 1W. A high performance gate driver with fast transient response minimizes both forward power dissipation and reverse current. The VCCinput allows VINto work down to ground for low voltage applications. The LTC4450 is available in a small 16-Lead 2mm × 3mm LQFN Package.APPLICATIONSSchottky Diode ReplacementIndustrial, Medical and Consumer Portable DevicesBattery and Wall Adapter Diode-ORing
