The LTC3890 is a high performance dual step-down switching regulator DC/DC controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and noise due to the ESR of the input capacitor are minimized by operating the two controller output stages out-of-phase.The 50μA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3890 features a precision 0.8V reference and power good output indicators. A wide 4V to 60V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.Independent TRACK/SS pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous conduction mode at light loads. For a leaded package version (28-lead Narrow SSOP), see the LTC3890-1 data sheet.LTC3890LTC3890-1LTC3890-2LTC3890-3Adjustable Current LimitLimitYesNoYesNoCLKOUT/PHASMD forMultiphase OperationYesNoYesNoNumber of PGoodOutputs2121OVP – Bottom GateCrowbarYesYesNoNoCurrent Limit FoldbackYesYesNoNoLight Load Operationwhen Synced to ExternalClockForced ContinuousForced ContinuousPulse SkippingPulse SkippingSENSE Pins CommonMode RangeCommon Mode < 0.5VRequires VFB < 0.65VCommon Mode < 0.5VRequires VFB < 0.65VNot Dependant onVFB. Easy to make anon-synchronousBoost or SEPICNot Dependant onVFB. Easy to make anon-synchronousBoost or SEPICPackage5 × 5 QFN-32SSOP-285 × 5 QFN-32SSOP-28ApplicationsAutomotive Always-On SystemsBattery Operated Digital DevicesDistributed DC Power Systems

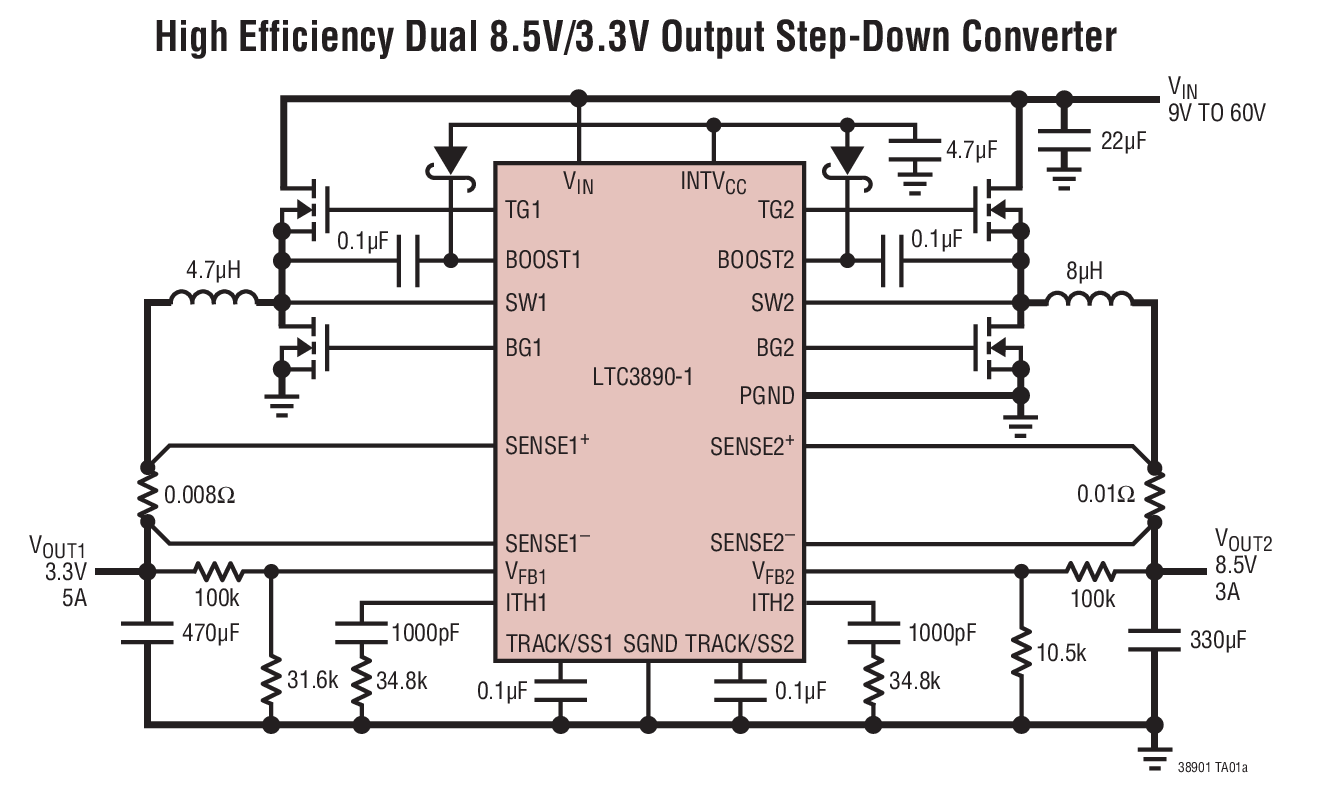

The LTC3890-1 is a high performance dual step-down switching regulator DC/DC controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and supply noise are minimized by operating the two controller output stages out-of-phase.The 50μA no-load quiescent current extends operating life in battery-powered systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. A wide 4V to 60V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.Independent TRACK/SS pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous conduction mode at light loads.For a leadless 32-pin QFN package with additional features of adjustable current limit, clock out, phase modulation and two PGOOD outputs, see the LTC3890 data sheet.LTC3890LTC3890-1LTC3890-2LTC3890-3Adjustable Current LimitLimitYesNoYesNoCLKOUT/PHASMD forMultiphase OperationYesNoYesNoNumber of PGoodOutputs2121OVP – Bottom GateCrowbarYesYesNoNoCurrent Limit FoldbackYesYesNoNoLight Load Operationwhen Synced to ExternalClockForced ContinuousForced ContinuousPulse SkippingPulse SkippingSENSE Pins CommonMode RangeCommon Mode < 0.5VRequires VFB < 0.65VCommon Mode < 0.5VRequires VFB < 0.65VNot Dependant onVFB. Easy to make anon-synchronousBoost or SEPICNot Dependant onVFB. Easy to make anon-synchronousBoost or SEPICPackage5 × 5 QFN-32SSOP-285 × 5 QFN-32SSOP-28ApplicationsAutomotive Always-On SystemsBattery Operated Digital DevicesDistributed DC Power Systems

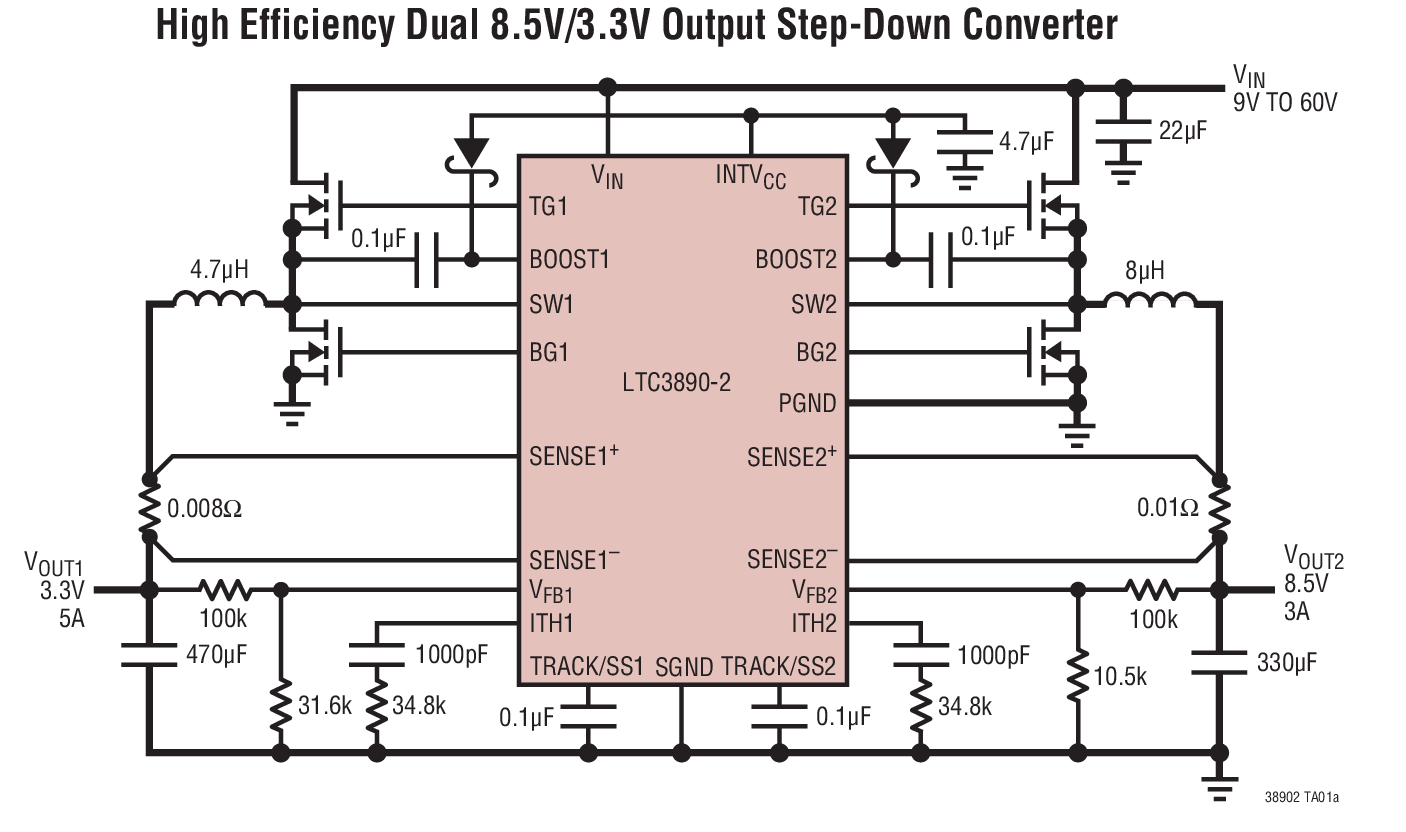

The LTC3890-2 is a high performance dual step-down switching regulator DC/DC controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and noise due to the ESR of the input capacitor are minimized by operating the two controller output stages out-of-phase.The 50μA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. A wide 4V to 60V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.Independent TRACK/SS pins for each controller ramp the output voltages during start-up. Current mode control limits the inductor current during short-circuit conditions. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous conduction mode at light loads. For versions with different and/or additional features, see the LTC3890 family summary, Table 1, in the Pin Functions section of this data sheet.LTC3890LTC3890-1LTC3890-2LTC3890-3Adjustable Current LimitYesNoYesNoCLKOUT/PHASMD forMultiphase OperationYesNoYesNoNumber of PGoodOutputs2121OVP – Bottom GateCrowbarYesYesNoNoCurrent Limit FoldbackYesYesNoNoLight Load Operationwhen Synced to ExternalClockForced ContinuousForced ContinuousPulse SkippingPulse SkippingSENSE Pins CommonMode RangeCommon Mode < 0.5VRequires VFB < 0.65VCommon Mode < 0.5VRequires VFB < 0.65VNot Dependant onVFB. Easy to make anon-synchronousBoost or SEPICNot Dependant onVFB. Easy to make anon-synchronousBoost or SEPICPackage5X5 QFN-32SSOP-285X5 QFN-32SSOP-28ApplicationsAutomotive Always-On SystemsBattery Operated Digital DevicesDistributed DC Power Systems

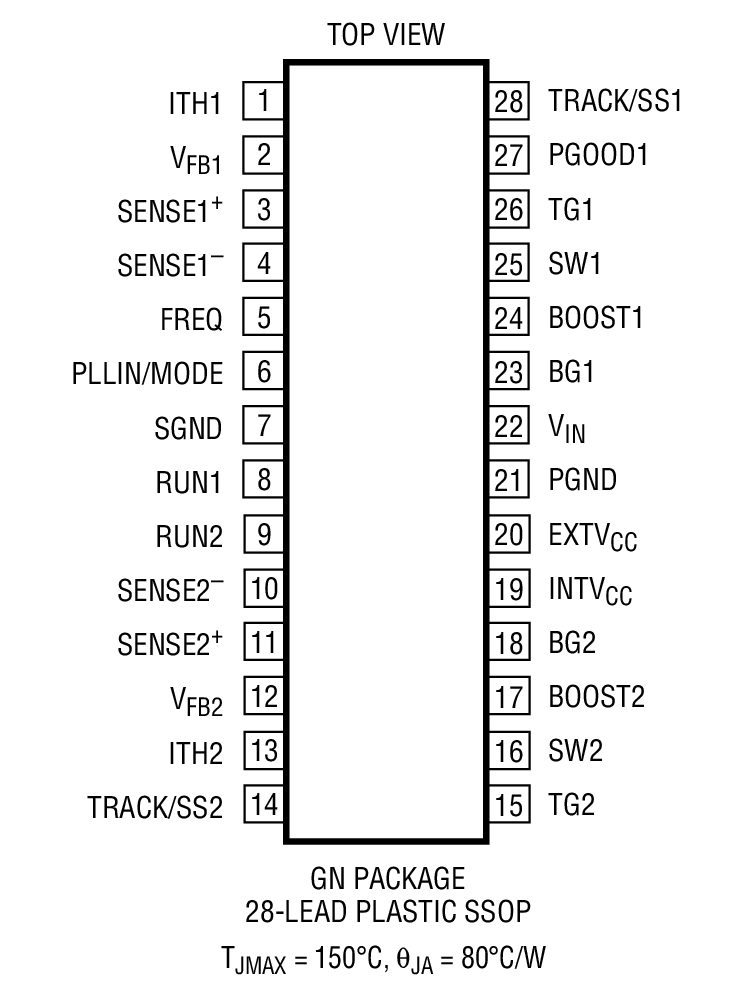

The LTC3890-3 is a high performance dual step-down switching regulator DC/DC controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and supply noise are minimized by operating the two controller output stages out-of-phase.The 50μA no-load quiescent current extends operating life in battery-powered systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. A wide 4V to 60V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.Independent TRACK/SS pins for each controller ramp the output voltages during start-up. Current mode control limits the inductor current during short-circuit conditions. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous conduction mode at light loads.For versions with different and/or additional features, see the LTC3890 family summary, Table 1, in the Pin Functions section of this data sheet.LTC3890LTC3890-1LTC3890-2LTC3890-3Adjustable Current LimitYesNoYesNoCLKOUT/PHASMD forMultiphase OperationYesNoYesNoNumber of PGoodOutputs2121OVP – Bottom GateCrowbarYesYesNoNoCurrent Limit FoldbackYesYesNoNoLight Load Operationwhen Synced to ExternalClockForced ContinuousForced ContinuousPulse SkippingPulse SkippingSENSE Pins CommonMode RangeCommon Mode < 0.5VRequires VFB < 0.65VCommon Mode < 0.5VRequires VFB < 0.65VNot Dependant onVFB. Easy to make anon-synchronousBoost or SEPICNot Dependant onVFB. Easy to make anon-synchronousBoost or SEPICPackage5X5 QFN-32SSOP-285X5 QFN-32SSOP-28ApplicationsAutomotive Always-On SystemsBattery Operated Digital DevicesDistributed DC Power Systems

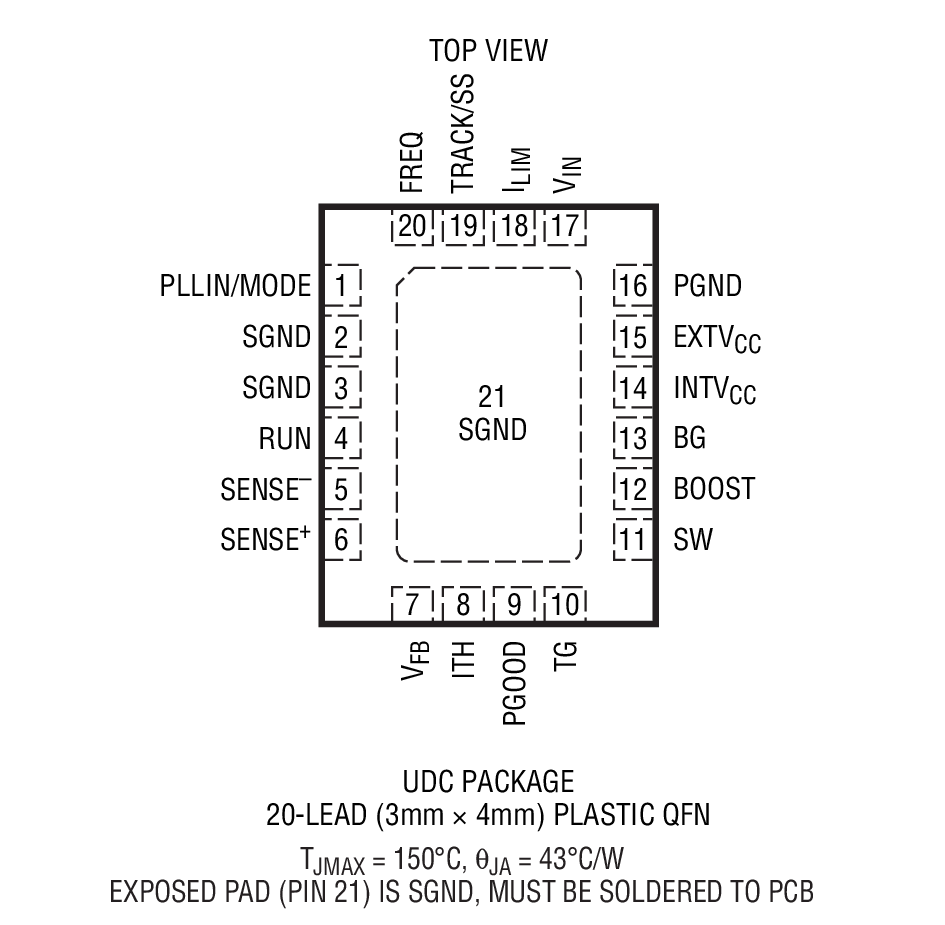

The LTC3891 is a high performance step-down switching regulator DC/DC controller that drives an all N-channel synchronous power MOSFET stage. A constant frequency current mode architecture allows a phase-lockable frequency of up to 750kHz.The 50μA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3891 features a precision 0.8V reference and power good output indicator. A wide 4V to 60V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries. The output voltage of the LTC3891 can be programmed between 0.8V to 24V.The TRACK/SS pin ramps the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous conduction mode at light loads.ApplicationsAutomotive Always-On SystemsBattery Powered Digital DevicesDistributed DC Power Systems

The LTC3894 is a high voltage step-down DC/DC switching regulator controller. It drives a P-channel power MOSFET switch allowing 100% duty cycle operation. It enables a low part count, simple, and robust solution for high reliability, high voltage applications.The LTC3894 operates over a wide input voltage range from 4.5V to 150V and can regulate output voltages from 0.8V to 60V. It offers excellent light load efficiency, drawing only 9μA quiescent current while regulating the output voltage with no load. Its peak current mode, constant frequency architecture provides for good control of switching frequency and output current limit. The switching frequency can be programmed from 50kHz to 850kHz with an external resistor and can be synchronized to an external clock from 75kHz to 800kHz.The LTC3894 offers programmable output voltage soft-start or tracking. Safety features include overvoltage, overcurrent and overtemperature protection with a power good output monitor with adjustable threshold.The LTC3894 is available in a thermally enhanced 20-Pin TSSOP package with leads removed to accommodate high voltage creepage and clearance requirements.ApplicationsAutomotive and Industrial Power SystemsTelecommunication Power SystemsDistributed Power Systems

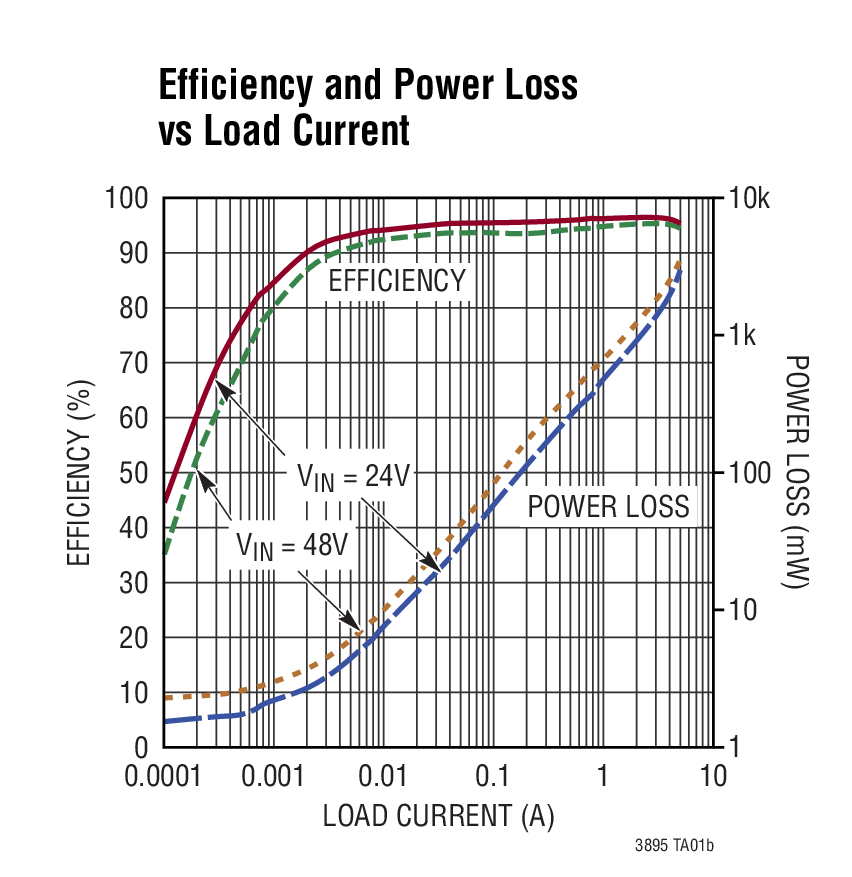

The LTC3895 is a high performance step-down switching regulator DC/DC controller that drives an all N-channel synchronous power MOSFET stage that can operate from input voltages up to 140V. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz.The gate drive voltage can be programmed from 5V to 10V to allow the use of logic or standard-level FETs to maximize efficiency. An integrated switch in the top gate driver eliminates the need for an external bootstrap diode. An internal charge pump allows for 100% duty cycle operation.The low 40μA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3895 features a precision 0.8V reference and power good output indicator. The output voltage can be programmed between 0.8V to 60V using external resistors or pin-programmed for a fixed 5V or 3.3V.ApplicationsAutomotive and Industrial Power SystemsHigh Voltage Battery Operated SystemsTelecommunications Power Systems
