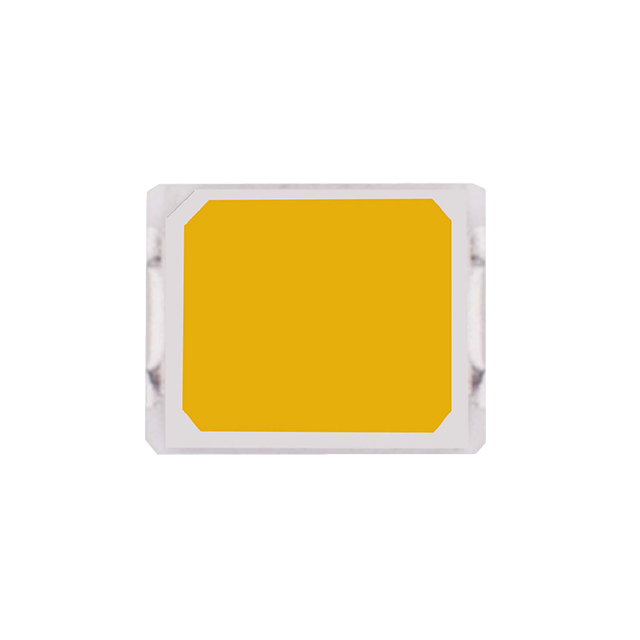

BXEN-35 Series

Manufacturer: BRIDGELUX

Catalog

LED GEN2 WARM WHT 3500K 2835

Part	Thermal Resistance of Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CRI (Color Rendering Index)	Color	Current - Test	Flux @ 85°C, Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Package / Case	Mounting Type	Lumens/Watt @ Current - Test	Current - Max [Max]	Viewing Angle	Flux @ 25°C, Current - Test
BRIDGELUX BXEN-35E-11L-3B-00-0-0	8 °C/W	0.7 mm	0.028 "	80	Warm White	60 mA	27 lm	2.7 V	3500 K	3.4 mm	0.134 in	2.74 mm	0.108 "	2835	1113 (2835 Metric)	Surface Mount	168 lm/W
BRIDGELUX BXEN-35E-13H-9B-00-0-0	10 °C/W	0.7 mm	0.028 "	80	Warm White	100 mA	108 lm	9.2 V	3500 K	3.4 mm	0.134 in	2.74 mm	0.108 "	2835	1113 (2835 Metric)	Surface Mount	117 lm/W	120 mA	116 °
BRIDGELUX BXEN-35E-21M-3A-00-0-0	12 °C/W	0.7 mm	0.028 "	80	Warm White	150 mA	56 lm	3 V	3500 K	3.4 mm	0.134 in	2.74 mm	0.108 "	2835	1113 (2835 Metric)	Surface Mount		150 mA
BRIDGELUX BXEN-35S-13H-9C-00-0-0	16 °C/W	0.7 mm	0.028 "	95	Warm White	100 mA	89 lm	9.1 V	3500 K	3.4 mm	0.134 in	2.74 mm	0.108 "	2835	1113 (2835 Metric)	Surface Mount	108 lm/W	120 mA	120 °	98 lm
