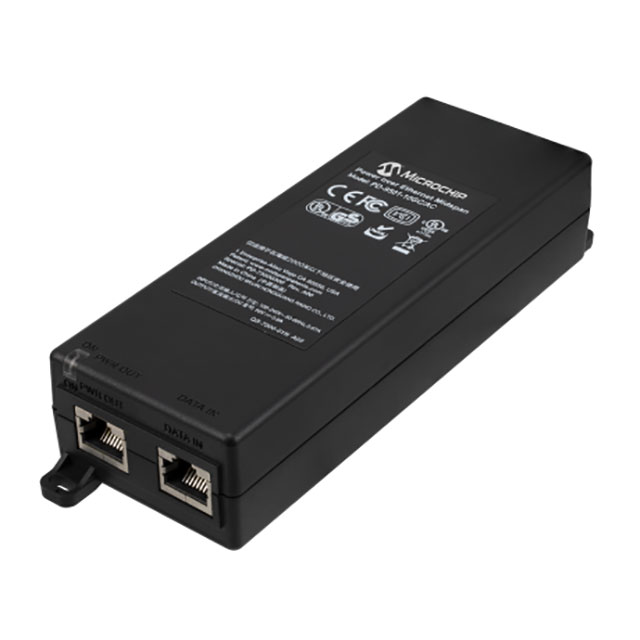

PD-9001-10GC Series

1 port , 30W, IEEE 802.3at-compliant outdoor PoE midspan with surge protection and extended temperature range

Catalog

1 port , 30W, IEEE 802.3at-compliant outdoor PoE midspan with surge protection and extended temperature range

Part	Data Rate	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Number of Ports	Approval Agency	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Compliance	Mounting Type	Size / Dimension	Size / Dimension	Input Connector	Type	Voltage - Output	Power (Watts) - Per Port	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Features
Microchip Technology PD-9001GR/AT/AC-US	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE cULus GS	200.03 g	0.441 lb	-20 C	40 °C	550 mA	IEEE802.3at	Desktop	32.5 mm 53 mm 140 mm	1.28 in 2.09 in 5.5 in	RJ45 (Data)	Midspan Injector	55 V	30 W
Microchip Technology PD-9001GO/12-24VDC	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1				-40 °C	55 °C	545 mA	IEEE802.3at	Desktop			RJ45 (Data)	Midspan Injector	55 V	30 W	149.9 mm	69.9 mm	8.42 "	2.75 in	213.9 mm	5.9 "
Microchip Technology PD-9001GR/SP/AC-EU	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE					545 mA	IEEE802.3at	Desktop			RJ45 (Data Power)	Midspan Injector	55 V	30 W	62 mm	38.1 mm	5.94 in	1.5 "	150.9 mm	2.44 "	-10 °C	50 °C
Microchip Technology PD-9001-10GC/AC-JP	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE			-10 °C	45 °C	727 mA	IEEE802.3af	Desktop			RJ45 (Data Power)	Midspan Injector	55 V		87.9 mm	42.7 mm	6.53 "	1.68 "	165.9 mm	3.46 "
Microchip Technology PD-9001GR/SP/AC-AU	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE					545 mA	IEEE802.3at	Desktop			RJ45 (Data Power)	Midspan Injector	55 V	30 W	62 mm	38.1 mm	5.94 in	1.5 "	150.9 mm	2.44 "	-10 °C	50 °C
Microchip Technology PD-9001-10GC/AC-EU	10 Gbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE			-10 °C	45 °C	727 mA	IEEE802.3af	Desktop			RJ45 (Data Power)	Midspan Injector	55 V		87.9 mm	42.7 mm	6.53 "	1.68 "	165.9 mm	3.46 "

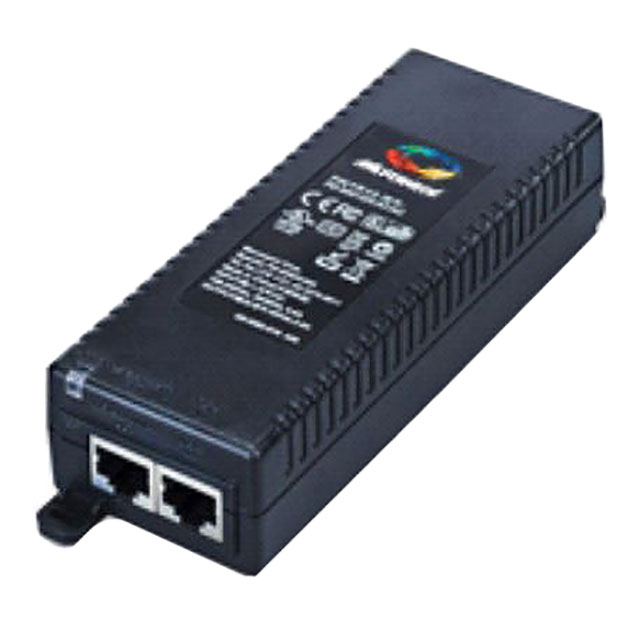

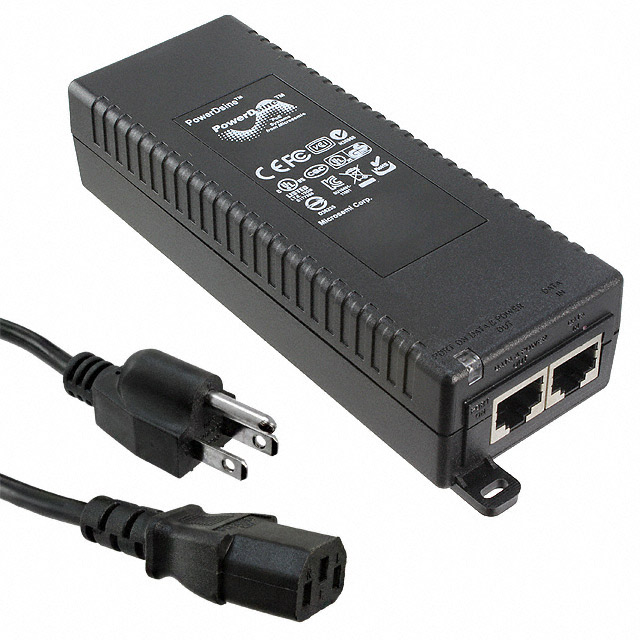

Microchip Technology PD-9001GR/AT/AC	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE			-20 C	40 °C	545 mA	IEEE802.3at	Desktop			RJ45 (Data Power)	Midspan Injector	55 V	30 W	51.8 mm	34.8 mm	6.31 in	1.37 in	160.3 mm	2.04 in
Microchip Technology PD-9001-10GC/AC-UK	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE			-10 °C	45 °C	727 mA	IEEE802.3af	Desktop			RJ45 (Data Power)	Midspan Injector	55 V		87.9 mm	42.7 mm	6.53 "	1.68 "	165.9 mm	3.46 "
Microchip Technology PD-9001GO-ET/AC	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE			-40 °C	65 °C		IEEE802.3at	Bracket Mount			International AC Clips (Power) RJ45 (Data)	Midspan Injector	54 V	30 W	140 mm	60 mm	6.69 "	2.36 in	170 mm	5.51 "			IP67

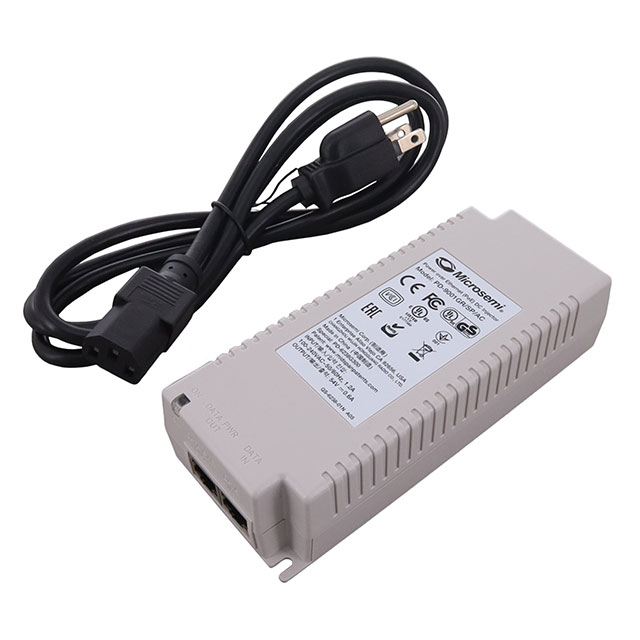

Microchip Technology PD-9001GR/SP/AC-JP	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data Power)	240 VAC	100 VAC	1	CE					545 mA	IEEE802.3at	Desktop			RJ45 (Data Power)	Midspan Injector	55 V	30 W	62 mm	38.1 mm	5.94 in	1.5 "	150.9 mm	2.44 "	-10 °C	50 °C

Catalog

1 port , 30W, IEEE 802.3at-compliant outdoor PoE midspan with surge protection and extended temperature range

Key Features

- Number of ports: 1

- PoE output: 30W

- Data rates: 10/100/1000 Mbps

- Power input: DC

- Industrial rated: IP30

- Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE

- Complies with the latest EMI and safety standards

- Shock: IEC 60068-2-27 15g, 11 ms duration

- Freefall: IEC 60068-2-32

- Vibration: IEC 60068-2-6, 3, 5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min, 1g, 9 Hz – 150 Hz, 10 cycles 1 octave/min

- Compact design

Description

The single port PoE midspans, PD-9001GO-ET and PD-9001GO/48VDC provide up to 30 Watts of power over Ethernet and offer a IEEE 802.3at-compliant solution for outdoor installations, ensuring safe and reliable operation of any standard PoE data terminal in outdoor environments. The midspans allow wireless LAN access points, security network cameras, and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered. They also offer surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges.
