TRN 3 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Voltage - Isolation	Voltage - Input (Max) [Max]	Power (Watts)	Package / Case	Voltage - Output 1	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Type	Voltage - Output 2	Efficiency	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power TRN 3-4815SM	1.6 kV	75 V	3 W	7-SMD Module 6 Leads	24 V	Surface Mount	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	125 mA	SCP	36 V	ITE (Commercial)	85 °C	-40 C	1	Isolated Module
Traco Power TRN 3-1221	1.6 kV	18 V	3 W	5-SIP Module	5 V	Through Hole	0.47 in	11.9 mm	0.3 "	11 mm	7.7 mm	0.43 in	0.3 A	SCP	9 V	ITE (Commercial)	85 °C	-40 C	2	Isolated Module	-5 V	78 %
Traco Power TRN 3-1213SM	1.6 kV	18 V	3 W	7-SMD Module 6 Leads	15 V	Surface Mount	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	200 mA	SCP	9 V	ITE (Commercial)	85 °C	-40 C	1	Isolated Module		83 %
Traco Power TRN 3-2423	1.6 kV	36 V	3 W	5-SIP Module	15 V	Through Hole	0.47 in	11.9 mm	0.3 "	11 mm	7.7 mm	0.43 in		SCP	18 V	ITE (Commercial)	85 °C	-40 C	2	Isolated Module	-15 V		100 mA	100 mA
Traco Power TRN 3-1223	1.6 kV	18 V	3 W	5-SIP Module	15 V	Through Hole	0.47 in	11.9 mm	0.3 "	11 mm	7.7 mm	0.43 in		SCP	9 V	ITE (Commercial)	85 °C	-40 C	2	Isolated Module	-15 V	81 %	100 mA	100 mA
Traco Power TRN 3-1210SM	1.6 kV	18 V	2.3 W	7-SMD Module 6 Leads	3.3 V	Surface Mount	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	700 mA	SCP	9 V	ITE (Commercial)	85 °C	-40 C	1	Isolated Module		76 %
Traco Power TRN 3-4813SM	1.6 kV	75 V	3 W	7-SMD Module 6 Leads	15 V	Surface Mount	0.47 in	11.9 mm	0.44 "	8 mm	11.3 mm	0.31 "	200 mA	SCP	36 V	ITE (Commercial)	85 °C	-40 C	1	Isolated Module		83 %
Traco Power TRN 3-4812	1.6 kV	75 V	3 W	5-SIP Module 4 Leads	12 V	Through Hole	0.47 in	11.9 mm	0.3 "	11 mm	7.7 mm	0.43 in	250 mA	SCP	36 V	ITE (Commercial)	85 °C	-40 C	1	Isolated Module		83 %

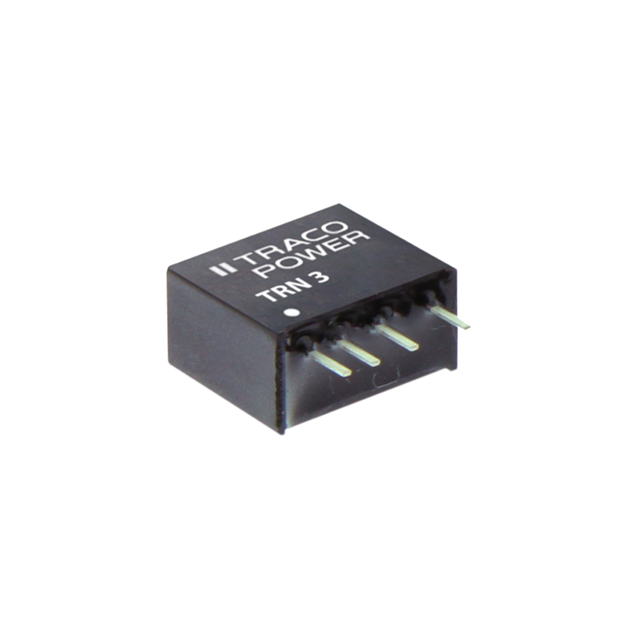

Traco Power TRN 3-2411	1.6 kV	36 V	3 W	5-SIP Module 4 Leads	5 V	Through Hole	0.47 in	11.9 mm	0.3 "	11 mm	7.7 mm	0.43 in	600 mA	SCP	18 V	ITE (Commercial)	85 °C	-40 C	1	Isolated Module		78 %
Traco Power TRN 3-0522	1.6 kV	13.2 V	3 W	5-SIP Module	12 V	Through Hole	0.47 in	11.9 mm	0.3 "	11 mm	7.7 mm	0.43 in		SCP	4.5 V	ITE (Commercial)	85 °C	-40 C	2	Isolated Module	-12 V	80 %			125 mA
