A60-113 Series

Manufacturer: EDAC Inc.

Catalog

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Part	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Shield Material	Features	Contact Material	Shielding	Mounting Type	Connector Type	Applications	LED Color	Contact Finish	Number of Cores per Jack	Termination	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Orientation	Number of Ports	Number of Rows	Tab Direction
EDAC Inc. A60-113-231N432	Nylon Polyamide (PA) Polyester Glass Filled	0.38 µm	15 µin	Copper Alloy	Board Lock	Phosphor Bronze	EMI Finger Shielded	Through Hole	RJ45	10/100/1000 Base-T AutoMDIX	Green - Yellow	Gold	8	Solder	0.532 in	13.51 mm	70 °C	90 °	1	1	Up

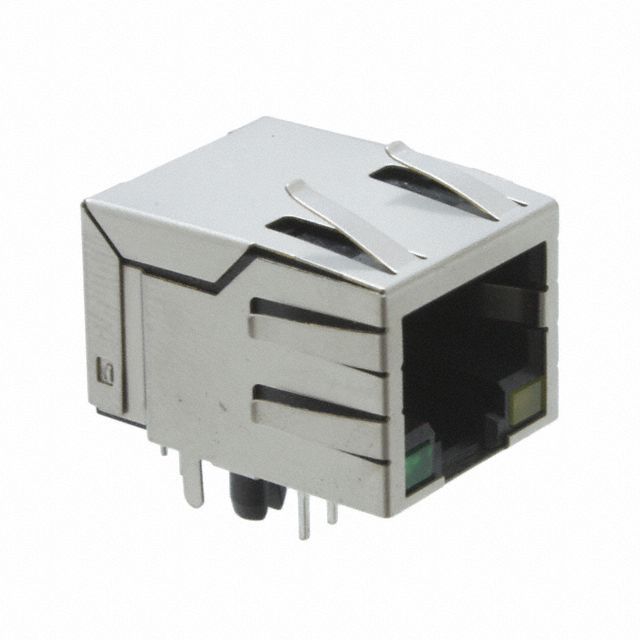

EDAC Inc. A60-113-331P432	Polybutylene Terephthalate (PBT) Glass Filled	0.38 µm	15 µin	Copper Alloy	Board Lock	Phosphor Bronze	EMI Finger Shielded	Through Hole	RJ45	10/100/1000 Base-T AutoMDIX	Green - Yellow	Gold	8	Solder	0.535 in	13.59 mm	70 °C	90 °	1	1	Down

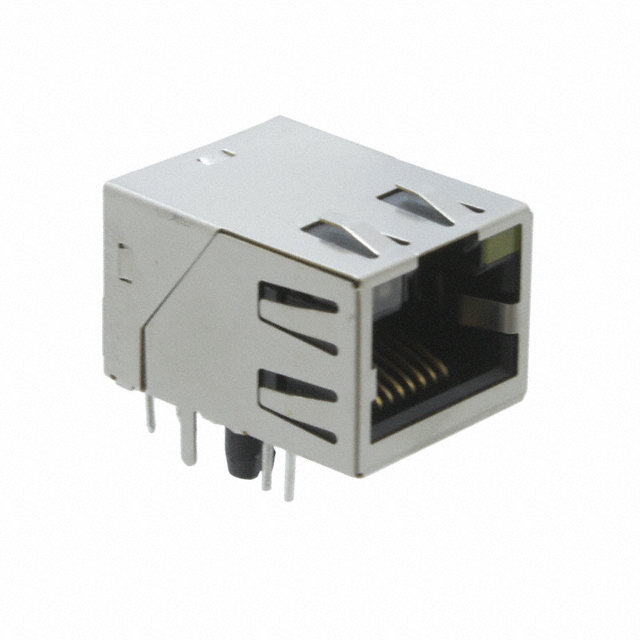

EDAC Inc. A60-113-271N414	Nylon Polyamide (PA) Polyester	0.38 µm	15 µin	Copper Alloy	Board Lock	Phosphor Bronze	EMI Finger Shielded	Through Hole	RJ45	10/100/1000 Base-T AutoMDIX	Green Orange Yellow	Gold	8	Solder	0.53 in	13.45 mm	70 °C	90 °	1	1	Up

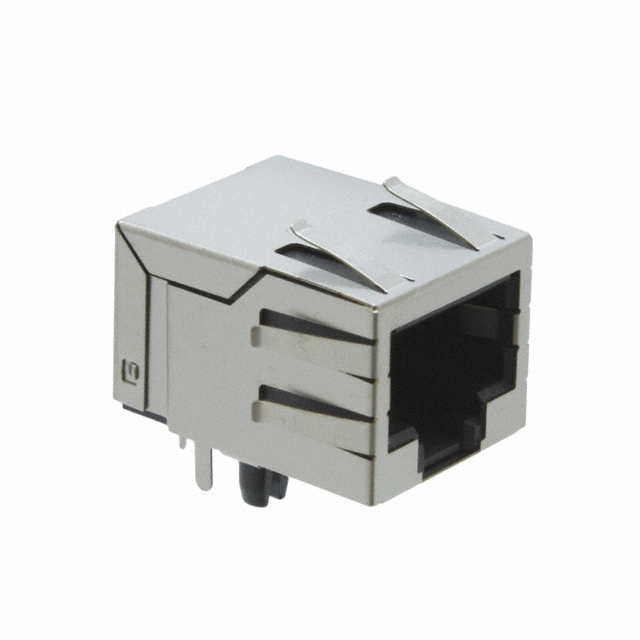

EDAC Inc. A60-113-300P432	Polybutylene Terephthalate (PBT) Glass Filled	0.38 µm	15 µin	Copper Alloy	Board Lock	Phosphor Bronze	EMI Finger Shielded	Through Hole	RJ45	10/100/1000 Base-T AutoMDIX	Does Not Contain LED	Gold	8	Solder	0.535 in	13.59 mm	70 °C	90 °	1	1	Down
EDAC Inc. A60-113-331P411	Polybutylene Terephthalate (PBT) Glass Filled	0.38 µm	15 µin	Copper Alloy	Board Lock	Phosphor Bronze	EMI Finger Shielded	Through Hole	RJ45	10/100/1000 Base-T AutoMDIX	Green - Yellow	Gold	8	Solder	0.535 in	13.59 mm	70 °C	90 °	1	1	Down
EDAC Inc. A60-113-235N414	Nylon Polyamide (PA) Polyester Glass Filled	0.38 µm	15 µin	Copper Alloy	Board Lock	Phosphor Bronze	EMI Finger Shielded	Through Hole	RJ45	10/100/1000 Base-T AutoMDIX	Green Yellow	Gold	8	Solder	0.532 in	13.51 mm	70 °C	90 °	1	1	Up
