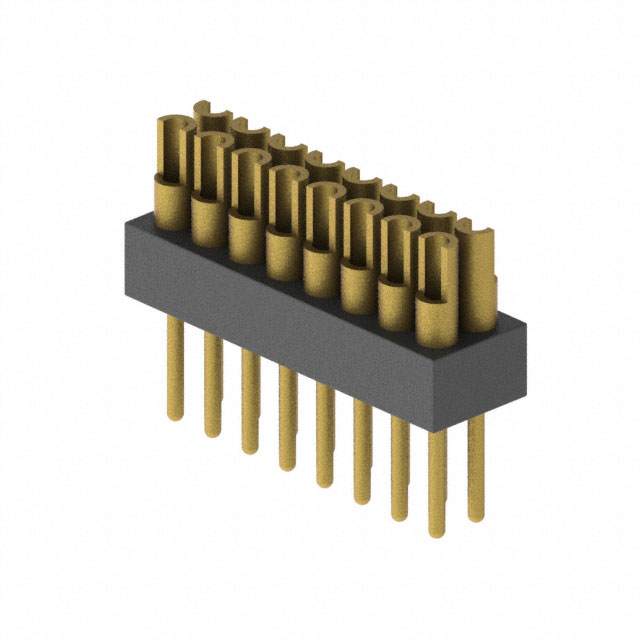

852-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN HEADER VERT 78POS 1.27MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Insulation Material	Contact Shape	Mounting Type	Connector Type	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Mating	Contact Finish - Post	Fastening Type	Contact Material	Contact Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Termination	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Positions [custom]

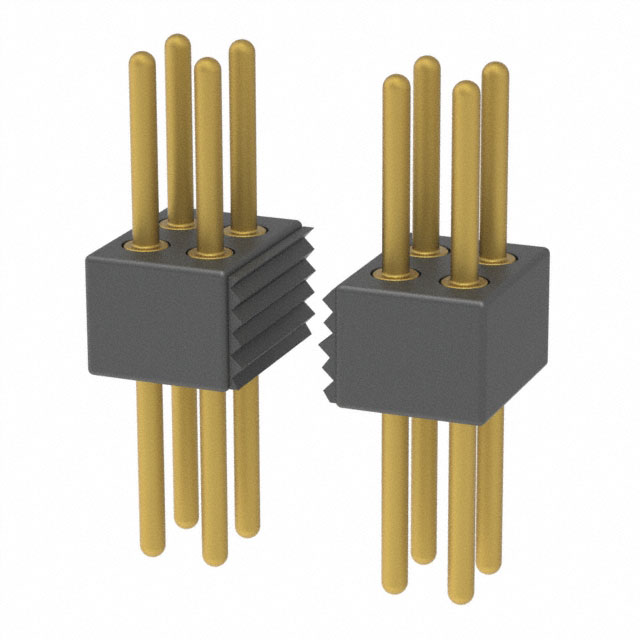

Mill-Max Manufacturing Corp. 852-10-078-10-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Through Hole	Header	2	0.25 µm	10 µin	8.1 mm	0.319 in	3 mm	0.118 in	0.114 in	2.9 mm	78	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All

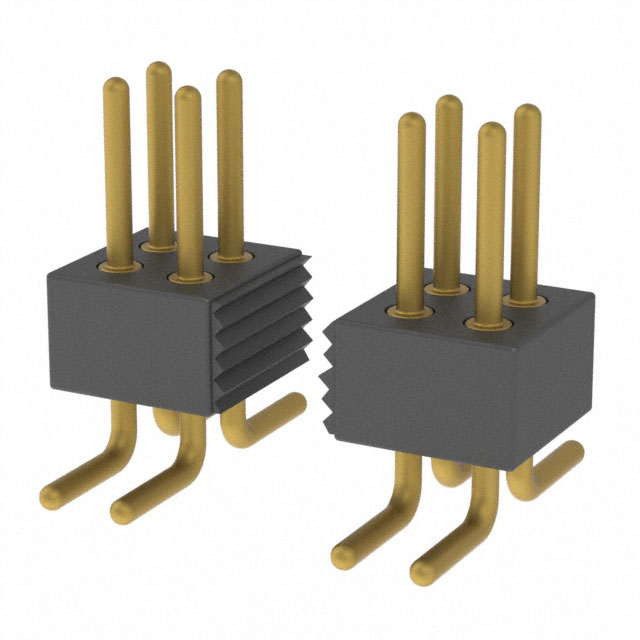

Mill-Max Manufacturing Corp. 852-10-052-30-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Surface Mount	Header	2	0.25 µm	10 µin			3 mm	0.118 in			52	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All
Mill-Max Manufacturing Corp. 852-10-016-10-003000			Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Through Hole	Header	2	0.25 µm	10 µin	7.7 mm	0.303 in	2.54 mm	0.1 in	0.122 in	3.1 mm	16	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All

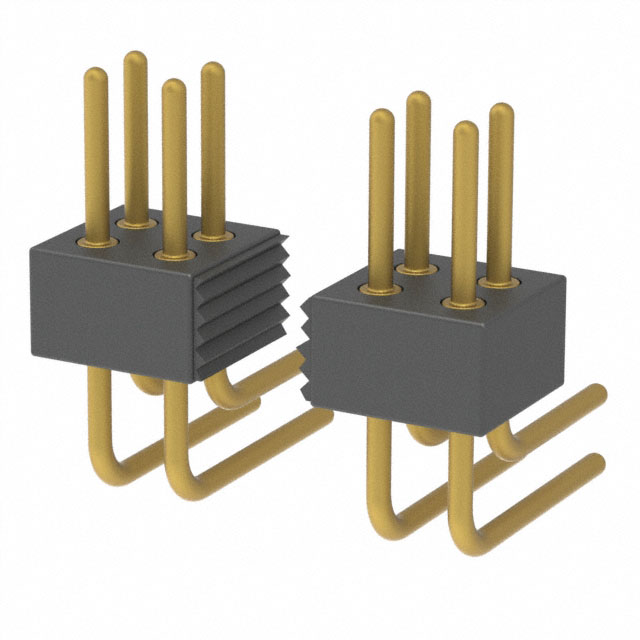

Mill-Max Manufacturing Corp. 852-10-040-20-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Right Angle Through Hole	Header	2	0.25 µm	10 µin			3 mm	0.118 in	0.126 "	3.2 mm	40	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All	3.05 mm	0.12 in
Mill-Max Manufacturing Corp. 852-10-084-30-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Surface Mount	Header	2	0.25 µm	10 µin			3 mm	0.118 in				Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All			84
Mill-Max Manufacturing Corp. 852-10-098-20-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Right Angle Through Hole	Header	2	0.25 µm	10 µin			3 mm	0.118 in	0.126 "	3.2 mm	98	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All	3.05 mm	0.12 in
Mill-Max Manufacturing Corp. 852-10-056-10-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Through Hole	Header	2	0.25 µm	10 µin	8.1 mm	0.319 in	3 mm	0.118 in	0.114 in	2.9 mm	56	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All
Mill-Max Manufacturing Corp. 852-10-098-30-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Surface Mount	Header	2	0.25 µm	10 µin			3 mm	0.118 in			98	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All
Mill-Max Manufacturing Corp. 852-10-062-30-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Surface Mount	Header	2	0.25 µm	10 µin			3 mm	0.118 in			62	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All
Mill-Max Manufacturing Corp. 852-10-080-10-001000	10 Áin	0.25 çm	Unshrouded	Nylon 4/6 Polyamide (PA46)	Circular	Through Hole	Header	2	0.25 µm	10 µin	8.1 mm	0.319 in	3 mm	0.118 in	0.114 in	2.9 mm	80	Gold	Gold	Push-Pull	Brass Alloy	Male Pin	1.27 mm	0.05 in	0.05 in	1.27 mm	Solder	Black	All
