09225SS Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

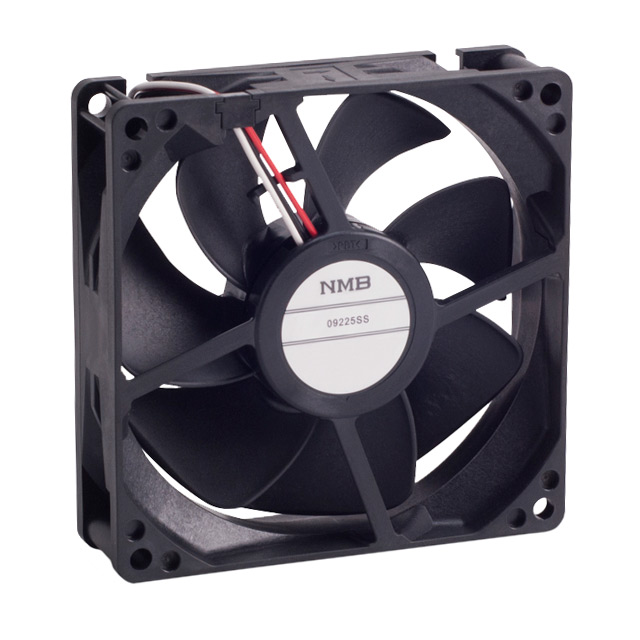

DC FANS DC TUBEAXIAL FAN, 92X92X25MM, 12VDC, 39.9CFM, FLANGE MOUNT, SLEEVE, LEAD WIRES
| Part | Air Flow | Air Flow | Lifetime @ Temp. | Features | RPM | Material - Frame | Power (Watts) | Current Rating (Amps) | Fan Type | Bearing Type | Voltage - Rated | Material - Blade | Width [y] | Voltage Range [Max] | Voltage Range [Min] | Termination | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 1.13 mł/min | 40.2 CFM | 40 °C 50000 Hrs | Auto Restart | 2400 RPM | Plastic | 1.08 W | 0.09 A | Tubeaxial | Sleeve | 12 VDC | Plastic | 25 mm | 13.8 VDC | 6 VDC | 2 Wire Leads | 92 mm | 92 mm | 70 °C | -10 °C | 0.116 in H2O | 29 Pa | 25 dB(A) |
NMB TECHNOLOGIES | 1.13 mł/min | 40.2 CFM | Auto Restart | 2400 RPM | 1.08 W | Tubeaxial | Sleeve | 12 VDC | 25 mm | 2 Wire Leads | 92 mm | 92 mm | 70 °C | -10 °C | 0.116 in H2O | 29 Pa | 25 dB(A) | ||||||
 NMB TECHNOLOGIES | 1.82 m³/min | 65 CFM | 40 °C 50000 Hrs | Auto Restart Speed Sensor (Tach) | 3900 RPM | Plastic | 3.36 W | 140 mA | Tubeaxial | Sleeve | 24 VDC | Plastic | 25 mm | 27.6 VDC | 12 | 3 Wire Leads | 92 mm | 92 mm | 70 °C | -10 °C | 0.29 in H2O | 72.2 Pa | 40 dB(A) |
