DSC1033 Series

Catalog

MEMS OSC XO 12.0000MHZ CMOS SMD

Part	Voltage - Supply	Frequency Stability	Type	Current - Supply (Max) [Max]	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Output	Base Resonator	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Function	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Supply (Disable) (Max) [Max]	Current - Supply (Max)

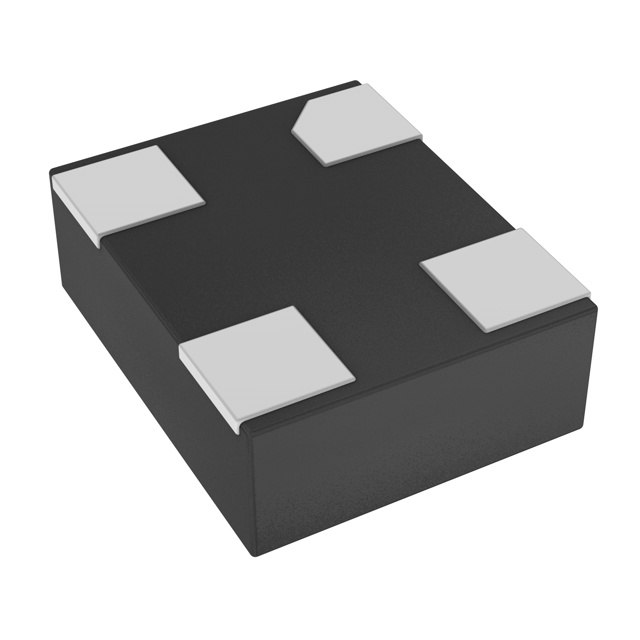

Microchip Technology DSC1033CC2-012.0000	3.3 V	25 ppm	XO (Standard)	10 mA	12 MHz	0.035 "	0.9 mm	4-SMD No Lead	CMOS	MEMS	70 °C	0 °C	Surface Mount	Standby (Power Down)	3.2 mm	2.5 mm	0.126 in	0.098 in	1 µA

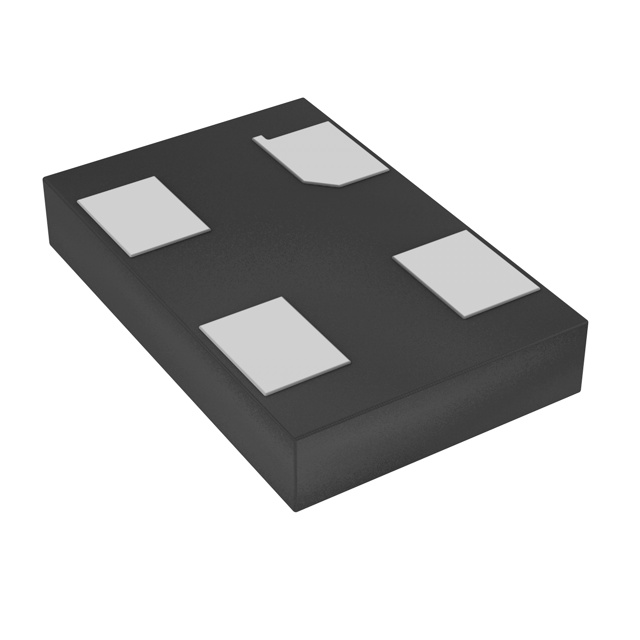

Microchip Technology DSC1033BE1-004.0625T	3.3 V	50 ppm	XO (Standard)	10 mA	4.0625 MHz	0.035 "	0.9 mm	4-SMD No Lead	CMOS	MEMS	70 °C	-20 C	Surface Mount	Standby (Power Down)	5 mm	3.2 mm	0.197 in	0.126 "	1 µA
Microchip Technology DSC1033AC1-025.0000	3.3 V	50 ppm	XO (Standard)		25 MHz	0.035 "	0.9 mm	4-SMD No Lead Exposed Pad	CMOS	MEMS	70 °C	0 °C	Surface Mount	Standby (Power Down)	7 mm	5 mm	0.276 "	0.197 "	1 µA	3 mA
Microchip Technology DSC1033AC1-008.0000	3.3 V	50 ppm	XO (Standard)		8 MHz	0.035 "	0.9 mm	4-SMD No Lead Exposed Pad	CMOS	MEMS	70 °C	0 °C	Surface Mount	Standby (Power Down)	7 mm	5 mm	0.276 "	0.197 "	1 µA	3 mA
Microchip Technology DSC1033CE2-025.0000T	3.3 V	25 ppm	XO (Standard)	10 mA	25 MHz	0.035 "	0.9 mm	4-SMD No Lead	CMOS	MEMS	70 °C	-20 C	Surface Mount	Standby (Power Down)	3.2 mm	2.5 mm	0.126 in	0.098 in	1 µA
Microchip Technology DSC1033AC1-025.0000T	3.3 V	50 ppm	XO (Standard)		25 MHz	0.035 "	0.9 mm	4-SMD No Lead Exposed Pad	CMOS	MEMS	70 °C	0 °C	Surface Mount	Standby (Power Down)	7 mm	5 mm	0.276 "	0.197 "	1 µA	3 mA
Microchip Technology DSC1033DI2-025.0000	3.3 V	25 ppm	XO (Standard)		25 MHz	0.035 "	0.9 mm	4-SMD No Lead	CMOS	MEMS	85 °C	-40 °C	Surface Mount	Standby (Power Down)	2.5 mm	2 mm	0.098 "	0.079 in	1 µA	3 mA
Microchip Technology DSC1033DI2-005.1200T	3.3 V	25 ppm	XO (Standard)		5.12 MHz	0.035 "	0.9 mm	4-SMD No Lead	CMOS	MEMS	85 °C	-40 °C	Surface Mount	Standby (Power Down)	2.5 mm	2 mm	0.098 "	0.079 in	1 µA	3 mA
Microchip Technology DSC1033DC2-025.0000T	3.3 V	25 ppm	XO (Standard)		25 MHz	0.035 "	0.9 mm	4-SMD No Lead	CMOS	MEMS	70 °C	0 °C	Surface Mount	Standby (Power Down)	2.5 mm	2 mm	0.098 "	0.079 in	1 µA	4 mA
Microchip Technology DSC1033CE2-002.4576T	3.3 V	25 ppm	XO (Standard)		2.4576 MHz	0.035 "	0.9 mm	4-SMD No Lead	CMOS	MEMS	70 °C	-20 C	Surface Mount	Standby (Power Down)	3.2 mm	2.5 mm	0.126 in	0.098 in	1 µA	3 mA
