A3C-10DA Series

Catalog

CONN RCPT 10POS 0.079 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Connector Type	Termination	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Mated Stacking Heights	Style	Number of Positions Loaded	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Color	Contact Length - Post

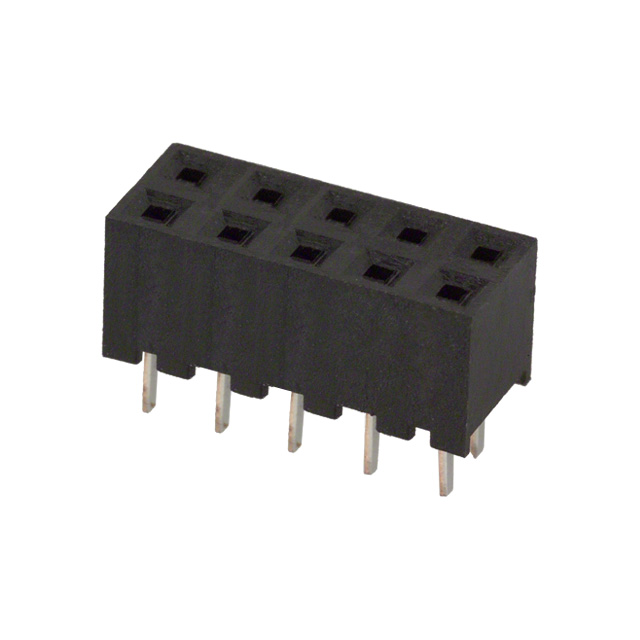

Hirose Electric Co Ltd A3C-10DA-2DSC(71)	Square	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Phosphor Bronze	0.079 "	2 mm	Gold	200 VAC	8 µin	0.203 µm	Push-Pull	Receptacle	Solder	Female Socket	Through Hole	-55 C	85 °C	2	2 mm	0.079 in	0.165 in	4.2 mm	Tin	5.1 mm 6 mm	Board to Board Cable	All	10	2 mm	0.079 in	UL94 V-0	Black

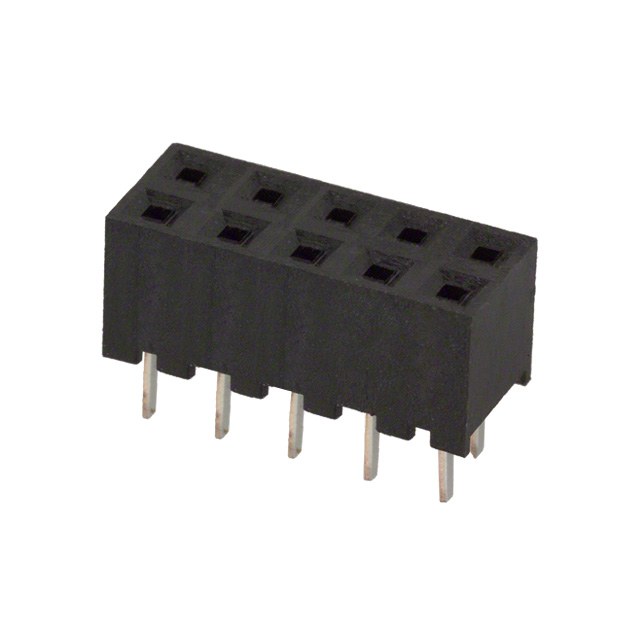

Hirose Electric Co Ltd A3C-10DA-2DSA(71)	Square	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Phosphor Bronze	0.079 "	2 mm	Gold	200 VAC	8 µin	0.203 µm	Push-Pull	Receptacle	Solder	Female Socket	Through Hole	-55 C	85 °C	2	2 mm	0.079 in	0.165 in	4.2 mm	Tin	5.1 mm 6 mm	Board to Board Cable	All	10		3 mm	UL94 V-0	Black	0.118 in
Hirose Electric Co Ltd A3C-10DA-2DSA	Square	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Phosphor Bronze	0.079 "	2 mm	Gold	200 VAC	8 µin	0.203 µm	Push-Pull	Receptacle	Solder	Female Socket	Through Hole	-55 C	85 °C	2	2 mm	0.079 in	0.165 in	4.2 mm	Tin	5.1 mm 6 mm	Board to Board Cable	All	10		3 mm	UL94 V-0	Black	0.118 in
Hirose Electric Co Ltd A3C-10DA-2DSC	Square	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Phosphor Bronze	0.079 "	2 mm	Gold	200 VAC	8 µin	0.203 µm	Push-Pull	Receptacle	Solder	Female Socket	Through Hole	-55 C	85 °C	2	2 mm	0.079 in	0.165 in	4.2 mm	Tin	5.1 mm 6 mm	Board to Board Cable	All	10	2 mm	0.079 in	UL94 V-0	Black
