FH52 Series

Catalog

CONN FFC FPC BOTTOM 60POS 1MM RA

...

Part	Contact Material	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable End Type	Features	Current Rating (Amps)	Flat Flex Type	Housing Material	Termination	Housing Color	Actuator Color	Mating Cycles	Pitch [x]	Pitch [x]	Material Flammability Rating	Locking Feature	Contact Finish Thickness	Contact Finish Thickness	Connector/Contact Type	Voltage Rating	Height Above Board	Height Above Board	Contact Finish	FFC, FCB Thickness	Number of Positions
Hirose Electric USA, Inc. FH52E-60(30)SB-1SH	Phosphor Bronze	Surface Mount Right Angle	60	30	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Tabbed	Solder Retention Zero Insertion Force (ZIF)	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP)	Solder	Gray	Black	20	0.039 in	1 mm	UL94 V-0	Backlock Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm
Hirose Electric USA, Inc. FH52E-60S-0.5SH	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed		0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	60
Hirose Electric USA, Inc. FH52-26S-0.5SH	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed		0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom		0.079 in	2 mm	Gold	0.3 mm	26
Hirose Electric USA, Inc. FH52K-22S-0.5SH	Copper Alloy	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	125 °C	Tabbed	Solder Retention	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	22 positions

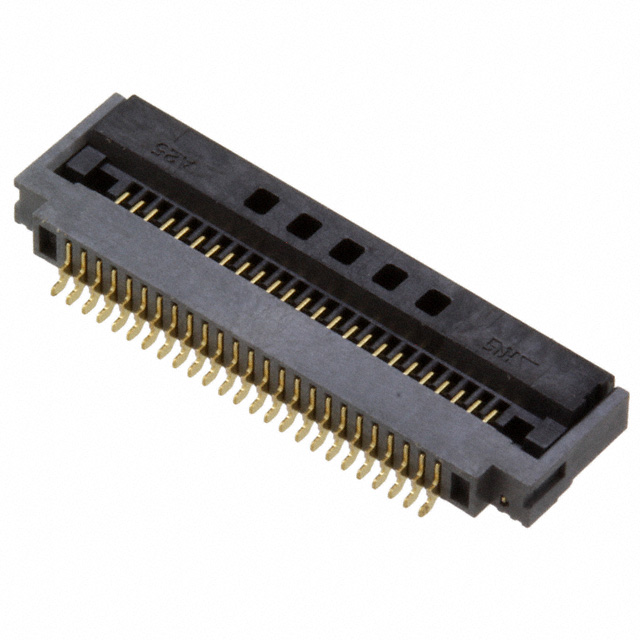

Hirose Electric USA, Inc. FH52-25S-0.5SH	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed		0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom		0.079 in	2 mm	Gold	0.3 mm
Hirose Electric USA, Inc. FH52K-15S-0.5SH	Copper Alloy	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	125 °C	Tabbed	Solder Retention	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	15
Hirose Electric USA, Inc. FH52T-50S-0.5SH	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed	Solder Retention Zero Insertion Force (ZIF)	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	50

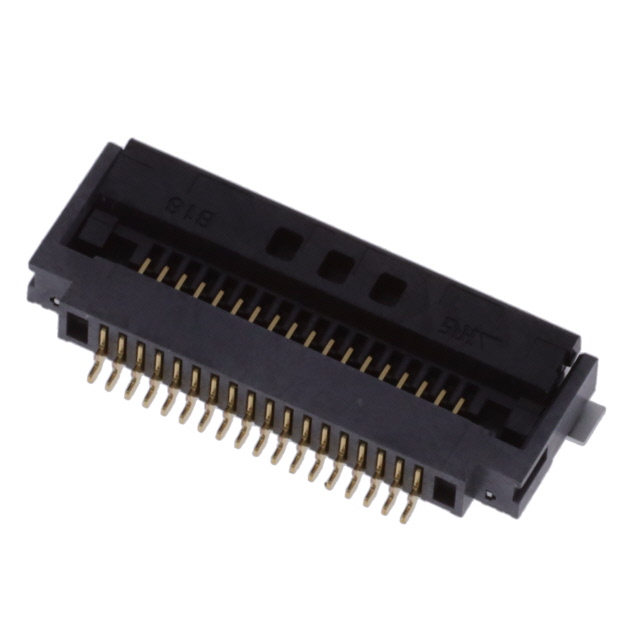

Hirose Electric USA, Inc. FH52E-18S-0.5SH(99)	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed		0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	18
Hirose Electric USA, Inc. FH52E-8(4)SB-1SH(99)	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Tabbed	Solder Retention Zero Insertion Force (ZIF)	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP)	Solder	Gray	Black	20	0.039 in	1 mm	UL94 V-0	Backlock Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	8

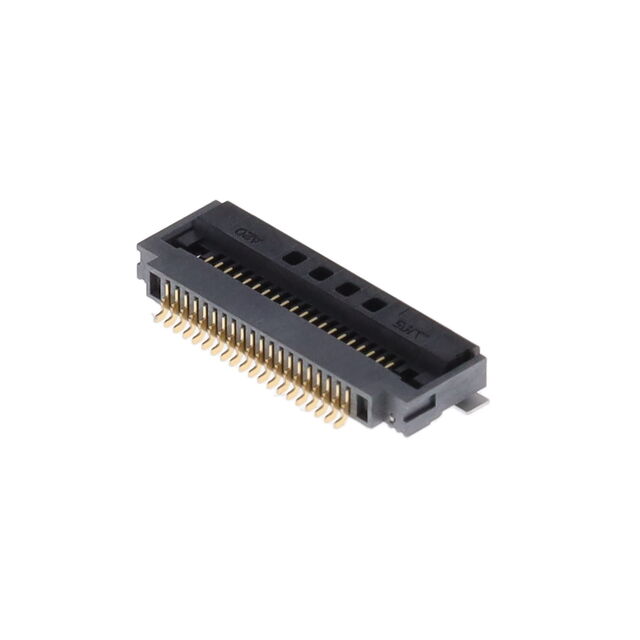

Hirose Electric USA, Inc. FH52K-20S-0.5SH	Copper Alloy	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	125 °C	Tabbed	Solder Retention	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	20
