C1604 Series

Catalog

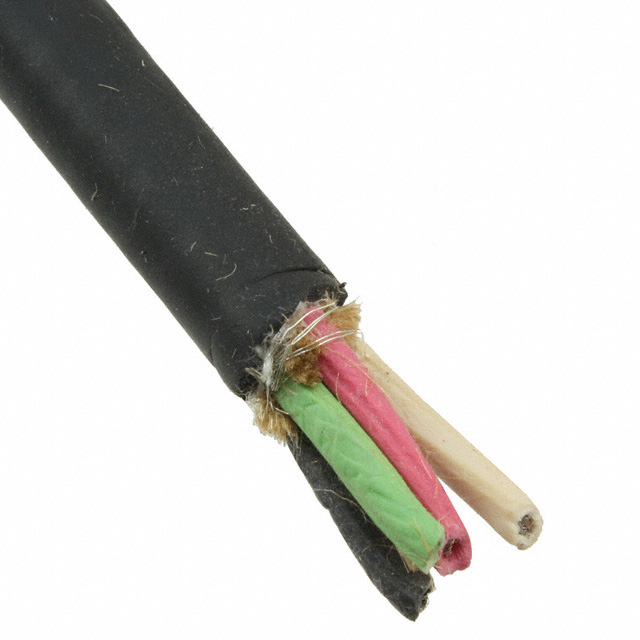

CABLE 4COND 16AWG BLACK SHLD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Conductor Insulation	Length	Length	Usage	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Shield Type	Voltage	Shield Material	Shield Coverage
Prysmian Group C1604.41.01	-25 °C	60 °C	Multi-Conductor	0.385 in	9.78 mm	Black	4	Rubber	15.24 m 304.8 m	50 ft 1000 ft	Communication Control	16 AWG	Carolprene	Copper Tinned	65	34 AWG	0.035 in	0.889 mm	100 ft	30.5 m	Braid	300 VDC
Prysmian Group C1604.41.01	-25 °C	60 °C	Multi-Conductor	0.385 in	9.78 mm	Black	4	Rubber	15.24 m 304.8 m	50 ft 1000 ft	Communication Control	16 AWG	Carolprene	Copper Tinned	65	34 AWG	0.035 in	0.889 mm	100 ft	30.5 m	Braid	300 VDC	Copper Tinned	80 %
