HMC813-Die Series
Successive Detection Log Video Amplifier (SDLVA) Chip, 1 - 26 GHz
Manufacturer: Analog Devices
Catalog
Successive Detection Log Video Amplifier (SDLVA) Chip, 1 - 26 GHz
Key Features
• High Logging Range: 55 dB
• Frequency Flatness: ±1.5 dB
• Saturated Output Power: -7 dBm
• Fast Rise/Fall Times: 4/10 ns
• Single Positive Supply: +3.3V
• ESD Sensitivity (HBM): Class 1A
• -55 to +85 °C Operating Temperature
Description
AI

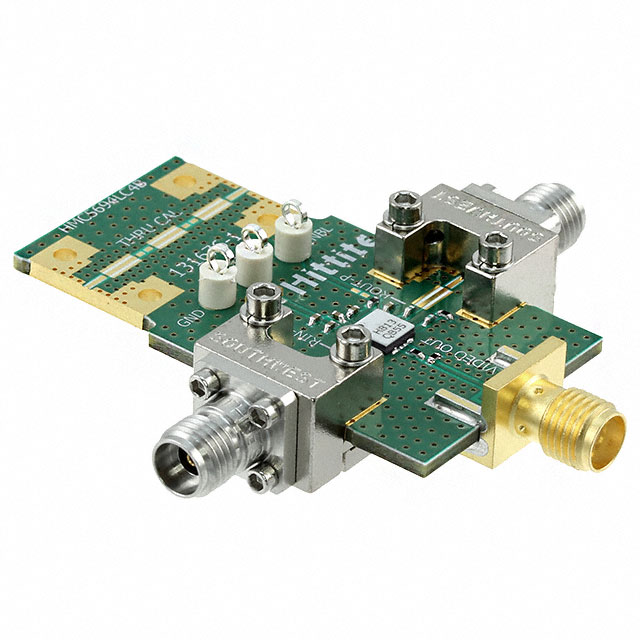

The HMC813LC4B is a Successive Detection Log Video Amplifier (SDLVA) with a limited RF output which operates from 1 to 20 GHz. The HMC813LC4B provides a logging range of 55 dB. This device offers typical fast rise/fall times of 5/10 ns. The HMC813LC4B log video output slope is typically 15 mV/dB. Maximum recovery times are less than 15 ns. Ideal for high speed channelized receiver applications, the HMC813LC4B operates from a single +3.3 V supply, and consumes only 153 mA. The HMC813LC4B is available in a highly compact 4×4 mm SMT ceramic package and is ideal for high speed channelized receiver applications.APPLICATIONSEW, ELINT & IFM ReceiversDF Radar SystemsECM SystemsBroadband Test & MeasurementPower Measurement & Control CircuitsMilitary & Space Applications
